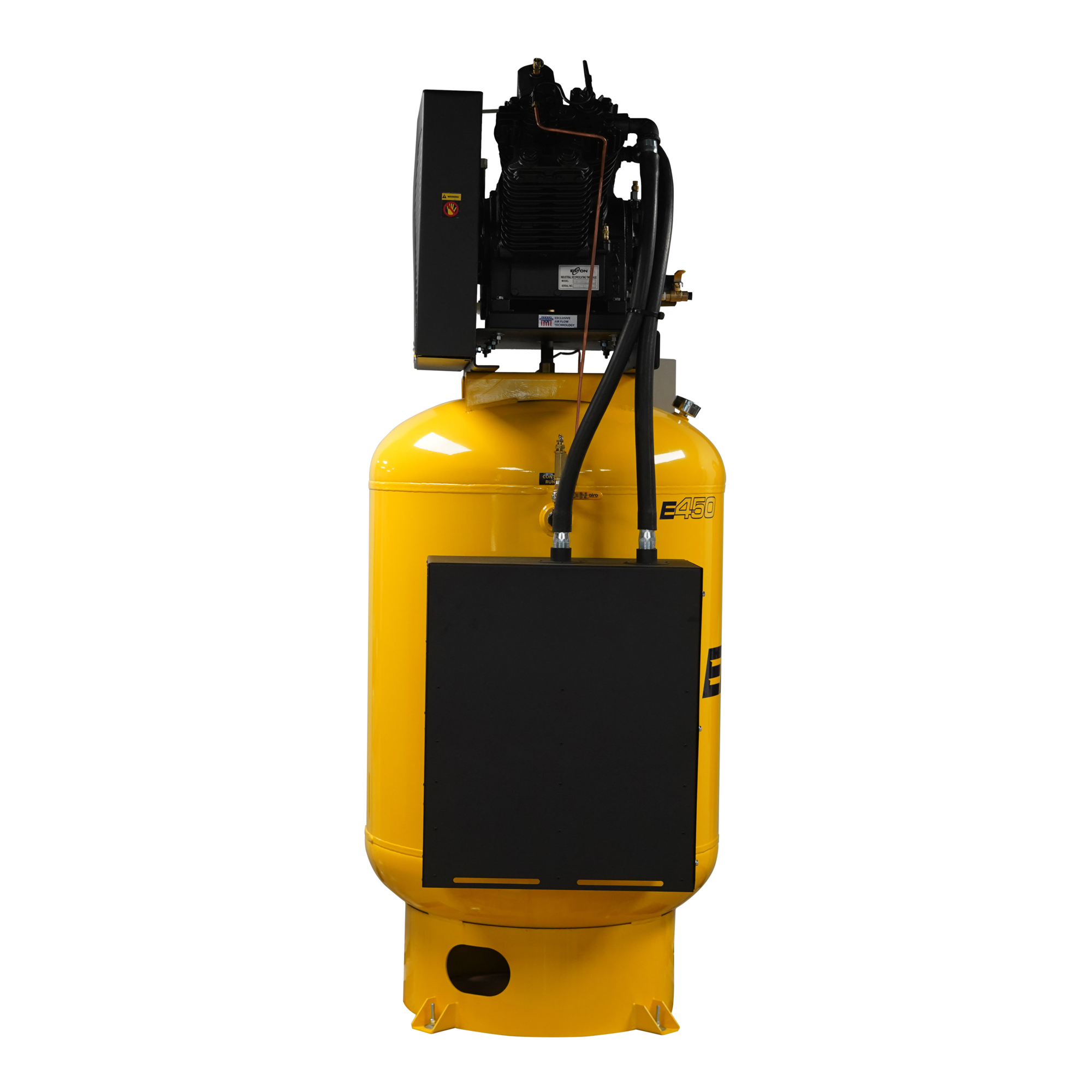

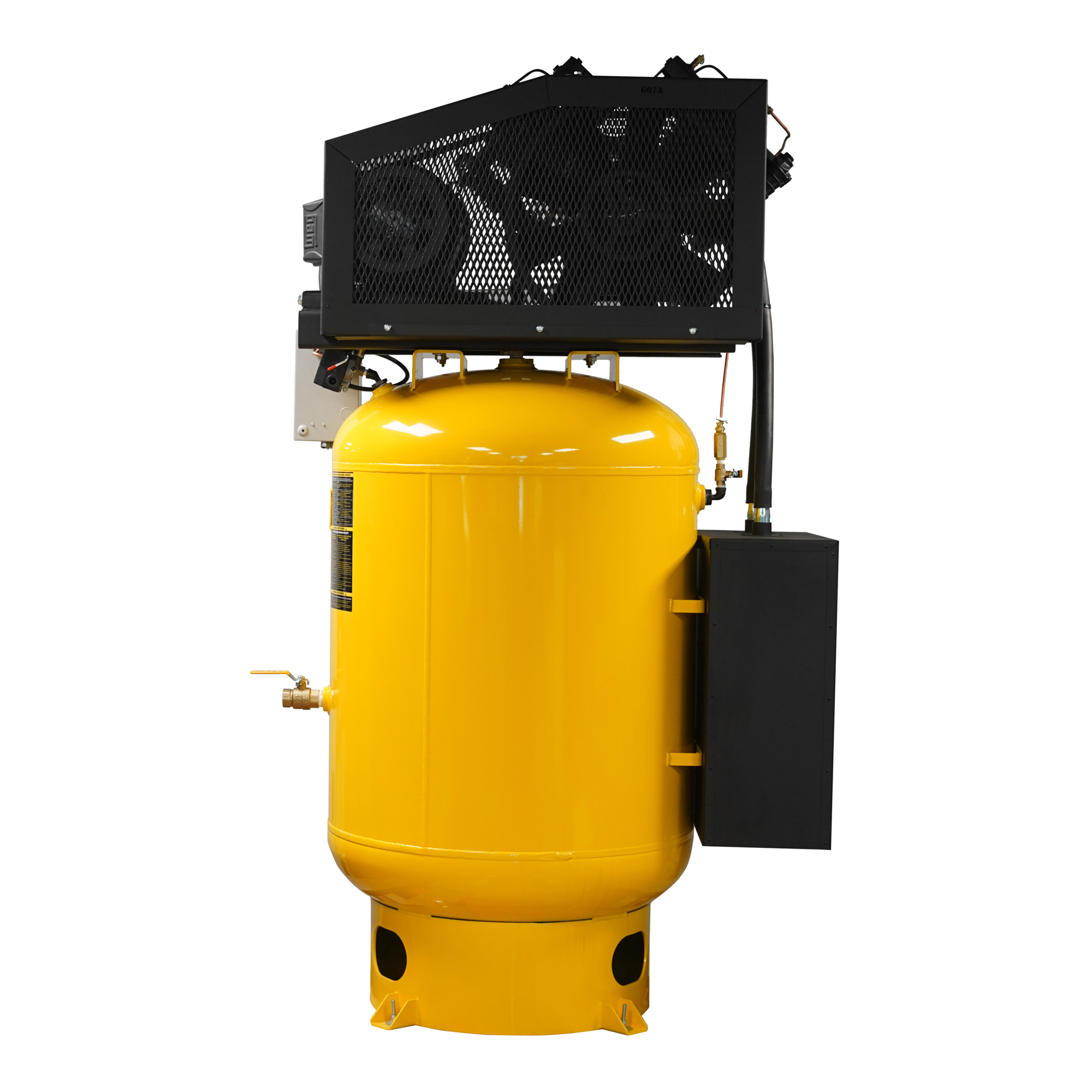

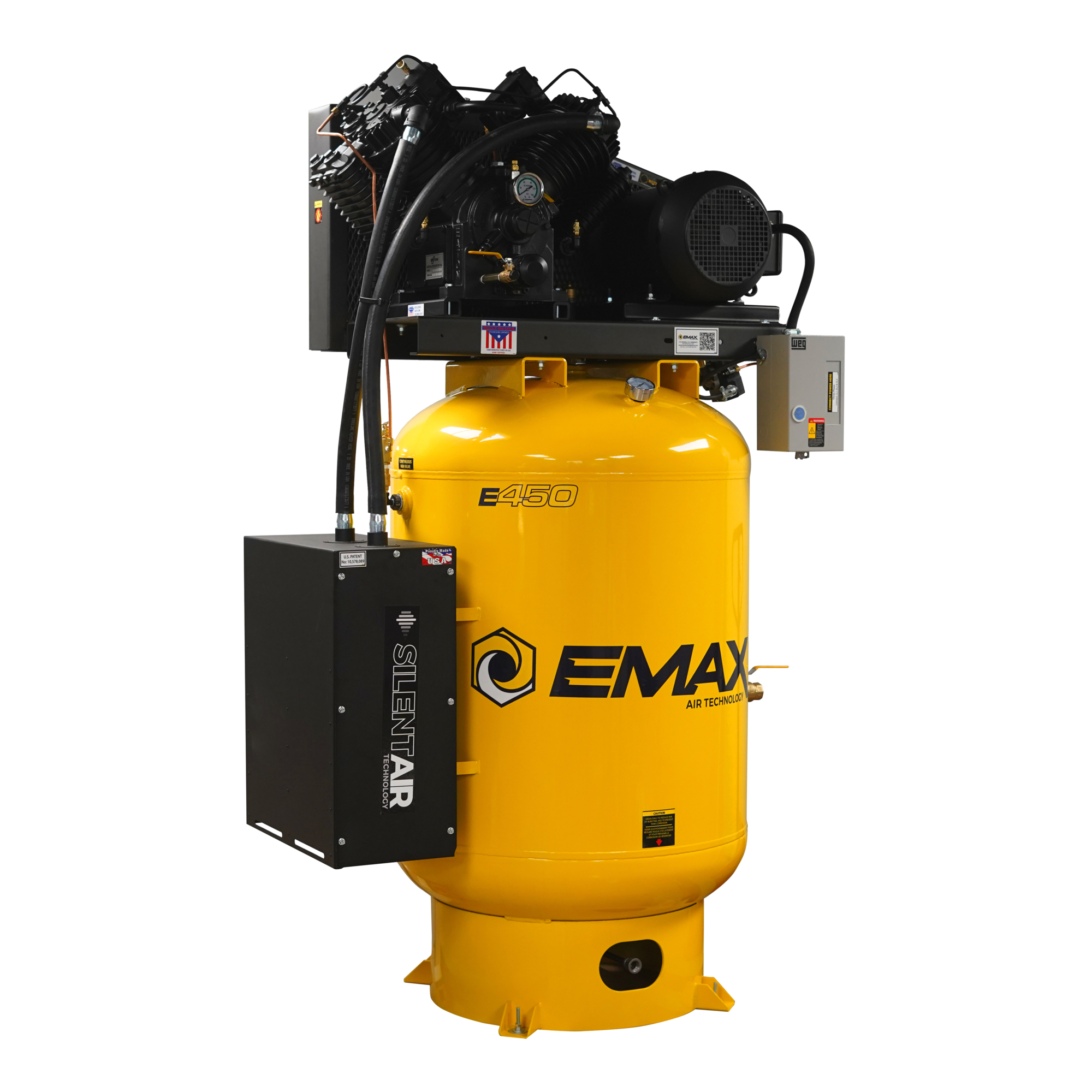

EMAX Vertical Air Compressor w/ Silencer, Pressure Lube Pump, 7.5HP, 120 Gal, 460 Volts, Model# ESP07V120V3-460

Item# 4942636
EMAX Vertical Air Compressor w/ Silencer, Pressure Lube Pump, 7.5HP, 120 Gal, 460 Volts, Model# ESP07V120V3-460

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Vertical Air Compressor w/ Silencer, Pressure Lube Pump, 7.5HP, 120 Gal, 460 Volts, Model# ESP07V120V3-460

Click or Tap image to Zoom

$6013.71

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining Whisper100 dissipates air compressor intake noise by channeling the intake air through a series of baffle plates ETL Certified Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt Re-usable oil filter Removable 100% cast iron cylinders do not warp from heat All cast iron cylinder heads are durable and dependable Disc valve design intake and exhaust valves can be serviced in minutes Top quality compression and oil rings ensure performance with low oil carry over Precision ground pistons are machined to tight tolerances that ensure low oil carry over Premium non-absorbent gaskets prevent oil seepage from the pump All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat Built-in inter-cooler and after-coolers Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate Name brand open drip motors have a 5 year warranty Large 1-3/8 in. output shaft on the motor Large starting and running capacitors Motor can be pulled 15% over full load for more break horsepower Dynamically balanced armature for low vibration levels Belt guard is made from 13-gauge steel and premium grade expanded metal Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower All check valves on the air compressor are brass with a Teflon seating to reduce tank noise 100% brass ASME safety valves are preset and sealed for correct settings

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This EMAX Industrial Plus 7.5HP 2 Stage V4 3Phase vertical 120gal. Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31CFM 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 60,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our Patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry! 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) EMAX Premium 7.5 HP 3 PH 460 Volt 120 GALLON VERTICAL WITH AIR SILENCER-With Pressure Lube Pump

Features + Benefits

  • Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining Whisper100 dissipates air compressor intake noise by channeling the intake air through a series of baffle plates ETL Certified Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt Re-usable oil filter Removable 100% cast iron cylinders do not warp from heat All cast iron cylinder heads are durable and dependable Disc valve design intake and exhaust valves can be serviced in minutes Top quality compression and oil rings ensure performance with low oil carry over Precision ground pistons are machined to tight tolerances that ensure low oil carry over Premium non-absorbent gaskets prevent oil seepage from the pump All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat Built-in inter-cooler and after-coolers Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate Name brand open drip motors have a 5 year warranty Large 1-3/8 in. output shaft on the motor Large starting and running capacitors Motor can be pulled 15% over full load for more break horsepower Dynamically balanced armature for low vibration levels Belt guard is made from 13-gauge steel and premium grade expanded metal Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower All check valves on the air compressor are brass with a Teflon seating to reduce tank noise 100% brass ASME safety valves are preset and sealed for correct settings

Key Specs

AttributeSpecification

item#

4942636

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1085.0 LB

Air Tank Size

120 Gal

Volts

460

CFM at 90 PSI

31

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

9

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

145 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1 in. NPT

CFM at 40 PSI

33

CFM at Max. PSI

25

Noise Level

79 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

No

Tank Fill Time

4 min

Air Dryer

None

Drain Type

Automatic

Product Weight

810.0000 lb

Dimensions L x W x H (in.)

41.0 x 43.0 x 78.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
