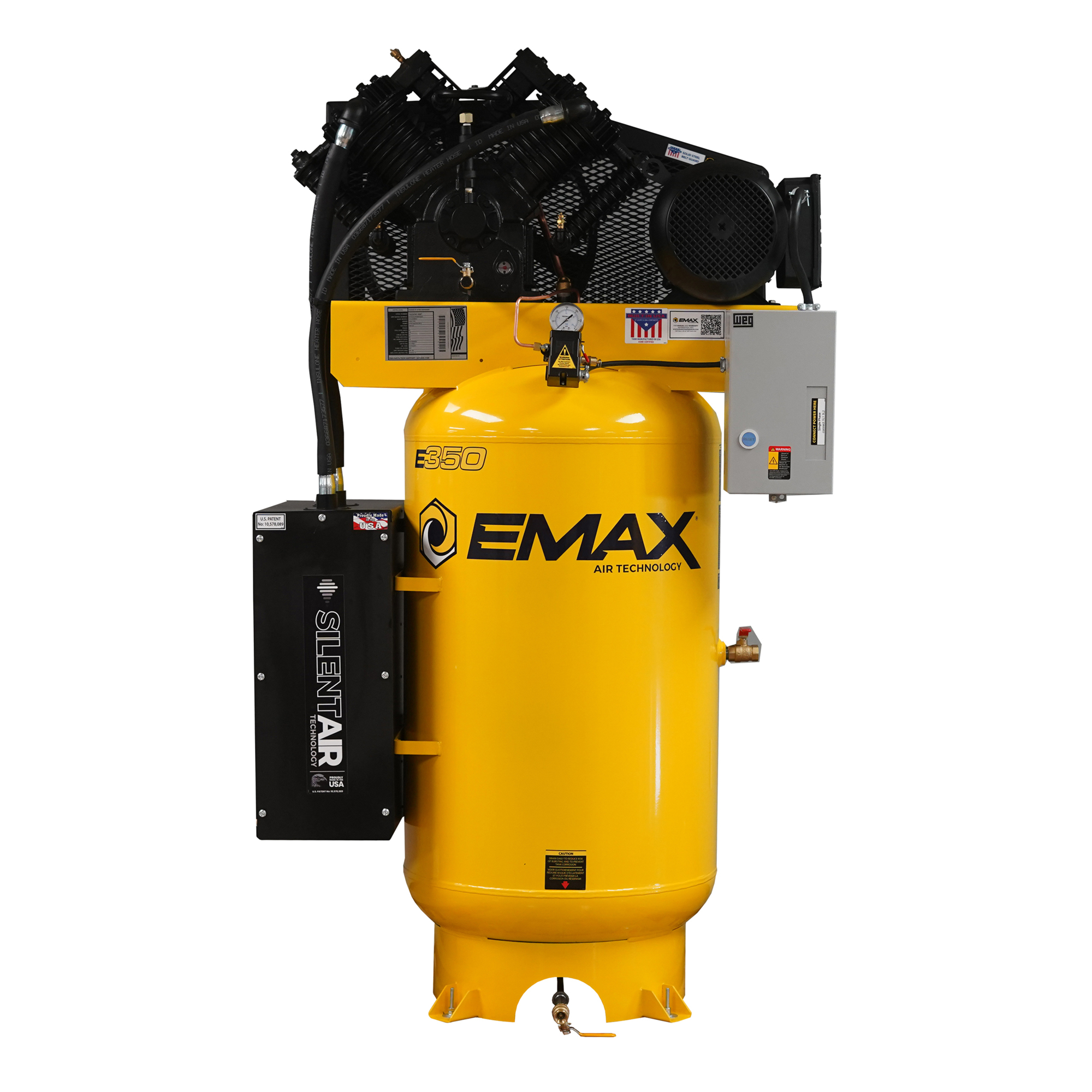

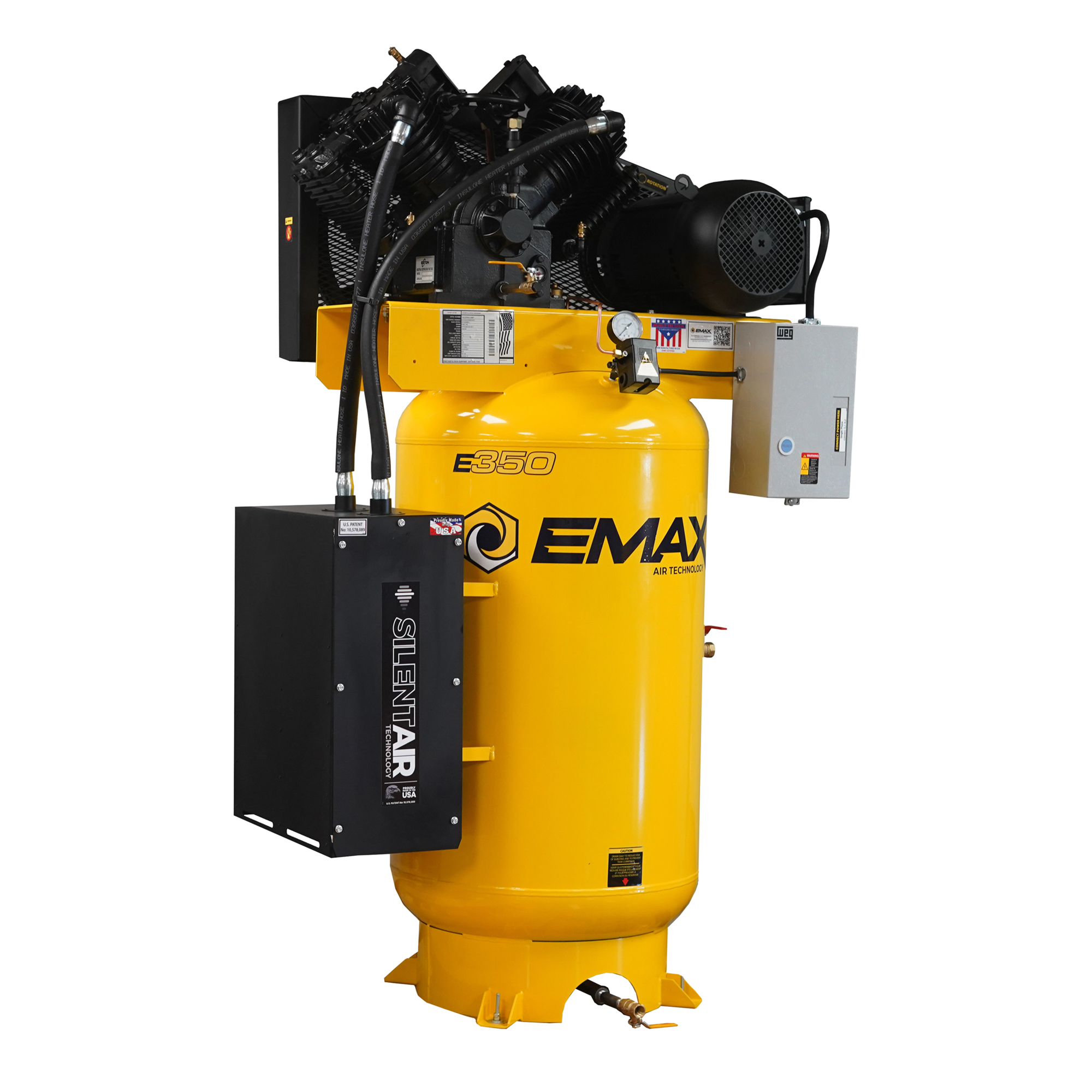

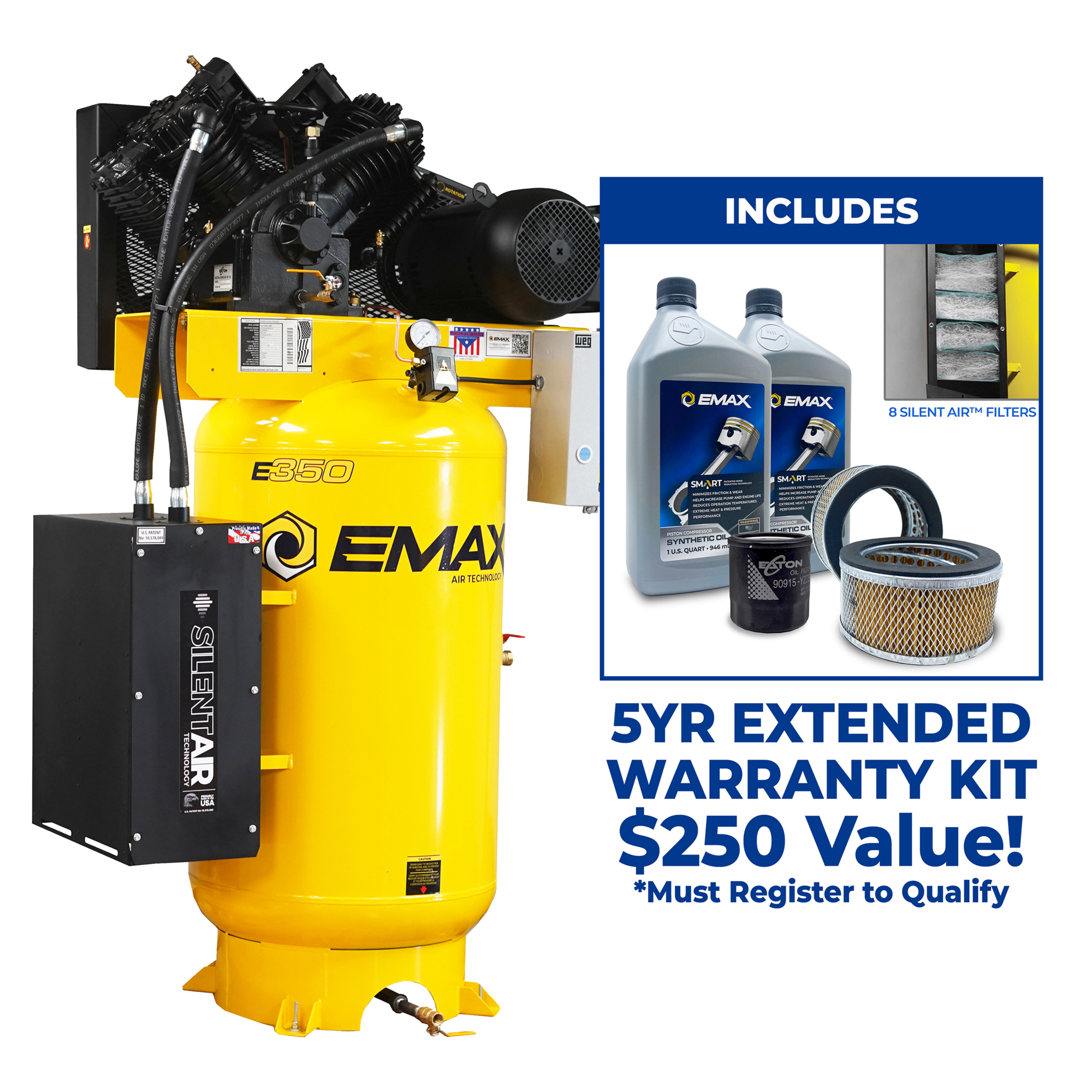

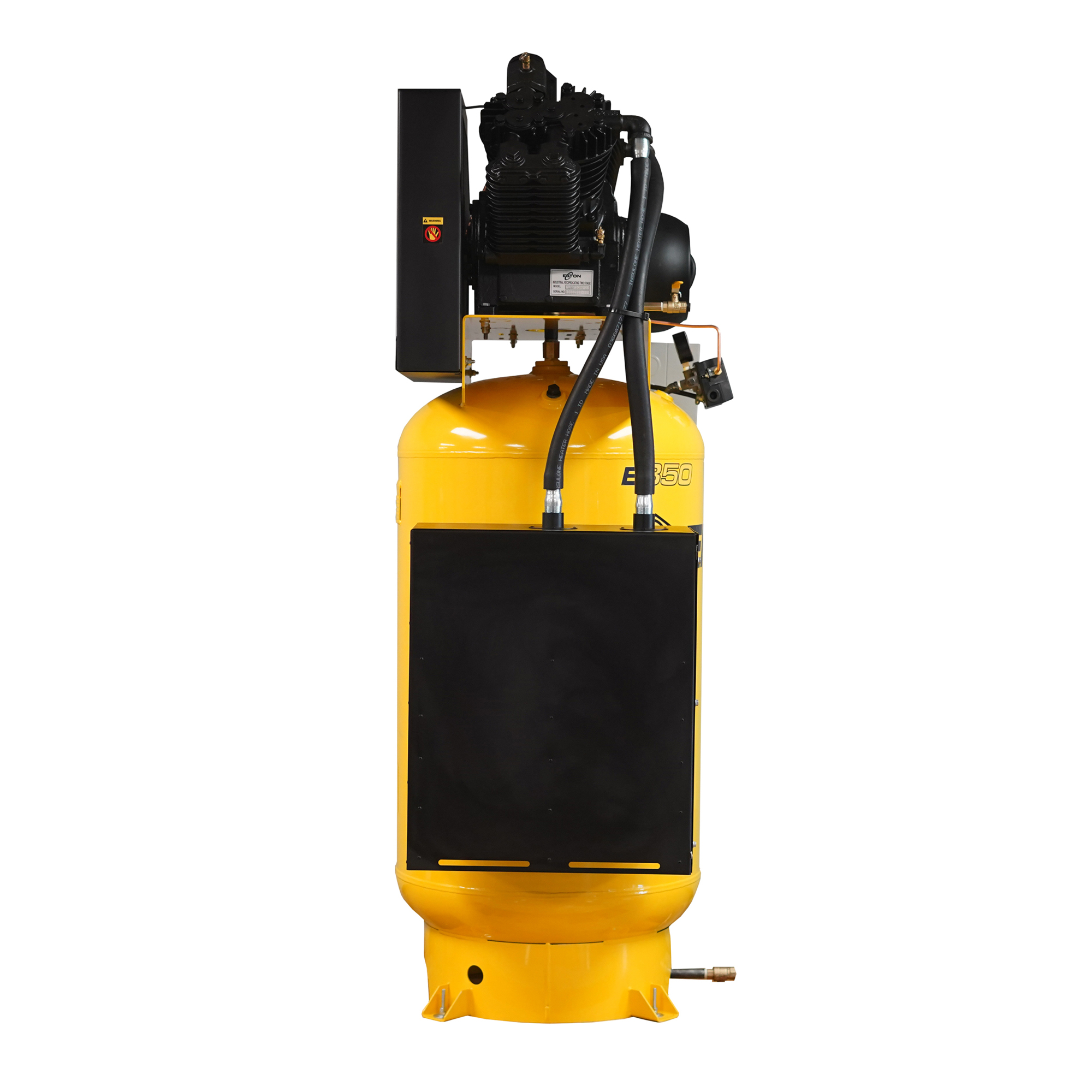

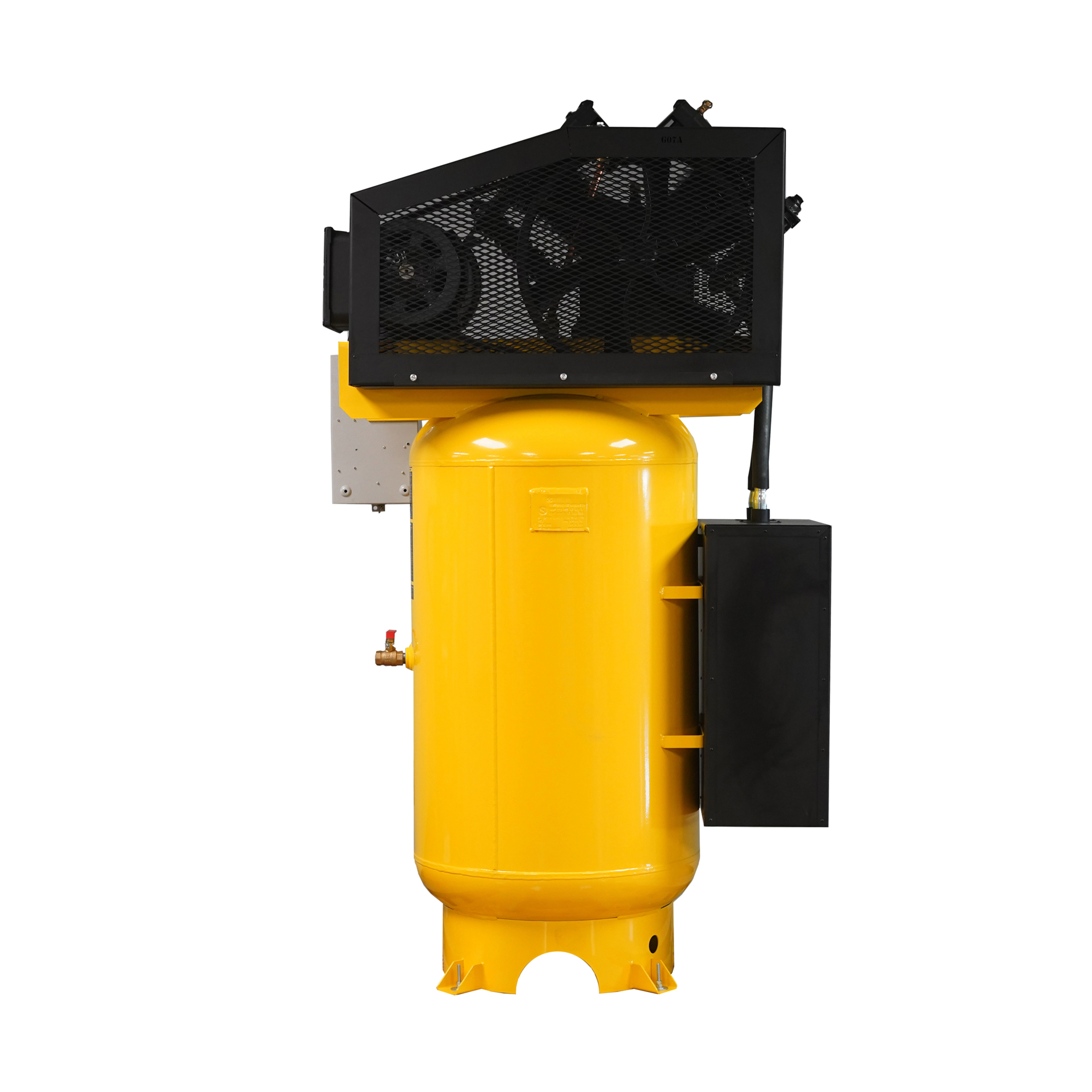

Emax Silent Air 10 HP Air Compressor — 80-Gal., 38 CFM, Two-Stage, 4-Cylinder, Splash Lube, Includes Maintenance Kit, Model# ESS10V080V1K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- 60% DUTY cycle, Operation: automatic start/stop
- Patented Silent Air Technology with 5 Stage Filtration
- Magnetic Starter with overload protection
- 1740RPM Industrial Grade Electric Motor
- Two Stage Solid Cast Iron low RPM Pressure Lube Pump with High CFM output
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Air Compressor (1) Maintenance Kit
Features + Benefits
- 60% DUTY cycle, Operation: automatic start/stop
- Patented Silent Air Technology with 5 Stage Filtration
- Magnetic Starter with overload protection
- 1740RPM Industrial Grade Electric Motor
- Two Stage Solid Cast Iron low RPM Pressure Lube Pump with High CFM output
- 18 gauge steel Belt guard
- ASME 80 Gallon Tank with ring base mount Powdercoated Tank
- 175PSI Max PSI
- ETL Certified
- First Maintenance Kit Up to a $250 Value!
Key Specs
| Attribute | Specification |
|---|---|
item# | 7349336 |
Brand | EMAX |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 1000.0 LB |
Horsepower | 10 HP |
Air Tank Size | 80 Gal |
Volts | 230 |
Max. PSI | 175 |
Stage | 2 |
Duty Cycle | 60 % |
Motor RPM | 1,740 |
Motor Phase | 1 |
| Attribute | Specification |
|---|---|
Pump Life | 50,000 hr |
Pump Material | Cast Iron |
Pump Drive | Belt |
Air Outlet Size | 3/4 in. NPT |
Oil Required | Yes |
Lubrication System | Splash |
Pressure Gauge | Yes |
Air Dryer | None |
Drain Type | Manual |
Tank Orientation | Vertical |
Product Weight | 914.0000 lb |
Dimensions L x W x H (in.) | 41.0 x 24.5 x 72.0 in |
Reviews
Questions & Answers
Questions
Warranty
Manufacturer's Warranty
1 year limited warranty
Compare with Most Popular in Stationary Electric Air Compressors
See All Stationary Electric Air Compressors
See All EMAX Stationary Electric Air Compressors
Currently Viewing This Product
$4999.00Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $4850.00
Shipping:
Factory shippedStore Pickup:
Not available - online only
- $5595.00
Shipping:
Factory shippedStore Pickup:
Not available - online only
- $5972.00
Shipping:
Factory shippedStore Pickup:
Not available - online only
Specifications
10 HP
7.5 HP
10 HP
10 HP
80 Gal
80 Gal
80 Gal
80 Gal
230
230
230
230
175
175
175
175
2
2
2
2
60 %
60 %
60 %
70 %
1,740
1,750
1,750
1,750
1
1
1
1
50,000 hr
60,000 hr
60,000 hr
60,000 hr
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Belt
Belt
Belt
Belt
3/4 in. NPT
3/4 in. NPT
3/4 in. NPT
3/4 in. NPT
Yes
Yes
Yes
Yes
Splash
Pressure
Splash
Pressure
Yes
Yes
Yes
Yes
None
None
None
None
Manual
Manual
Manual
Automatic
Vertical
Vertical
Vertical
Vertical
914.0000 lb
743.0000 lb
810.0000 lb
810.0000 lb
41.0 x 24.5 x 72.0 in
38.0 x 42.0 x 72.0 in
38.0 x 42.0 x 72.0 in
38.0 x 42.0 x 72.0 in
-
31
38
40
-
1
1
1
-
32
40
60
-
145 PSI
145 PSI
145 PSI
-
30
-
-
-
26
30
30
-
No
No
No
-
No
No
Yes
-
No
No
No
-
4 min
4 min
4 min
