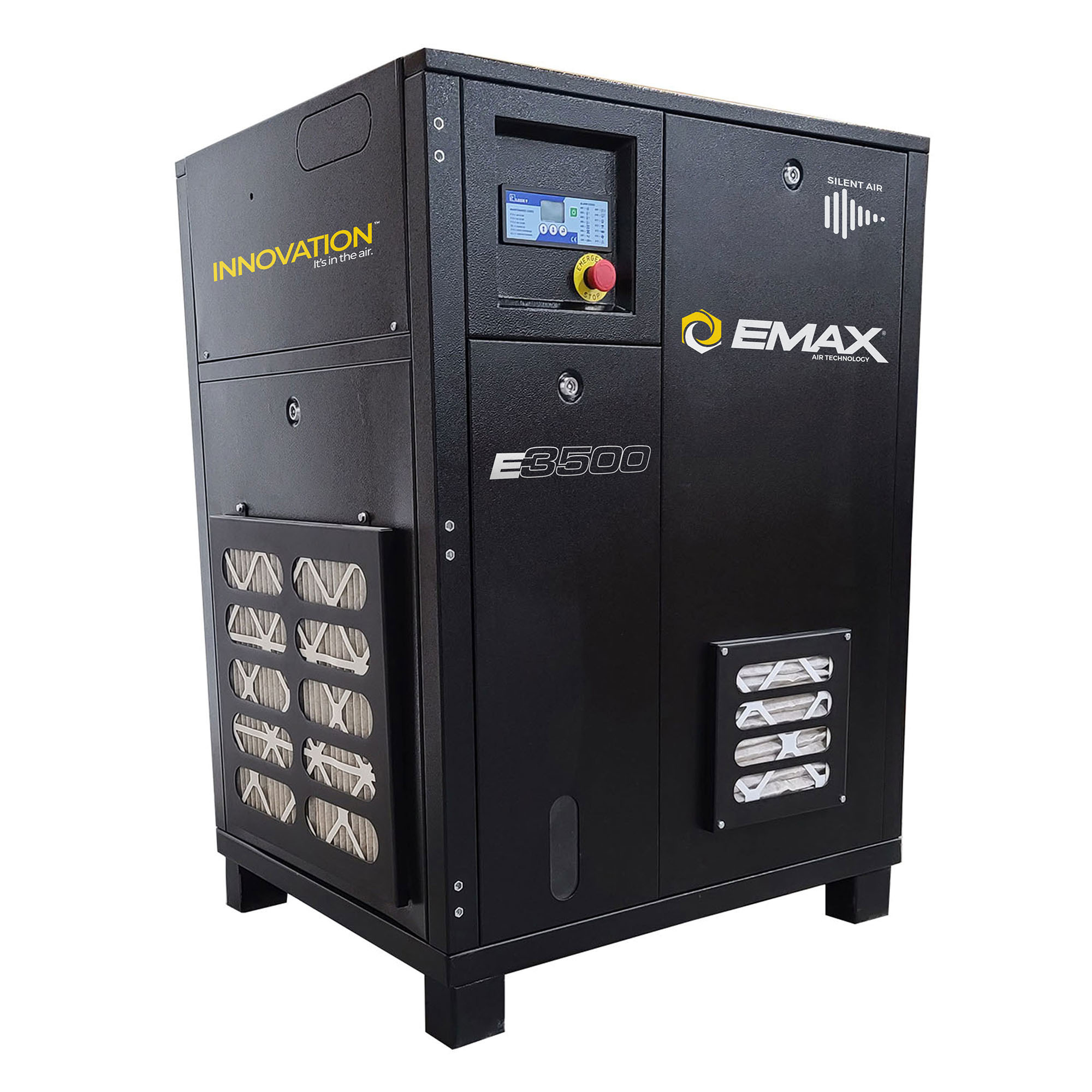

EMAX Rotary Screw Air Compressor Cabinet Only, 7.5HP, 230 Volts, Model# ERI0070001

Item# 4907566
EMAX Rotary Screw Air Compressor Cabinet Only, 7.5HP, 230 Volts, Model# ERI0070001

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Rotary Screw Air Compressor Cabinet Only, 7.5HP, 230 Volts, Model# ERI0070001

Click or Tap image to Zoom

$7560.03

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 60,000 Hr. Italian Air end Logic 9 controller, 4 function keys, connect through port to PC for monitoring, multi unit operation/communication Warranty: 1 year or 5 Year

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

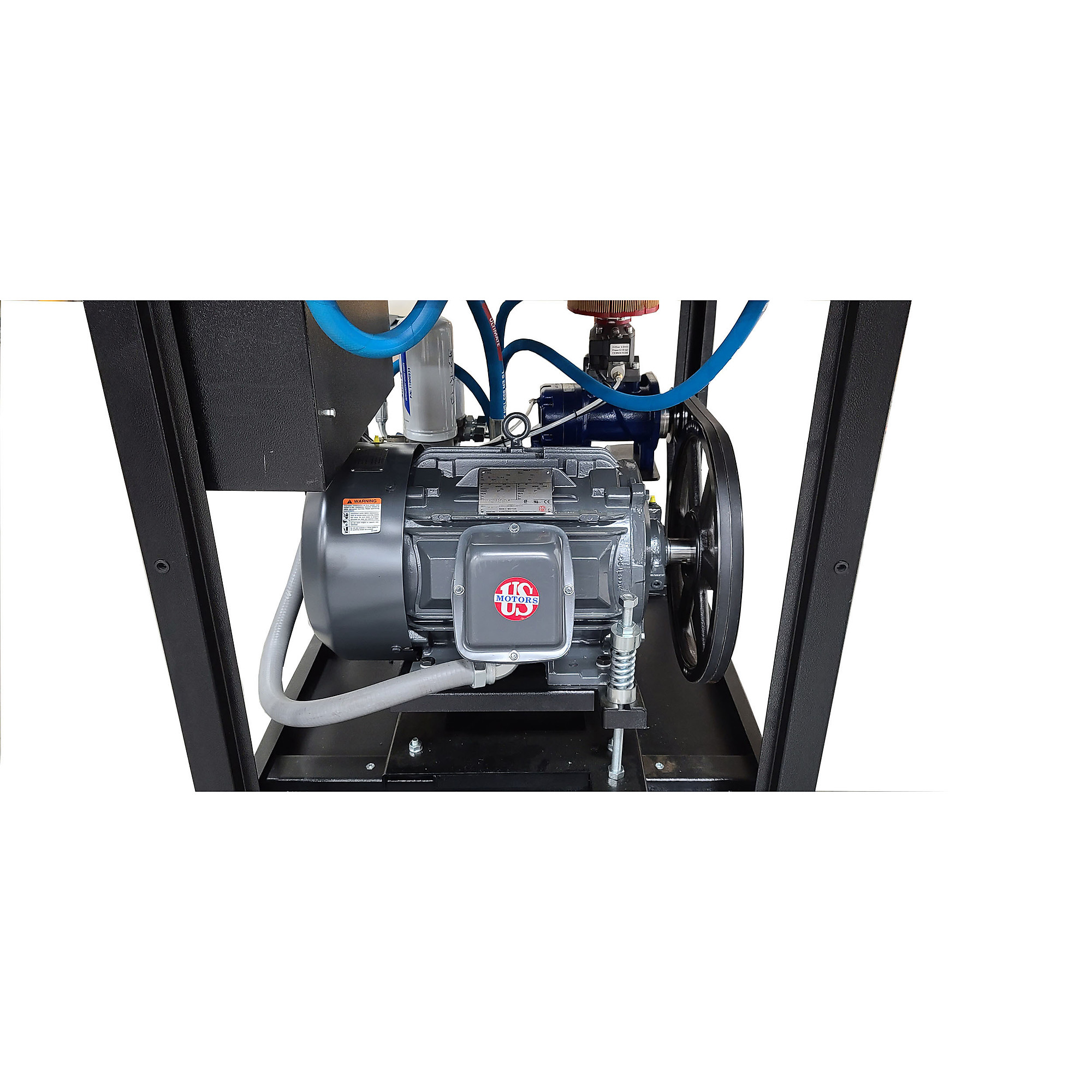

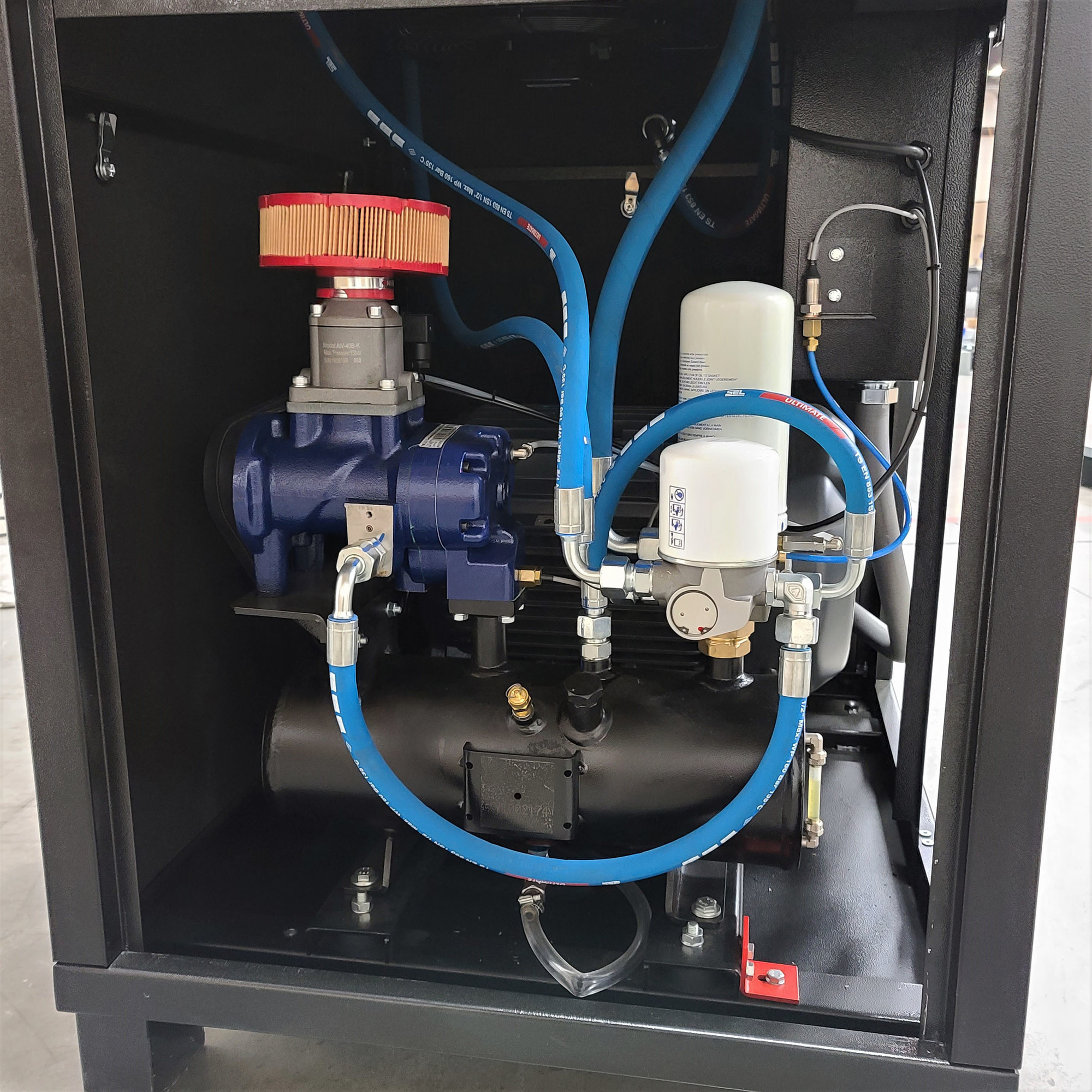

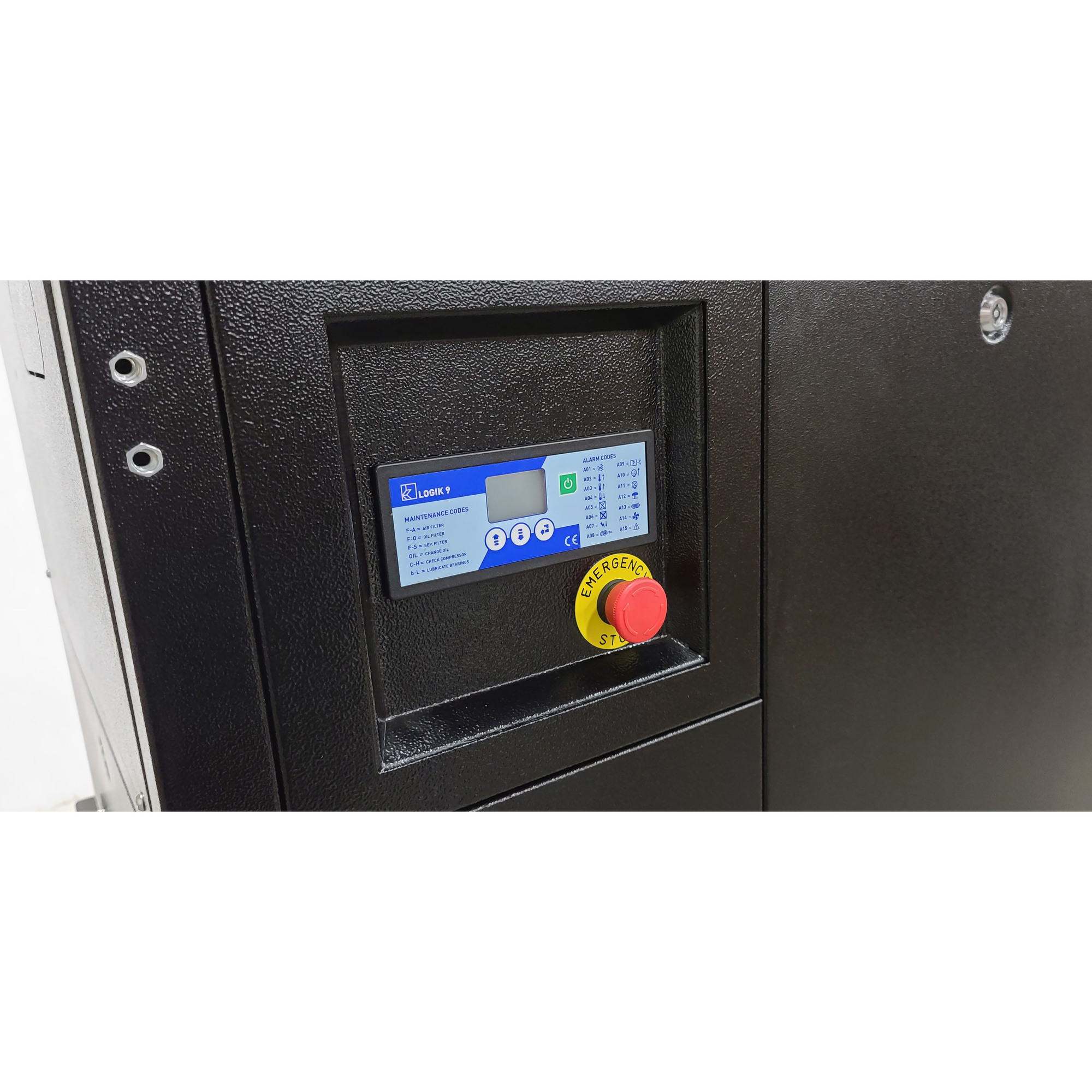

EMAX Compressors 7.5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary’s with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer.

What's Included

    (1) EMAX 7.5HP 1PH Industrial Rotary Screw Compressor-Cabinet Only

Features + Benefits

  • 60,000 Hr. Italian Air end Logic 9 controller, 4 function keys, connect through port to PC for monitoring, multi unit operation/communication Warranty: 1 year or 5 Year

Key Specs

AttributeSpecification

item#

4907566

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

512.0 LB

Air Tank Size

0 Gal

Volts

230

CFM at 90 PSI

26

Motor Phase

1

Stage

0

Horsepower

7.5 HP

Max. PSI

145

Air Outlets (qty.)

1

Amps

32

Duty Cycle

100 %

Fuel Capacity

0 Gal

Motor RPM

1,750

Working Pressure

145 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

60,000 hr

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

28

CFM at Max. PSI

21

Noise Level

65 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

0 min

Air Dryer

None

Product Weight

467.0000 lb

Dimensions L x W x H (in.)

34.0 x 24.0 x 41.0 in

Reviews

Questions & Answers

Questions

  1. Is this unit UL rated

    1 answer

    1. The Compressor Cabinet is UL rated.
