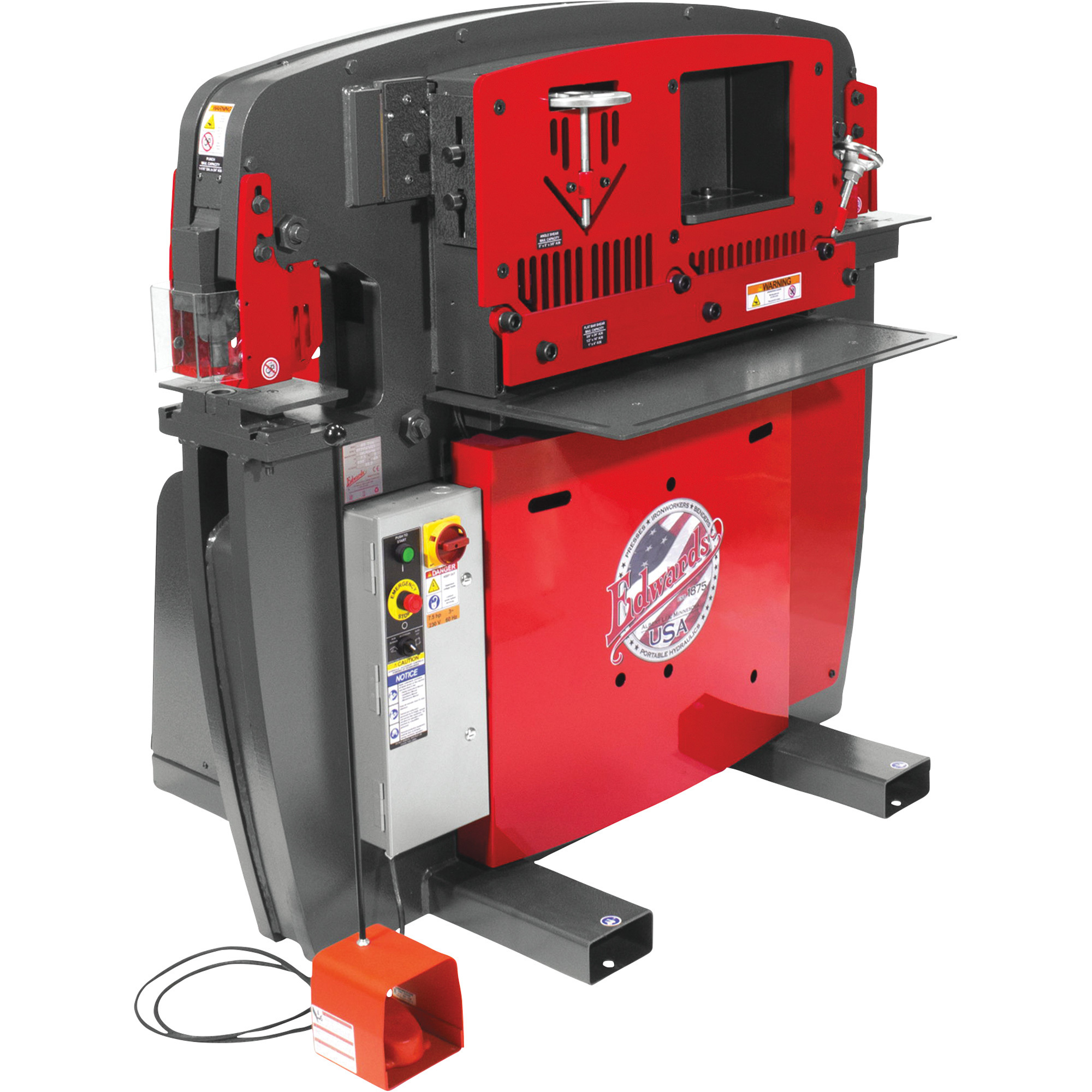

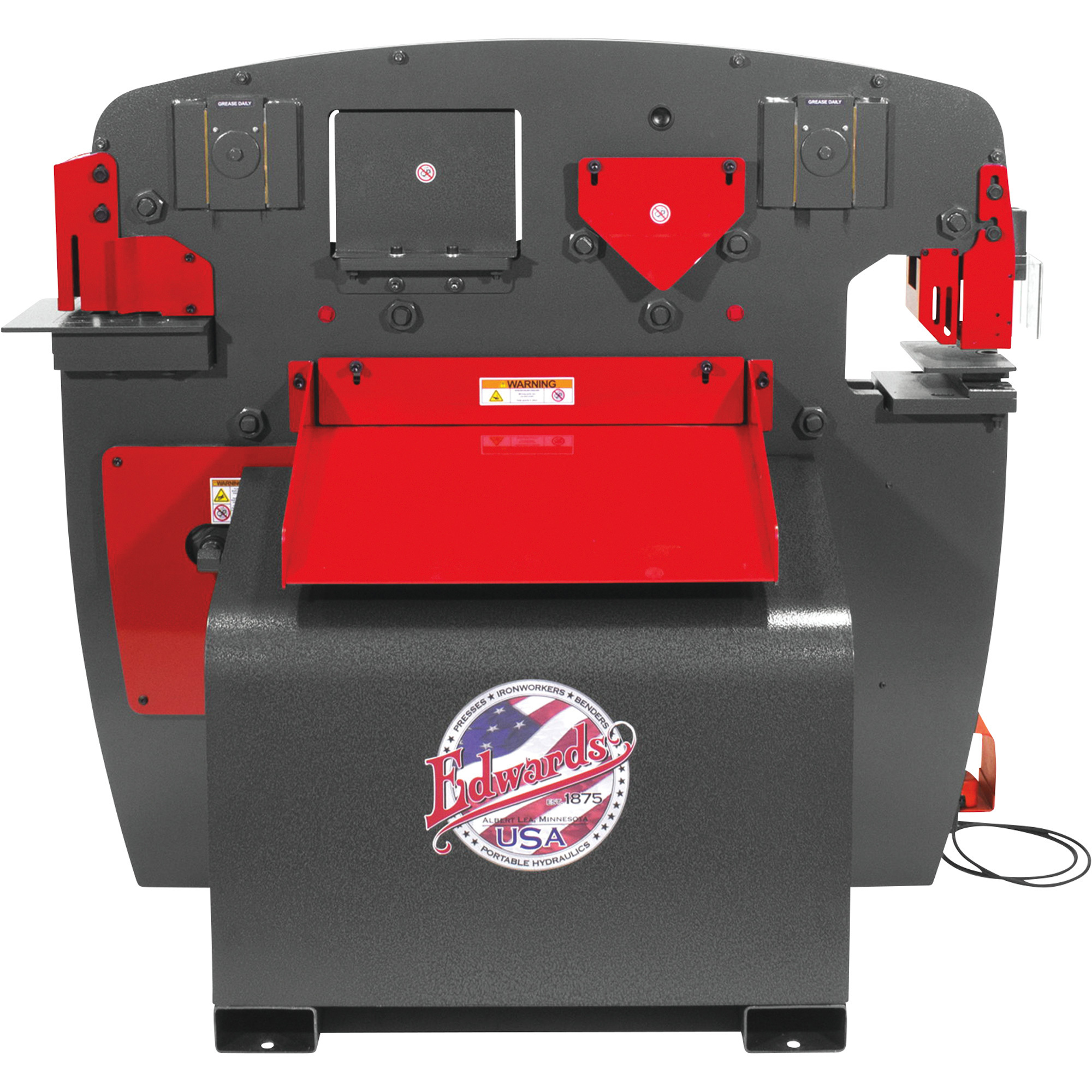

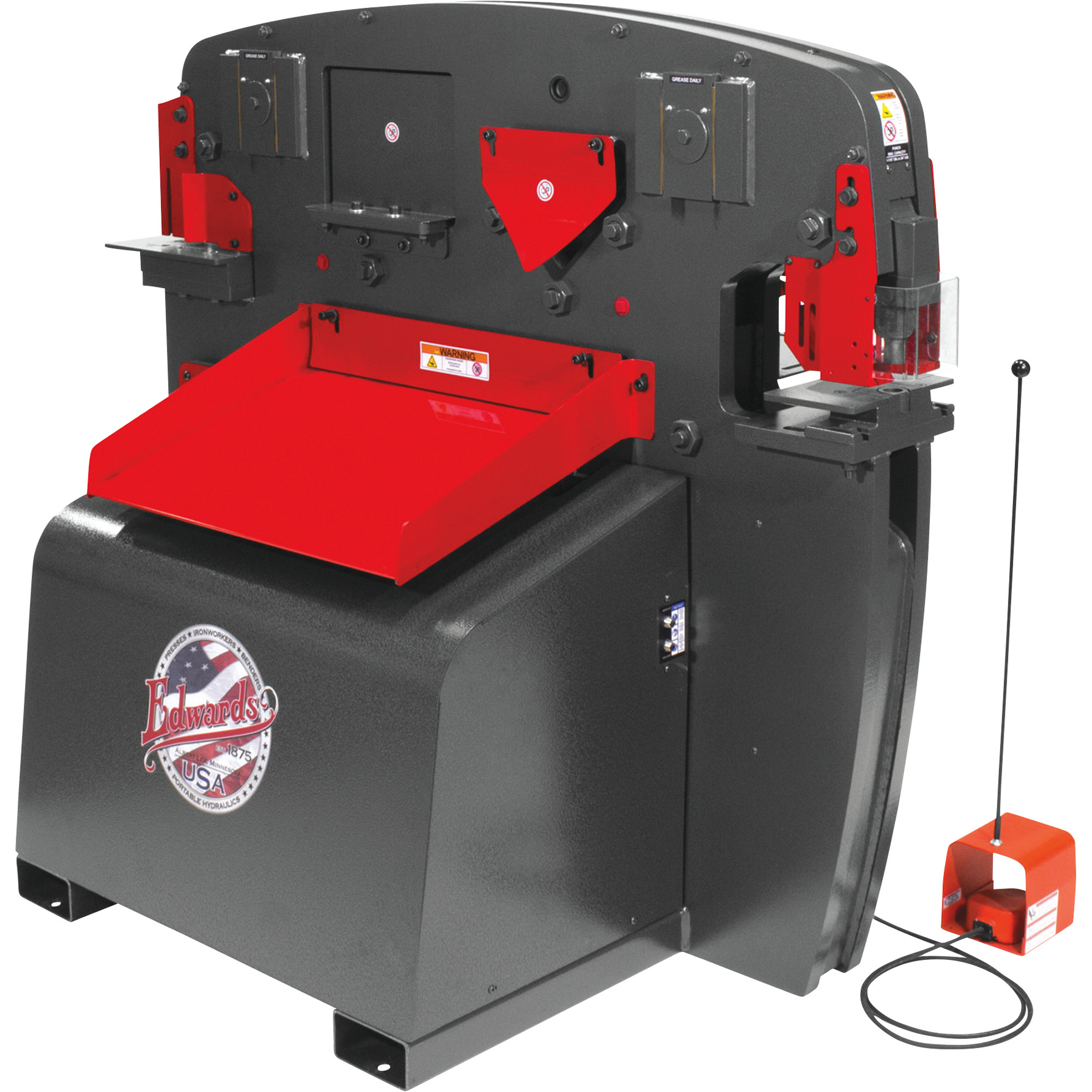

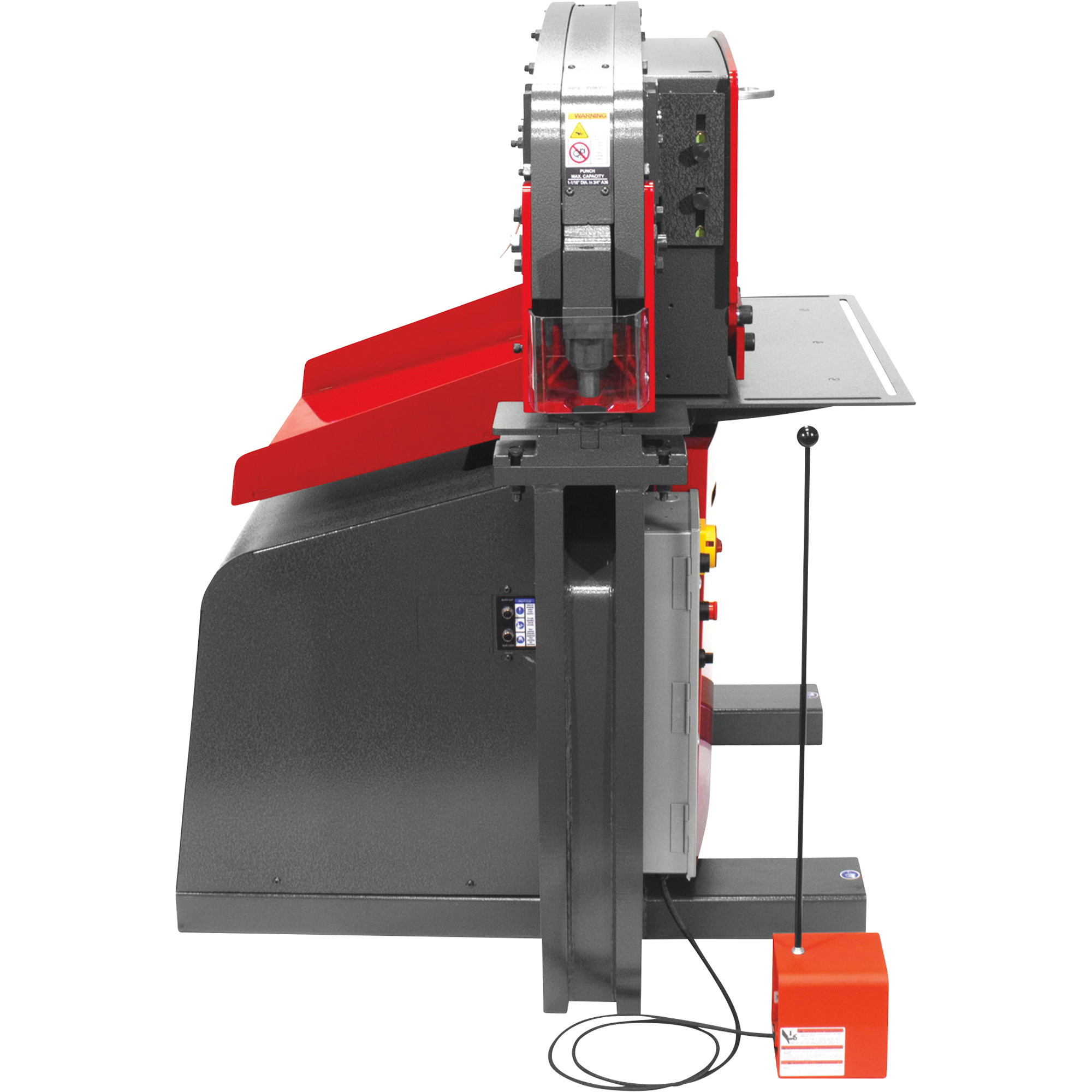

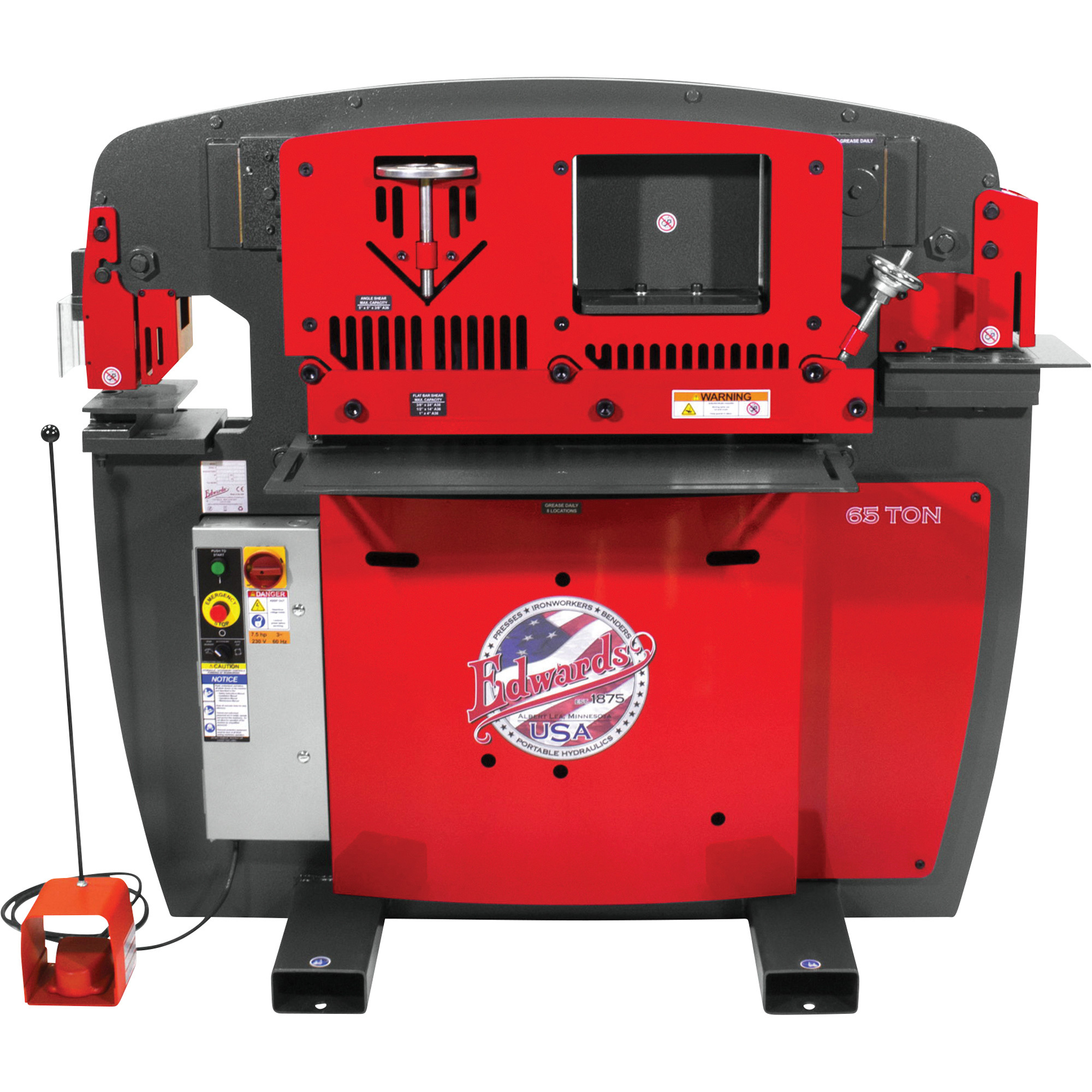

Edwards JAWS 65-Ton Ironworker with Accessory Pack, 3-Phase, 460 Volt, Model# IW65-3P460

Item# 57805
Edwards JAWS 65-Ton Ironworker with Accessory Pack, 3-Phase, 460 Volt, Model# IW65-3P460

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Edwards JAWS 65-Ton Ironworker with Accessory Pack, 3-Phase, 460 Volt, Model# IW65-3P460

Click or Tap image to Zoom

$32,160.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Punch assembly with pedestal die table delivers up to 65 tons of punching pressure
  • 24in.W flat bar shear handles 3/8in. x 24in., 1/2in. x 14in., and 1in. x 4in. metal
  • Angle shear has a capacity of 5in. x 5in. x 3/8in.
  • Coper notcher has 3/8in. capacity
  • Universal open tooling station designed for optional tooling accessories

See full description

Complete Your Solution

  • Edwards JAWS 65-Ton Ironworker with Accessory Pack, 3-Phase, 460 Volt, Model# IW65-3P460
  • Edwards Press Brake Tooling Set, 6 Pieces, Model# PRB06
  • Edwards Pipe Notching Die, 3/4in., Model# AC1045
  • Edwards Pipe Notching Die, 1/2in., Model# AC1044
Price for all four:

$34,940.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The versatile Edwards JAWS 65-Ton Ironworker with Accessory Pack delivers the punch you need to get any size job done, and the flexibility to tailor it to your specific needs. Features 5 available workstations including punch assembly, flat bar shear, angle shear, coper notcher and a universal open tooling station. ANSI B11.5-1988R(02) compliant. Item too large for lift gate. Forklift required for on site unloading.

What's Included

    (1) 65-ton Ironworker

Downloads

Product Manual Product Manual2 Product Manual3 Product Manual4

Features + Benefits

  • Punch assembly with pedestal die table delivers up to 65 tons of punching pressure
  • 24in.W flat bar shear handles 3/8in. x 24in., 1/2in. x 14in., and 1in. x 4in. metal
  • Angle shear has a capacity of 5in. x 5in. x 3/8in.
  • Coper notcher has 3/8in. capacity
  • Universal open tooling station designed for optional tooling accessories
  • Reliable 7.5 HP 3-phase motor delivers the power you need
  • Electric stroke control
  • 460 Volt operation
  • Built-in Hydraulic Accessory Pack allows this ironworker to act as a power source to a line of innovative hydraulic accessory tools (all sold separately) including: 10-Ton Tube/Pipe Bender (Item# 57686), 20-Ton Shop Press (Item# 57687), 40-Ton Shop Pres

Key Specs

AttributeSpecification

item#

57805

Brand

Edwards Ironworkers

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4750.0 LB

Horsepower

7.5 HP

Volts

460

Phase

Three-phase

Hydraulic Pump Speed

10.5 GPM

Valve Pressure

3,500 PSI

Hydraulic Pump

10 1/2 GPM, 2-stage

Foot Switch Control

Yes

Cylinder

3 1/2 in. ram

Throat Depth

9.75 in

Resevoir

17 gal.

Punching Pressure

65 Tons
AttributeSpecification

Throat Depth (in.)

9 3/4

Reservoir Size

17 Gal

Punching Pressure (Tons)

65

Flat Bar Shear Capacity

24 in

Square/Round Shear Capacity

1 in

Flat Bar Shearing Capacity (in.)

3/8 x 24; 1/2 x 14; 1 x 4

Square/Round Shear Capacity (in.)

1

Angle Shear Capacity

5 in

Coper Notcher Capacity

0.37 in

Angle Shear Capacity (in.)

5 x 5 x 3/8

Coper Notcher Capacity (in.)

3/8

Amps

11

Portable

No

Product Weight

lb

Dimensions L x W x H (in.)

46.0 x 69.0 x 63.0 in
