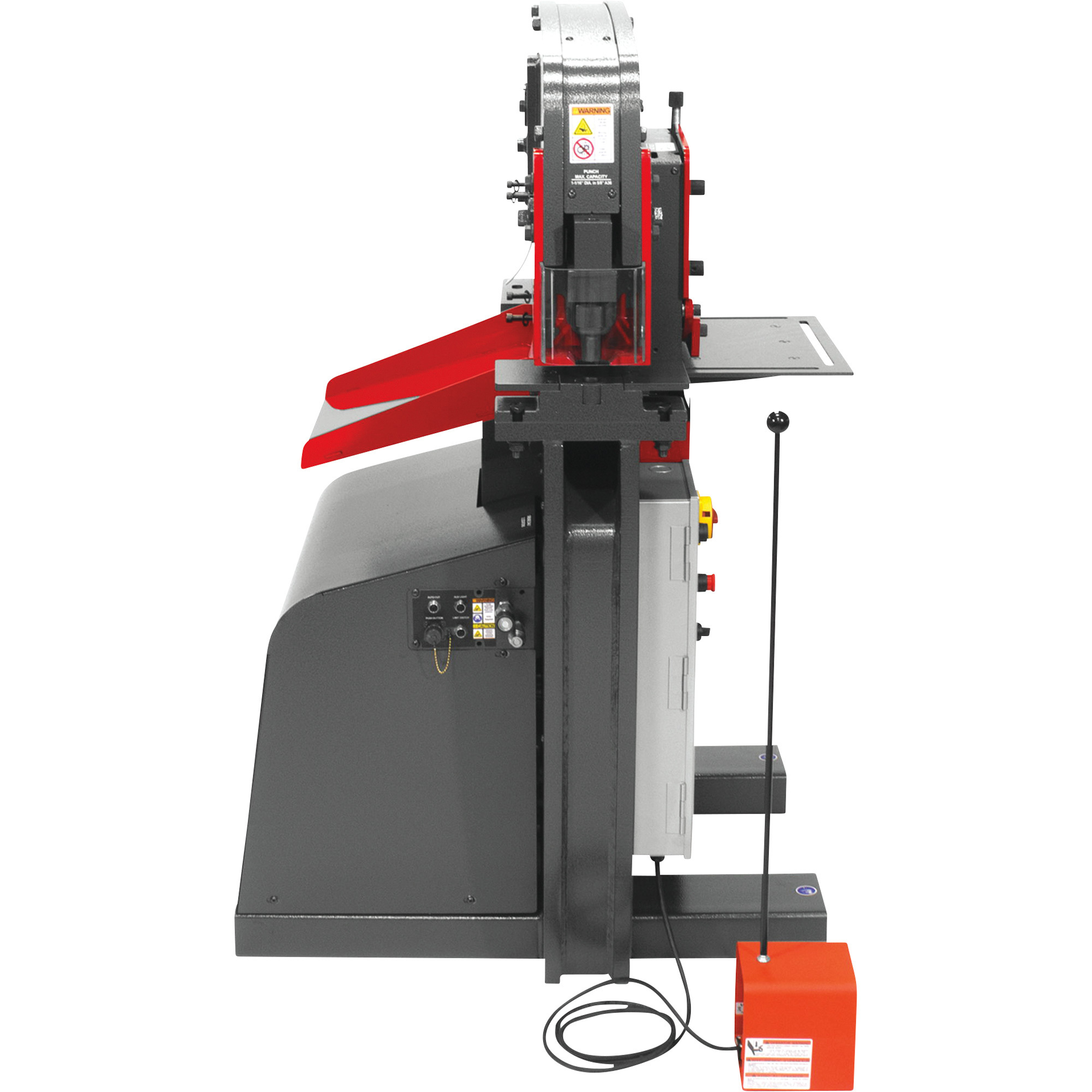

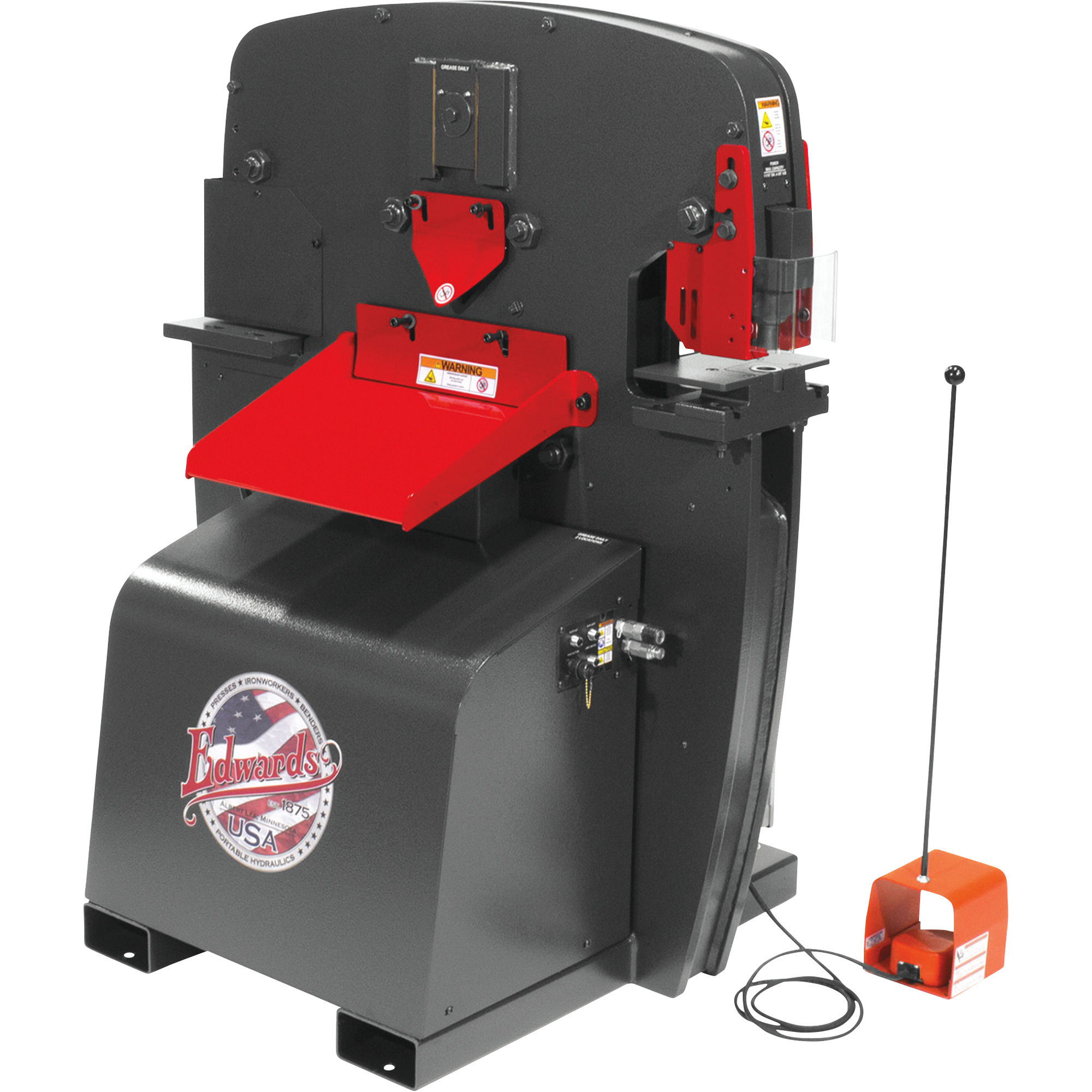

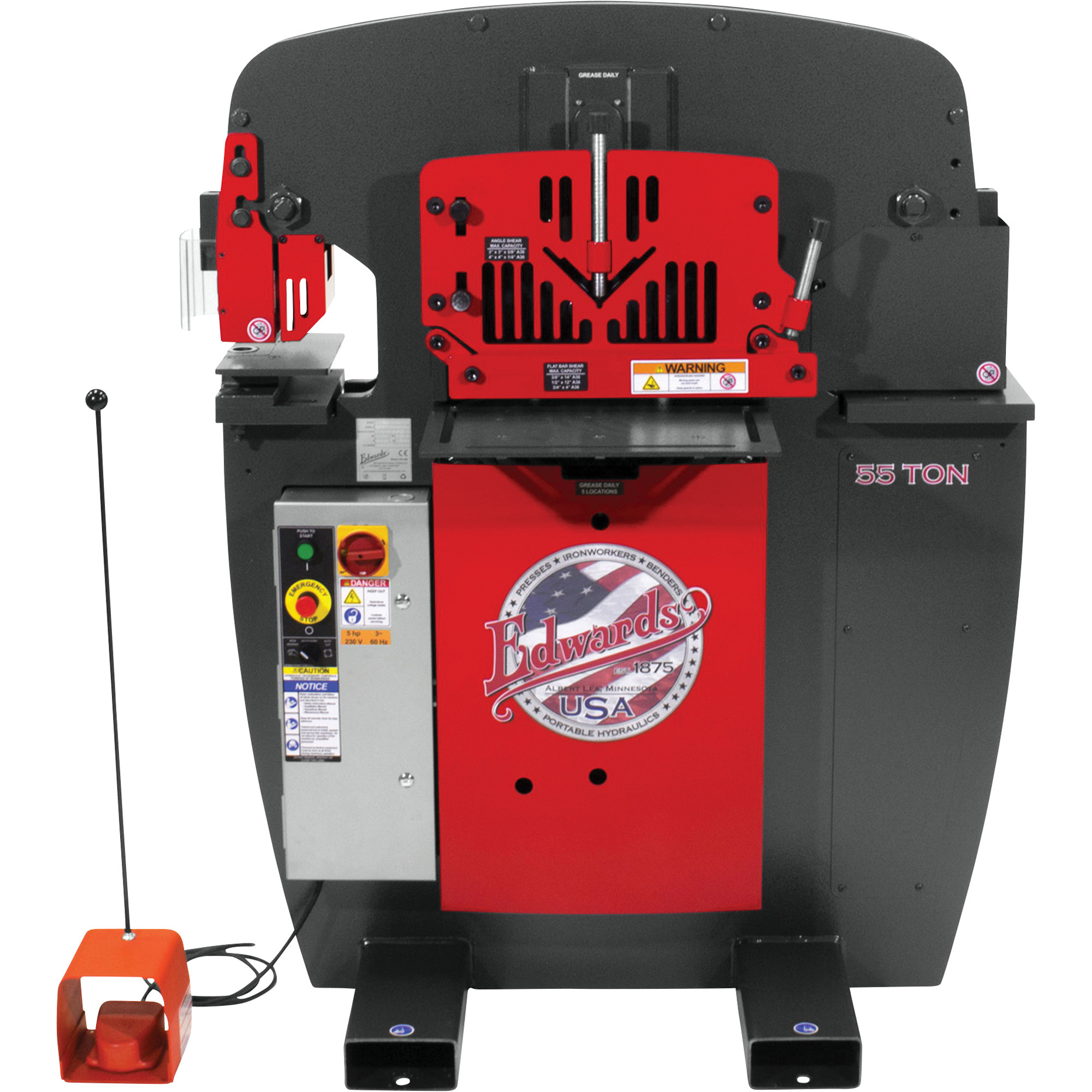

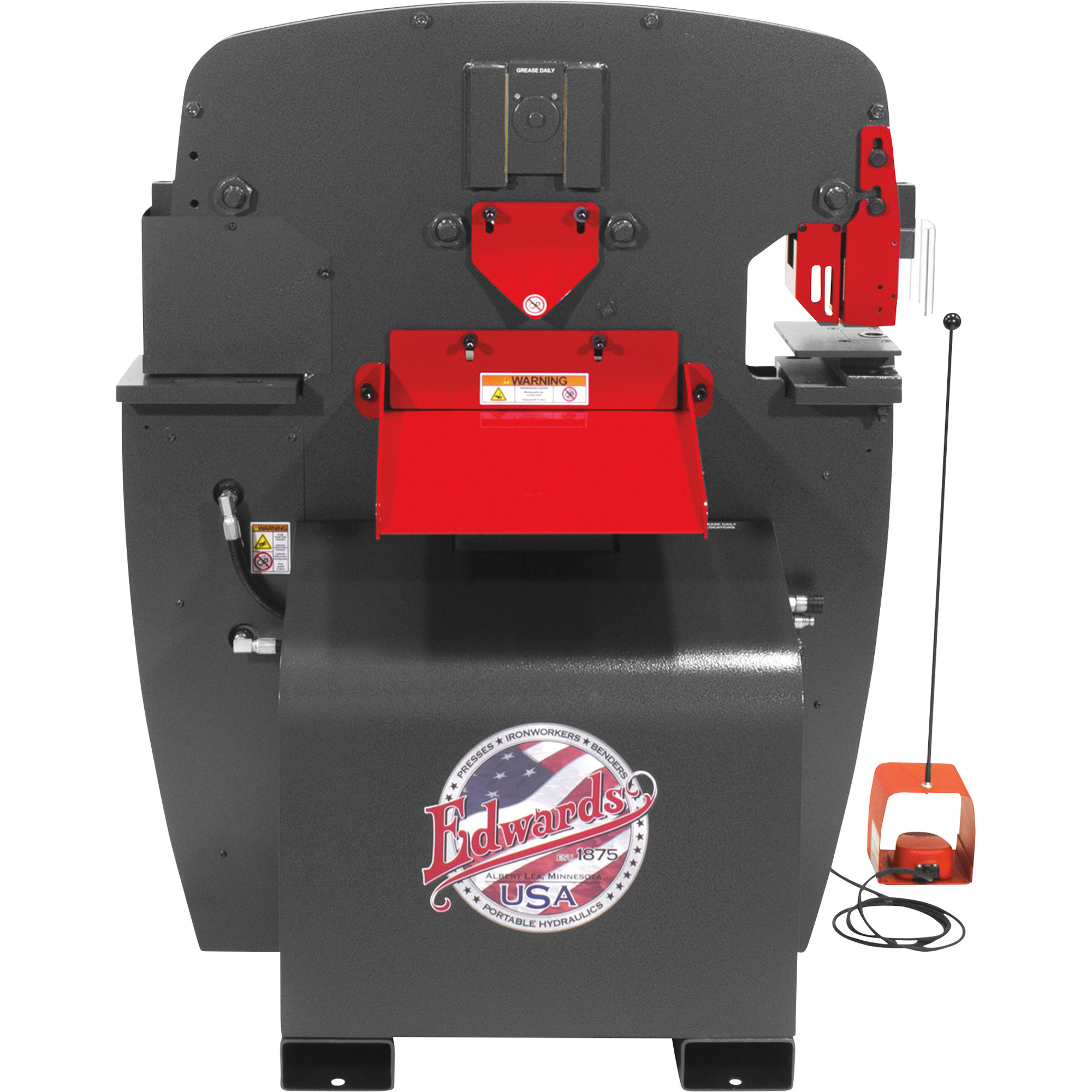

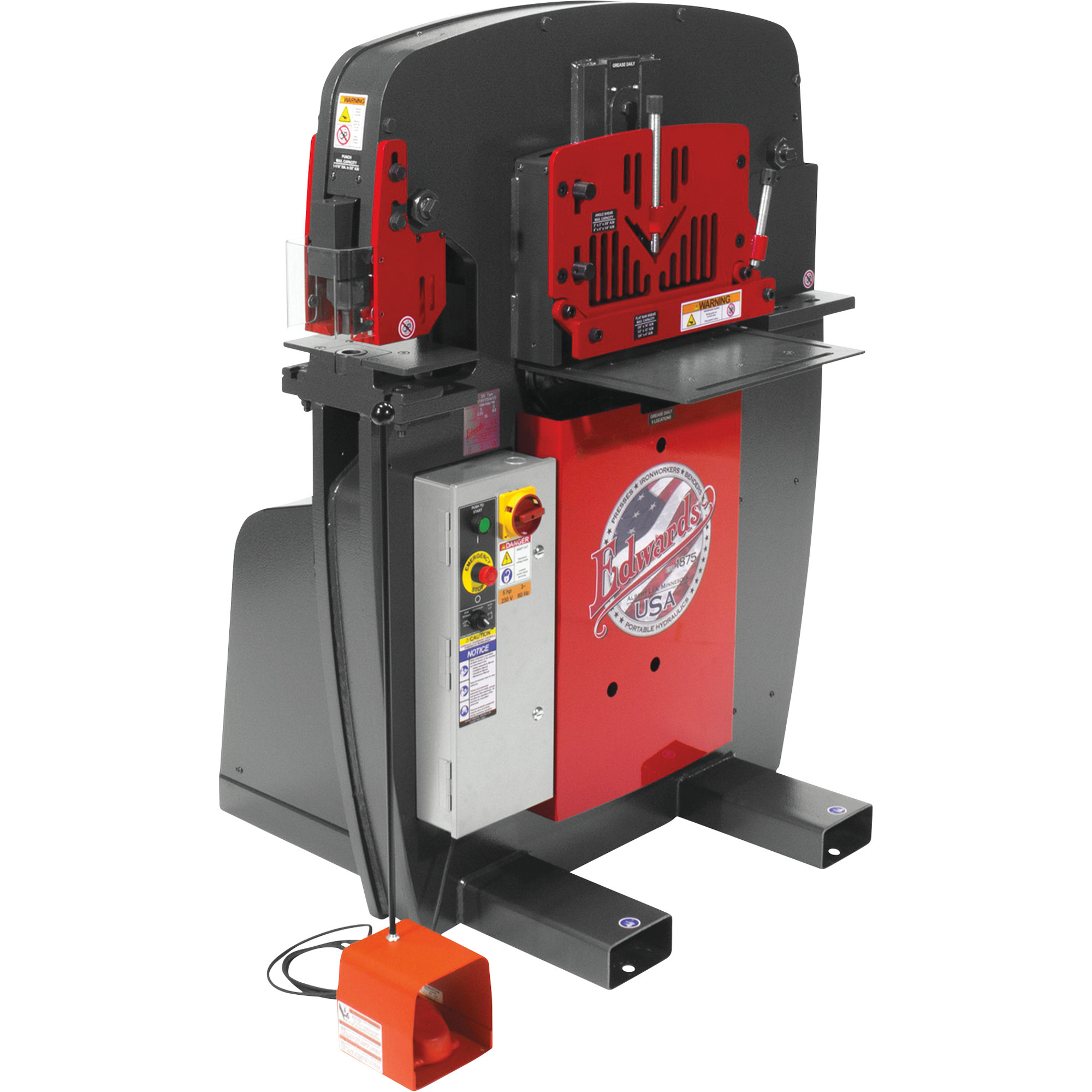

Edwards JAWS 55-Ton Ironworker with Accessory Pack, Single Phase, 230 Volt, Model# IW55-1P230-AC500

Item# 57703
Edwards JAWS 55-Ton Ironworker with Accessory Pack, Single Phase, 230 Volt, Model# IW55-1P230-AC500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Edwards JAWS 55-Ton Ironworker with Accessory Pack, Single Phase, 230 Volt, Model# IW55-1P230-AC500

Click or Tap image to Zoom

$18,264.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Flat bar shear handles 3/8in. x 14in., 1/2in. x 12in., and 3/4in. x 4in. metal
  • Angle shear has a capacity of 3in. x 3in. x 3/8in. and 4in. x 4in. x 1/4in.
  • Punch assembly with pedestal die table delivers up to 55 tons of punching pressure
  • Universal open tooling station to accept a variety of optional tooling accessories
  • Reliable 5 HP single phase motor delivers the power you need

See full description

Complete Your Solution

  • Edwards JAWS 55-Ton Ironworker with Accessory Pack, Single Phase, 230 Volt, Model# IW55-1P230-AC500
  • Edwards Press Brake Tooling Set, 6 Pieces, Model# PRB06
  • Edwards Pipe Notching Die, 3/4in., Model# AC1045
  • Edwards Pipe Notching Die, 1/2in., Model# AC1044
Price for all four:

$21,044.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Edwards JAWS 55-Ton Ironworker with Accessory Pack is an ideal choice for any fabrication shop, large or small. Features 4 available workstations including punch assembly, flat bar shear, angle shear, and universal open tooling station. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) 55-ton Ironworker

Downloads

Product Manual Product Manual2 Product Manual3 Product Manual4

Features + Benefits

  • Flat bar shear handles 3/8in. x 14in., 1/2in. x 12in., and 3/4in. x 4in. metal
  • Angle shear has a capacity of 3in. x 3in. x 3/8in. and 4in. x 4in. x 1/4in.
  • Punch assembly with pedestal die table delivers up to 55 tons of punching pressure
  • Universal open tooling station to accept a variety of optional tooling accessories
  • Reliable 5 HP single phase motor delivers the power you need
  • Electric stroke control
  • 230 Volt operation
  • Built-in Hydraulic Accessory Pack allows this ironworker to act as a power source to a line of innovative hydraulic accessory tools (all sold separately) including: 10-Ton Tube/Pipe Bender (Item# 57686), 20-Ton Shop Press (Item# 57687), 40-Ton Shop Pres

Key Specs

AttributeSpecification

item#

57703

Brand

Edwards Ironworkers

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2480.0 LB

Horsepower

5 HP

Volts

230

Phase

Single-phase

Hydraulic Pump Speed

3.5 GPM

Valve Pressure

2,500 PSI

Hydraulic Pump

3 1/2 GPM, single stage

Foot Switch Control

Yes

Cylinder

2 1/2 in. ram

Throat Depth

7.5 in

Resevoir

7 gal.

Punching Pressure

55 Tons
AttributeSpecification

Throat Depth (in.)

7 1/2

Reservoir Size

7 Gal

Punching Pressure (Tons)

55

Flat Bar Shear Capacity

14 in

Square/Round Shear Capacity

0.87 in

Flat Bar Shearing Capacity (in.)

3/8 x 14; 1/2 x 12; 3/4 x 4

Square/Round Shear Capacity (in.)

7/8

Angle Shear Capacity

4 in

Angle Shear Capacity (in.)

3 x 3 x 3/8; 4 x 4 x 1/4

Coper Notcher Capacity (in.)

Optional

Amps

23

Portable

No

Product Weight

lb

Dimensions L x W x H (in.)

45.0 x 51.0 x 62.0 in
