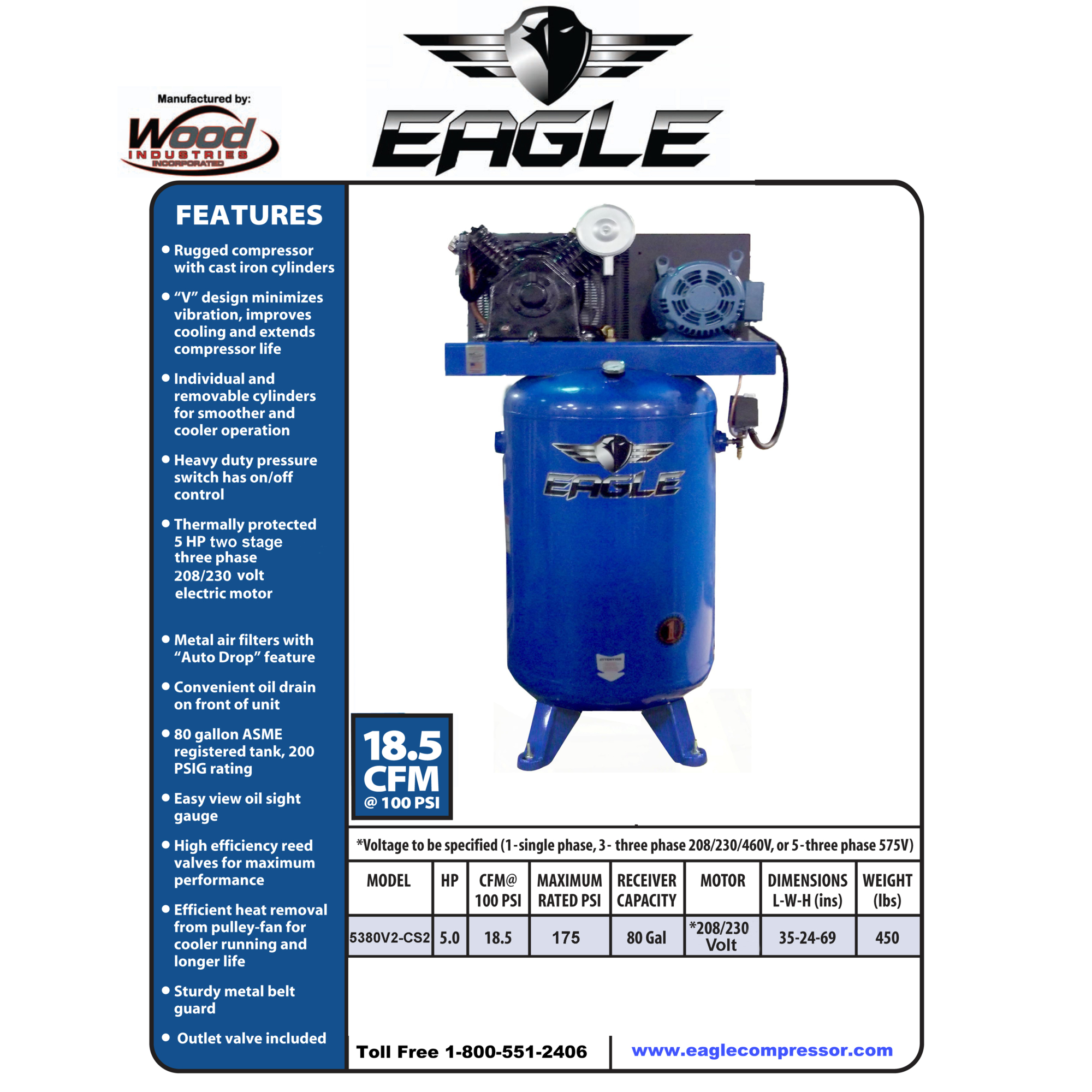

EAGLE, 80 Gallon 18.5 CFM Air Compressor, Horsepower 5 HP, Air Tank Size 80 Gal, Model# 5380V2-CS4

Item# 6039854
EAGLE, 80 Gallon 18.5 CFM Air Compressor, Horsepower 5 HP, Air Tank Size 80 Gal, Model# 5380V2-CS4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 80 Gallon 18.5 CFM Air Compressor, Horsepower 5 HP, Air Tank Size 80 Gal, Model# 5380V2-CS4

Click or Tap image to Zoom

$2799.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style design improves cooling & extends compressor life
  • Space Saving Vertical Tank Design
  • High Flow 18.5 CFM @ 100 PSI
  • Convenient Extended Oil Drain
  • Heavy Duty Three Phase 5 HP Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Our Flagship Eagle Series 80 gallon shop compressor is perfect for the professional or the enthusiast. The large tank allows for longer runs times between the on/off intervals. The Powerful three phase 5hp motor drives the heavy duty V-twin cast iron two stage pump and delivers an impressive 18.5 CFM's of air with a max PSI of 175. The robust twin cylinder pump supplies enough air to run multiple tools at once as well as hi-demand tools like sanders, 1in. impacts or small sand blasters. The Eagle unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety as you work along beside the unit. The V-style pump allows for the larger bore pistons to run at lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately giving the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the automotive style air filters, 1/2in. ball valve, heavy duty ON/OFF German brand pressure switch, and manual tank drain all add up to a greater value. This Eagle model has proven to be a dependable unit at the top of it's class.

What's Included

    (1) AIR COMPRESSOR

Features + Benefits

  • V Style design improves cooling & extends compressor life
  • Space Saving Vertical Tank Design
  • High Flow 18.5 CFM @ 100 PSI
  • Convenient Extended Oil Drain
  • Heavy Duty Three Phase 5 HP Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • Automotive Style Air Filters
  • Assembled in the USA!
  • 175 PSI Cast Iron Pump

Key Specs

AttributeSpecification

item#

6039854

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

609.0 LB

Air Tank Size

80 Gal
AttributeSpecification

Volts

460

Horsepower

5 HP

Product Weight

450.0000 lb

Dimensions L x W x H (in.)

35.0 x 24.0 x 69.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
