EAGLE, 60 Gallon Silent Air Compressor, Horsepower 3 HP, Air Tank Size 60 Gal, Volts 110 Volt, Model# EA-10000

Item# 6039838
EAGLE, 60 Gallon Silent Air Compressor, Horsepower 3 HP, Air Tank Size 60 Gal, Volts 110 Volt, Model# EA-10000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 60 Gallon Silent Air Compressor, Horsepower 3 HP, Air Tank Size 60 Gal, Volts 110 Volt, Model# EA-10000

Click or Tap image to Zoom

$2279.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 125 PSI Max Pressure
  • 10.5 CFM @ 100 PSI

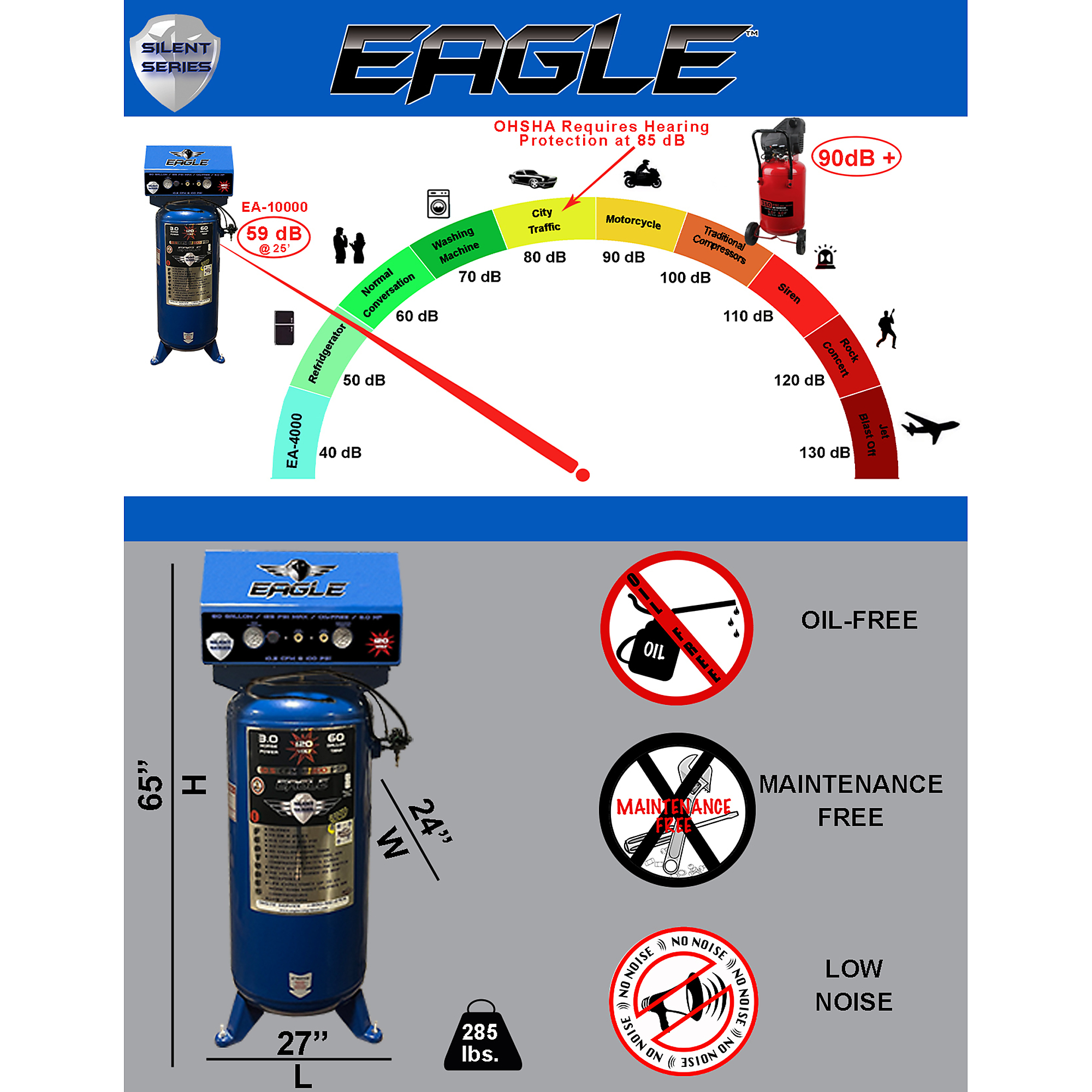

  • Silent, only 59 DB @ 25ft
  • 110 VOLT
  • Built in Regulator

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Eagle has raised the bar once again in the industry with it's multi patented EA-10000 shop compressor. This model is loaded with one of a kind features that you will find NO WHERE else in the market! We have ELIMINATED the maintence for your compressor. There's no need for messy or expensive oil changes with our OIL FREE design. We have ELIMINATED the need to hire an electrician to run a new set of 220 volt wires to install your 60 gallon shop compressor. Yes. . . that's correct, the EA-10000 is the ONLY 60 gallon shop compressor that is 110 volt pre-wired plug and play right out of the box! But that's not all . . . We have also ELIMINATED the need for you to put your 60 gallon shop compressor out behind your shop or build that room around it or add that lean to on your building to keep it out of the weather (did we mention you don't need to run the 220 volt wire out back either) That's right, this unit is easy on the ears, the EA-10000 is a SILENT compressor. Only 59 decibels 25ft. away. This noise level is comparable to normal converstion or a dishwasher! This Eagle model also comes with accessories that no other 60 gallon compressor is supplied with as well. Right out of the box, it has a built in regulator, two large easy to read pressure gauges, a pair of pro style quick connects and a 1/2in. ball valve outlet. The engineering and technology behind the 4 cyclinder oil free pump system paired with the dual heavy duty low rpm induction motors allows this unit to OUT LAST other oil free air compressors by 8 to 10 times. With a max pressure of 125 PSI and 10.5 CFMs 100 psi along with vertical space saving 60 gallon tank, you can adequatley run an assortment of air tools making this model perfect for the proffesional or the enthusiast. The govenrnent certified ASME tahk and pressure release valve ensures your safety is priotity #1. By having 4 cylinders and dual motors with a lower rpm speed, it creates less friction and less heat ultimately giving the compressor longer life. You can now own the FIRST OF IT'S KIND PATENTED 60 Gallon, Oil Free, 4 cylinder, Silent, 110 volt, Dual motor, Maintenance free Eagle Plug Play Shop Air Compressor.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 125 PSI Max Pressure
  • 10.5 CFM @ 100 PSI
  • Silent, only 59 DB @ 25ft
  • 110 VOLT
  • Built in Regulator
  • Oil Free
  • 4 Cylinder
  • Dual Low RPM Heavy Duty Induction Motors
  • Dual Quick Connects Included
  • 1/2" Ball Valve Inculded
  • Pre-wired Plug & Play
  • Assembled in the USA!

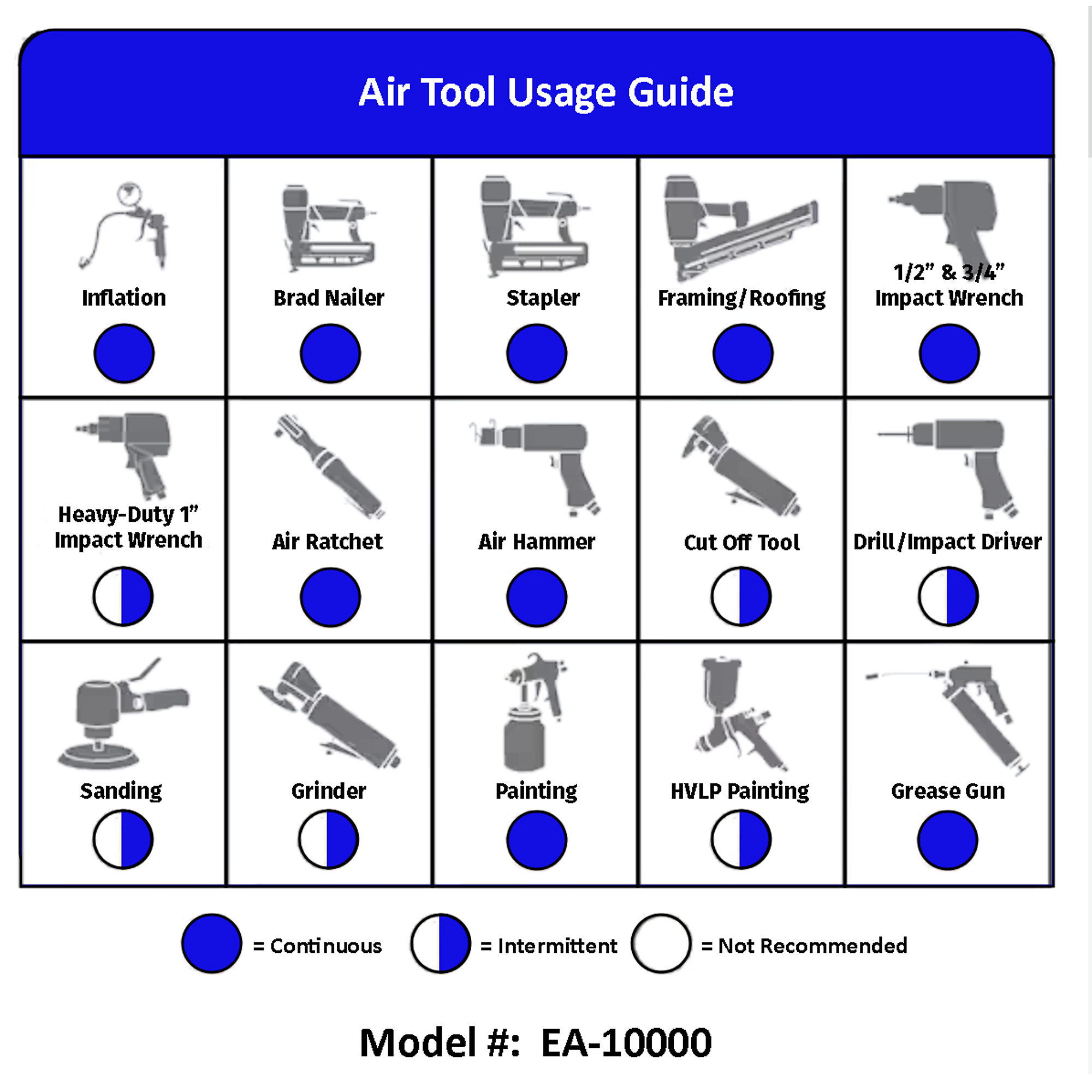

  • Operates Multiple Impact & Mechanic Tools at Once
  • Space Saving Vertical 60 Gallon Tank Design
  • 80% Quieter Than Traditional Air Compressors

Key Specs

AttributeSpecification

item#

6039838

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

340.0 LB

Air Tank Size

60 Gal

Volts

120 Volt

CFM at 90 PSI

10.5

Motor Phase

1

Stage

1

Tank Orientation

Vertical

Horsepower

3 HP

Max. PSI

125

Air Outlets (qty.)

3

Amps

20

Duty Cycle

0.5 %

Fuel Capacity

0 Gal
AttributeSpecification

Motor RPM

1,720

Working Pressure

95-125 PSI

Pump Material

Cast Iron

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

Noise Level

59 dB

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Engine Model

Not Applicalble

Product Weight

285.0000 lb

Dimensions L x W x H (in.)

27.0 x 24.0 x 65.0 in

Reviews

Questions & Answers

Questions

  1. Shows a 0.5% duty cycle on spec sheet, is this correct? Wanting to use it for laser air assist.

    1 answer

    1. The air compressor would have a 50% duty cycle.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
