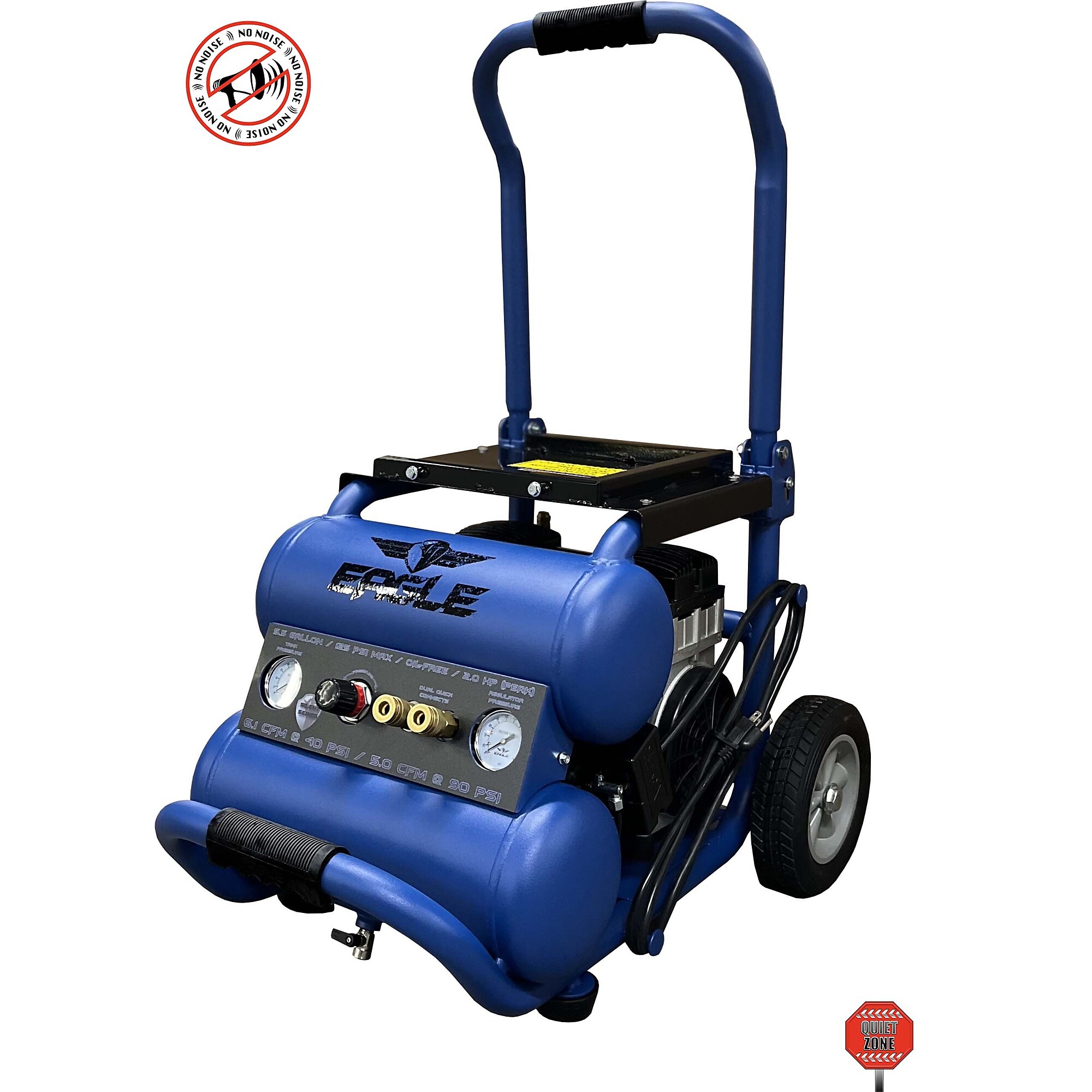

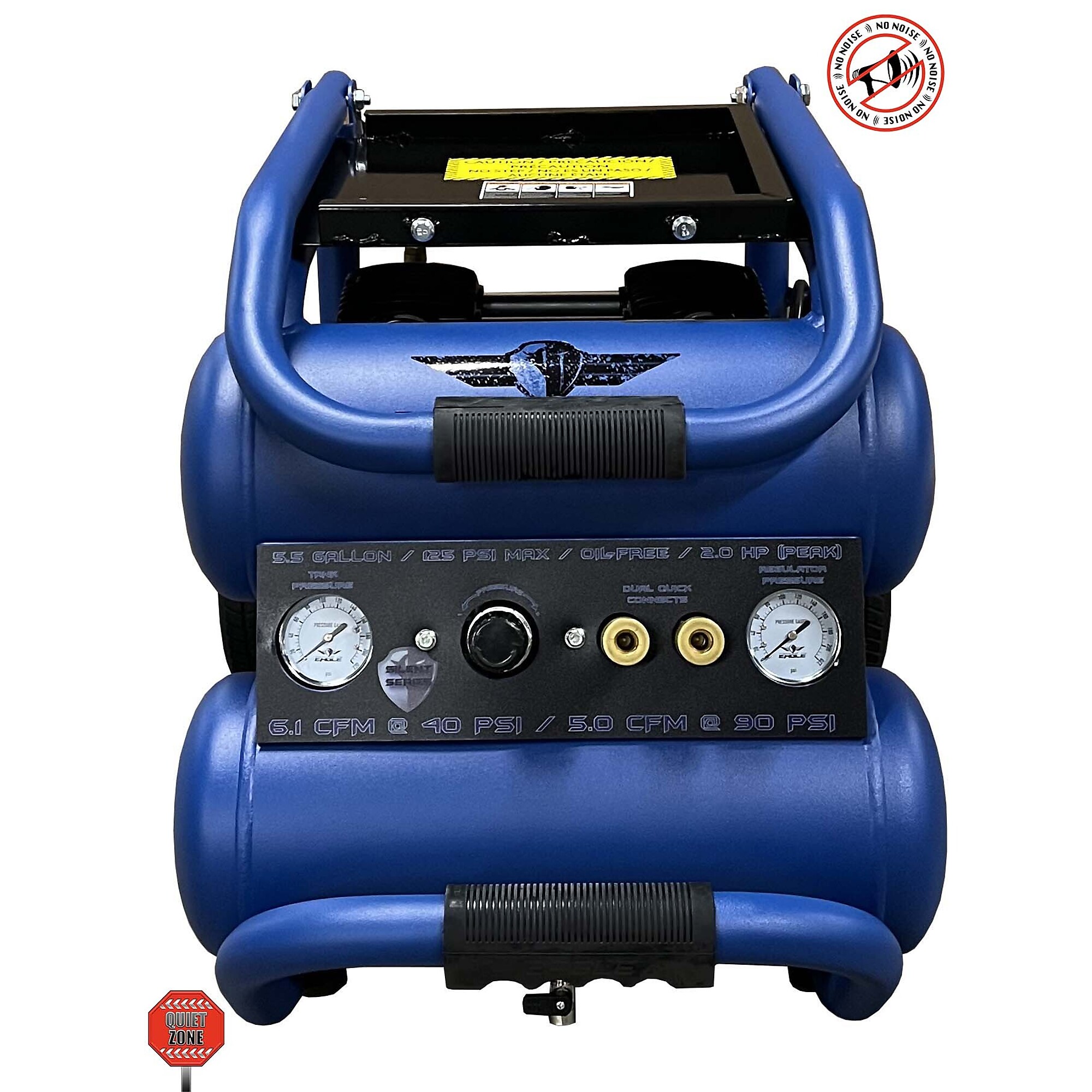

EAGLE, 49 dB 25ft. Silent Air Compressor, Horsepower 1.5 HP, Air Tank Size 5.5 Gal, Volts 110 Volt, Model# EA-5000

Item# 6040089
EAGLE, 49 dB 25ft. Silent Air Compressor, Horsepower 1.5 HP, Air Tank Size 5.5 Gal, Volts 110 Volt, Model# EA-5000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 49 dB 25ft. Silent Air Compressor, Horsepower 1.5 HP, Air Tank Size 5.5 Gal, Volts 110 Volt, Model# EA-5000

Click or Tap image to Zoom

$629.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Dual Piston Design Pumps more air than most of the competition.
  • 5 CFM @ 100 PSI
  • Only 49db @ 25ft
  • Features Eagle's easy start head unloader system to reduce starting amps
  • Low Speed 1720 RPM induction motor provides strong starting torque and reduces unecessary wear compared to higher speed motors.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Eagle Silent Series Compressor line up was designed specifically with the professional contractor in mind. Our units feature a dual piston system with a low RPM motor allowing the unit to run slower while creating less friction and less heat which add up to longer life. The Eagle Silent Air Compressors out last most other oil free compressor designs by 8 to 10 times! The With more than a half dozen product specific patents along with years of product engineering and development you can be sure that you are getting the industry best when you choose an Eagle Silent Series model. The EA-5000 is super quiet at only 49db 25ft. The dual tank side stack design makes it robust and low profile. The flat free, all terrian tires makes it and ease to manuver around the rought terrian of a job site. The space saving design and folding handle allows the unit to be placed in the back of an SUV or even the truck of a car if needed. The EA-5000 is a perfect choice for trim carpenters or Roofing framing contractors that are looking for an oil free, maintnence frees, silent air compressor to make the job site a more productive and safer atmosphere. While powerful enought to operate pnuematic trim framing nail guns etc, this model also idea for around the house use to air up tires, balls, floats etc. With an amp draw on only 10 amps, the EA-5000 produces more air flow per amp than any compressor in the industry , making this unit the ideal compressor for jobs with temporary power!

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Dual Piston Design Pumps more air than most of the competition.
  • 5 CFM @ 100 PSI
  • Only 49db @ 25ft
  • Features Eagle's easy start head unloader system to reduce starting amps
  • Low Speed 1720 RPM induction motor provides strong starting torque and reduces unecessary wear compared to higher speed motors.
  • All Steel Design Protects Critical Components From Job Site Elements
  • Large Pressure Gauges are set on a 65 degree angle, making them easy to read from a standing postion
  • Pro Style Dual Universal Quick Connects
  • Heavy duty, Robust Roll Cage Design Protects Critcal Components From Potential Damage on Work Sites or Garages
  • Dual piston pump and low rpm motor reduces friction and heat which both add up to longer life expectancy
  • Lever Style Drain Valves makes it easy to keep tank moisture drained
  • Built In Regulator
  • Operates 3 to 4 Pnuematic Air Nail Guns
  • Operates Mechainc and Impact Tools
  • Oil Free & Maintenace Free
  • 80% Quieter Than Traditional Air Compressors

Key Specs

AttributeSpecification

item#

6040089

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

107.0 LB

Horsepower

1.5 HP

Air Tank Size

5.5 Gal

Volts

110 Volt

CFM at 90 PSI

5

Max. PSI

125

Stage

1

Air Outlets (qty.)

2

Amps

10

Duty Cycle

0.5 %

Fuel Capacity

0 Gal

Motor RPM

1,720

Working Pressure

95-125 PSI
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.1

Noise Level

49 dB

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Ball Valve

Tank Orientation

Horizontal

Engine Model

Not Applicalble

Product Weight

86.0000 lb

Dimensions L x W x H (in.)

28.3 x 20.0 x 20.0 in
