EAGLE, 30 Gallon Truck Mount Compressor, Horsepower 13 HP, Air Tank Size 30 Gal, Model# 13G30TRKE-V4

Item# 6039521
EAGLE, 30 Gallon Truck Mount Compressor, Horsepower 13 HP, Air Tank Size 30 Gal, Model# 13G30TRKE-V4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 30 Gallon Truck Mount Compressor, Horsepower 13 HP, Air Tank Size 30 Gal, Model# 13G30TRKE-V4

Click or Tap image to Zoom

$4279.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Oversized Cast Iron Pump
  • 175 PSI
  • Idle Control

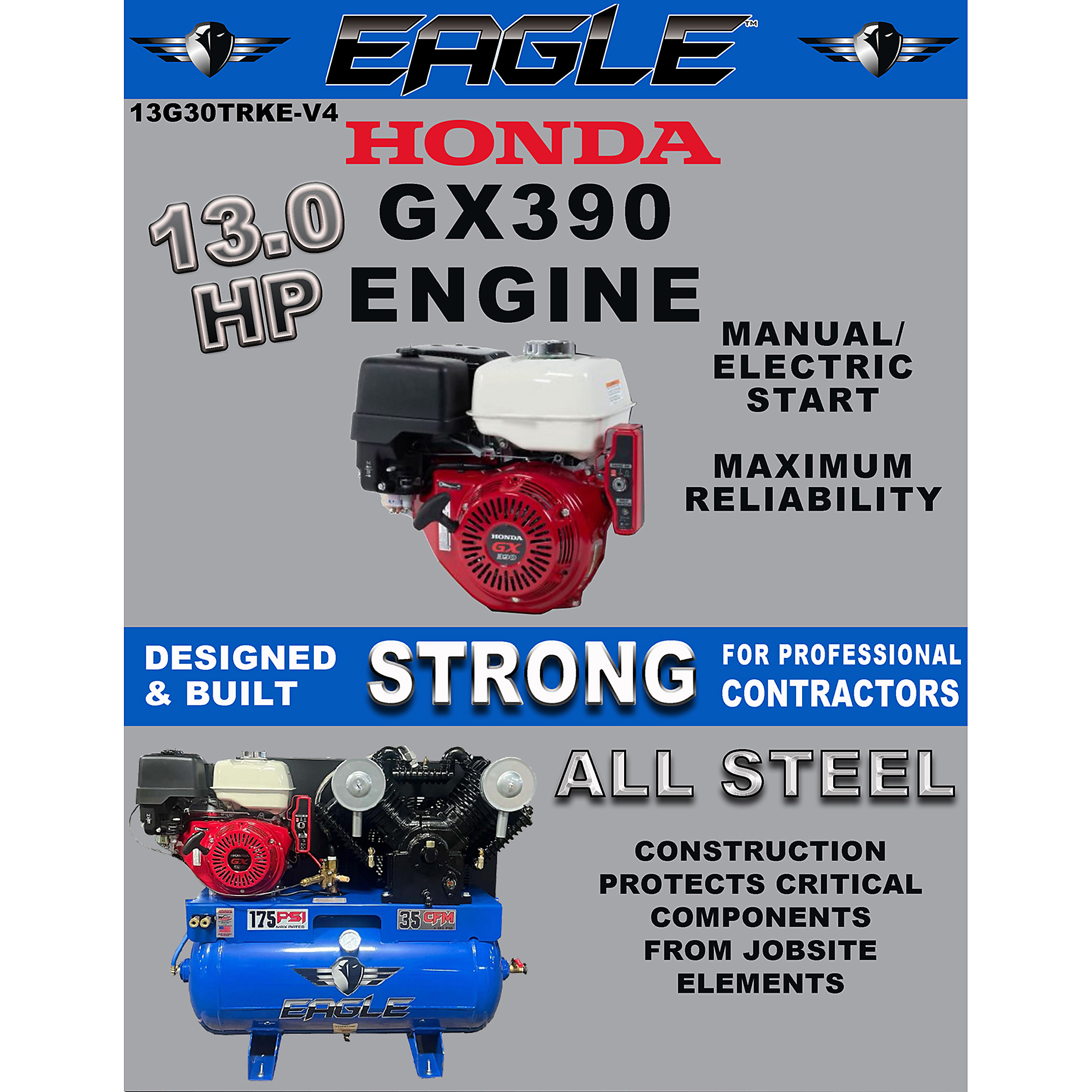

  • Reliable GX390 Honda Engine
  • Industry Leading 35 CFM @ 100psi

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

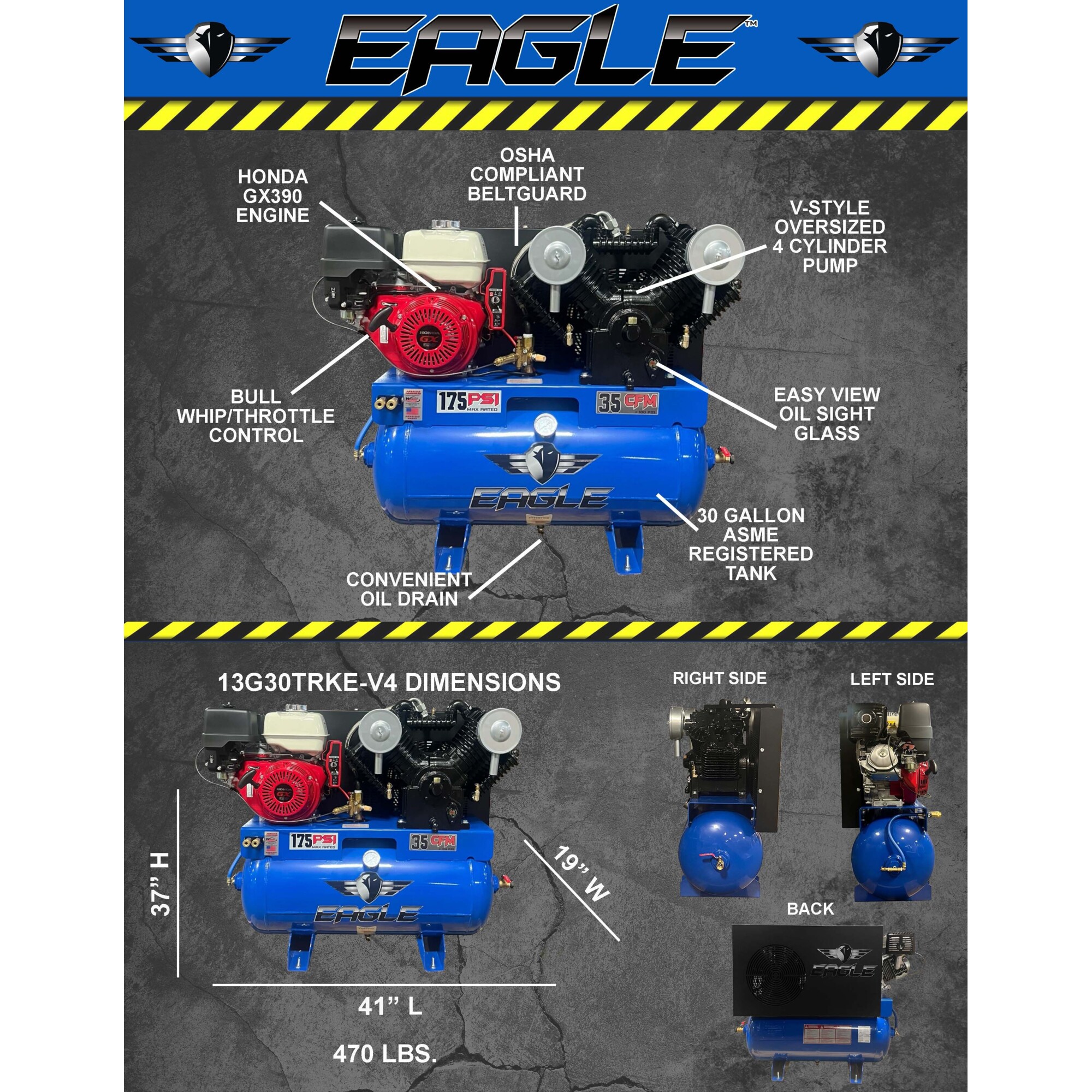

The Eagle 13G30TRKE-V4 Truck style compressor is more than just a leader in this class! It has an OVERSIZED robust 4-cylinder two stage cast iron pump with one inner cooler and dual after coolers all running at a low 600 RPM's which promotes less wear, less friction, less heat. All of which adds up to extended life! Coupled with the reliable 390cc OHV electric start Honda engine this unit pumps out 35 CFM's of air (40% MORE than most competitors) with a MAX PSI of 175 - giving you enough air volume pressure to run multiple high demand tools at once. it comes standard with the fuel saving idle down feature, dual quick connects, 1/2in. ball valve outlet, extended oil drain automotive style filters for easy service.

What's Included

    (1) AIR COMPRESSOR ONLY - DOES NOT INCLUDE BATTERY OR BATTERY CABLE KIT

Downloads

Product Manual
Play Item Video

Features + Benefits

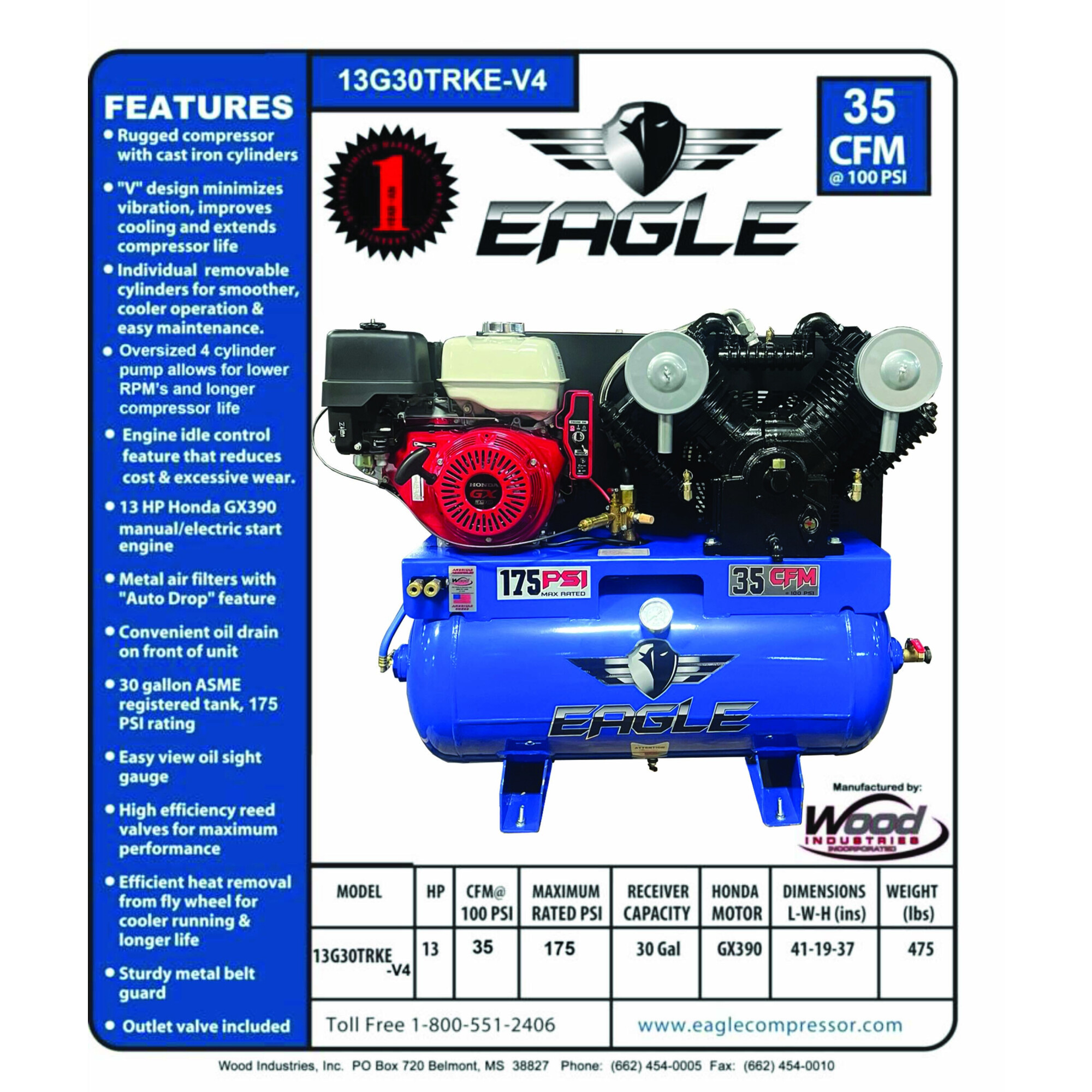

  • Oversized Cast Iron Pump
  • 175 PSI
  • Idle Control
  • Reliable GX390 Honda Engine
  • Industry Leading 35 CFM @ 100psi
  • Operates Multiple Impact & Mechanical Tools
  • "V" Style Pump Improves Cooling
  • 30 Gallon ASME Certified Tank
  • Dual After Coolers
  • Automotive Style Filters
  • Assembled in the USA!

Key Specs

AttributeSpecification

item#

6039521

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

515.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

35

Stage

2

Air Outlets (qty.)

3

Duty Cycle

100 %

Fuel Capacity

1.6 Gal

Motor RPM

3,600

Working Pressure

175 PSI

Engine Displacement

390 cc
AttributeSpecification

Engine Start Type

Electric and Pull

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

Multiple in. NPT

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

Yes

Air Dryer

None

Tank Orientation

Horizontal

Product Weight

475.0000 lb

Dimensions L x W x H (in.)

41.0 x 19.0 x 37.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
