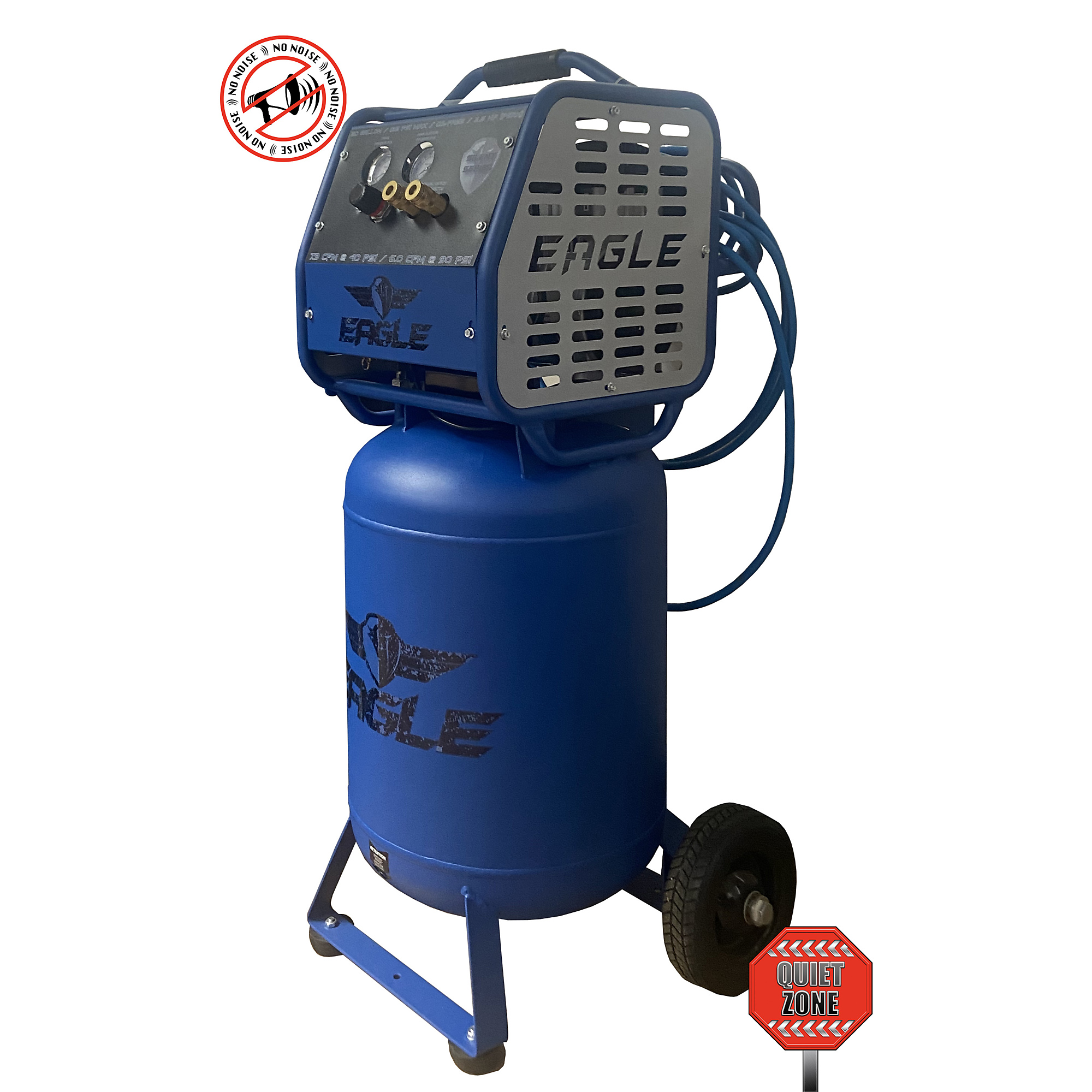

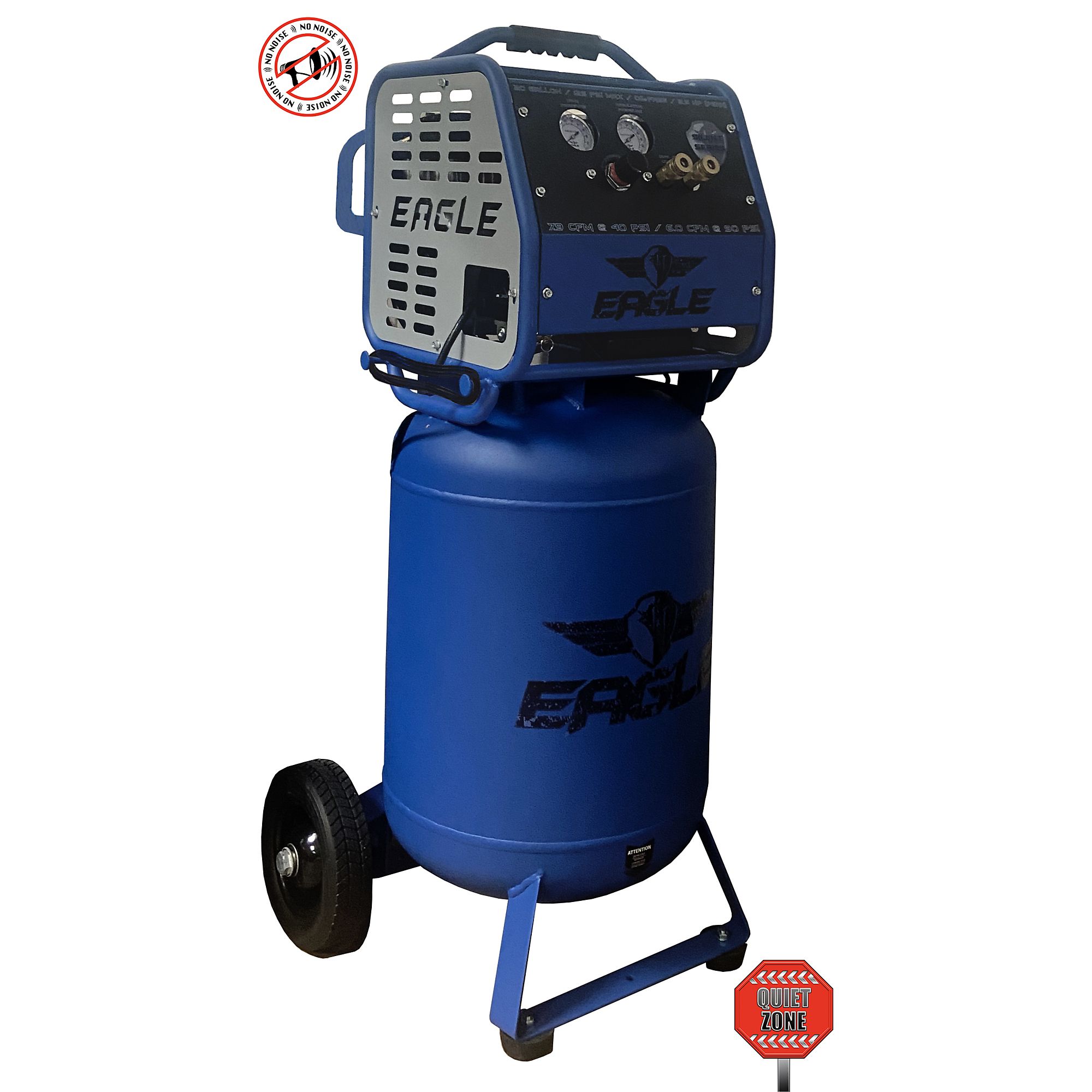

EAGLE, 20 Gallon Silent Air Compressor, Horsepower 2.5 HP, Air Tank Size 20 Gal, Volts 110 Volt, Model# EA-6500

Item# 6039791
EAGLE, 20 Gallon Silent Air Compressor, Horsepower 2.5 HP, Air Tank Size 20 Gal, Volts 110 Volt, Model# EA-6500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 20 Gallon Silent Air Compressor, Horsepower 2.5 HP, Air Tank Size 20 Gal, Volts 110 Volt, Model# EA-6500

Click or Tap image to Zoom

$819.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Dual Piston Design Pumps more air than most of the competition.
  • 6 CFM @ 100 PSI
  • Only 53db @ 25ft
  • Features Eagle's easy start head unloader system to reduce starting amps
  • Low Speed 1700 RPM induction motor provides strong starting torque and reduces unecessary wear compared to higher speed motors.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Eagle Silent Series Compressor line up was designed specifically with the professional contractor in mind. Our units feature a dual piston system with a low RPM motor allowing the unit to run slower while creating less friction and less heat which add up to longer life. The Eagle Silent Air Compressors out last most other oil free compressor designs by 8 to 10 times! The With more than a half dozen product specific patents along with years of product engineering and development you can be sure that you are getting the industry best when you choose an Eagle Silent Series model. The EA-6500 is one of our #1 selling units and is super quiet at only 53db 25ft. The 20 gallon tank and vertical space saving design makes this unit ideal for the shop garage. The larger tank gives more than enoght run time to power the most common mechanic and impact tools. The EA-6500 puts out enough air to operate 4 to 5 pnuematic air nailer at once, making it a preffered model for contractors that need to power a complete crew with one compressor. it comes equipped with 8in. all terrian flat free tires, dual quick connects, a built in regulator, air hose holder, power cord wrap etc just to mention a few of it's industry leading features. While powerful enought to operate multiple pnuematic nail guns and mechanic tools, this model is also ideal for around the house use to air up tires, balls, floats etc.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Dual Piston Design Pumps more air than most of the competition.
  • 6 CFM @ 100 PSI
  • Only 53db @ 25ft
  • Features Eagle's easy start head unloader system to reduce starting amps
  • Low Speed 1700 RPM induction motor provides strong starting torque and reduces unecessary wear compared to higher speed motors.
  • All Steel Design Protects Critical Components From Job Site Elements
  • Large Pressure Gauges are set on a 65 degree angle, making them easy to read from a standing postion
  • Pro Style Dual Universal Quick Connects
  • Heavy duty, Robust Roll Cage Design Protects Critcal Components From Potential Damage on Work Sites or Garages
  • Dual piston pump and low rpm motor reduces friction and heat which both add up to longer life expectancy
  • Lever Style Drain Valves makes it easy to keep tank moisture drained
  • Built In Regulator
  • Operates 3 to 4 Pnuematic Air Nail Guns
  • Operates Multiple Mechainc and Impact Tools
  • Oil Free & Maintenace Free
  • 80% Quieter Than Traditional Air Compressors

Key Specs

AttributeSpecification

item#

6039791

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

230.0 LB

Horsepower

2.5 HP

Air Tank Size

20 Gal

Volts

110 Volt

CFM at 90 PSI

6

Max. PSI

125

Stage

1

Air Outlets (qty.)

2

Amps

14

Duty Cycle

0.5 %

Fuel Capacity

0 Gal

Motor RPM

1,720

Working Pressure

95-125 PSI
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

7.9

Noise Level

53 dB

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Ball Valve

Tank Orientation

Vertical

Engine Model

Not Applicalble

Product Weight

132.0000 lb

Dimensions L x W x H (in.)

21.6 x 18.7 x 45.9 in
