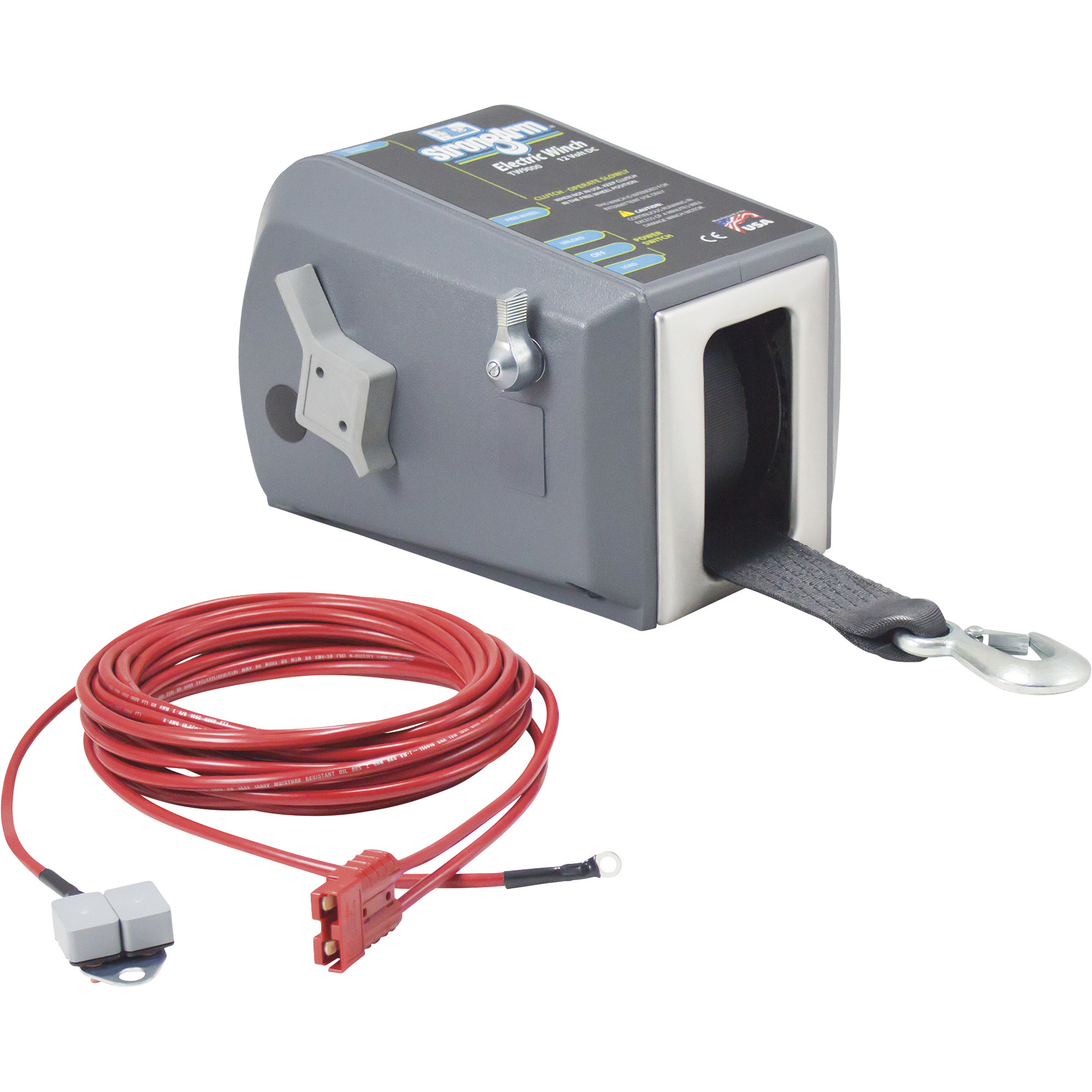

Dutton-Lainson StrongArm 12 Volt DC Powered Electric Marine Winch, 3000-Lb., Polyester Strap, Model# TW9000

Item# 140001
"Dutton-Lainson StrongArm 12 Volt DC Powered Electric Marine Winch, 3000-Lb., Polyester Strap, Model# TW9000"
Clearance
Dutton-Lainson StrongArm 12 Volt DC Powered Electric Marine Winch, 3000-Lb., Polyester Strap, Model# TW9000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson StrongArm 12 Volt DC Powered Electric Marine Winch, 3000-Lb., Polyester Strap, Model# TW9000

Click or Tap image to Zoom

  • 3000-lb. pulling capacity
  • 12V DC, 70 Amp motor
  • 20ft.L x 2in.W polyester strap
  • 6.3 FPM full load drawing/70 Amps
  • 15 FPM no load drawing/50 Amps

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Dutton-Lainson 3000-lb. 12V Electric Winch is designed for use with boats up to 9000 lbs. 12 Volt, 70 Amp motor. 570:1 gear ratio. Controlled freewheeling clutch lever. U.S.A.

What's Included

    (1) Electric winch

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • 3000-lb. pulling capacity
  • 12V DC, 70 Amp motor
  • 20ft.L x 2in.W polyester strap
  • 6.3 FPM full load drawing/70 Amps
  • 15 FPM no load drawing/50 Amps
  • 570:1 gear ratio
  • Dynamic brake and mechanical friction brake
  • Controlled freewheeling clutch lever
  • 3-position rotary switch

Key Specs

AttributeSpecification

item#

140001

Brand

StrongArm

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

29.78 LB

Horsepower

0.7 HP

Capacity (Line Pull)

3,000 lb

Application

Trailer

Gear Type

Spur

Line Speed

6.3 ft./min.
AttributeSpecification

Gear Ratio

570:1

Rope Length

20 ft

Rope Diameter

2 in

Rope Material

Polyester

Brake Type

Other

Remote

No

Automatic Load Holding

Yes

Freespooling

Yes

Mounting Hardware Included

No

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Do the power lines to the car battery come with the winch, and what length are they? Does the emergency hand crank come with the winch?

    What is the mounting configuration (Bolt patterm) for the winch, and does a mounting bracket come with the winch?

    1. Yes. Cables to battery are included and are probably 8 feet long.. I believe it comes with the emergency crank but I have never used it.

      Helpful?

    2. Yes, this winch comes with 25' of positive cable and 8' of ground cable. The emergency hand crank is included. This winch mounts using a 3 bolt pattern. The spacing side to side of the two front holes is 1 1/4", the rear mounting hole centered between the two front holes and is 3" behind them.

      Helpful?

  2. I need more cable than is on the winch. If I replace the cable how much cable will fit. I need about 75 feet of cable. Do you sell replacement cable for this unit.

    1 answer

    1. The recommend maximum length of cable you can install on the winch is 7/32" x 90'. We do not carry this cable separately.

      Helpful?

  3. does this come with a truck side wiring harness?

    the manufacturer's web site shows a wiring harness with this winch, but your description does not mention one

    1 answer

    1. This winch does come with a truck side wiring harness.

      Helpful?

  4. Does it have a remote? Details show a remote, but no picture etc.

    1 answer

    1. This Dutton-Lainson Marine Electric Winch does not include a remote. It features a 3 position rotary switch.

      Helpful?

  5. can i buy extra power cords for tw9000

    1 answer

    1. An extra or replacement power cord would be available directly from the manufacturer (Dutton Lainson).

      Helpful?

  6. how long is the wire to the battery

    1 answer

    1. The Dutton-Lainson 3000-lb. 12V Electric Winch comes with a wiring harness that includes a 25 foot power cable to go to the battery, and an 8 foot ground wire.

      Helpful?

  7. Does it come with a cover?, If not, is a cover available to purchase?

    1 answer

    1. The winch does not come with an extra cover. The housing cover can be ordered through our parts department. There is a vinyl cover for this unit that is available through the manufacturer.

      Helpful?
