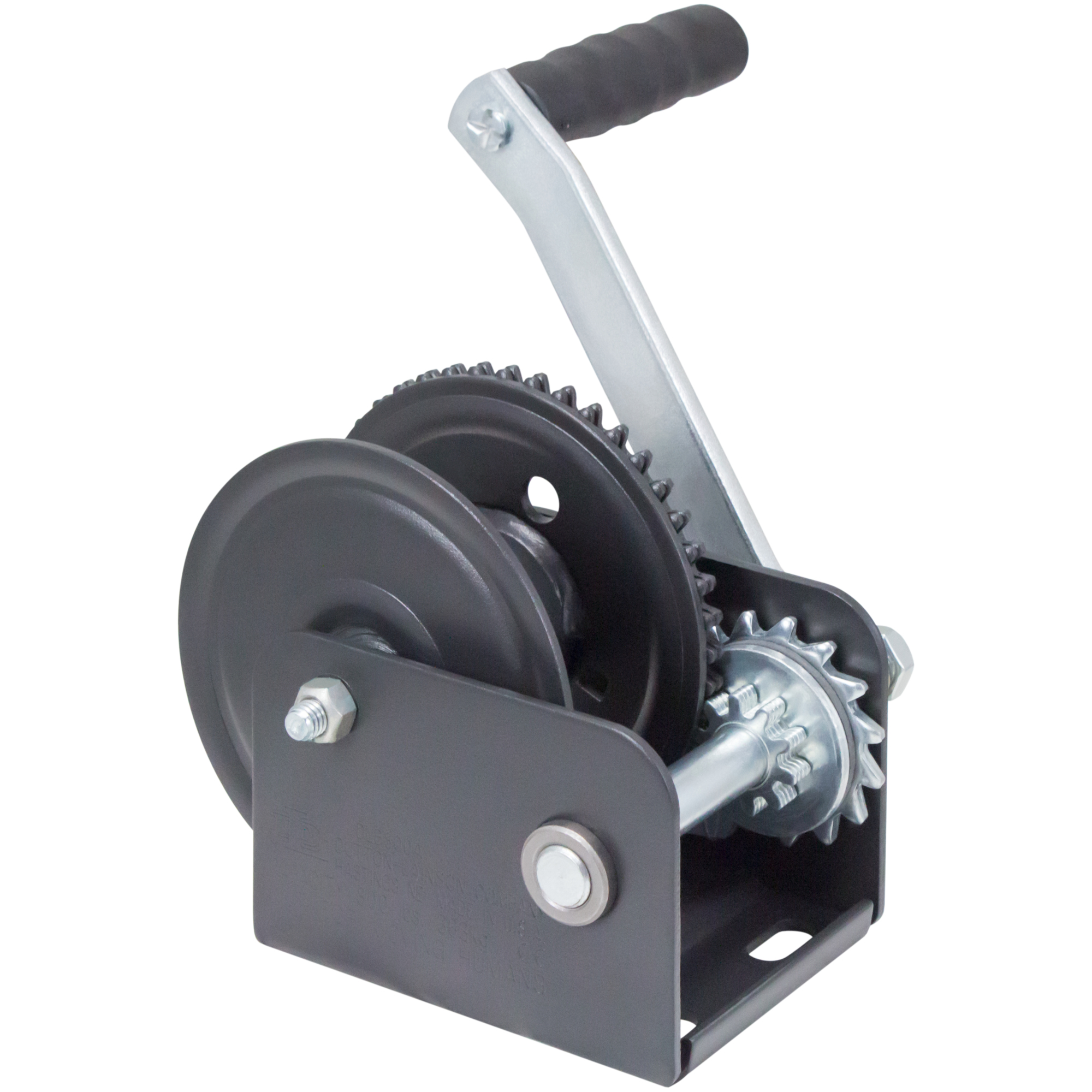

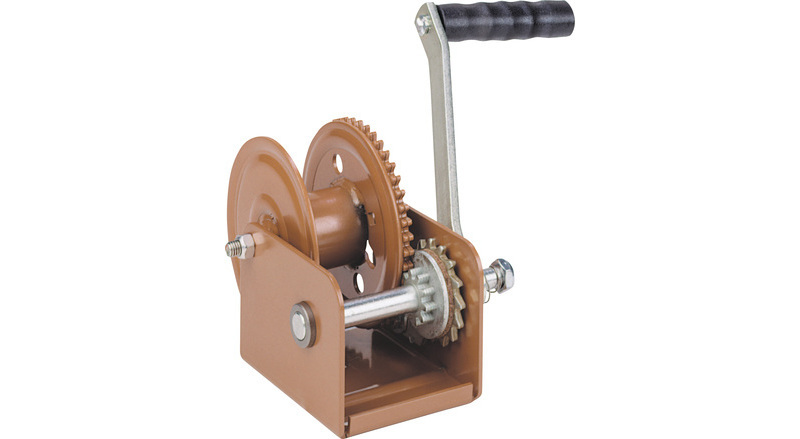

Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 800-Lb. Capacity, Vertical Lifting, Model# DLB800

Item# 129681
"Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 800-Lb. Capacity, Vertical Lifting, Model# DLB800"
Top Seller
Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 800-Lb. Capacity, Vertical Lifting, Model# DLB800

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 800-Lb. Capacity, Vertical Lifting, Model# DLB800

Click or Tap image to Zoom

$79.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Drum Diameter: 1 7/8in.
  • Bronze powder-coated finish
  • Cranks in and out under load
  • Self-locking winch does not freewheel, making it ideal for vertical lifting

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Multiple application vertical lifting winch can raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released. Minimum operating load of 50 Lbs. Rugged steel construction, 7in. handle.

What's Included

    (1) Dutton-Lainson Single Speed Hand Winch with Automatic Brake

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Drum Diameter: 1 7/8in.
  • Bronze powder-coated finish
  • Cranks in and out under load
  • Self-locking winch does not freewheel, making it ideal for vertical lifting

Key Specs

AttributeSpecification

item#

129681

Brand

Dutton-Lainson

Manufacturer's Warranty

5 year limited warranty

Ship Weight

7.23 LB

Product Type

Hand Winch
AttributeSpecification

Load Capacity

800 lb

Drum Capacity

68 ft

Gear Ratio

4.4:1

Product Weight

8 lb

Reviews

Questions & Answers

24 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. Does the winch release in a controlled manner? (no free spooling)?

    1. I use this almost exclusively on my deer feeders. To get it to release on a full feeder you might need to turn it in slightly and then back but it does release very smoothly. I have been using then for ten years on many winch feeders.

      Helpful?

    2. Yes, it's a smaller version of mine. No free spooling. The auto brake holds the load in place when the handle is not being turned.

      Helpful?

    3. The Dutton-Lainson Winch does not freewheel. It winches in and out under load.

      Helpful?

  2. Isn't the 1-7/8" drum too small to wind 3/16" cable?

    This relates to the DLB-800. I have used 3/16" stainless steel cable on my sailboat, and I think it would be too stiff to wind around so small a drum.

    1. The drum is capable of properly holding up to 68 feet of 3/16" cable.

      Helpful?

    2. Thanks for your question! 3/16" cable is actually the thickness of cable we recommend using on this winch, as it gives you a 4:1 safety factor. Up to 67' of 3/16" cable will fit on this winch's drum.

      However, if you are concerned about installing this thickness of cable on your winch, up to 95' of 5/32" cable or up to 147' of 1/8" cable will also fit on this winch's reel.

      Helpful?

  3. Can the crank be replaced with a 'wheel' crank similar to a steering wheel?

    1 answer

    1. A steering wheel crank is not available for the winch.

      Helpful?

  4. This winch is listed as vertical lifting. Can it also be used on the horizontal for pulling heavy items under 800 lbs.?

    1 answer

    1. The winch can be used in vertical or horizontal applications, as long as you do not exceed the 800 pound capacity.

      Helpful?

  5. Can the cable be free pulled out to reach a load without having the handle being cranked out by a second person at the same time? I operate alone and have to pull the cable out from my truck crane to hook up to loads that are below ground level/downslope

    1 answer

    1. This winch will not freewheel out.

      Helpful?

  6. Does this come with steel roping? If not do you provide it?

    1 answer

    1. The hand winch does not include the steel cable. Northern Tool does not carry any steel cable for this hand winch..

      Helpful?

  7. Can the handle be used in a ratcheting fashion or does it require 360 degree rotation?

    1 answer

    1. The handle on this winch should be turned a full 360 degrees rotation.

      Helpful?

  8. What is the minimum load required to release the winch in the opposite direction?

    1 answer

    1. The minimum load required to allow this winch to release in the opposite direction is 50 lbs.

      Helpful?

  9. Strap Attachment

    If installing a 2" strap to this unit, how is it secured to the drum? (Not shown in any of the images...)

    1 answer

    1. This hand winch has a slot on the large geared wheel to put the strap or cable through and then wind the strap or cable onto the drum.

      Helpful?

  10. what is the max length & thickness of rope it will hold? Does it take wire rope only?

    I want to use this with a block & tackle using 3/8 braided rope.

    1 answer

    1. The maximum drum capacity is 68 feet of 3/16 inch cable or rope.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
