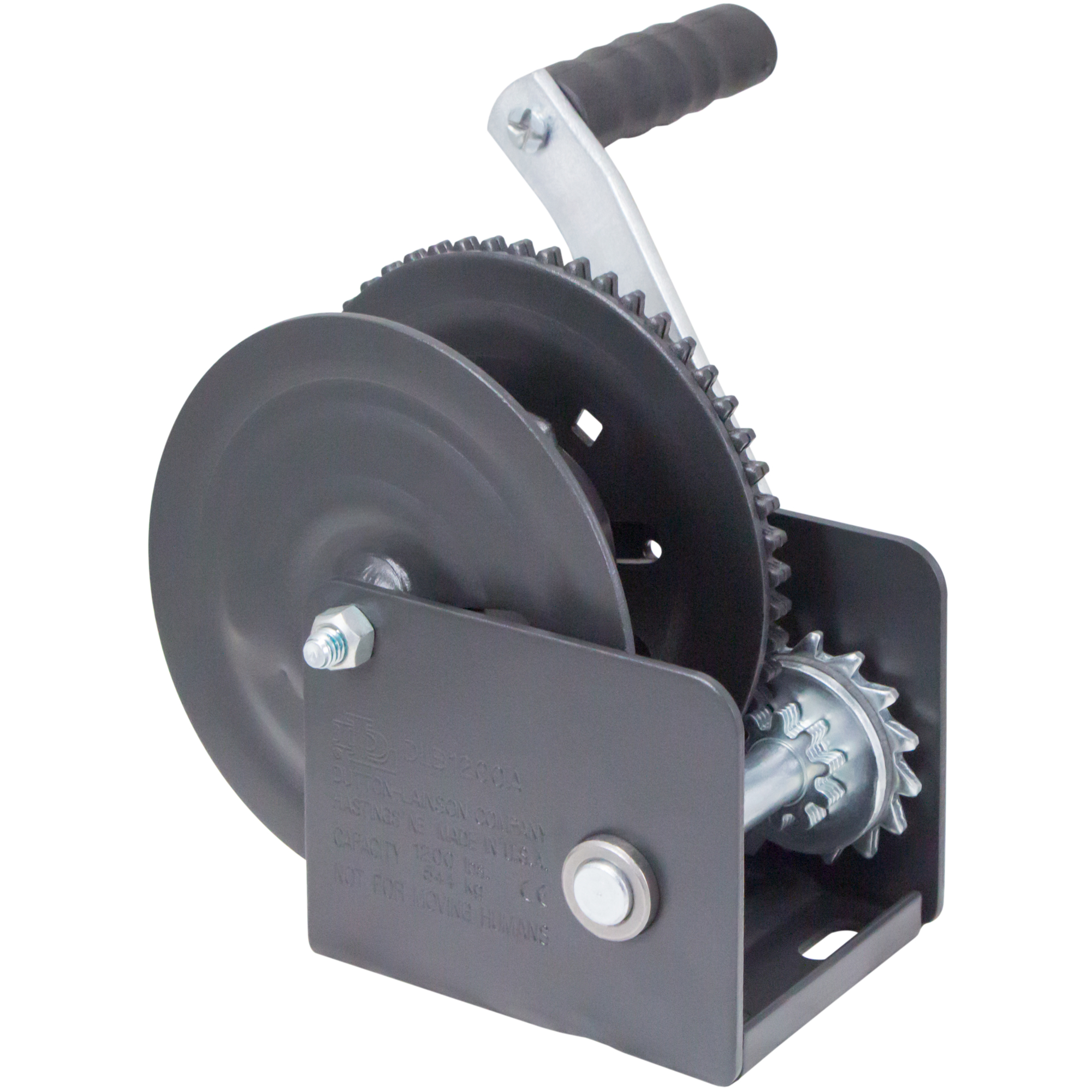

Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 1200-Lb. Capacity, Model# DLB1200A

Item# 129682
"Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 1200-Lb. Capacity, Model# DLB1200A"
Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 1200-Lb. Capacity, Model# DLB1200A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 1200-Lb. Capacity, Model# DLB1200A

Click or Tap image to Zoom

$109.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Drum Diameter: 2 1/2in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Multiple application winch to raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released, making it ideal for pulling loads. Minimum operating load of 50 lbs. Rugged steel construction, 7in. handle. Bronze powder-coated finish.

What's Included

    (1) Winch with auto brake

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Drum Diameter: 2 1/2in.

Key Specs

AttributeSpecification

item#

129682

Brand

Dutton-Lainson

Manufacturer's Warranty

5 year limited warranty

Ship Weight

8.94 LB
AttributeSpecification

Product Type

Hand Winch

Load Capacity

1,200 lb

Drum Capacity

69 ft

Gear Ratio

5.4:1

Reviews

Questions & Answers

26 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Can you give me the length &width of the base of the winch?

    1. The base is 4" wide and 5" long

      Helpful?

    2. The length of the base is five and one thirty seconds of an inch. The width of the base is three and five eights of an inch.

      Helpful?

  2. Is 7/32" the desired rope diameter for this? Can I use a wider rope?

    1. you can use a larger rope/cable but it will reduce the length the spool will hold.

      Helpful?

    2. This Dutton-Lainson Single Speed Hand Winch with Automatic Brake is best suited for 7/32" rope, though it can handle up to 50 foot of 1/4" rope.

      Helpful?

  3. Are the handles easily removable?

    1. the handle removes easily. Actually it unscrews to allow removal of the cable from the spool

      Helpful?

    2. The Dutton-Lainson Winch has a handle that can be removed by loosening the end nut and then pulling the handle and brake off together. Handle cannot be removed when under load.

      Helpful?

  4. does this winch come with the hardware to secure the cable to the drum?

    1. yes

      Helpful?

    2. The hardware is included to secure the cable to the drum.

      Helpful?

  5. Is a 2" strap included?

    In the specs section, it says wire rope is not included, but it says 2" strap. Usually, when neither is included, both will say "Not Included"

    Does it come with a strap?

    1. STRAP IS NOT INCLUDED

      Helpful?

    2. This does not come with strap or cable.

      Helpful?

  6. Can this hold a 3/8" stainless cable?

    1 answer

    1. This can hold approximately 50 feet of 3/8" stainless cable.

      Helpful?

  7. Need Lengh & width inches of mounting bolt pattern.

    1 answer

    1. The length of the mounting bolt pattern ranges from 2-45/64 to 3-5/8 inches to the one oblong mounting hole from the center of the two front mounting holes. The bolt hole width is 2-1/8 inches apart on center for the two front holes measured from the center of the rear hole.

      Helpful?

  8. I have this winch in an 800lb capacity. It works well, but cranks rather hard. Would stepping up to a 1200lb capacity winch crank more easily?

    1 answer

    1. Under full load capacity the winches would crank with the same amount of force. If you pull 800 pounds with a 1200 pound winch it will be easier to crank.

      Helpful?

  9. Can it be used in a hoist application?

    I've heard the gearing is different in winches versus hoists. Just wondering what the real difference is? Can I use this as a hoist, or is there a hand hoist other then the chain hoists or the lever action ones?

    1 answer

    1. This specific Dutton-Lainson Winch with Automatic Brake can be used in a hoist application.

      Helpful?

  10. can you please give me the D-L Model number for this winch?

    1 answer

    1. The manufacturers model number on this winch is 14932.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
