Dutton-Lainson Chain Drive Manual Winch, 2250 Lb. Single-Line Capacity, Model# CD4500

Item# 89418
Dutton-Lainson Chain Drive Manual Winch, 2250 Lb. Single-Line Capacity, Model# CD4500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson Chain Drive Manual Winch, 2250 Lb. Single-Line Capacity, Model# CD4500

Click or Tap image to Zoom

$474.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Chain drive manual winch for use with boat lifts
  • 2250 lb. single-line capacity; 4500 lb. double-line capacity
  • Utilizes sprockets and roller chain
  • Built in fully automatic friction brake holds load exactly in position when raising and lowering
  • 25.1:1 gear ratio

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

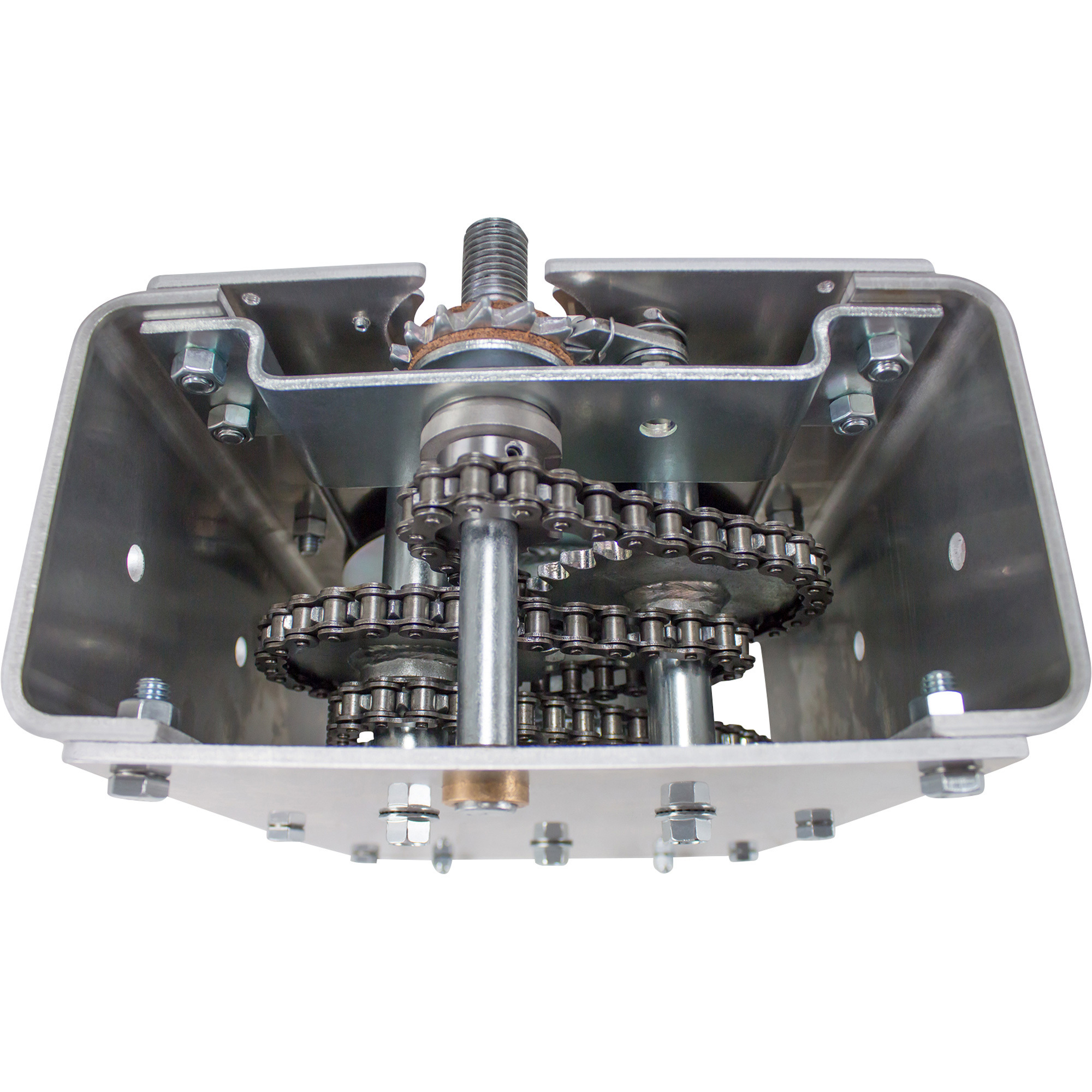

The Dutton-Lainson® Chain Drive Manual Winch is designed for use with boat lifts. Manual winch utilizes sprockets and roller chain, featuring an enclosed design with aluminum housing. Delivers 2250 lb. single-line capacity; 4500 lb. double-line capacity. 25.1:1 gear ratio. Built-in fully automatic friction brake holds load exactly in position when raising and lowering. Mounting holes are identical on both sides. Removable access panel and top cover makes it easy to change brake pads if needed. Unit is protected by a zinc-plated TUFFPLATE® finish. Made in U.S.A.

What's Included

    (1) Chain drive manual winch

Downloads

Product Manual

Features + Benefits

  • Chain drive manual winch for use with boat lifts
  • 2250 lb. single-line capacity; 4500 lb. double-line capacity
  • Utilizes sprockets and roller chain
  • Built in fully automatic friction brake holds load exactly in position when raising and lowering
  • 25.1:1 gear ratio
  • Zinc-plated TUFFPLATE® finish
  • Enclosed design
  • Aluminum housing
  • Mounting holes are identical on both sides
  • Removable access panel and top cover makes it easy to change brake pads if needed
  • Stainless steel fasteners and steel-backed PTFE lined bearings

Key Specs

AttributeSpecification

item#

89418

Brand

Dutton-Lainson

Manufacturer's Warranty

5 year limited warranty

Ship Weight

30.0 LB

Product Type

Other
AttributeSpecification

Load Capacity

2,250 lb

Gear Ratio

11.5:1

Product Weight

29.5000 lb

Dimensions L x W x H (in.)

13.25 x 10.25 x 5.5 in

Reviews

Questions & Answers

Questions

  1. Will this winch work for a 2800lb boat in an older shorestation 2600? Dont know about Single Line or dual line application. It is a 12V DC?. Does the lifting cable go up into it from the bottom? Measurements for mounting holes? Is there a video?

    1 answer

    1. The winch would handle 4500 pounds on double line. You would need to use a pulley block to double the chain. It is manually operated, it does not have a motor. You would need to contact the manufacturer of your Shorestation 2600 to determine how this winch would work with it, if the cable would go up into it from the bottom. The mounting holes are 4" x 2 3/4". There is no video available for it.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
