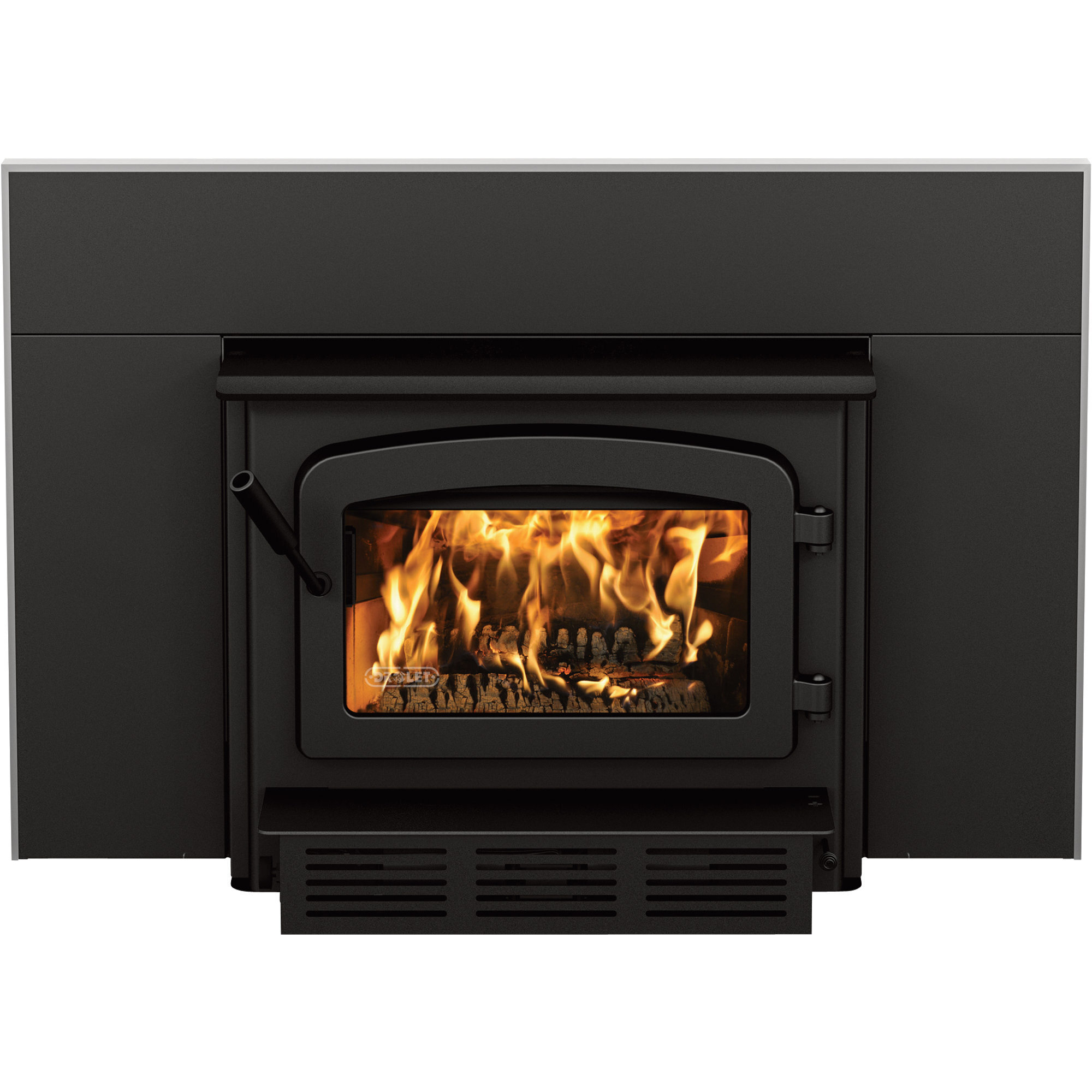

Drolet High-Efficiency 1800 Trio Fireplace Wood Insert, 75,000 BTU, EPA Certified, Model# DB03127

Item# 48968
"Drolet High-Efficiency 1800 Trio Fireplace Wood Insert, 75,000 BTU, EPA Certified, Model# DB03127"
Drolet High-Efficiency 1800 Trio Fireplace Wood Insert, 75,000 BTU, EPA Certified, Model# DB03127

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Drolet High-Efficiency 1800 Trio Fireplace Wood Insert, 75,000 BTU, EPA Certified, Model# DB03127

Click or Tap image to Zoom

$2149.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heats up to 2100 sq. feet
  • EPA certified
  • Fits 20in. logs
  • Includes faceplate, heat-activated variable speed blower, 25-ft. stainless steel liner, cap, top plate and adapter
  • Fits most mid-size masonry fireplaces with opening dimensions of 29in.W x 15in.D x 22 5/8in.H

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

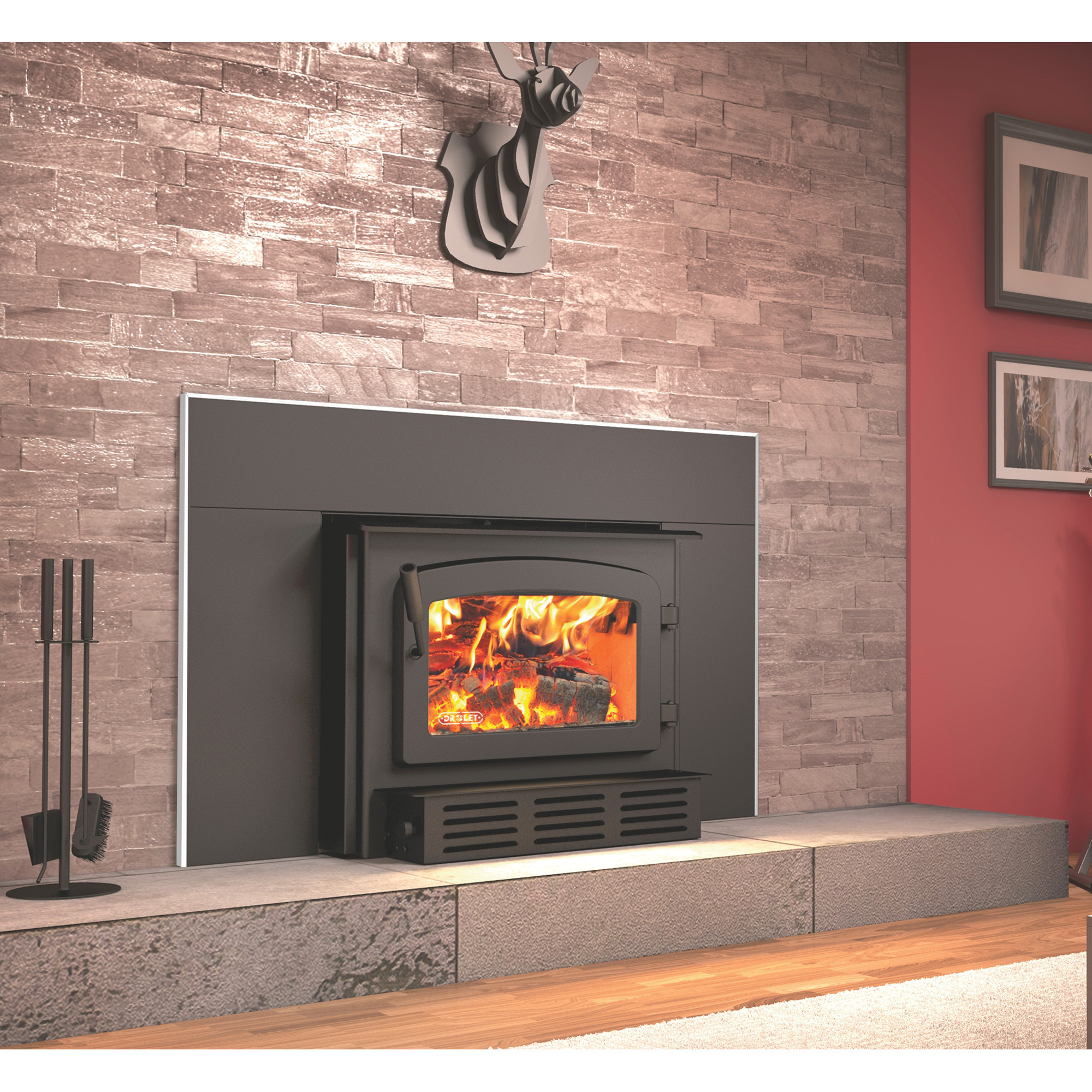

The Drolet High-Efficiency 1800 Trio Fireplace Wood Insert lets you upgrade your costly inefficient masonry fireplace. This large 77.2% efficient 75,000 BTU wood insert has stainless steel secondary combustion tubes and a C-cast baffle that are clean-burning and EPA-certified. This unit produces almost twice the heat of a non-certified insert with the same amount of wood. The 2.4 cu. ft. firebrick-lined firebox is recommended to heat 500-2100 sq. ft., holds 20in. logs and provides a burn time up to 7-9 hours long. Built-in air-wash system keeps ceramic glass clean enabling monitoring and enjoyment of the fire.

What's Included

    (1) Fireplace wood insert

Downloads

Product Manual

Features + Benefits

  • Heats up to 2100 sq. feet
  • EPA certified
  • Fits 20in. logs
  • Includes faceplate, heat-activated variable speed blower, 25-ft. stainless steel liner, cap, top plate and adapter
  • Fits most mid-size masonry fireplaces with opening dimensions of 29in.W x 15in.D x 22 5/8in.H
  • 5/16in. thick steel top
  • Includes a variable speed 120 CFM blower
  • Optional fire screen (AC01315) allows operation with door open
  • Heat shield for mantel (AC01317) is available, sold separately
  • Fits minimum 28 3/8in.W x 26 3/8in.D x 23 1/8in.H opening

Key Specs

AttributeSpecification

item#

48968

Brand

Drolet

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

500.0 LB

Heat Output

75,000 Btu/hour

Heating Capability

2,100 ft²

Assembled Height

66 in

Assembled Width

33 in
AttributeSpecification

Assembled Depth

38 in

Blower Included

Yes

Blower CFM

120 cfm

Firebox Width

16.5 in

Firebox Depth

21 in

Log Capacity Length

20 in

EPA Certified

Yes

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is the size of the faceplate for this model?

    1 answer

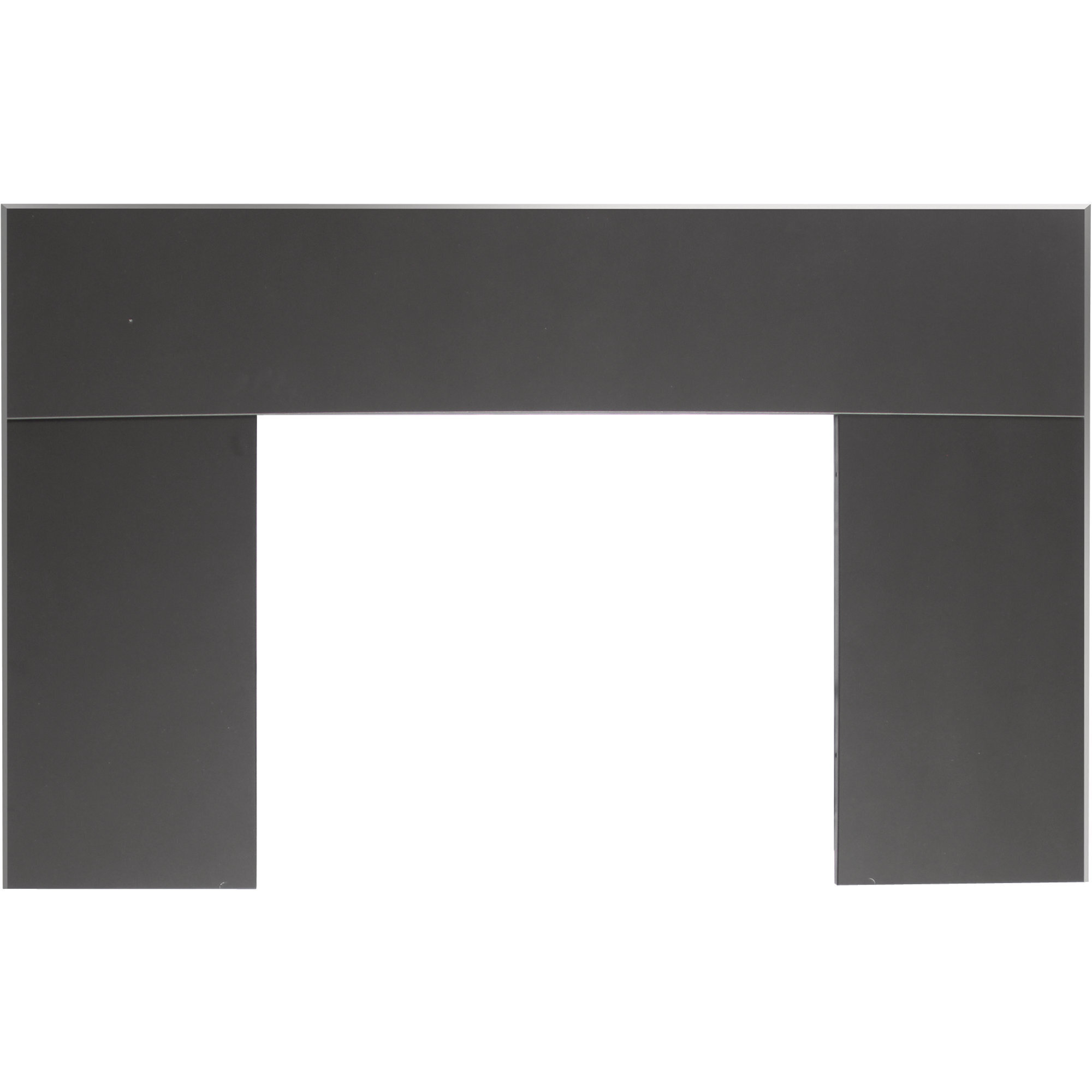

    1. The faceplate dimensions are 32" X 50".

      Helpful?

  2. How thick is the firebox steel?

    1 answer

    1. The firebox is made of 3/16" steel. The insert has a 3/6" steel body and a 5/16" steel top.

      Helpful?

  3. What size is then vent

    1 answer

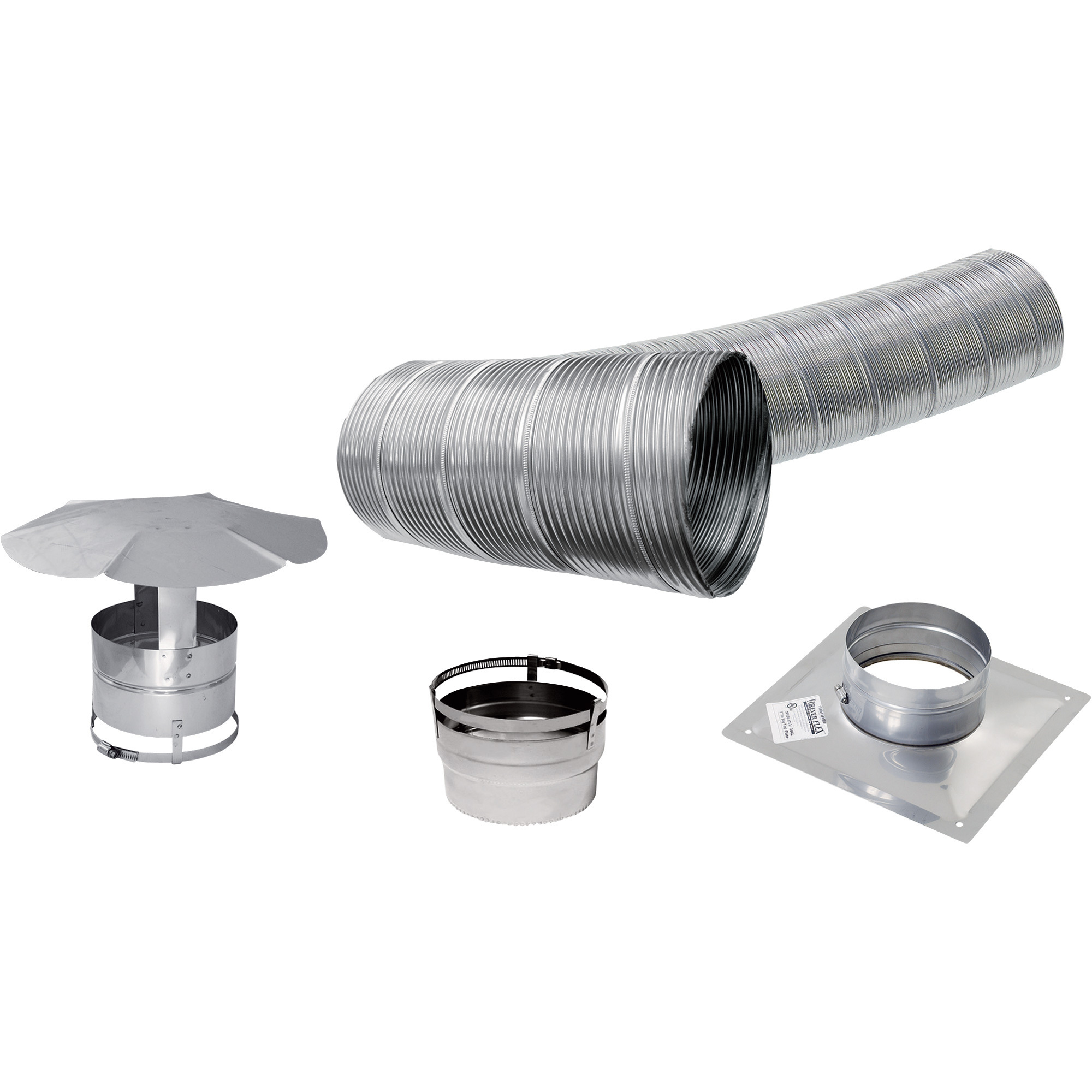

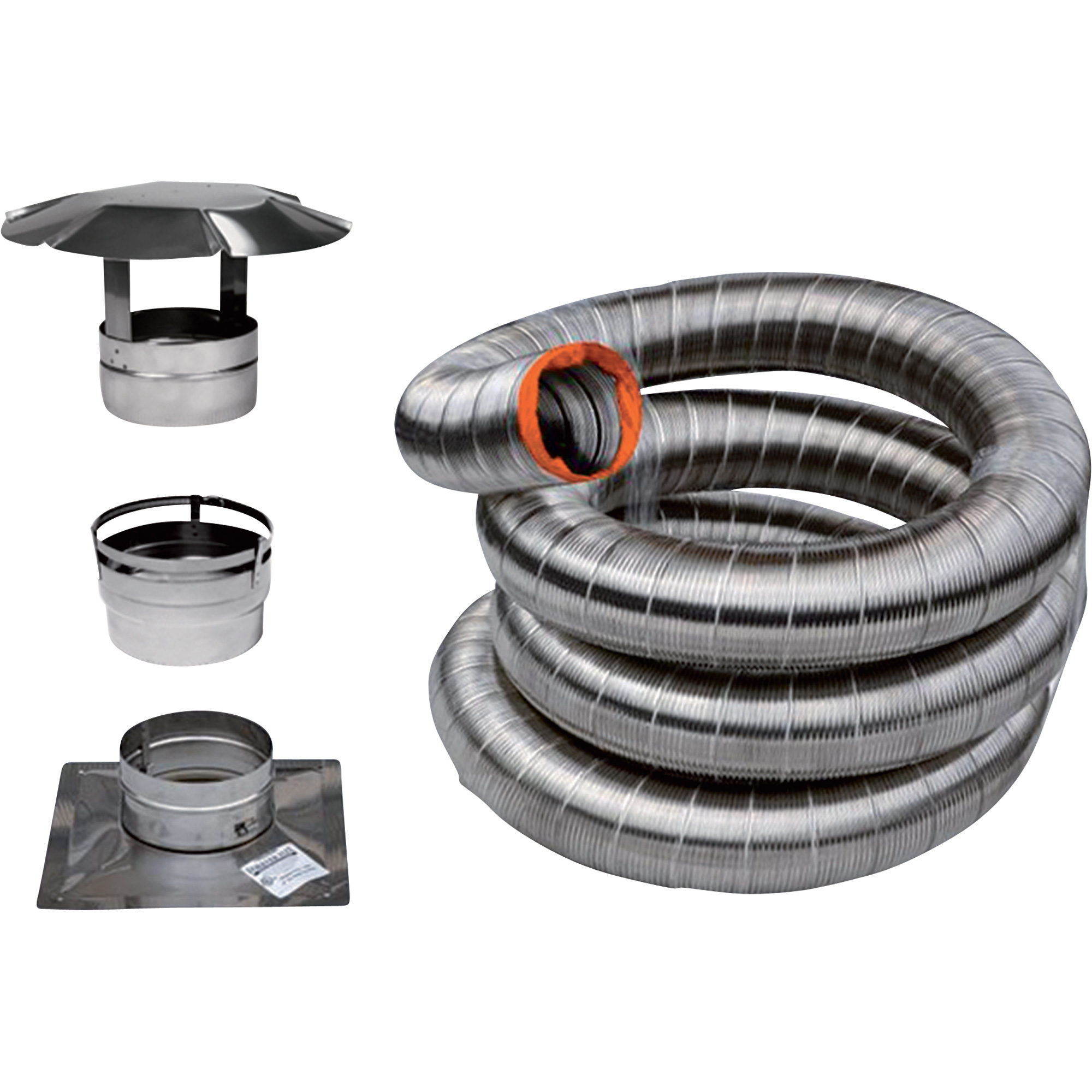

    1. The stainless steel liner will be 6" in diameter x 25 feet.

      Helpful?

  4. What country is the stove made in?

    1 answer

    1. The Drolet Escape wood fireplace insert is made in Canada.

      Helpful?

  5. What brand is the supplied liner?

    How does it compare to the Duravent?

    1 answer

    1. The liner included with this fireplace insert is made by Vortex. This heavy duty flexible liner meets the requirements of the NFPA 211, UL 1777, ULC S635 and CAN/ULC S640 Standards. It would be as good a quality as the Duravent brand liner.

      Helpful?

  6. does the heat blow out the top or the bottom?

    1 answer

    1. The heat on this fireplace blows out of the bottom.

      Helpful?

  7. Does the liner provided in this kit include insulation, tape, adhesive and mesh?

    1 answer

    1. This kit includes faceplate, heat-activated variable speed blower, 25-ft. stainless steel liner, cap, top plate and adapter only, no tape, adhesive or mesh.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
