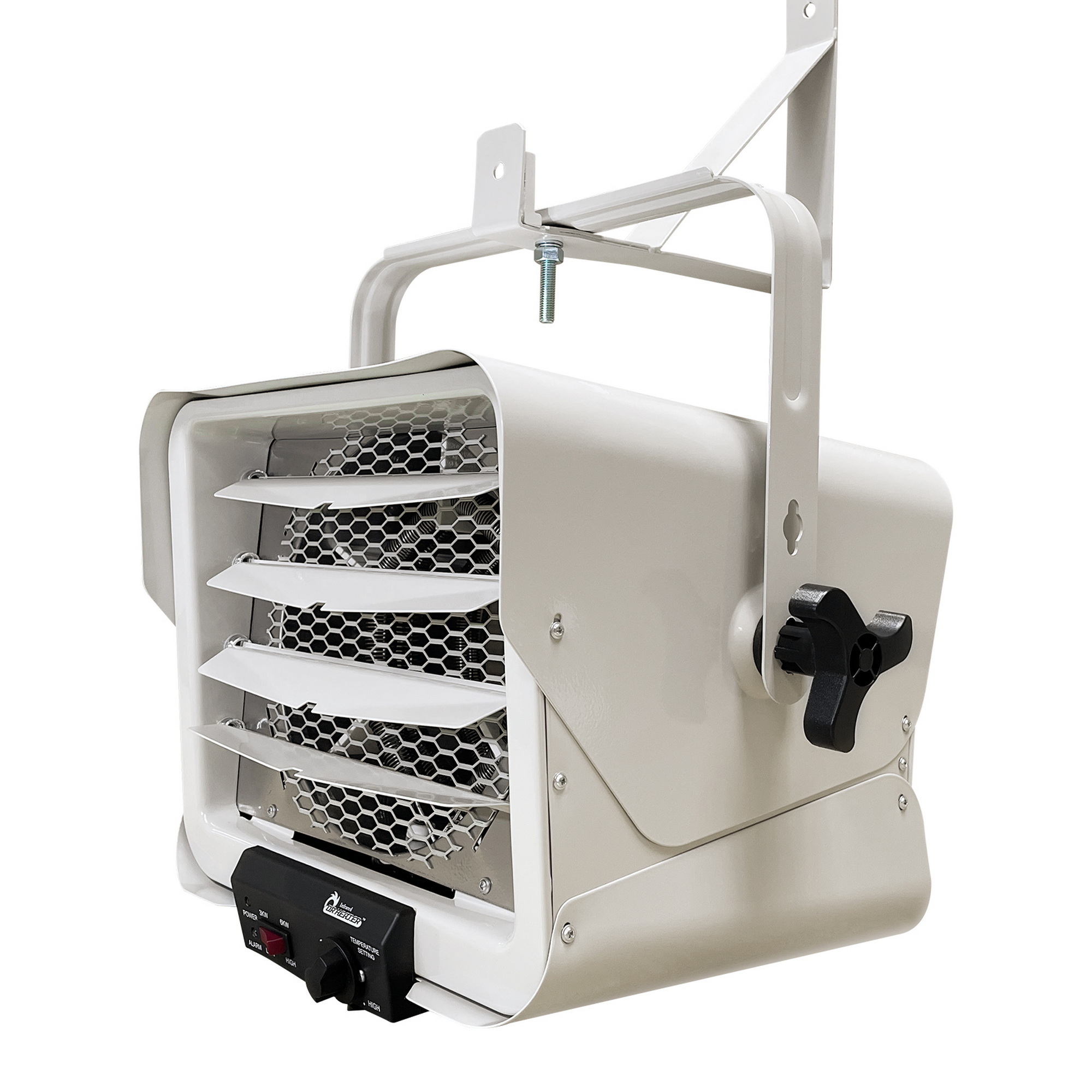

Dr. Infrared Heater, Shop Garage Commercial Heater, 3000 or 6000-Watt, Heat Output 20472 Btu/hour, Heating Capability 600 ft², Model# DR-966

Item# 6205701
Dr. Infrared Heater, Shop Garage Commercial Heater, 3000 or 6000-Watt, Heat Output 20472 Btu/hour, Heating Capability 600 ft², Model# DR-966

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater, Shop Garage Commercial Heater, 3000 or 6000-Watt, Heat Output 20472 Btu/hour, Heating Capability 600 ft², Model# DR-966

Click or Tap image to Zoom

$199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy Duty 240V Single Phase 3000W/6000W Commercial Electric Heater. In high power mode, the heater will operate at max power of 6000W and in low power mode at 3000W.Heating Coverage:600 sq ft
  • Hardwired; Power cord not included. Use 8 AWG copper wires for connection. Dimensions: Height 14.5", Width 13", Depth 14.5".
  • UL/CUL Listed Wall or Ceiling Mounted Heater; Bracket Included

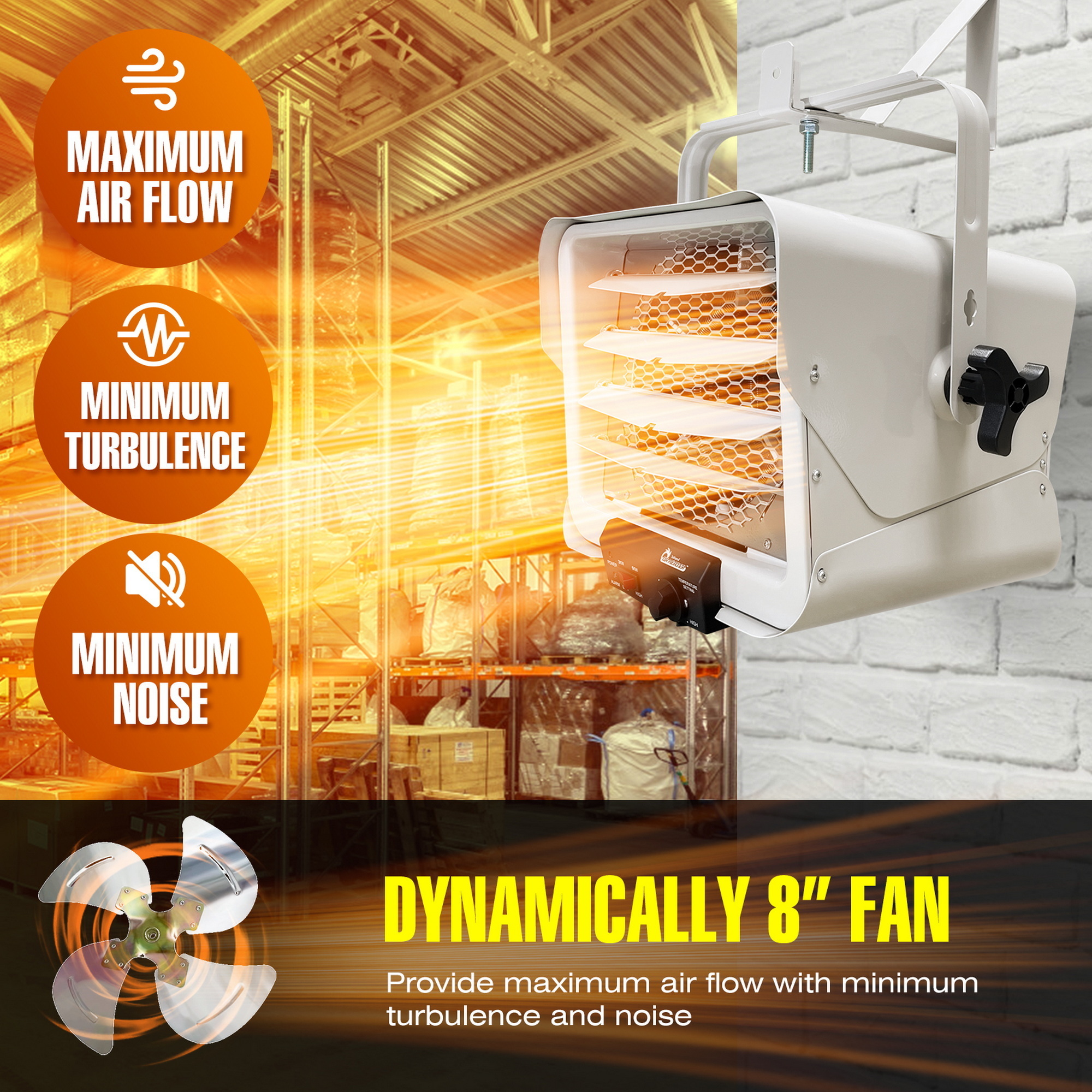

  • Adjustable Thermostat with HIGH and LOW Setting. A dynamically 8 inch fan provide maximum air flow with minimum turbulence and noise, gently distributes warmth through your area
  • 5 Adjustable Louvers for to Direct Airflow

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Need safe, comfort and quick heat. This DR966 3000/6000W industrial heater can be easily installed in either your new or remodeled building. DR966 can be your primary or auxiliary heat source for your garage, factories, stores, warehouses, workshops, schools, churches, hospitals, dormitories or any exposed areas. DR966 uses spiral steel metal sheath electric heating elements with low sheath temperatures provide uniform heat and long service life. Plus a large, matched, dynamically 8in. fan provide maximum air flow with minimum turbulence and noise, gently distributes warmth through your area. Totally enclosed, thermally protected, heavy-duty ball bearing motor features permanently lubricated provides long life and low maintenance. Built-in adjustable thermostat allows to set your desire style. Thermostat with Temperature Range from 37-104°F. Rugged stamped steel front cover with 5-way adjustable louvers for easy control airflow. Ceiling and wall mounting bracket are included. Finished in a white epoxy paint. UL and CUL Listed. 1-Year Limited Component Warranty.

What's Included

    (1) ·Heater (1) Heater Handle (1) Mounting Bracket (2) Tilt Adjustable Knob (1) Screw Kit

Features + Benefits

  • Heavy Duty 240V Single Phase 3000W/6000W Commercial Electric Heater. In high power mode, the heater will operate at max power of 6000W and in low power mode at 3000W.Heating Coverage:600 sq ft
  • Hardwired; Power cord not included. Use 8 AWG copper wires for connection. Dimensions: Height 14.5", Width 13", Depth 14.5".
  • UL/CUL Listed Wall or Ceiling Mounted Heater; Bracket Included
  • Adjustable Thermostat with HIGH and LOW Setting. A dynamically 8 inch fan provide maximum air flow with minimum turbulence and noise, gently distributes warmth through your area
  • 5 Adjustable Louvers for to Direct Airflow
  • Optional Wall Wired Thermostat (DR-001, sold separately)
  • Thermostat with Temperature Range from 37-104°F

Key Specs

AttributeSpecification

item#

6205701

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

29.7 LB

Heat Output

20,472 Btu/hour

Heat Type

Forced Air

Heating Capability

600 ft²

Blower Included

Yes
AttributeSpecification

Thermostat Included

Yes

Remote Included

No

Volts

240

Watts

6,000

Hardwired

Yes

Product Weight

30.0000 lb

Dimensions L x W x H (in.)

14.5 x 13.0 x 14.5 in

Reviews

Questions & Answers

Questions

  1. what amperage does this require?

    1 answer

    1. The heater must be connected to an individual branch circuit protected by a 35 amp circuit breaker. The supply cables should be an 8/2 AWG copper wire. The supply cables must be equipped with a dual pole circuit breaker rating of at least 240 volt 35 amp pole as the main cut off switch of power to the heater.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
