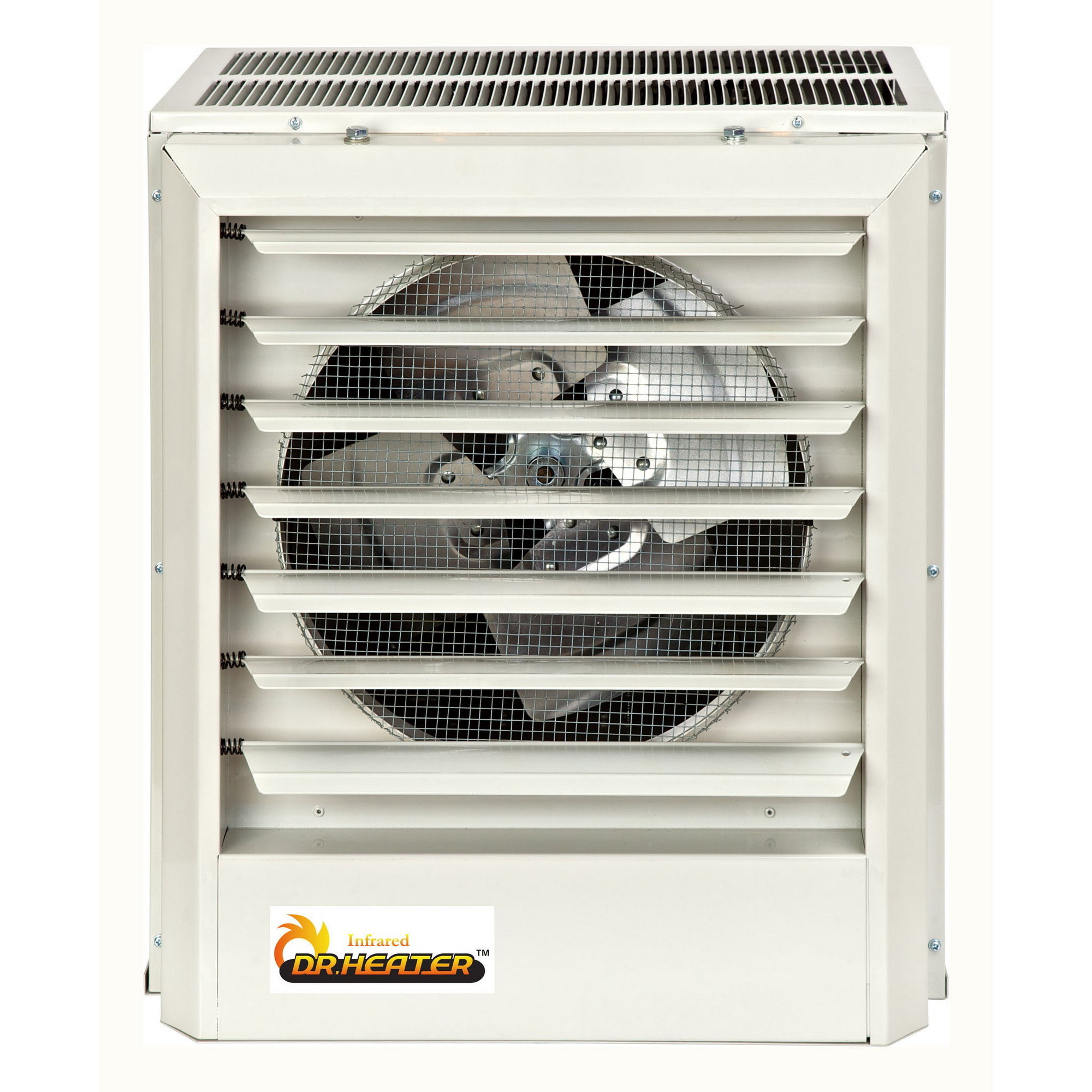

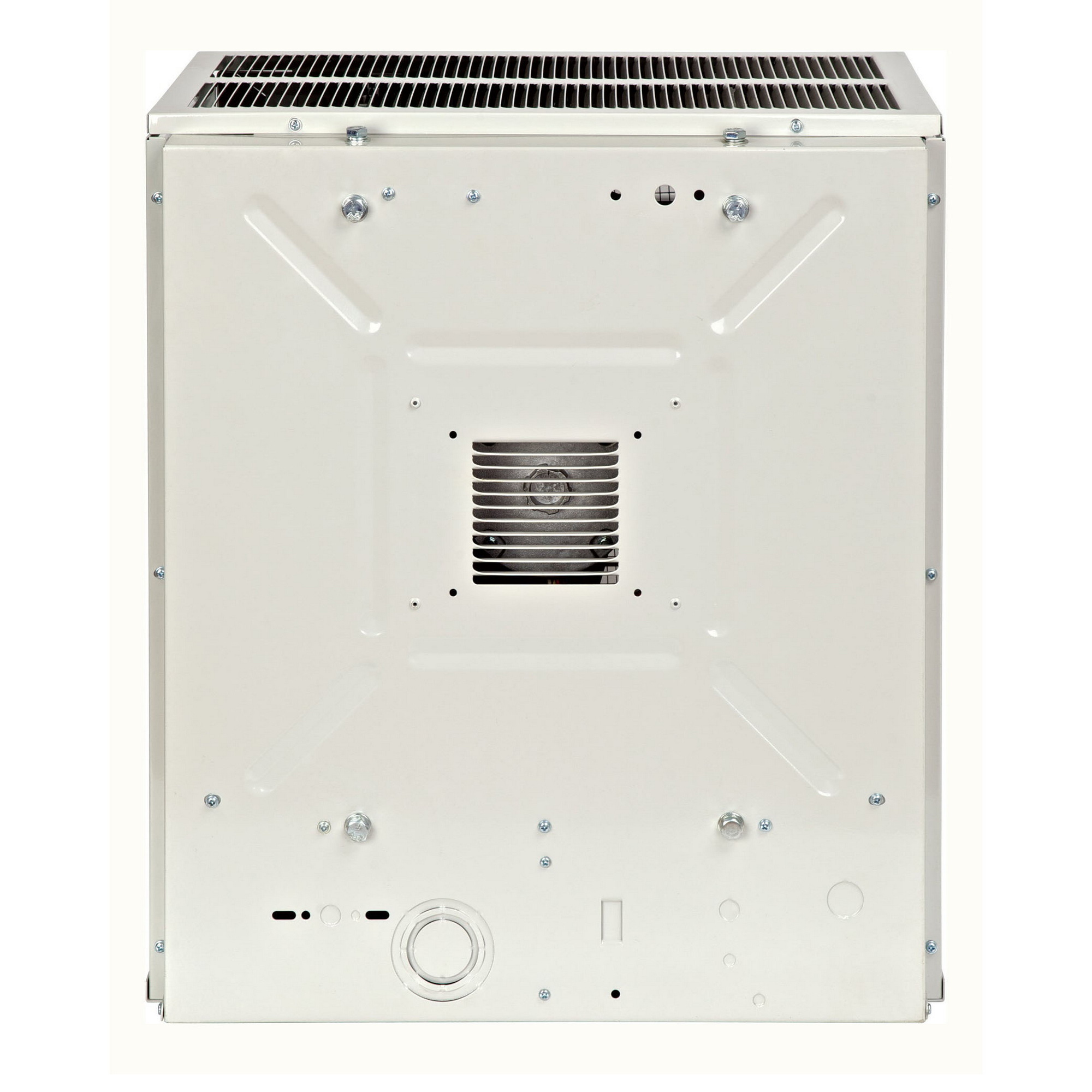

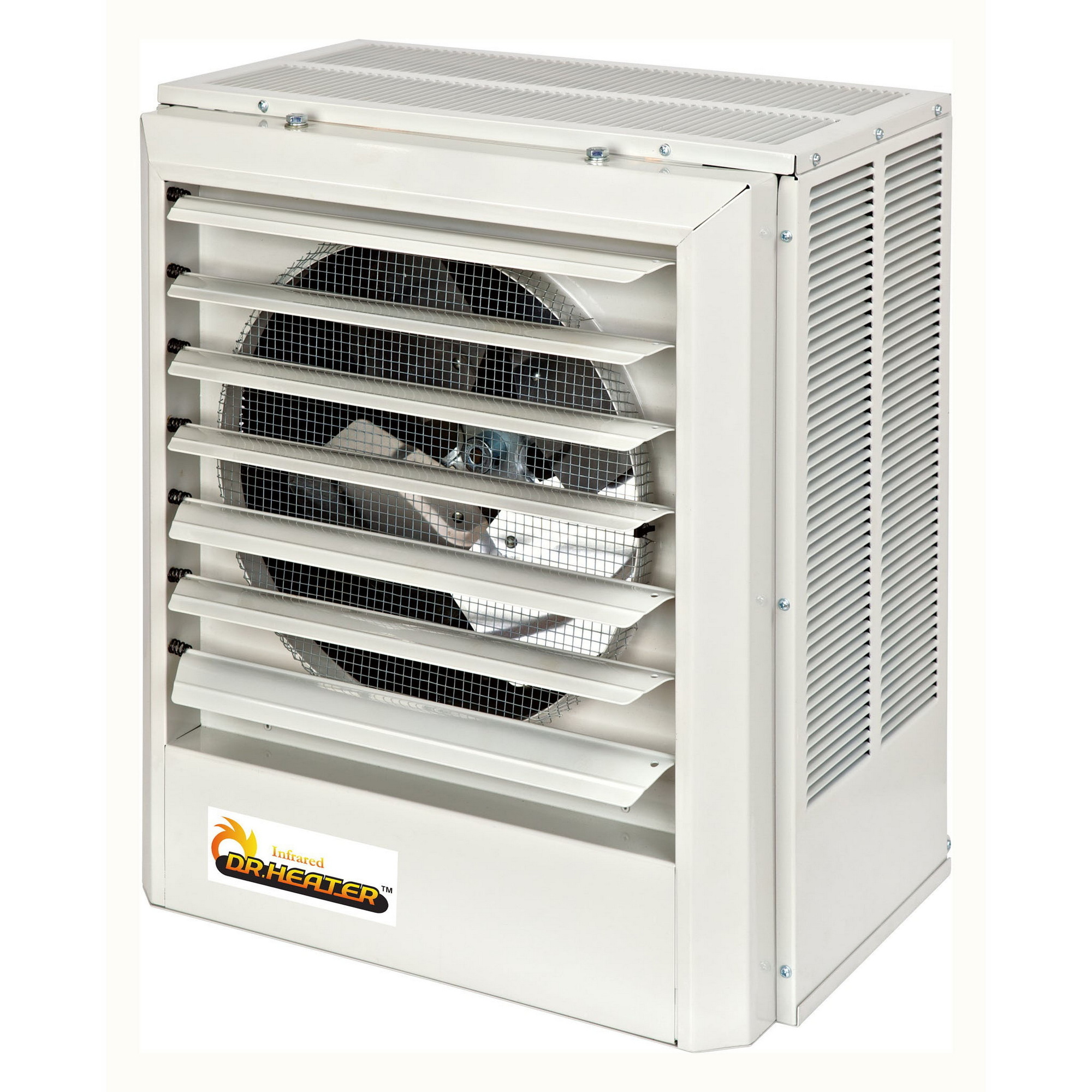

Dr. Infrared Heater, 480V, 20KW, Three phase Unit Heater, Heat Output 68240 Btu/hour, Heating Capability 1000 ft², Model# DR-P3200

Item# 6204389
Dr. Infrared Heater, 480V, 20KW, Three phase Unit Heater, Heat Output 68240 Btu/hour, Heating Capability 1000 ft², Model# DR-P3200

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater, 480V, 20KW, Three phase Unit Heater, Heat Output 68240 Btu/hour, Heating Capability 1000 ft², Model# DR-P3200

Click or Tap image to Zoom

$1299.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • -Single or Three phase flexibility, models within this series have inputs available from 208 to 480-volt
  • -Uniform air distribution evenly fills a large room
  • -Quick easy low-cost installation can be mounted horizontally or vertically
  • -Long lasting, high efficiency heating element
  • -Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

These heavy-duty electric fan forced unit heaters are best suited for factories, schools, service buildings, dormitories, hospitals, stock rooms and other public buildings. The heaters’ high capacity and wide range of voltages and phases selections meet most installation requirements. All units are equipped with overheat protection and a totally enclosed, permanently lubricated motor. Products can be installed for use in down flow or horizontal applications. These unit heater models are available in 208V, 240V, 480V and from 3Kw to 20Kw; single phase and/or three phase.

What's Included

    (1) Heavy-Duty Electric Unit Heater

Downloads

Product Manual

Features + Benefits

  • -Single or Three phase flexibility, models within this series have inputs available from 208 to 480-volt
  • -Uniform air distribution evenly fills a large room
  • -Quick easy low-cost installation can be mounted horizontally or vertically
  • -Long lasting, high efficiency heating element
  • -Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing.
  • -UL Listed

Key Specs

AttributeSpecification

item#

6204389

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

66.2 LB

Heat Output

68,240 Btu/hour

Heat Type

Forced Air

Heating Capability

1,000 ft²

Blower Included

Yes
AttributeSpecification

Blower CFM

1,320 cfm

Thermostat Included

Yes

Phase

Single-phase

Volts

480

Watts

20,000

Hardwired

Yes

Product Weight

60.0000 lb

Dimensions L x W x H (in.)

19.0 x 14.0 x 22.0 in

Reviews

Questions & Answers

Questions

  1. This product was referred to my company to use for bed bug extermination. Do you have any details on use for this type of situation?

    1 answer

    1. To kill bed bugs, the temperature would need to be raised to a minimum of 119 degrees Fahrenheit for 90 minutes. Ideal temperatures would be between 125-140 degrees Fahrenheit. This infrared heater will increase the air temperature up for 48 degrees Fahrenheit and an external thermostat can be added in order to adjust the temperature if needed.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
