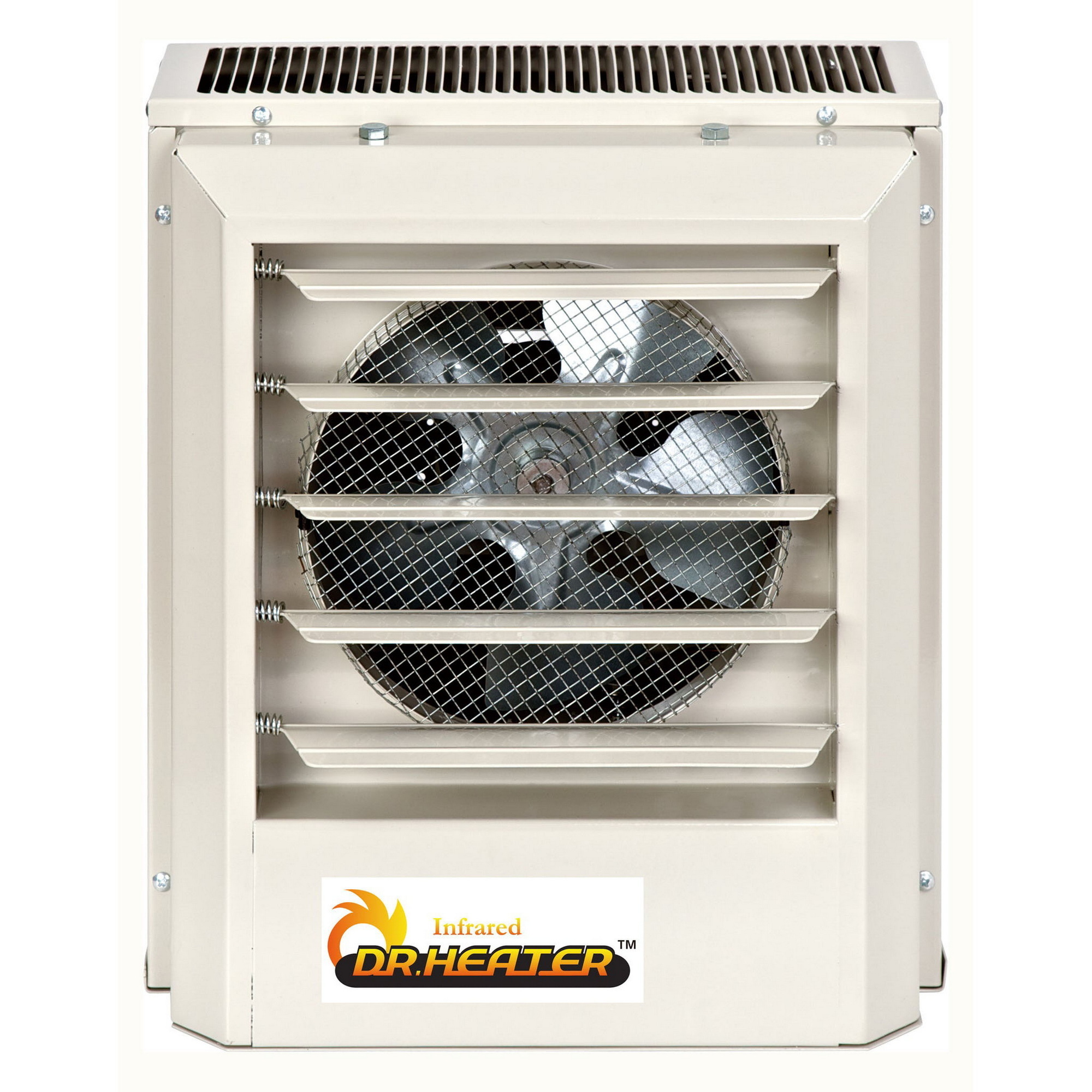

Dr. Infrared Heater, 208V, 3KW, Single Phase Unit Heater, Heat Output 10300 Btu/hour, Heating Capability 300 ft², Model# DR-P130

Item# 6204397
Dr. Infrared Heater, 208V, 3KW, Single Phase Unit Heater, Heat Output 10300 Btu/hour, Heating Capability 300 ft², Model# DR-P130

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater, 208V, 3KW, Single Phase Unit Heater, Heat Output 10300 Btu/hour, Heating Capability 300 ft², Model# DR-P130

Click or Tap image to Zoom

$299.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Models within this series have inputs available from 208 to 480-volt
  • -Uniform air distribution evenly fills a large room
  • -Quick easy low-cost installation can be mounted horizontally or vertically
  • -Long lasting, high efficiency heating element
  • -Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

These heavy-duty electric fan forced unit heaters are best suited for factories, schools, service buildings, dormitories, hospitals, stock rooms and other public buildings. The heaters’ high capacity and wide range of voltages and phases selections meet most installation requirements. All units are equipped with overheat protection and a totally enclosed, permanently lubricated motor. Products can be installed for use in down flow or horizontal applications. These unit heater models are available in 208V, 240V, 480V and from 3Kw to 20Kw; single phase and/or three phase.

What's Included

    (1) Heavy-Duty Electric Unit Heater

Downloads

Product Manual

Features + Benefits

  • Models within this series have inputs available from 208 to 480-volt
  • -Uniform air distribution evenly fills a large room
  • -Quick easy low-cost installation can be mounted horizontally or vertically
  • -Long lasting, high efficiency heating element
  • -Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing.
  • -UL Listed

Key Specs

AttributeSpecification

item#

6204397

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.6 LB

Heat Output

10,300 Btu/hour

Heat Type

Forced Air

Heating Capability

300 ft²

Blower Included

Yes
AttributeSpecification

Blower CFM

350 cfm

Thermostat Included

Yes

Phase

Single-phase

Volts

208

Watts

3,000

Hardwired

Yes

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

14.0 x 10.0 x 16.0 in

Reviews

Questions & Answers

Questions

  1. Can it be used in the basement?

    1 answer

    1. The heater will require a minimum of 6 feet above the floor, 18" from the side walls, 18" from the back wall and 6" from the ceiling in a vertical mount. When mounting in a horizontal application, the minimum clearances will be the same for the side, back and floor. The ceiling will be a minimum of 2".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
