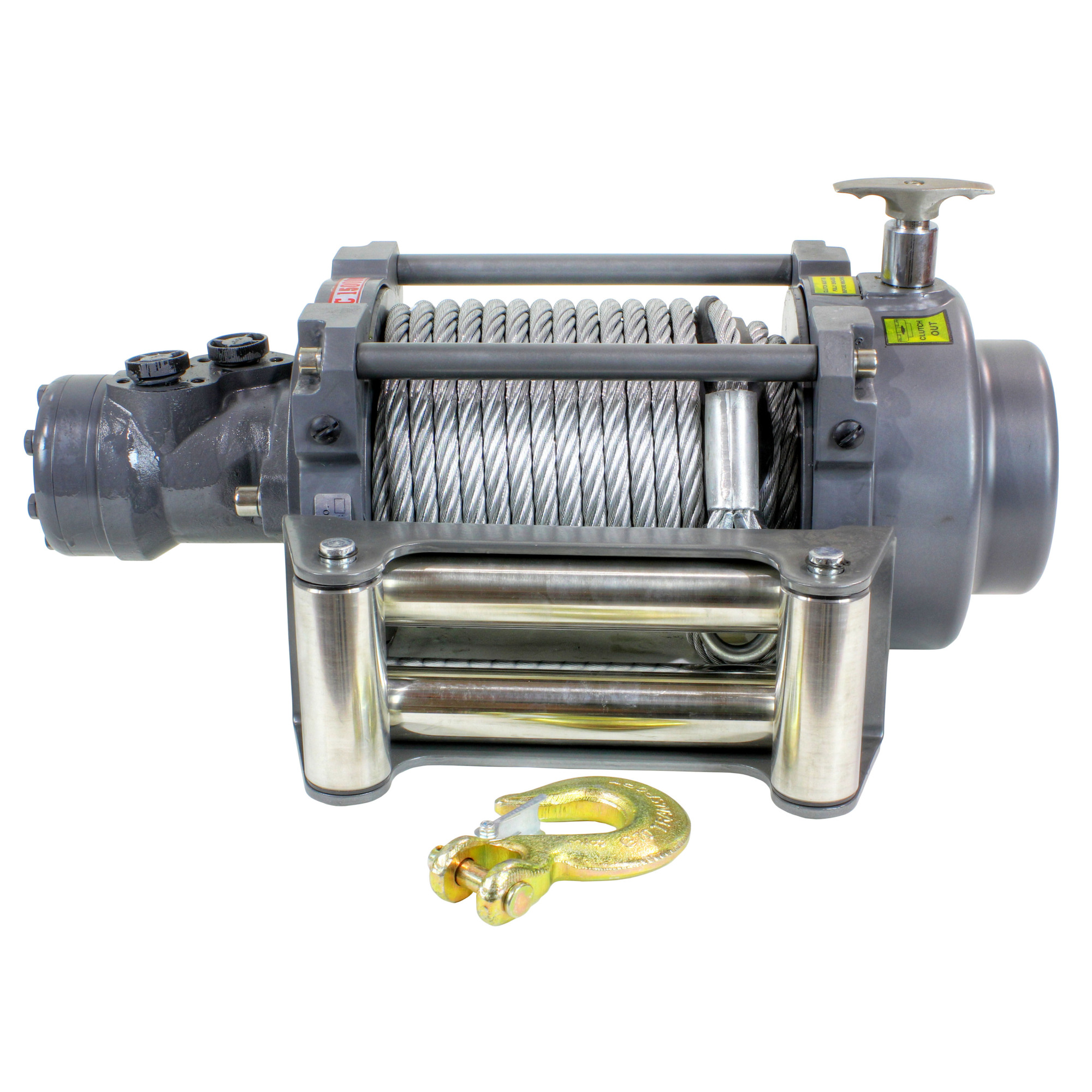

DK2 15k lb Hydraulic Winch - Steel Cable, Capacity (Line Pull) 15000 lb, Volts 12 Model# 15000NH

Item# 6024003
DK2 15k lb Hydraulic Winch - Steel Cable, Capacity (Line Pull) 15000 lb, Volts 12 Model# 15000NH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DK2 15k lb Hydraulic Winch - Steel Cable, Capacity (Line Pull) 15000 lb, Volts 12 Model# 15000NH

Click or Tap image to Zoom

  • Patented heavy-duty gearing
  • Integral, Automatic fail safe brake
  • Spring engaged manual free-spool
  • Stainless steel fairlead and fittings
  • Rugged and compact for long life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

DK2 15000NH Hydraulic winch is Compactand tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard. 1 Year Limited Warranty. Makes a great gift!

What's Included

    (1) Winch

Features + Benefits

  • Patented heavy-duty gearing
  • Integral, Automatic fail safe brake
  • Spring engaged manual free-spool
  • Stainless steel fairlead and fittings
  • Rugged and compact for long life

Key Specs

AttributeSpecification

item#

6024003

Brand

DK2

Manufacturer's Warranty

3 year limited warranty

Ship Weight

160.0 LB

Capacity (Line Pull)

15,000 lb

Volts

12

Application

Truck

Gear Type

Planetary

Line Speed

2.3 ft./min.

Gear Ratio

33 to 1

Rope Length

85 ft

Rope Diameter

1/2 in
AttributeSpecification

Rope Material

Steel

Brake Type

Automatic

Remote

Yes

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Hawse

Underwater Use

No

Engine Brand

OEM

Mounting Hardware Included

No

Dimensions L x W x H (in.)

20.9 x 9.7 x 8.1 in

Product Weight

143.0000 lb

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. Does this winch have a case drain with the hydraulics?

    1 answer

    1. This winch is not equipped with a case drain port.

      Helpful?

  2. Does this come with the hydraulic pump

    1 answer

    1. The winch would not come with a hydraulic pump.

      Helpful?

  3. Does this come with the controller and other items to make it operate?

    1 answer

    1. The winch will come with the steel cable and wired remote control. The winch will need to be connected to a hydraulic system. The hydraulic system will need a relief valve to insure system safety. Installation instructions are in the manual included with the winch.

      Helpful?

  4. Do you make it with hydraulic lines on other side?

    1 answer

    1. The hydraulic winch would have hydraulic lines to deliver the hydraulic fluid to the winch motor through dedicated lines to generate the pulling power.

      Helpful?

  5. What psi does it require to run the winch?

    1 answer

    1. The hydraulic motor will have a flow rate of 15.9 GPM and maximum pressure of 2030 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
