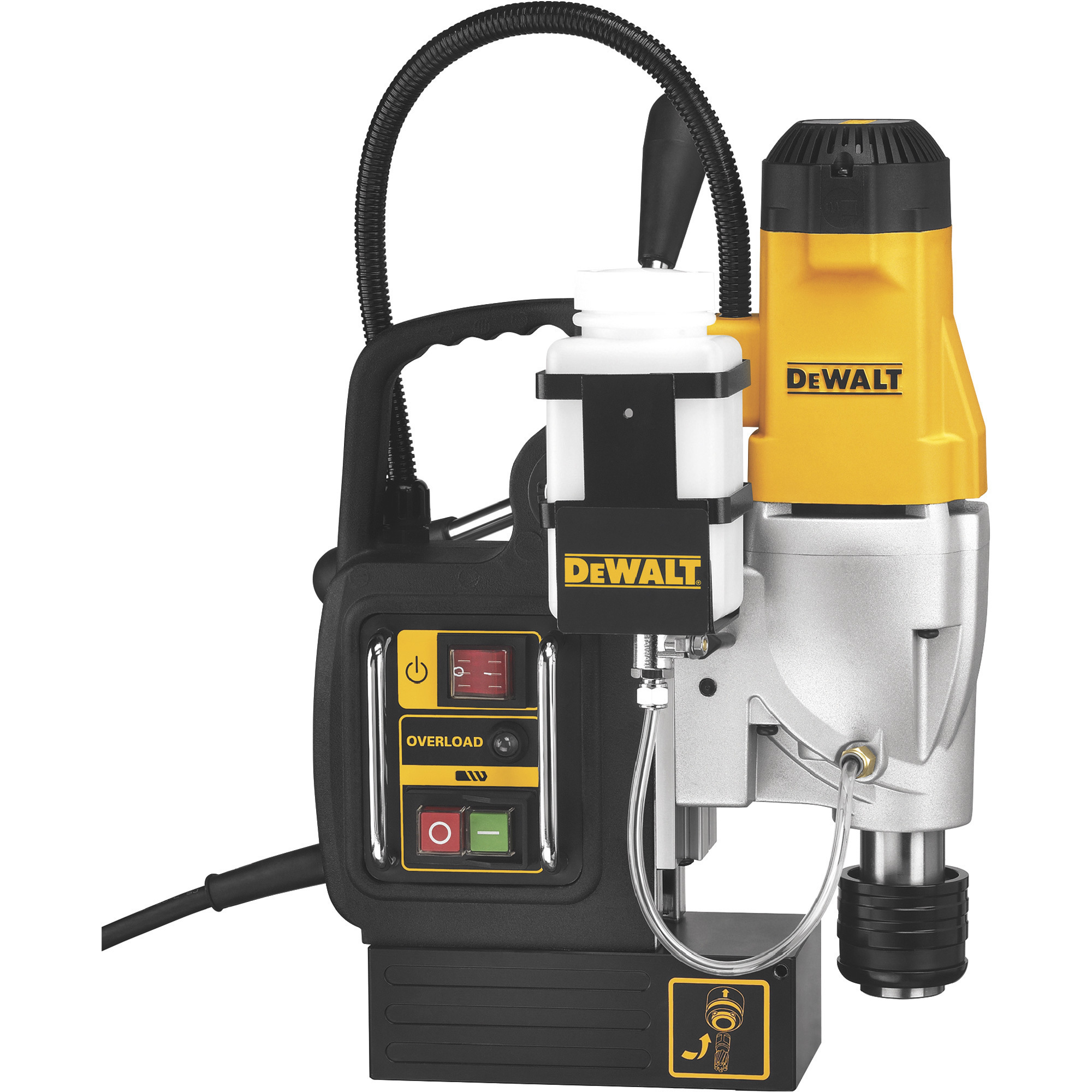

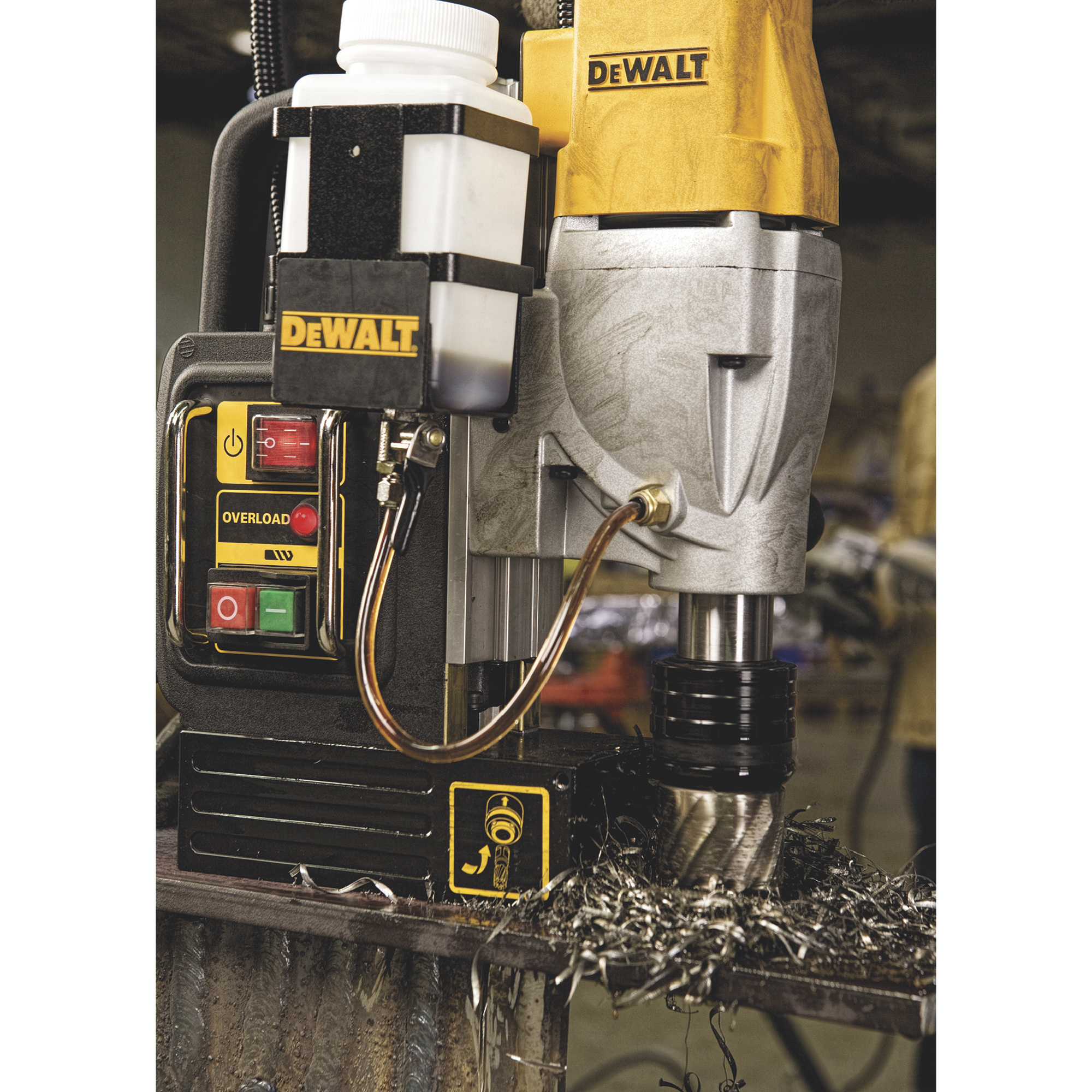

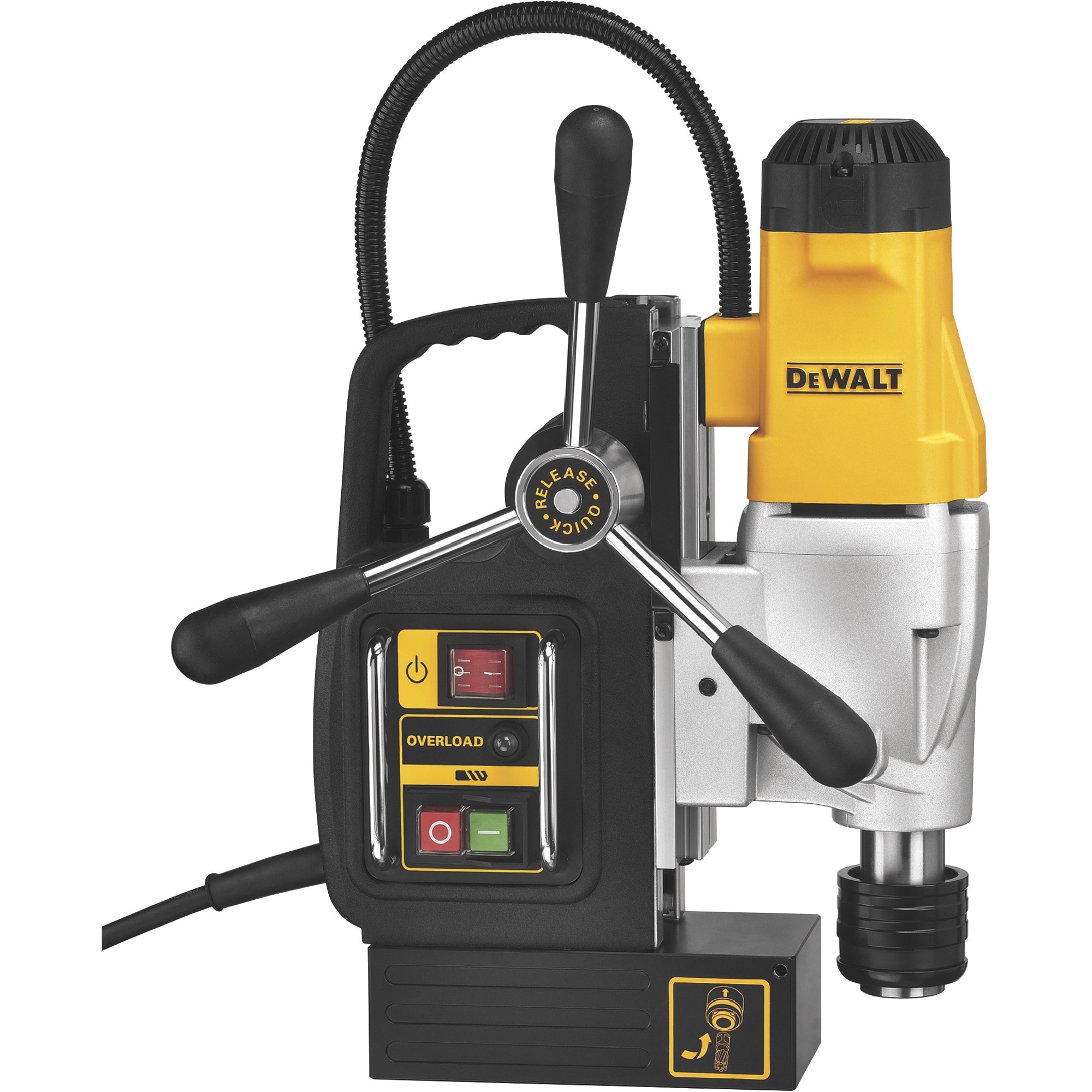

DEWALT Two-Speed Magnetic Drill Press, 10 Amp, 300/450 RPM, Model# DWE1622K

Item# 63190
"DEWALT Two-Speed Magnetic Drill Press, 10 Amp, 300/450 RPM, Model# DWE1622K"
Top Seller
DEWALT Two-Speed Magnetic Drill Press, 10 Amp, 300/450 RPM, Model# DWE1622K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Two-Speed Magnetic Drill Press, 10 Amp, 300/450 RPM, Model# DWE1622K

Click or Tap image to Zoom

$1049.99

  • Shipping:

    Free shipping (lower 48 states)

  • Store Pickup:

    Not available - online only
  • 10 Amp motor with 2 speed settings provides optimal performance in a variety of applications
  • Overload protection prevents electronics from motor damage and excess accessory wear
  • Quick-change chuck system allows for tool-free change between 3/4in. Weldon shank and 1/2in. keyed chuck
  • Quick-release feed handles provide tool-free change of handles to either side of the tool
  • Magnetic coolant bottle can be placed on either side of tool or on a work surface to allow for a variety of tool orientations

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • DEWALT Two-Speed Magnetic Drill Press, 10 Amp, 300/450 RPM, Model# DWE1622K
  • DEWALT Pilot Point Gold Ferrous Oxide Drill Bit Set, 29-Pc., Model# DW1969
Price for all two:

$1149.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT Two-Speed Magnetic Drill Press is powered by a 10 Amp motor and features two speed settings (300/450 RPM) to provide ideal performance in a variety of applications. Magnetic drill also has overload protection, quick-change chuck system, quick-release feed handles and magnetic coolant bottle for versatility.

What's Included

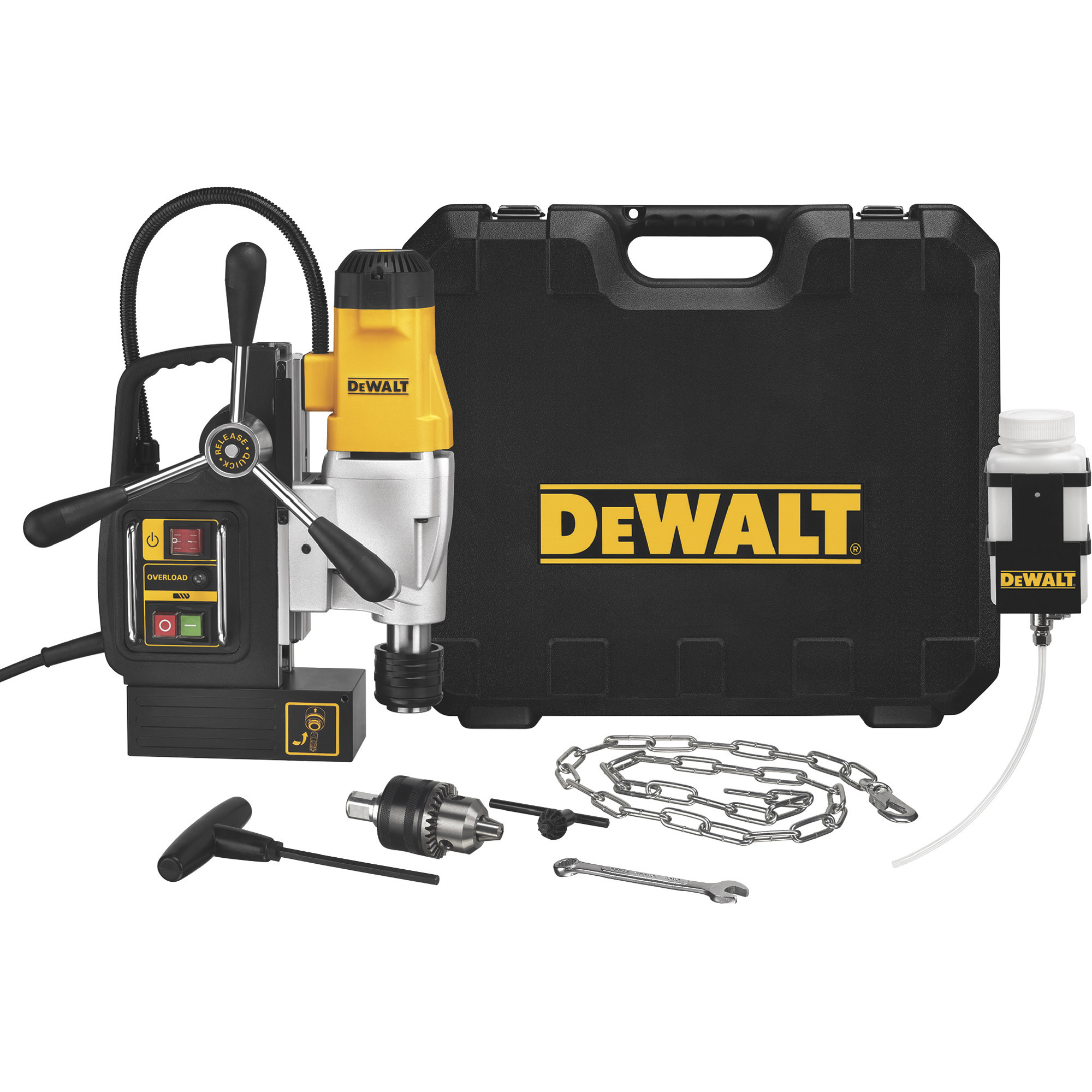

    (1) Magnetic drill press (1) Quick-change 1/2in. keyed chuck (1) Magnetic coolant tank (1) Safety chain (1) Adjustment tool kit (1) Kit box

Features + Benefits

  • 10 Amp motor with 2 speed settings provides optimal performance in a variety of applications
  • Overload protection prevents electronics from motor damage and excess accessory wear
  • Quick-change chuck system allows for tool-free change between 3/4in. Weldon shank and 1/2in. keyed chuck
  • Quick-release feed handles provide tool-free change of handles to either side of the tool
  • Magnetic coolant bottle can be placed on either side of tool or on a work surface to allow for a variety of tool orientations
  • 4 3/8in. drill travel offers maximum capacity for heavy-duty applications
  • Motor height adjustment gives greater range of accessory compatibility

Key Specs

AttributeSpecification

item#

63190

Brand

DEWALT

Manufacturer's Warranty

3 year limited warranty

Ship Weight

47.6 LB

Drilling Capacity

4-3/8 in

Volts

120

Amps

10 A

Cordless

No
AttributeSpecification

Tool Only

Yes

Chuck Type

Keyed in

Max. Speed

450 rpm

Storage Type

Case

Batteries Included

No

Power Cord Length

8 ft

Product Weight

33.0000 lb

Dimensions L x W x H (in.)

22.0 x 6.0 x 14.25 in

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. What is the magnetic attach force?

    1. I can't say, but I attached it to an I-Beam on a Gantry Crane to drill several mounting holes and had no issues with having enough contact force. I know there is no way you could lift this with the magnet turned on.

      Helpful?

    2. The attach force is 741 pounds pull.

      Helpful?

  2. That is the minimum work table thickness this drill needs to operate properly?

    1 answer

    1. For proper and safe operation, the DeWALT Model# DWE1622K magnetic drill requires the steel work table or workpiece to have a minimum thickness of at least 3/8 inch (10 mm).

      Helpful?

  3. Will this work on DC power?

    1 answer

    1. The DEWALT DWE1622K magnetic drill press is designed to operate only on 120V AC power. It will not work with DC power, and using DC may cause damage and void the warranty.

      Helpful?

  4. what is the smallest drill bit we can use we need 3/16" hole

    1 answer

    1. The smallest drill bit the drill press would accept would be 1/2". It can adjust from a 1/2" to a 3 1/4" shank.

      Helpful?

  5. Whats the maximum diameter and maximum thickness that can be drilled. I saw one comment that is can drill a 2 inch hole but it doesn't say how thick of metal you can drill . Is it 2 x 2 or less?

    1 answer

    1. This can accept up to a 2 inch annular cutter and has a spindle travel distance of up to 4 3/8 inches for the depth.

      Helpful?

  6. What is the maximum hole this can cut?

    1 answer

    1. The annular cutter capacity is 2" in diameter.

      Helpful?

  7. What's the horsepower

    1 answer

    1. There is no horsepower rating on this drill press, it is only rated in the amps of 10 amp.

      Helpful?

  8. Reverse?

    Does this drill go in reverse? So that it's easy to tap things?

    1 answer

    1. The drill press does not have a reverse mechanism.

      Helpful?
