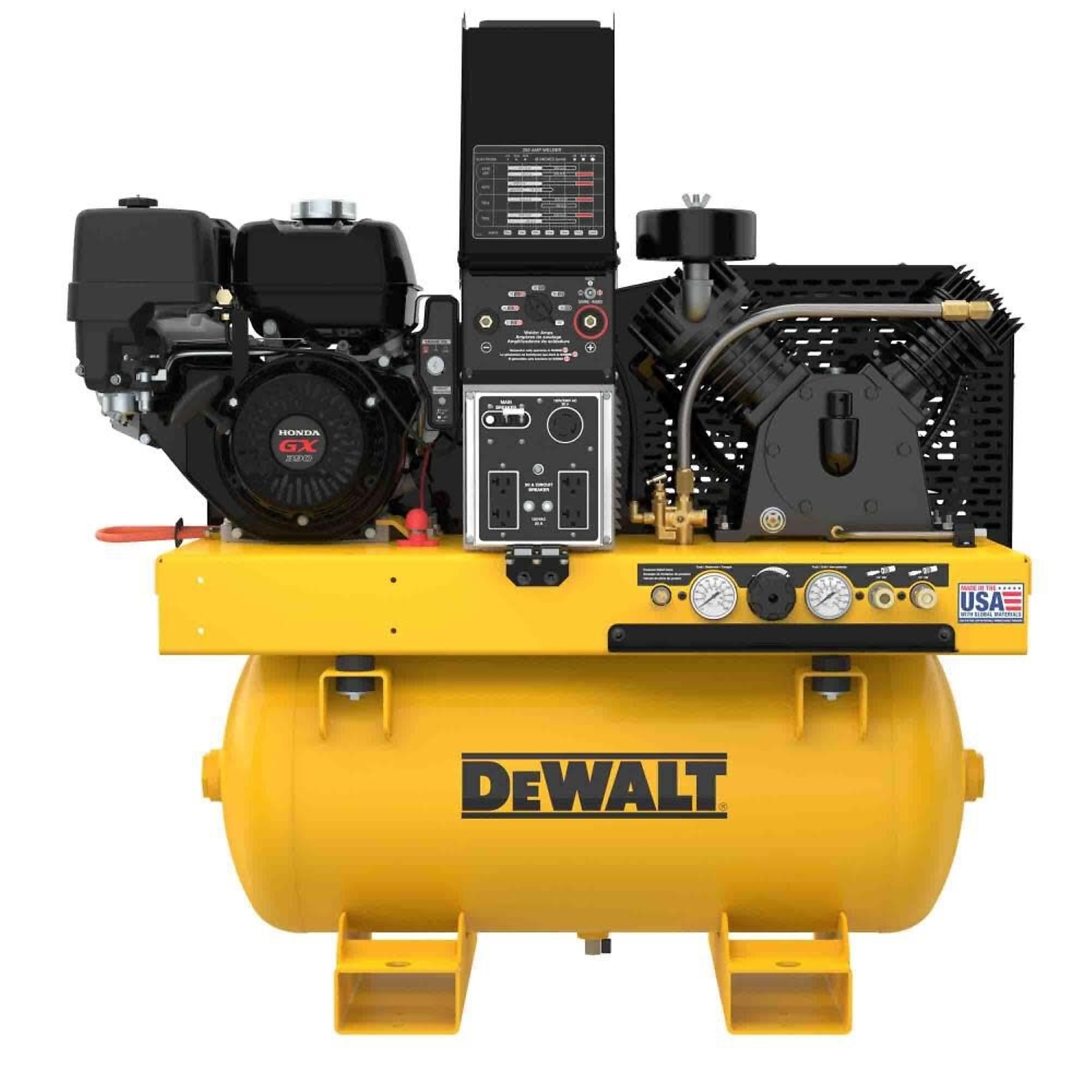

DEWALT 3-in-1 Air Compressor/Generator/Welder - 13 HP, 30 Gallon, 5500W Generator, 200 Amp DC Welder, Model# DXCMCGW1330

Item# 6151782
DEWALT 3-in-1 Air Compressor/Generator/Welder - 13 HP, 30 Gallon, 5500W Generator, 200 Amp DC Welder, Model# DXCMCGW1330

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 3-in-1 Air Compressor/Generator/Welder - 13 HP, 30 Gallon, 5500W Generator, 200 Amp DC Welder, Model# DXCMCGW1330

Click or Tap image to Zoom

$7399.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • DEWALT 3-in-1 30 gallon air compressor-generator-welder supports the products needed for commercial service trucks, remote agricultural field service, construction, and industrial applications

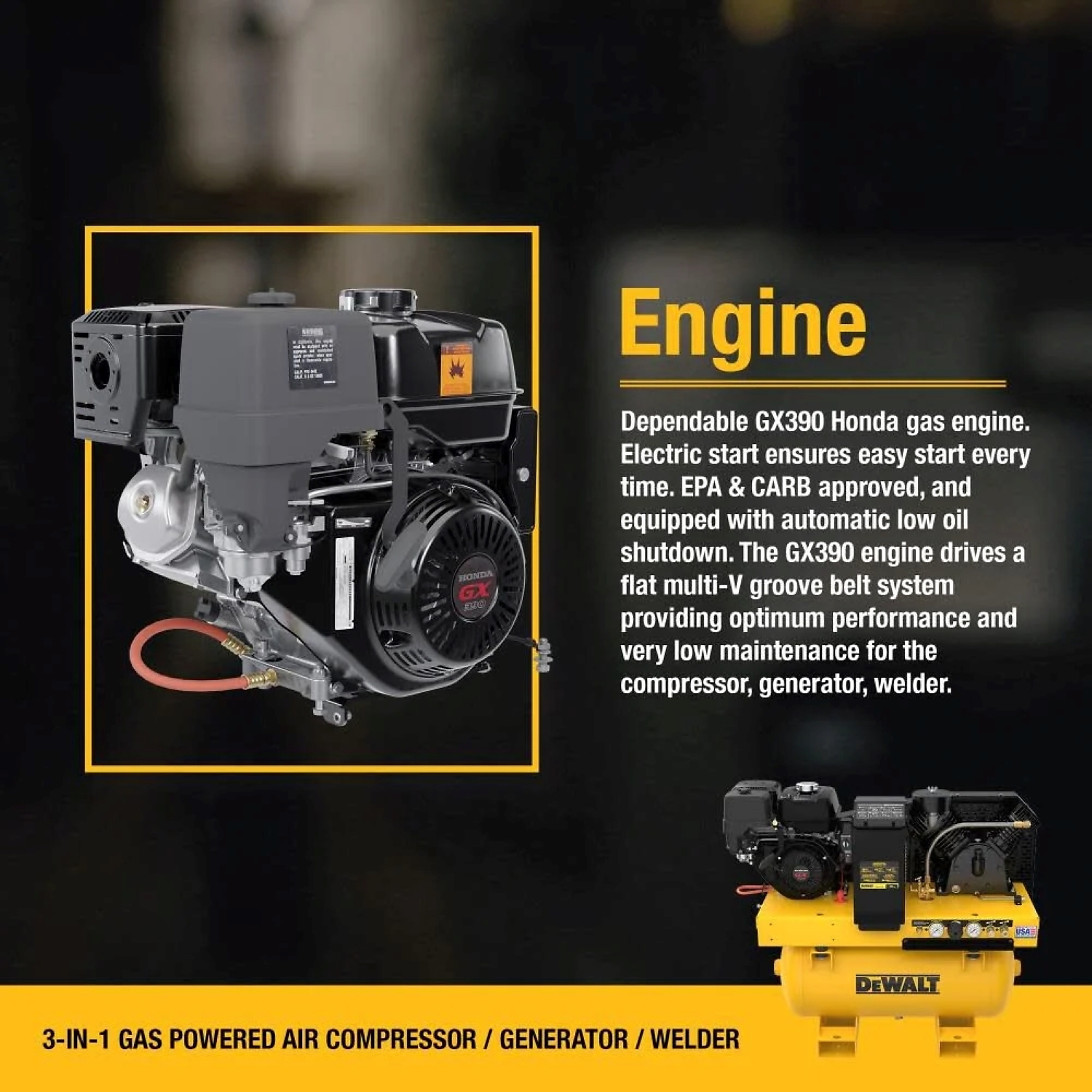

  • The 3-in-1 compressor-generator-welder is powered by an electric start Honda GX390 gas engine and is perfect for those remote jobs when electricity is not available
  • Two-stage oil lubricated, cast iron air compressor pump delivers 13.6 SCFM at 100 PSI and 13.3 SCFM at 175 PSI to run the most demanding air tools
  • Compressor control panel equipped with regulator, liquid filled pressure gauges, and two quick connect air outlets
  • 30-gallon horizontal truck mount air tank meets ASME and CRN requirements

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Save space in the truck with a DEWALT 3in.-1 Gas Powered Compressor/Generator/Welder. This versatile unit combines an air compressor, generator, and welder into one product that is ideal for on-site agricultural, industrial, and construction jobs where electricity is not available. This unit features a two-stage cast iron compressor pump providing enough air to run two lines simultaneously and a horizontal 30 gallon ASME certified tank that conveniently mounts to most truck beds. The 5500-Watt generator (6050 surge watt) is equipped with GFCI protected outlets and the 200 Amp DC stick welder includes a color coordinated amperage selector dial and toggle switch for easy weld settings. All of this is powered by a dependable GX390 Honda gas engine with electric start driving a flat multi-V groove belt system providing optimum performance for the compressor, generator, and welder.

What's Included

    (1) Air Compressor

Features + Benefits

  • DEWALT 3-in-1 30 gallon air compressor-generator-welder supports the products needed for commercial service trucks, remote agricultural field service, construction, and industrial applications
  • The 3-in-1 compressor-generator-welder is powered by an electric start Honda GX390 gas engine and is perfect for those remote jobs when electricity is not available
  • Two-stage oil lubricated, cast iron air compressor pump delivers 13.6 SCFM at 100 PSI and 13.3 SCFM at 175 PSI to run the most demanding air tools
  • Compressor control panel equipped with regulator, liquid filled pressure gauges, and two quick connect air outlets
  • 30-gallon horizontal truck mount air tank meets ASME and CRN requirements
  • Incorporated oil drain hoses for easy engine and compressor pump oil changes

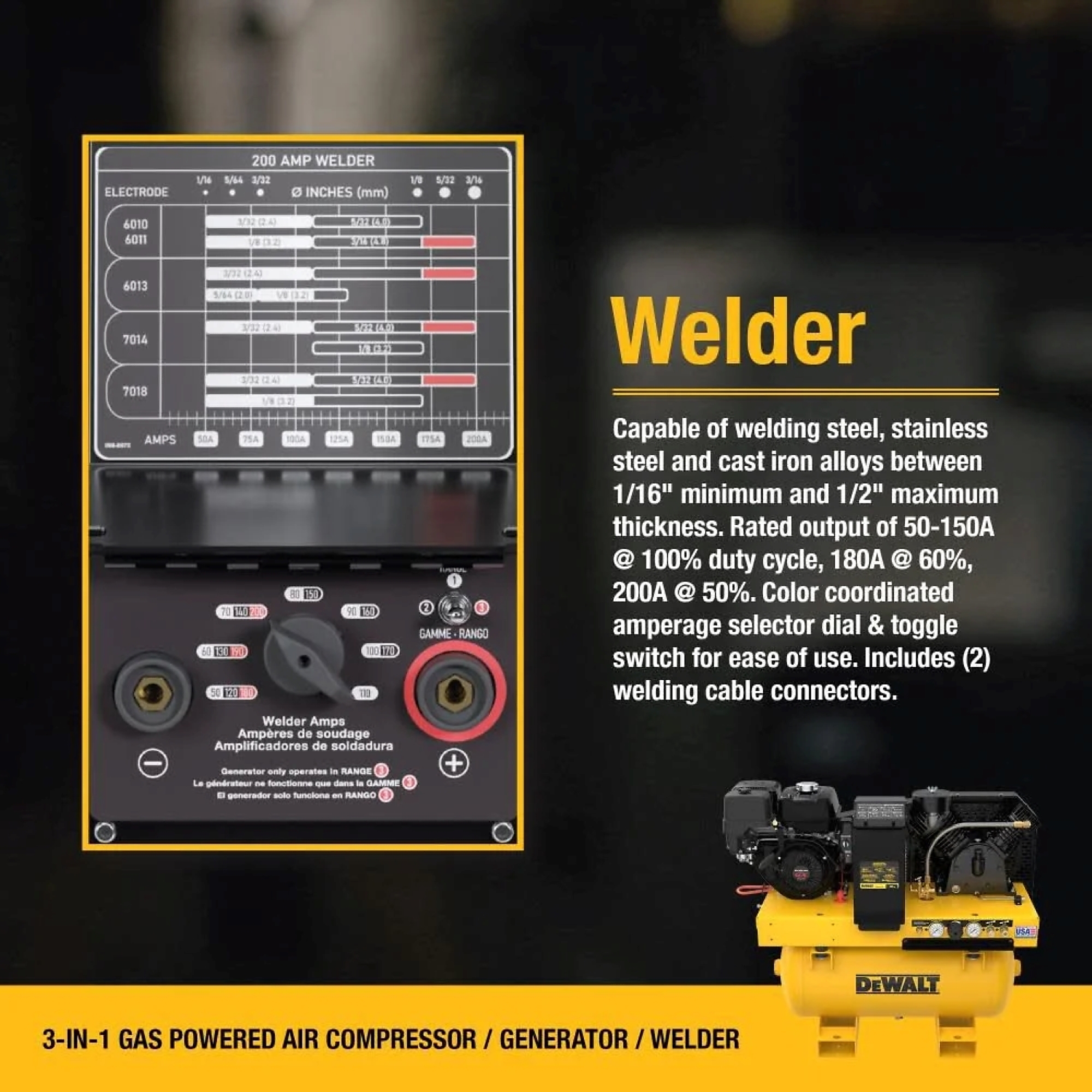

  • 50 Amp to 200 Amp DC welder is designed for shielded metal arc welding and is capable of welding steel, stainless steel, and cast iron alloys between 1/16 in. minimum to 1/2 in. maximum thickness
  • Rated welder output: 50-150A at 100% duty cycle, 180A at 60%, 200A at 50%
  • Generator provides 5500-Watts of continuous power and is equipped with a GFCI protected generator panel that includes (2) 120-Volt 20 Amp duplex receptacles and (1) 120/240-Volt 30 Amp twist lock receptacle
  • Battery tray not included

Key Specs

AttributeSpecification

item#

6151782

Brand

DEWALT

Manufacturer's Warranty

1 year limited warranty

Ship Weight

585.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

13.7

Max. PSI

175

Stage

2

Air Outlets (qty.)

2

Fuel Capacity

1.7 Gal

Motor RPM

3,600

Engine Displacement

389 cc

Engine Start Type

Electric and Recoil

Motor Phase

1
AttributeSpecification

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

14.2

CFM at Max. PSI

13.3

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Tank Orientation

Horizontal

Engine Model

GX390

Product Weight

555.0000 lb

Dimensions L x W x H (in.)

58.0 x 32.0 x 53.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
