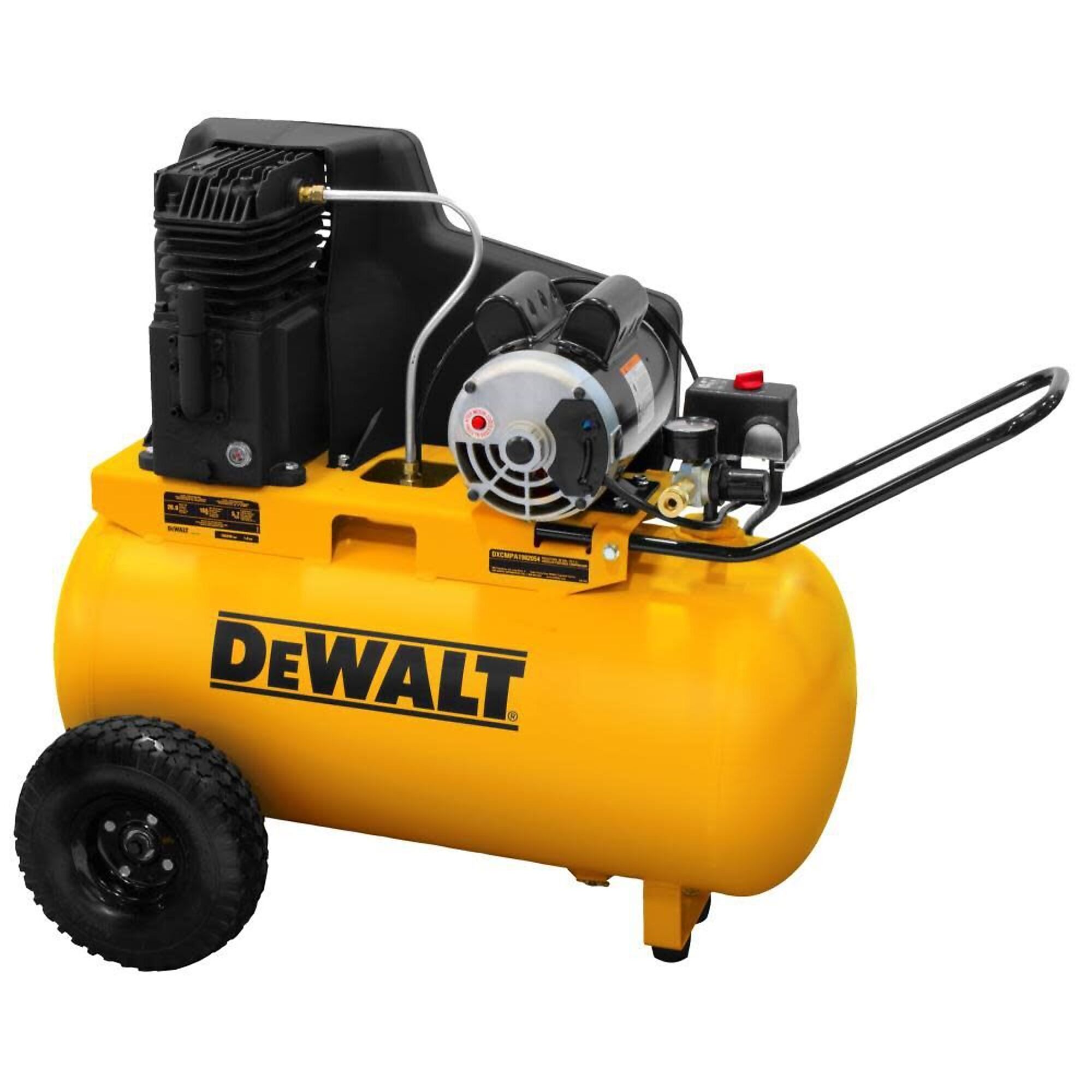

DEWALT, DEWALT 1.9HP 20Gal Horizontal Cast Iron Compressor, Horsepower 1.9 HP, Air Tank Size 20 Gal, Volts 120 Model# DXCMPA1982054

Item# 6152620
"DEWALT, DEWALT 1.9HP 20Gal Horizontal Cast Iron Compressor, Horsepower 1.9 HP, Air Tank Size 20 Gal, Volts 120 Model# DXCMPA1982054"
DEWALT, DEWALT 1.9HP 20Gal Horizontal Cast Iron Compressor, Horsepower 1.9 HP, Air Tank Size 20 Gal, Volts 120 Model# DXCMPA1982054

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT, DEWALT 1.9HP 20Gal Horizontal Cast Iron Compressor, Horsepower 1.9 HP, Air Tank Size 20 Gal, Volts 120 Model# DXCMPA1982054

Click or Tap image to Zoom

$879.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 7 CFM at 40 psi and 5.7 CFM at 90 psi
  • 155 max psi for optimum tool performance
  • 20 Gal. tank with pre-attached pneumatic tires for maximum portability

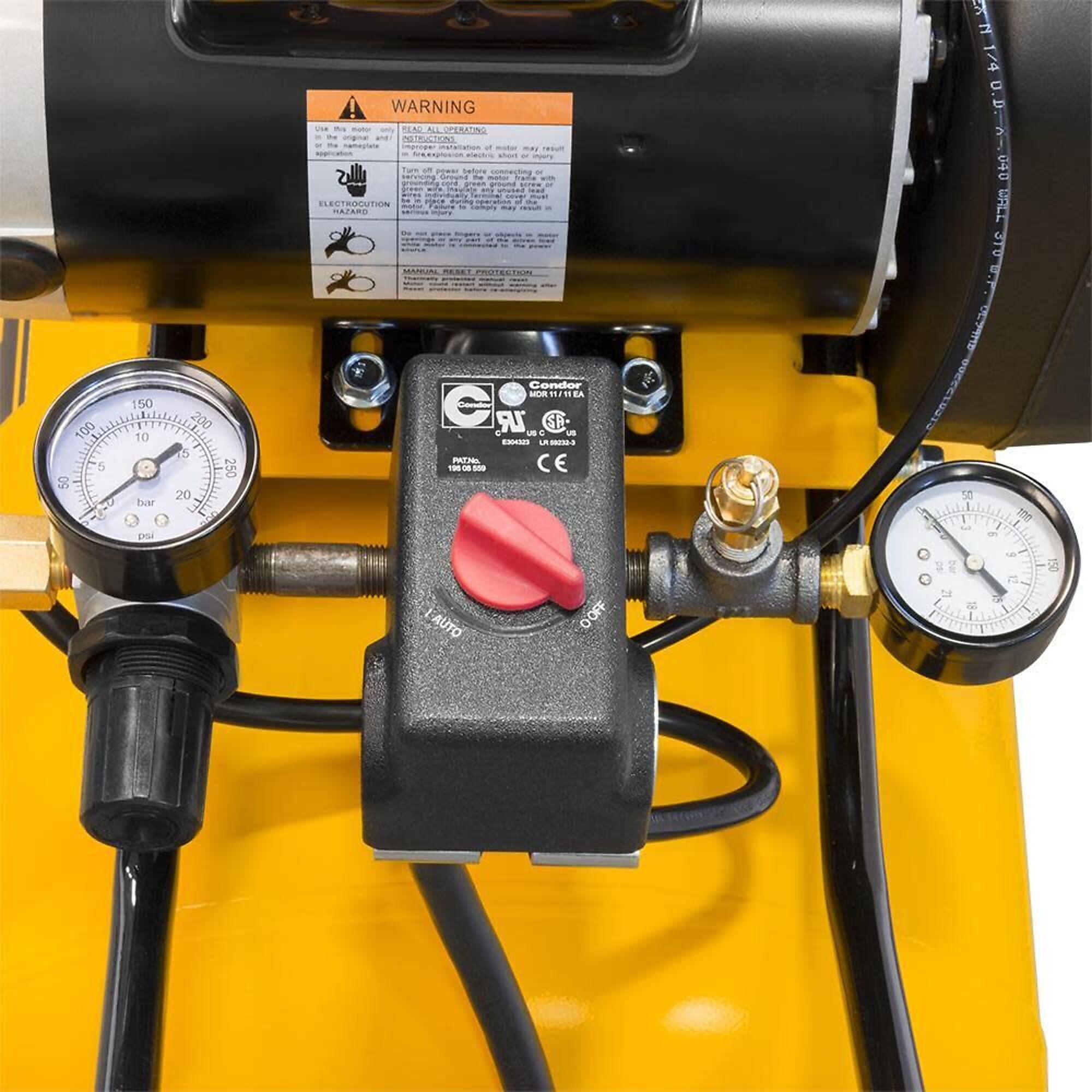

  • Equipped with quick-set regulator, tank, working pressure gauges and on/off switch

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

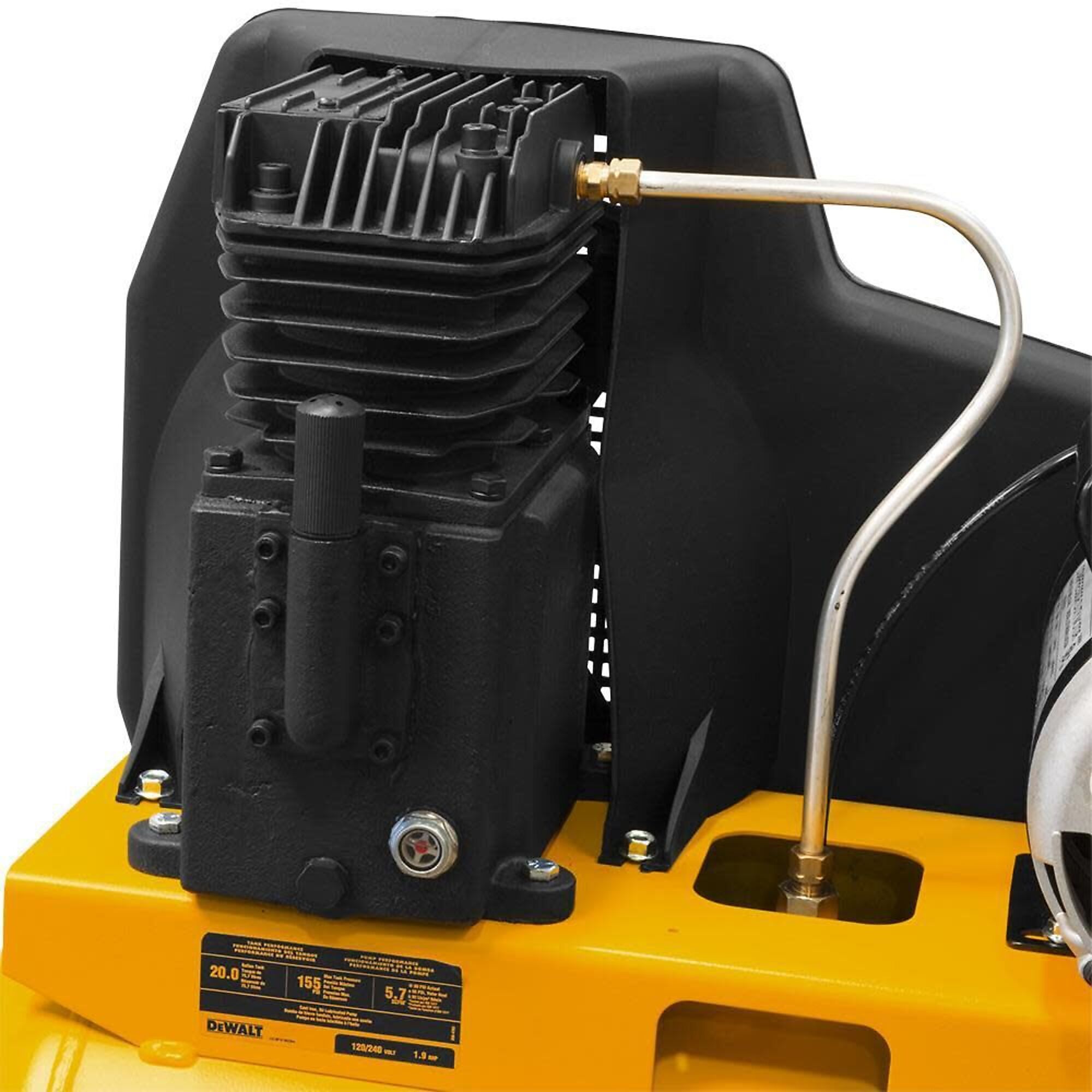

DEWALT's 20 Gal. Air Compressor features a cast iron, twin-cylinder, oil-lubricated pump. This includes a 1-piece cast iron crankcase, thermally stable cast iron cylinder body, aluminum head and valve plate, automotive style ball bearings, durable Swedish stainless steel reed valves, oil level sight glass, easily accessible oil fill and a 12in. cast iron balanced flywheel. The compressor has a heavy-duty induction motor for maximum performance and efficiency with 1.9 RHP. This dual voltage motor is wired for a standard 120-Volt outlet and can also be converted for 240-Volt applications.

What's Included

    (1) Air Compressor

Features + Benefits

  • 7 CFM at 40 psi and 5.7 CFM at 90 psi
  • 155 max psi for optimum tool performance
  • 20 Gal. tank with pre-attached pneumatic tires for maximum portability
  • Equipped with quick-set regulator, tank, working pressure gauges and on/off switch

Key Specs

AttributeSpecification

item#

6152620

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

174.0 LB

Horsepower

1.9 HP

Air Tank Size

20 Gal

Volts

120

CFM at 90 PSI

5.7

Max. PSI

155

Stage

1

Air Outlets (qty.)

1

Motor Phase

1
AttributeSpecification

Pump Drive

Belt

CFM at 40 PSI

7

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

166.0000 lb

Dimensions L x W x H (in.)

34.5 x 23.0 x 35.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

2 year limited warranty
