DEWALT 30 Gallon Portable Air Compressor, Vertical, V-Twin,1.6 HP, Model# DXCMLA1683066

Item# 4920218
"DEWALT 30 Gallon Portable Air Compressor, Vertical, V-Twin,1.6 HP, Model# DXCMLA1683066"
DEWALT 30 Gallon Portable Air Compressor, Vertical, V-Twin,1.6 HP, Model# DXCMLA1683066

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 30 Gallon Portable Air Compressor, Vertical, V-Twin,1.6 HP, Model# DXCMLA1683066

Click or Tap image to Zoom

$809.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Built with a high flow regulator-which supplies more torque for the projects like removing old rusted bolts-get more air to the tool
  • Dual voltage motor is wired for standard 120-Volt outlet, and may also be converted for 240-Volt applications
  • 155 psi max pressure for optimum tool performance
  • 30 Gal. tank with pneumatic tires for maximum portability

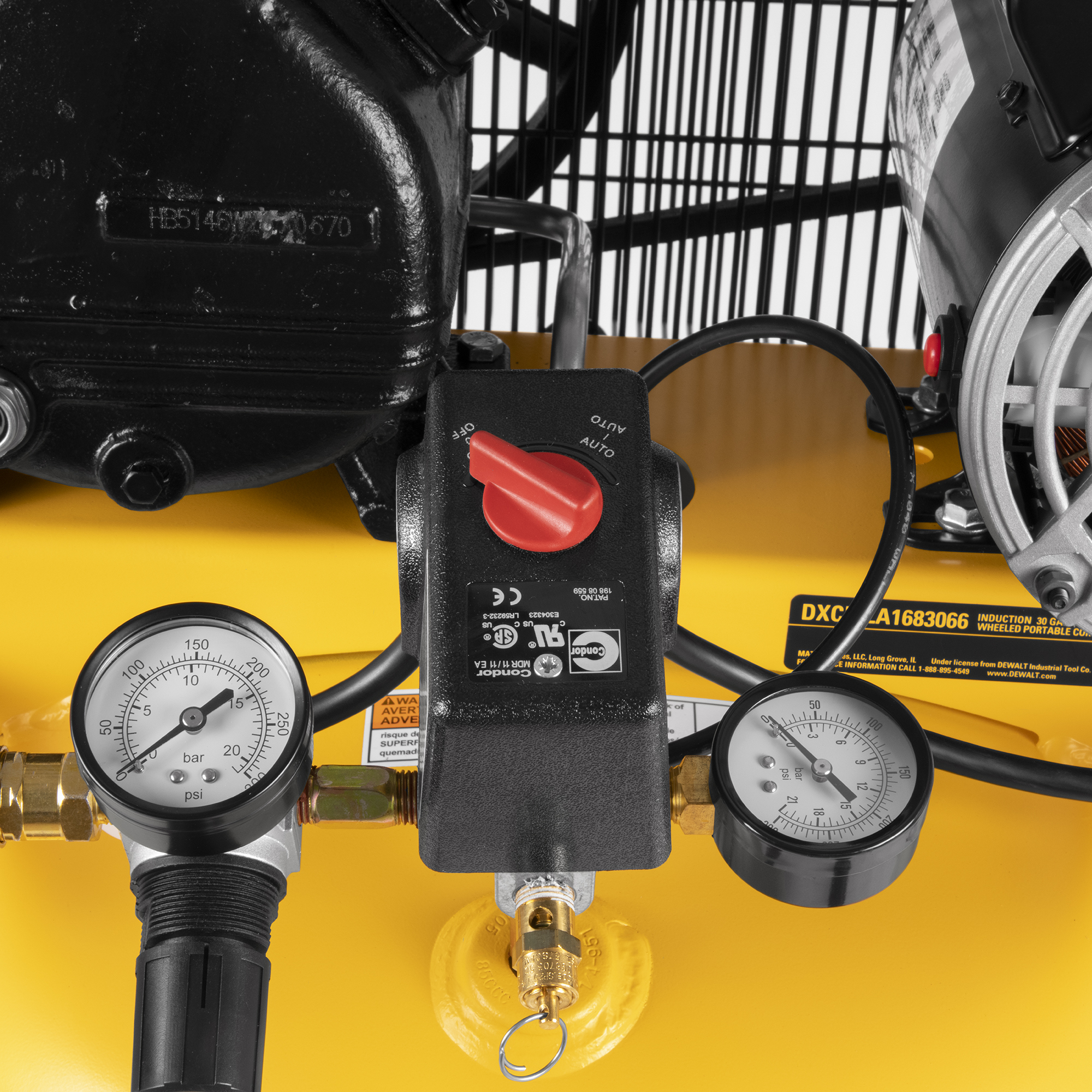

  • Fully assembled and equipped with high flow regulator, tank and working pressure gauges, quick connect air outlet and on/off switch for ease of use

See full description

Complete Your Solution

  • DEWALT 30 Gallon Portable Air Compressor, Vertical, V-Twin,1.6 HP, Model# DXCMLA1683066
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
Price for all two:

$819.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT 1.6 HP 30 Gal. Single Stage Oil-Lube Vertical Portable Air Compressor is job-site tough and built for the professional. It features automotive style ball bearings, durable stainless steel reed valves, oil level sight glass, easily accessible oil fill and a cast iron balanced flywheel for easy maintenance, durability and convenience. This single-stage, oil lubricated compressor offers a Twin-V cast iron pump with 1-Piece cast iron crank case and thermally stable cast iron cylinder body.

What's Included

    (1) 30 Gal. 155 PSI 1.6 HP Portable Electric Air Compressor

Features + Benefits

  • Built with a high flow regulator-which supplies more torque for the projects like removing old rusted bolts-get more air to the tool
  • Dual voltage motor is wired for standard 120-Volt outlet, and may also be converted for 240-Volt applications
  • 155 psi max pressure for optimum tool performance
  • 30 Gal. tank with pneumatic tires for maximum portability
  • Fully assembled and equipped with high flow regulator, tank and working pressure gauges, quick connect air outlet and on/off switch for ease of use

Key Specs

AttributeSpecification

item#

4920218

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

165.0 LB

Horsepower

1.6 HP

Air Tank Size

30 Gal

Volts

120/240

CFM at 90 PSI

5.3

Max. PSI

155

Stage

1

Amps

15

Engine Start Type

Electric
AttributeSpecification

Pump Material

Cast Iron

CFM at 40 PSI

6.2

Noise Level

78 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

171.0000 lb

Dimensions L x W x H (in.)

25.0 x 24.5 x 49.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. what is the size of the wheels?

    1 answer

    1. The overall size of the wheel/tire assembly is 10". The size of the tire is 4.10/3.50 x 4.

      Helpful?

  2. Is the tank ASME certified?

    1 answer

    1. The tank is ASME certified.

      Helpful?

  3. Is this USA-made?

    1 answer

    1. The compressor is manufactured in the United States.

      Helpful?

  4. Is the photo in the description correct. It looks lie a 2 stage compressor but the description is for a single stage unit. Thank you

    1 answer

    1. The photo is correct. This is a single-stage compressor with a Twin-V cast iron pump.

      Helpful?

  5. does this compressor have the capability to use for spray painting

    1 answer

    1. This compressor would work on paint sprayers. It is important to match up the pressure and CFM requirements of the sprayer being used with the pressure and CFM the compressor is able to produce.

      Helpful?
