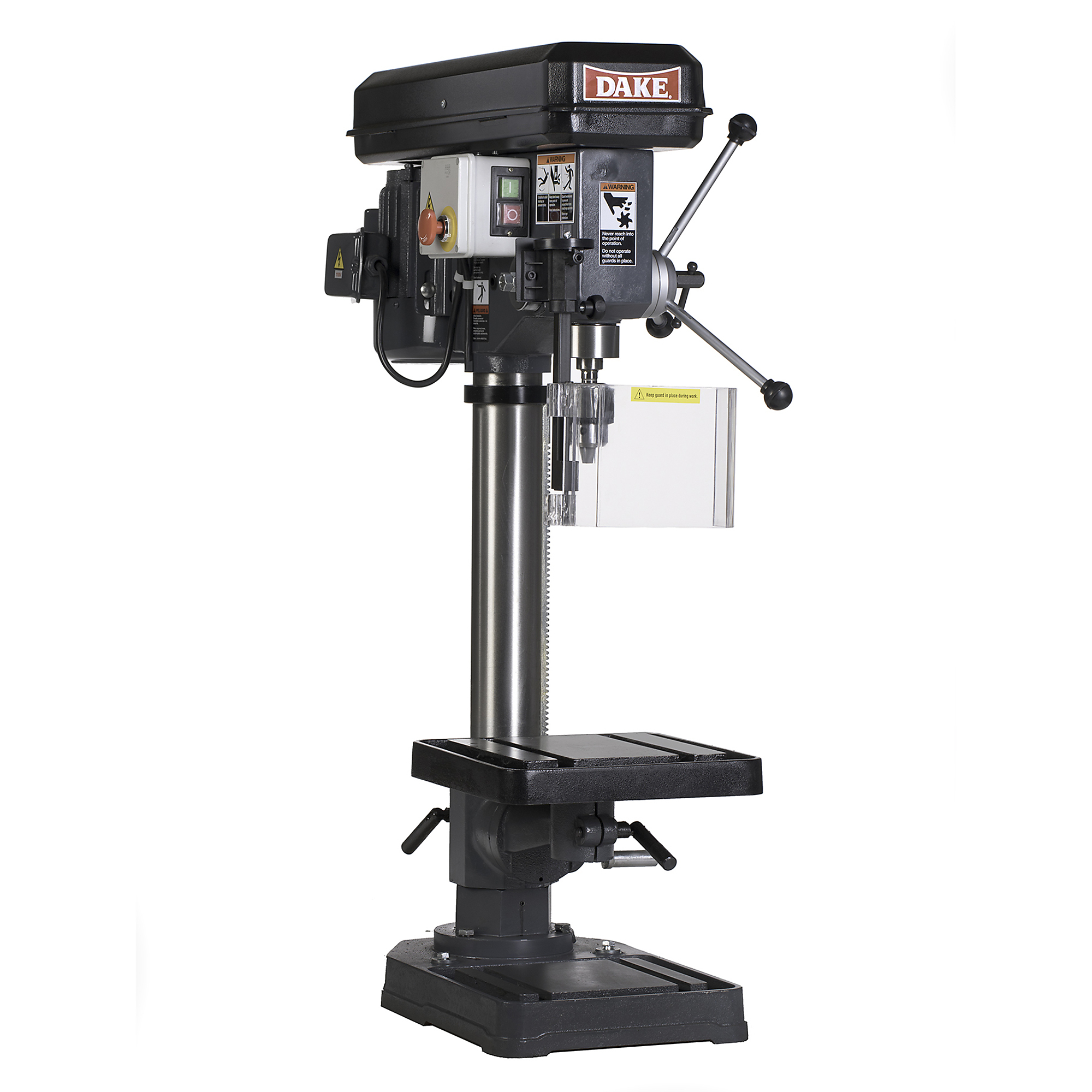

Dake, Bench Drill Press 110V - 5/8in. Drill Capacity - 977100 Horsepower 1 HP, Volts 110 Model# TB-16

Item# 6304742
Dake, Bench Drill Press 110V - 5/8in. Drill Capacity - 977100 Horsepower 1 HP, Volts 110 Model# TB-16

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dake, Bench Drill Press 110V - 5/8in. Drill Capacity - 977100 Horsepower 1 HP, Volts 110 Model# TB-16

Click or Tap image to Zoom

$1770.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Drill capacity (in) 5/8; ½ HP; Spindle Taper MT2; Working Diameter (in) 14-1/8; Number Of Speeds 9; Spindle Speed Range 240-3,400; Electrics CE 110V; Weight (lbs) 175; Spindle Travel (in) 3-1/8; Column Diameter (in) 3-1/8; Table Depth (in) 11-3/4; Table Width (in) 11-3/4; Base Depth (in) 17-3/4; Base Width (in) 12-1/4; Spindle To Table (in) 16-1/2; Spindle To Base (in) 26-1/2; Overall Height (in) 42-1/2.
  • A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
  • Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
  • Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing
  • Top mounted speed selector knob with convenient speed range indicators allows operator to dial in optimal speed range

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Bench top variable speed drill press that is ideal for cell applications requiring fast tooling changes. Featuring a locking handle hub for repeatable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head. The speed can be easily adjusted while drilling by turning the large selector knob on the top of the drill.

What's Included

    (1) 1 Drill Press

Features + Benefits

  • Drill capacity (in) 5/8; ½ HP; Spindle Taper MT2; Working Diameter (in) 14-1/8; Number Of Speeds 9; Spindle Speed Range 240-3,400; Electrics CE 110V; Weight (lbs) 175; Spindle Travel (in) 3-1/8; Column Diameter (in) 3-1/8; Table Depth (in) 11-3/4; Table Width (in) 11-3/4; Base Depth (in) 17-3/4; Base Width (in) 12-1/4; Spindle To Table (in) 16-1/2; Spindle To Base (in) 26-1/2; Overall Height (in) 42-1/2.
  • A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
  • Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
  • Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing
  • Top mounted speed selector knob with convenient speed range indicators allows operator to dial in optimal speed range
  • CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover
  • Massive cast head, machined column, and sturdy cast base reduces vibration
  • Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck
  • Handle has 3 spokes with spring return for precise operator control and ergonomic operation
  • Standard Equipment: ½” Keyed chuck, Drift for bit removal, Plexiglas chip and chuck guard

Key Specs

AttributeSpecification

item#

6304742

Brand

Dake

Manufacturer's Warranty

1 year limited warranty

Ship Weight

365.0 LB

Horsepower

1 HP

Volts

110

360 Degree Head Swivel

No
AttributeSpecification

Product Type

Drill Press

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Product Weight

360.0000 lb

Dimensions L x W x H (in.)

45.0 x 49.0 x 33.0 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

  1. Is a vise included with the drill press?

    1 answer

    1. The drill press does not come with a vise.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
