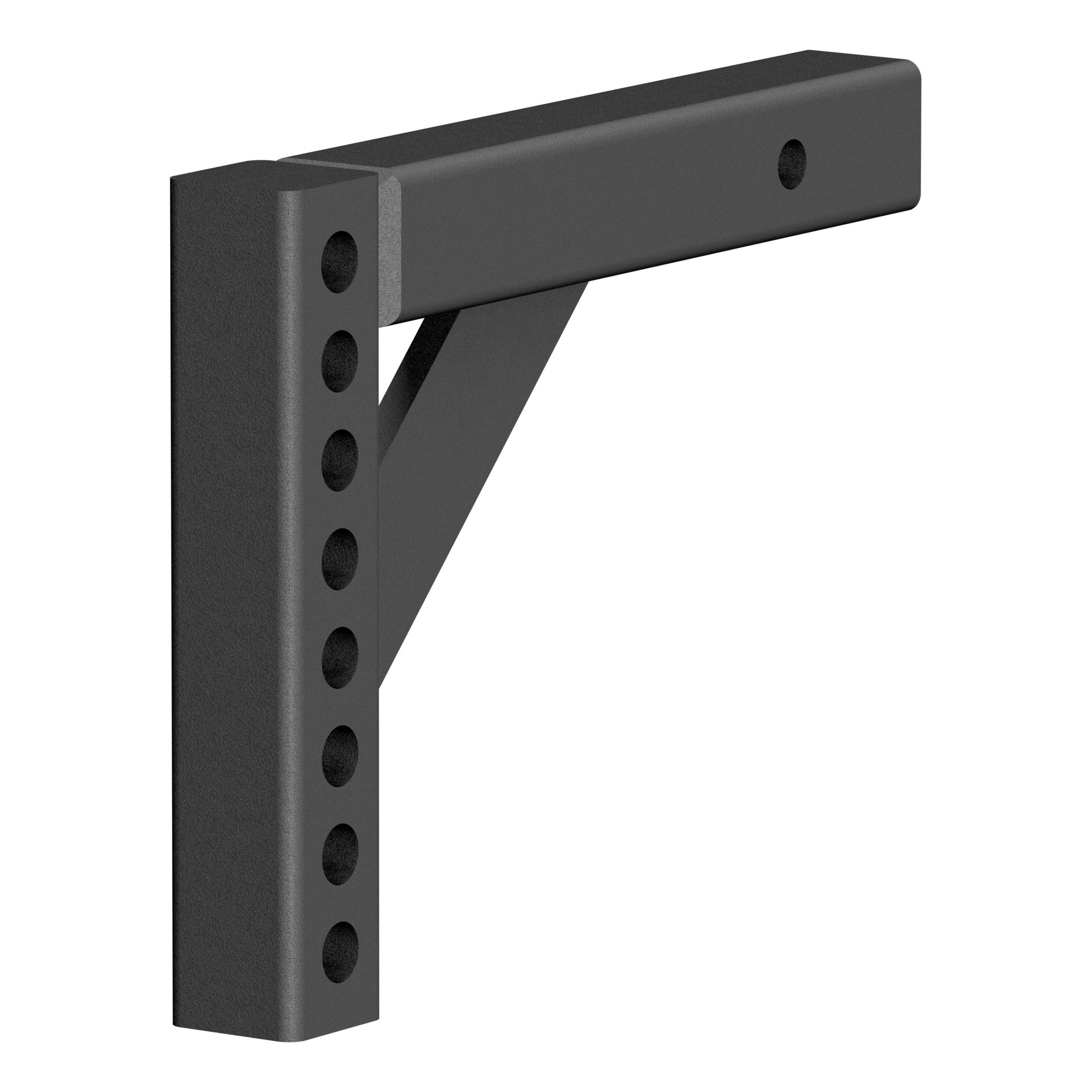

Curt Manufacturing Weight Distribution Shank, 5-5/8in. Drop, 8-7/8in. Rise, Steel, 15,000lb. Max. Capacity, Model# 17120

Item# 4414551
Curt Manufacturing Weight Distribution Shank, 5-5/8in. Drop, 8-7/8in. Rise, Steel, 15,000lb. Max. Capacity, Model# 17120

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing Weight Distribution Shank, 5-5/8in. Drop, 8-7/8in. Rise, Steel, 15,000lb. Max. Capacity, Model# 17120

Click or Tap image to Zoom

$124.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

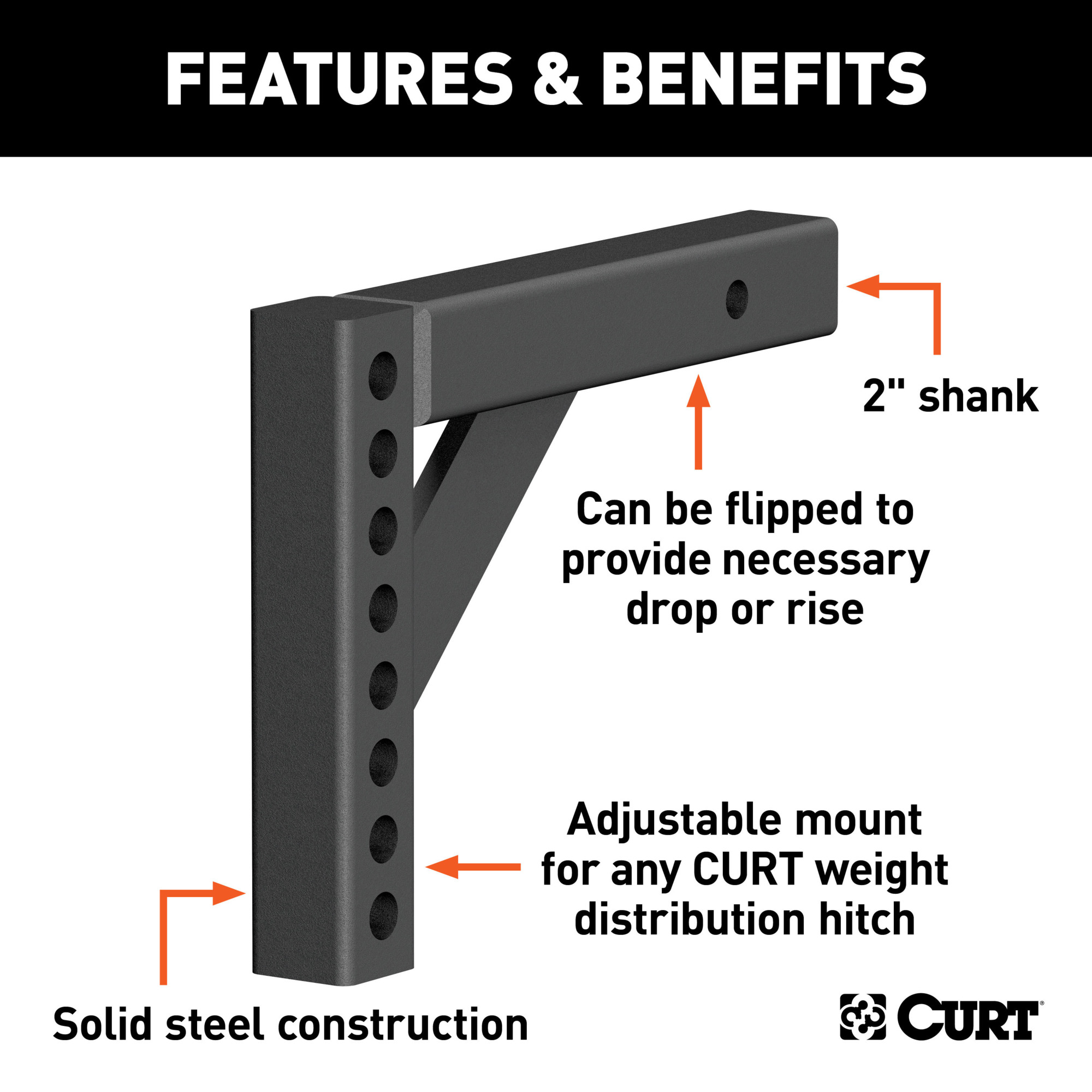

  • Provides an adjustable mount for any CURT weight distribution hitch
  • Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
  • Features multiple holes for adjustable head height

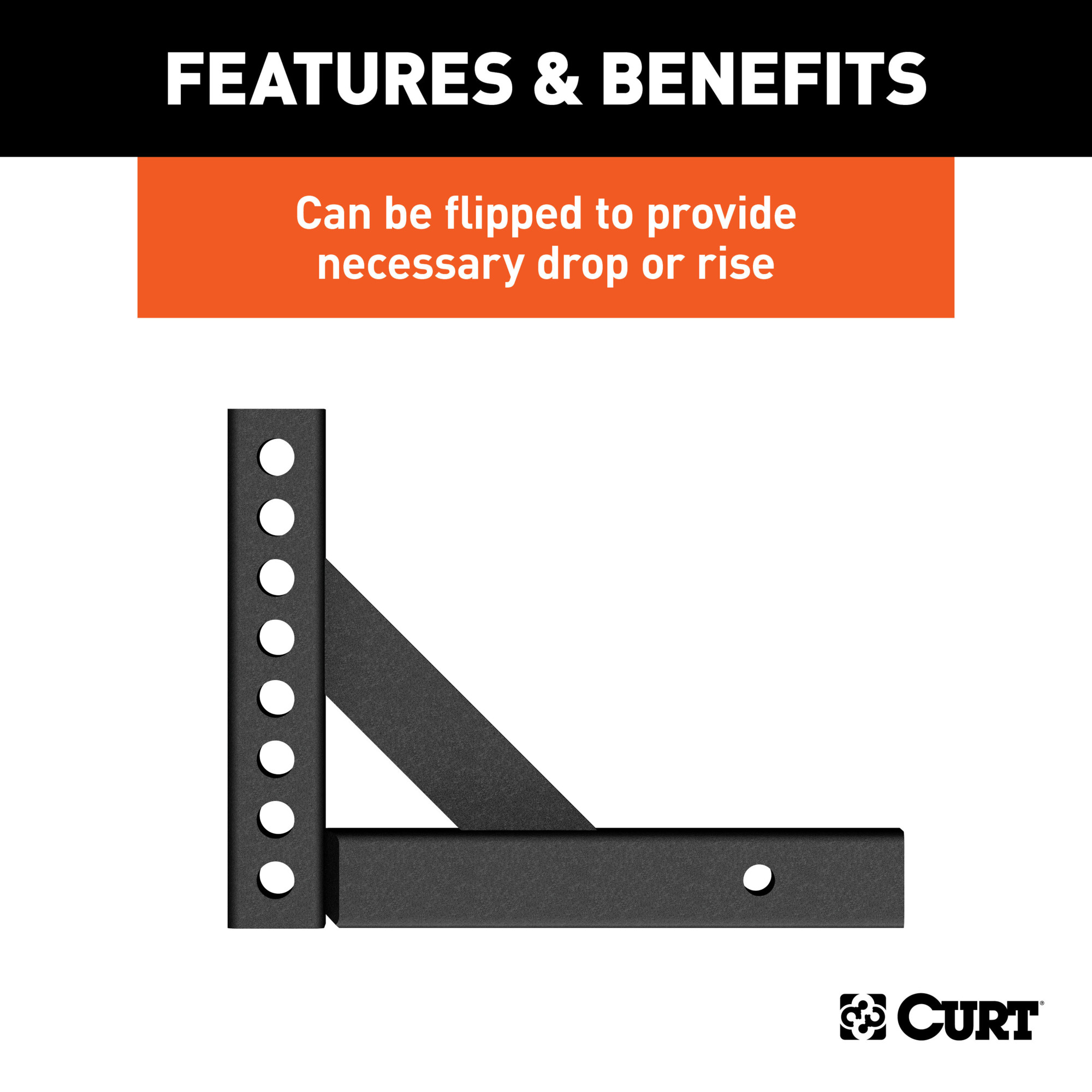

  • Can be flipped to provide necessary drop or rise
  • 3/4" diameter holes are spaced 1-1/4" from center to center

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

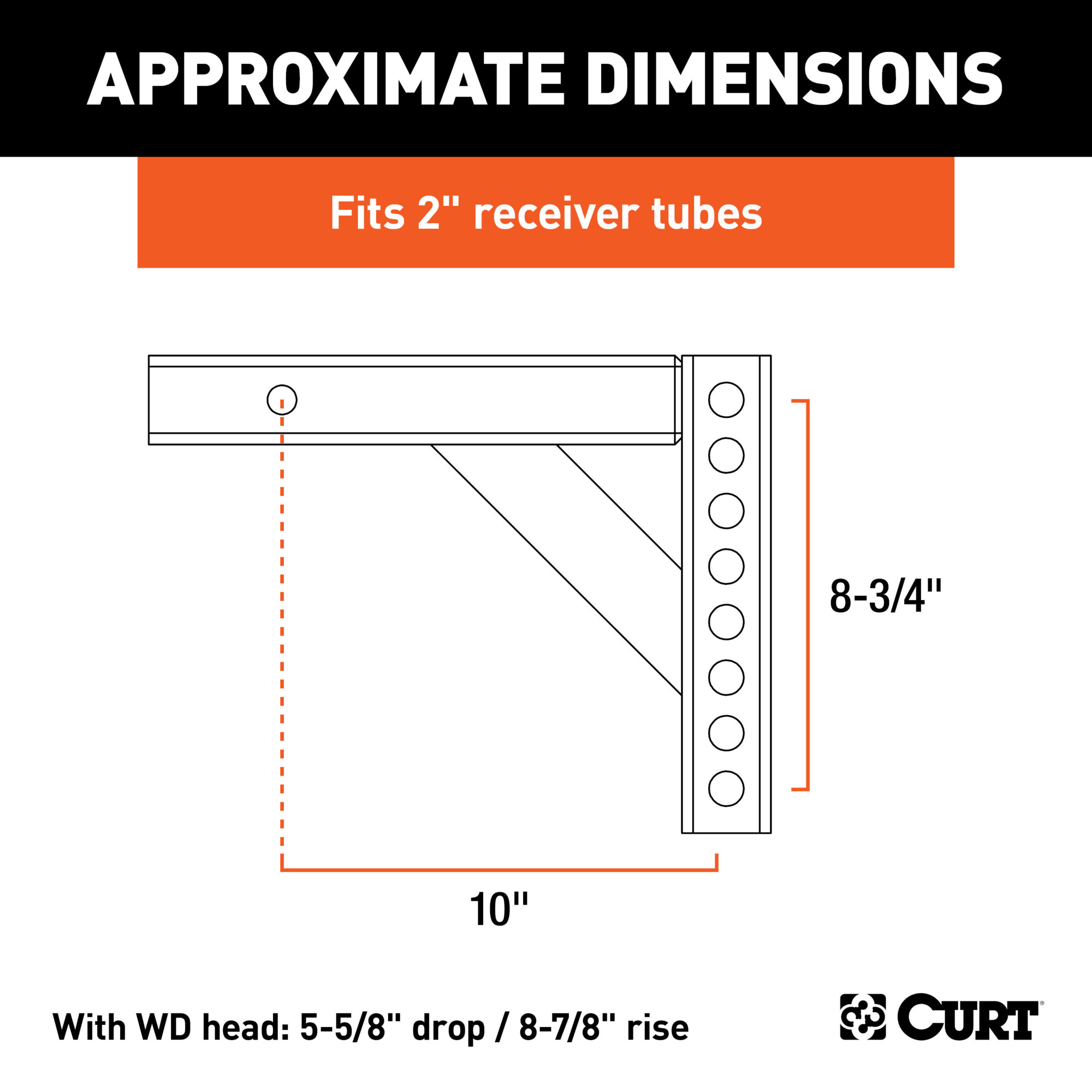

When it comes to enjoying your passion, we think towing equipment should never be the limiting factor. This CURT weight distribution replacement shank is designed for heavy-duty towing, versatile adjustment of your weight distribution hitch and long-lasting reliability. Made from high-strength steel and tested for safety, this WD replacement shank is perfect for a variety of tough jobs and long journeys. It is compatible with all CURT weight distribution hitches and has a 2in. shank with a 5/8in. hitch pin hole to fit any 2in. x 2in. receiver tube opening with a 5/8in. hitch pin hole, including most CURT class 3, class 4 and Xtra Duty class 5 trailer hitches. While the receiver tube shank measures 2in. x 2in., the vertical shank offers a universal fit to be compatible with all CURT weight distribution hitches. Holes in the vertical shank are spaced 1-1/4in. center-to-center and have a 3/4in. diameter, allowing for flexible adjustment of the WD head for precise leveling of the vehicle-trailer combination. This weight distribution shank can be positioned in the rise position for a maximum rise of 8-7/8in. or flipped into the drop position for a maximum drop of 5-5/8in. To ensure durability and long-lasting use, CURT weight distribution replacement shanks are constructed from solid steel and shielded with a highly durable carbide black powder coat finish. This protects them from rain, snow, dirt, road salt and much more for lasting corrosion resistance.

What's Included

    (1) WD Shank

Features + Benefits

  • Provides an adjustable mount for any CURT weight distribution hitch
  • Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
  • Features multiple holes for adjustable head height
  • Can be flipped to provide necessary drop or rise
  • 3/4" diameter holes are spaced 1-1/4" from center to center
  • Fits 2" x 2" hitch receiver tube opening with 5/8" hitch pin hole
  • Constructed from solid steel for reliable strength
  • Protected by a durable powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Includes shank only (weight distribution hitch sold separately)
  • Limited to spring bar capacity

Key Specs

AttributeSpecification

item#

4414551

Brand

Curt Manufacturing

Ship Weight

2.0 LB

Material

Combination
AttributeSpecification

Max. Gross Trailer Weight

15,000 lb

Dimensions L x W x H (in.)

15.0 x 2.0 x 12.0 in

Product Weight

25.0000 lb

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. Where's the part where ball goes ?

    1 answer

    1. This is designed for use with a weight distribution hitch such as our item #4413443. The hitch ball would be attached to the distribution hitch.
