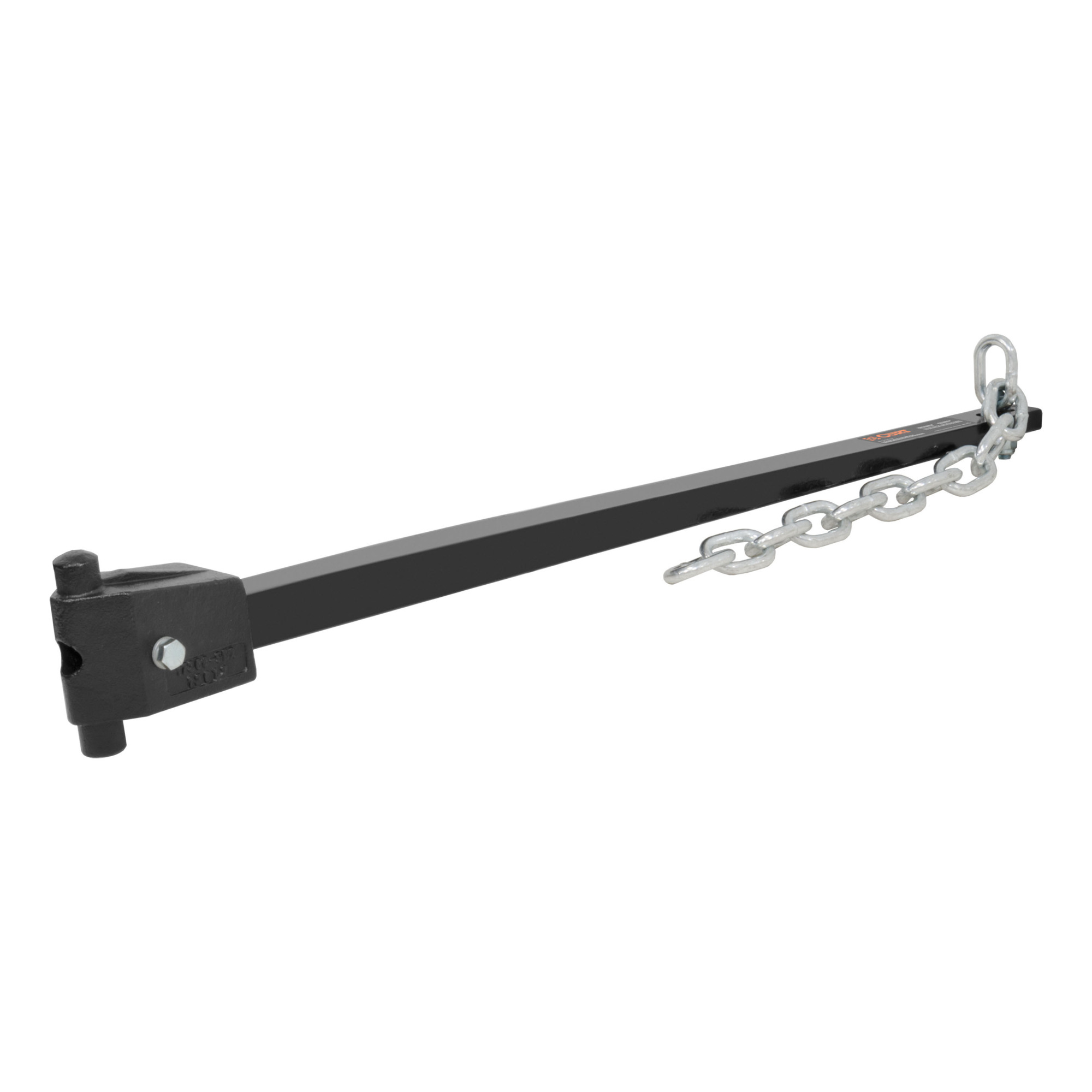

Curt Manufacturing Replacement Long Trunnion Weight Distribution Spring Bar, Steel, 1,000lb. Max. Capacity, Model# 17303

Item# 4414307
Curt Manufacturing Replacement Long Trunnion Weight Distribution Spring Bar, Steel, 1,000lb. Max. Capacity, Model# 17303

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing Replacement Long Trunnion Weight Distribution Spring Bar, Steel, 1,000lb. Max. Capacity, Model# 17303

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

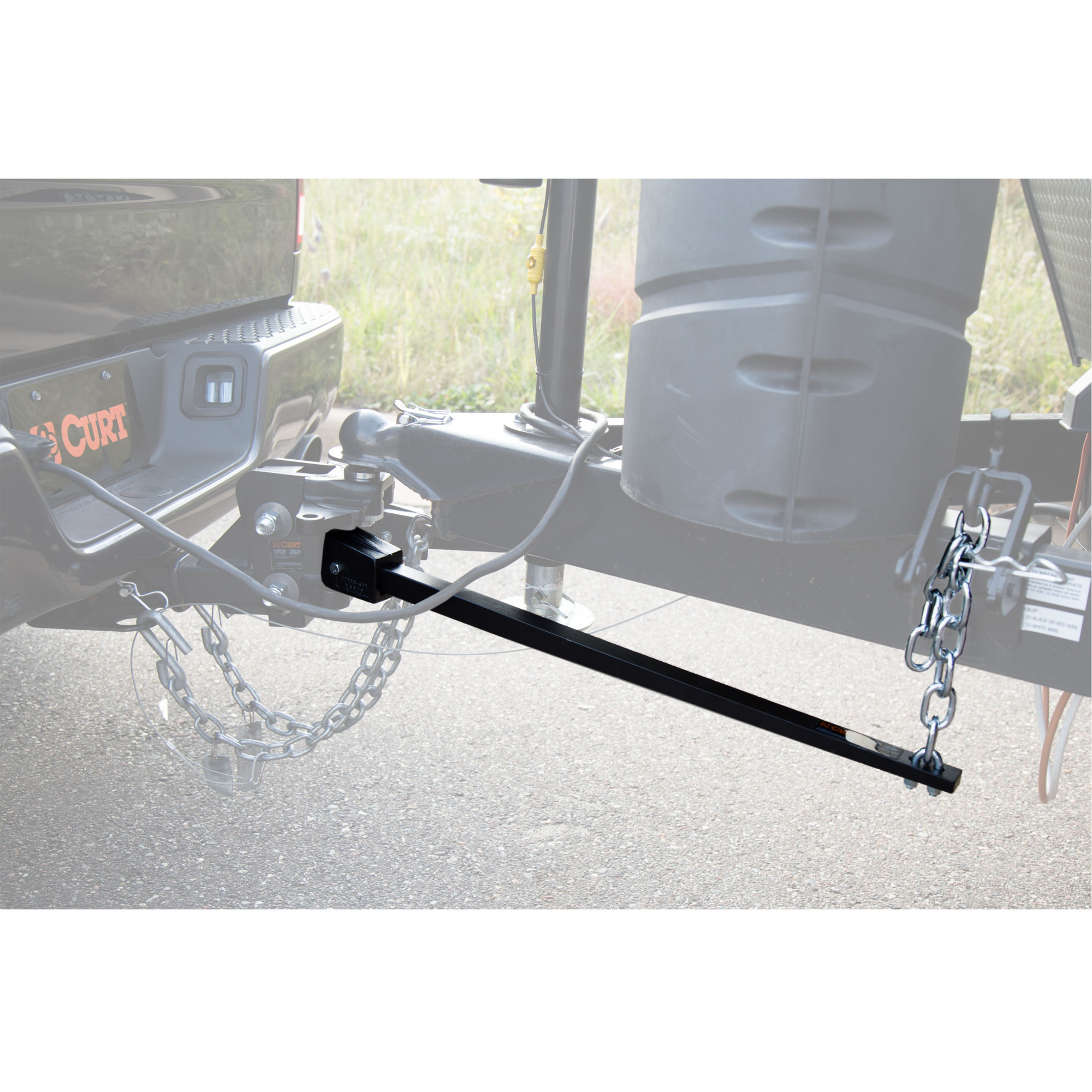

  • Mounts to a trunnion bar WD hitch head to help level the trailer and tow vehicle
  • Fits the CURT long trunnion bar weight distribution hitch #17302
  • Pre-assembled with spring bar chain for ready attachment
  • Multiple chain links allow for flexible adjustment of tension
  • Constructed from forged steel for optimum strength

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This replacement spring bar is designed to fit the CURT long trunnion bar weight distribution hitch #17302. It features forged steel construction and a durable powder coat finish for long-lasting use. It offers a gross trailer weight capacity of 8,000 - 10,000 lbs., a tongue weight capacity of 800 - 1,000 lbs. and comes with a pre-attached spring bar chain for convenient installation and tension adjustment.

What's Included

    (1) WD Spring Bar

Features + Benefits

  • Mounts to a trunnion bar WD hitch head to help level the trailer and tow vehicle
  • Fits the CURT long trunnion bar weight distribution hitch #17302
  • Pre-assembled with spring bar chain for ready attachment
  • Multiple chain links allow for flexible adjustment of tension
  • Constructed from forged steel for optimum strength
  • Protected by a highly durable carbide powder coat finish
  • Includes a 3-5/8" trunnion spring bar, chain and U-bolt

Key Specs

AttributeSpecification

item#

4414307

Brand

Curt Manufacturing

Ship Weight

3.25 LB

Material

Combination
AttributeSpecification

Max. Gross Trailer Weight

10,000 lb

Dimensions L x W x H (in.)

32.75 x 3.25 x 4.75 in

Product Weight

16.0000 lb
