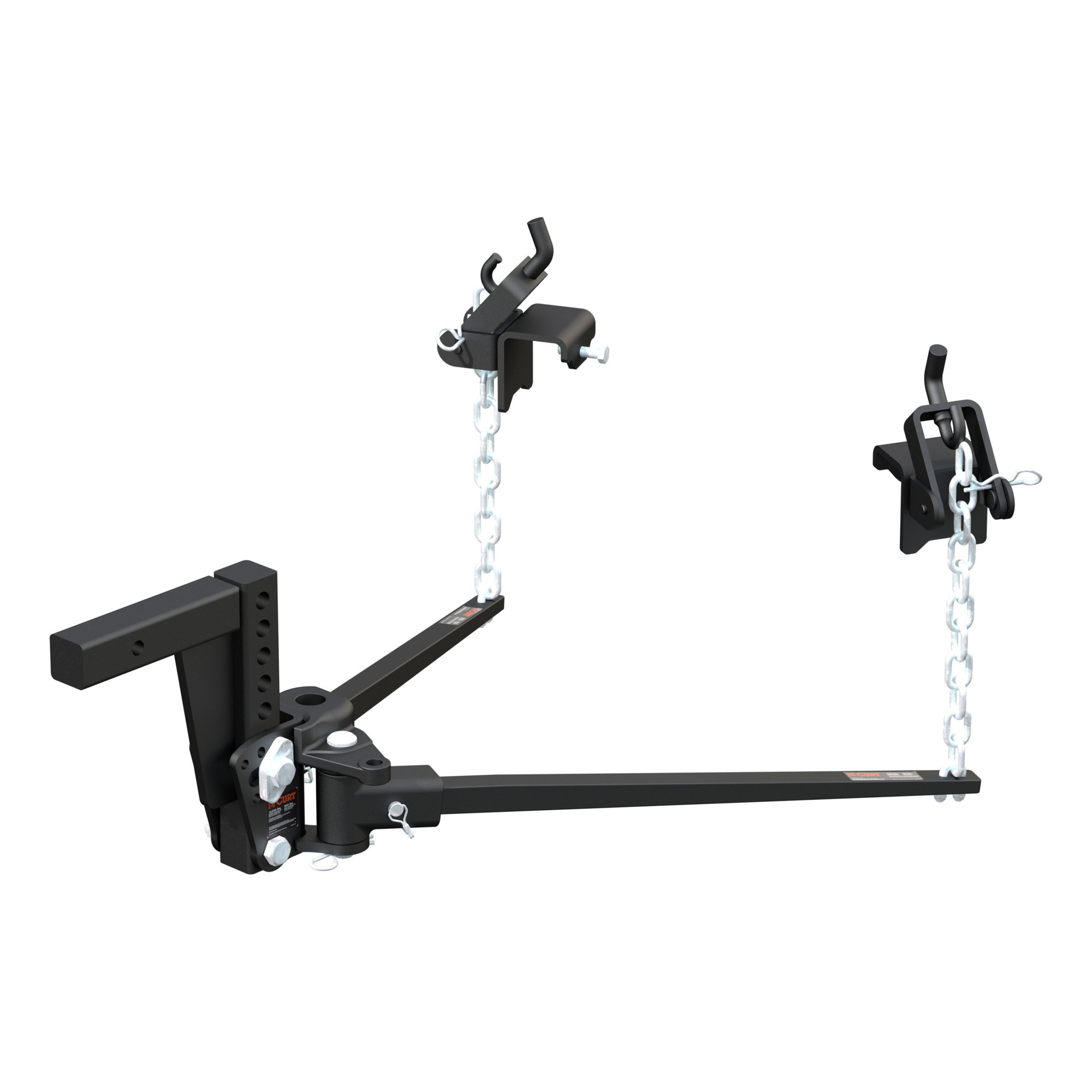

Curt Manufacturing Deep Drop Trunnion Bar Weight Distribution Hitch, Carbon Steel, 10,000lb. Max Capacity, Model# 17352

Item# 4415131
Curt Manufacturing Deep Drop Trunnion Bar Weight Distribution Hitch, Carbon Steel, 10,000lb. Max Capacity, Model# 17352

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing Deep Drop Trunnion Bar Weight Distribution Hitch, Carbon Steel, 10,000lb. Max Capacity, Model# 17352

Click or Tap image to Zoom

$434.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

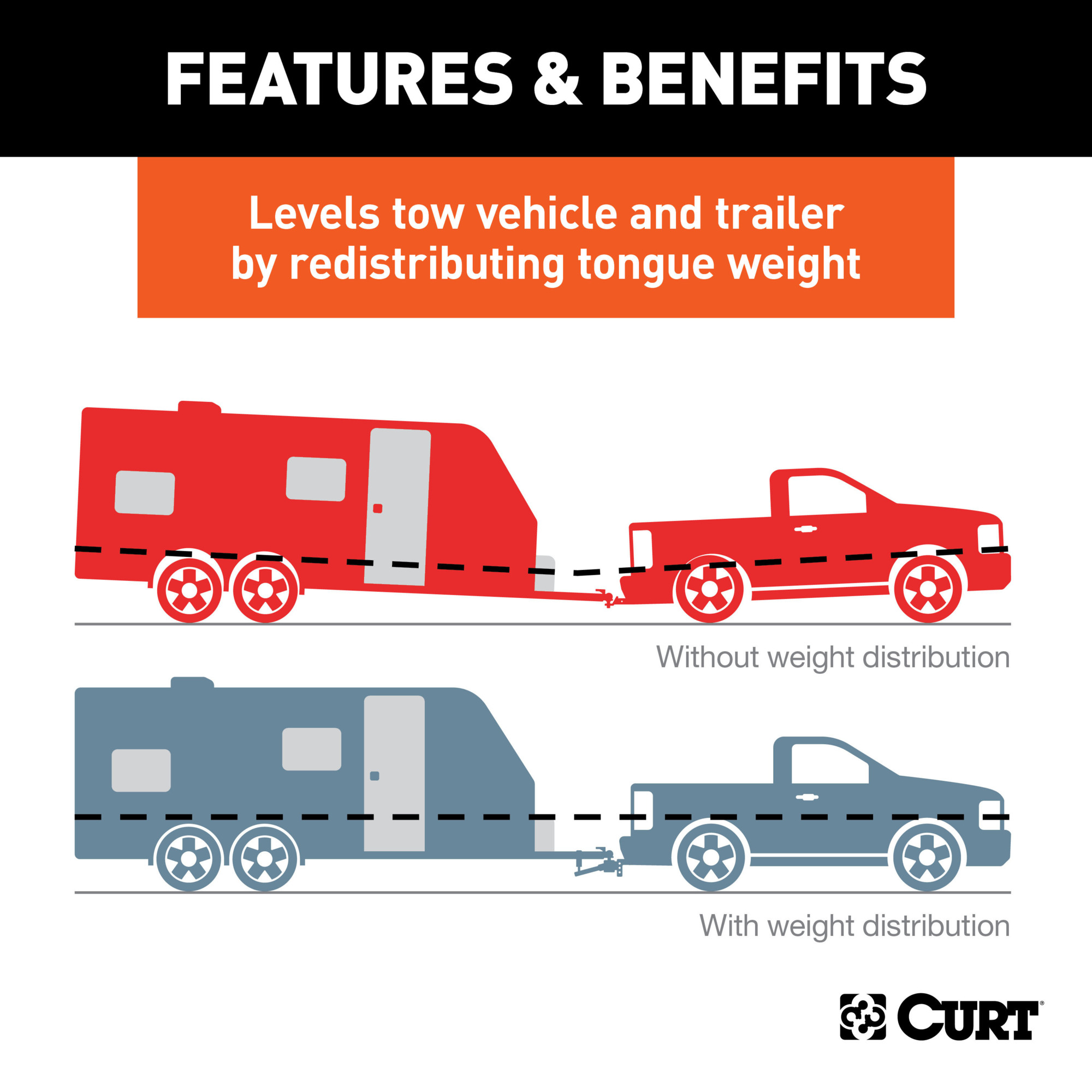

  • Levels tow vehicle and trailer by redistributing a portion of the tongue weight
  • 2" x 2" deep drop shank for level towing with large, lifted trucks

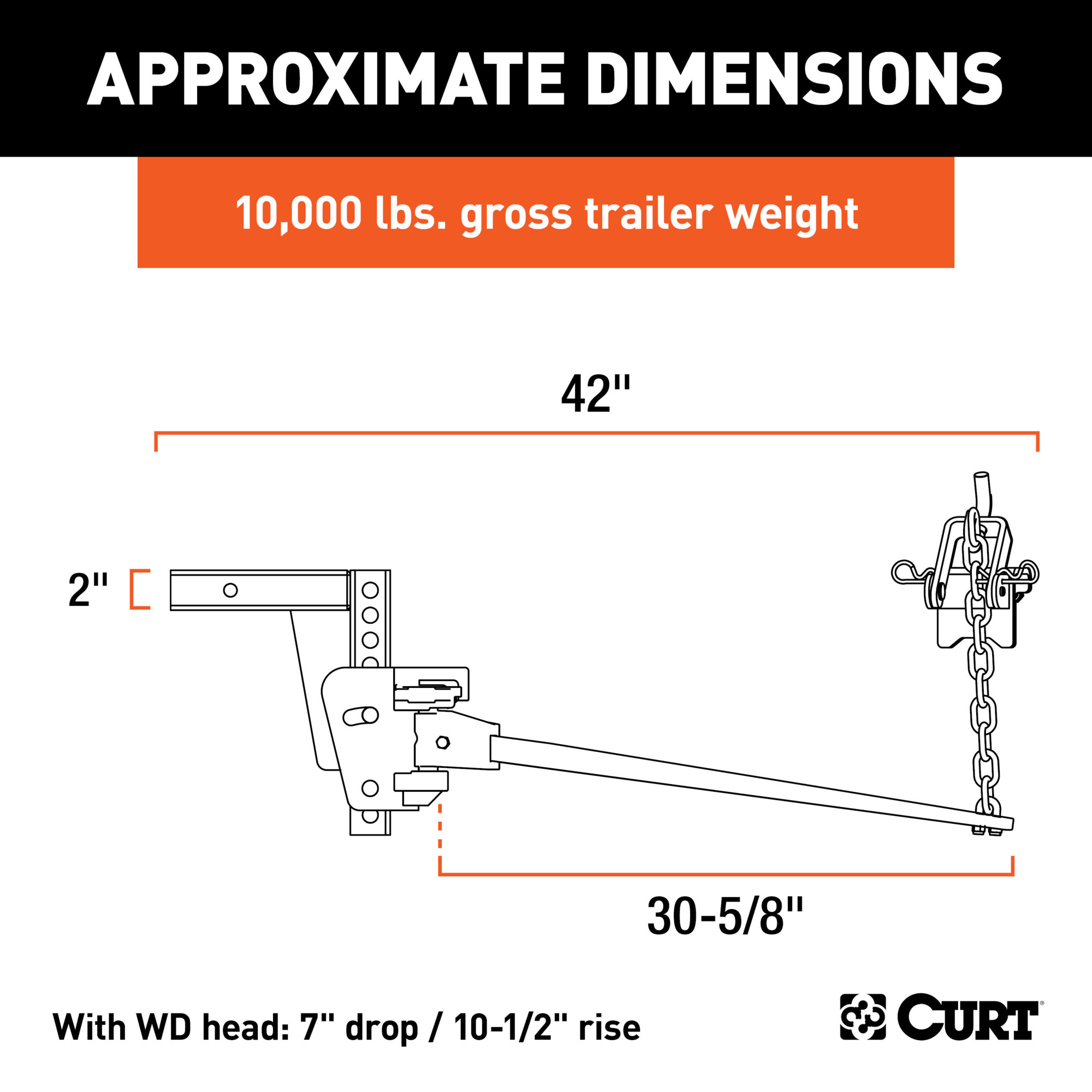

  • Shank can be flipped to provide up to 7" drop or 10-1/2" rise
  • Equipped with 30-5/8" trunnion-style, forged steel spring bars
  • Heavy-duty, formed head can be adjusted for precise leveling

See full description

Complete Your Solution

  • Curt Manufacturing Deep Drop Trunnion Bar Weight Distribution Hitch, Carbon Steel, 10,000lb. Max Capacity, Model# 17352
  • SmartStraps Web Sling, 6,400-Lb. Breaking Strength, 6ft. x 2in., Model# 840
Price for all two:

$461.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

The CURT deep drop weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the axles. This model is made particularly for larger, lifted trucks, featuring an adjustable shank that provides a drop up to 7in. and rise up to 10-1/2in. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. This CURT WD hitch comes with a 2in. x 2in. deep drop shank and is compatible with most class 3, 4 and 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component). This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.

What's Included

    (1) Hitch

Features + Benefits

  • Levels tow vehicle and trailer by redistributing a portion of the tongue weight
  • 2" x 2" deep drop shank for level towing with large, lifted trucks
  • Shank can be flipped to provide up to 7" drop or 10-1/2" rise
  • Equipped with 30-5/8" trunnion-style, forged steel spring bars
  • Heavy-duty, formed head can be adjusted for precise leveling
  • Features built-in sway control attachment tabs
  • 2-1/2" x 2-1/2" WD replacement shank also available
  • Tilt adjustment feature simplifies setup and installation
  • Hookup brackets and lift handle allow for easy leveraging of spring bars
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Includes shank, spring bars, head, hookup brackets, pin & clip
  • Trailer ball not included

Key Specs

AttributeSpecification

item#

4415131

Brand

Curt Manufacturing

Ship Weight

8.25 LB
AttributeSpecification

Material

Carbon Steel

Dimensions L x W x H (in.)

35.5 x 8.25 x 13.0 in

Product Weight

95.1200 lb
