Product Summary

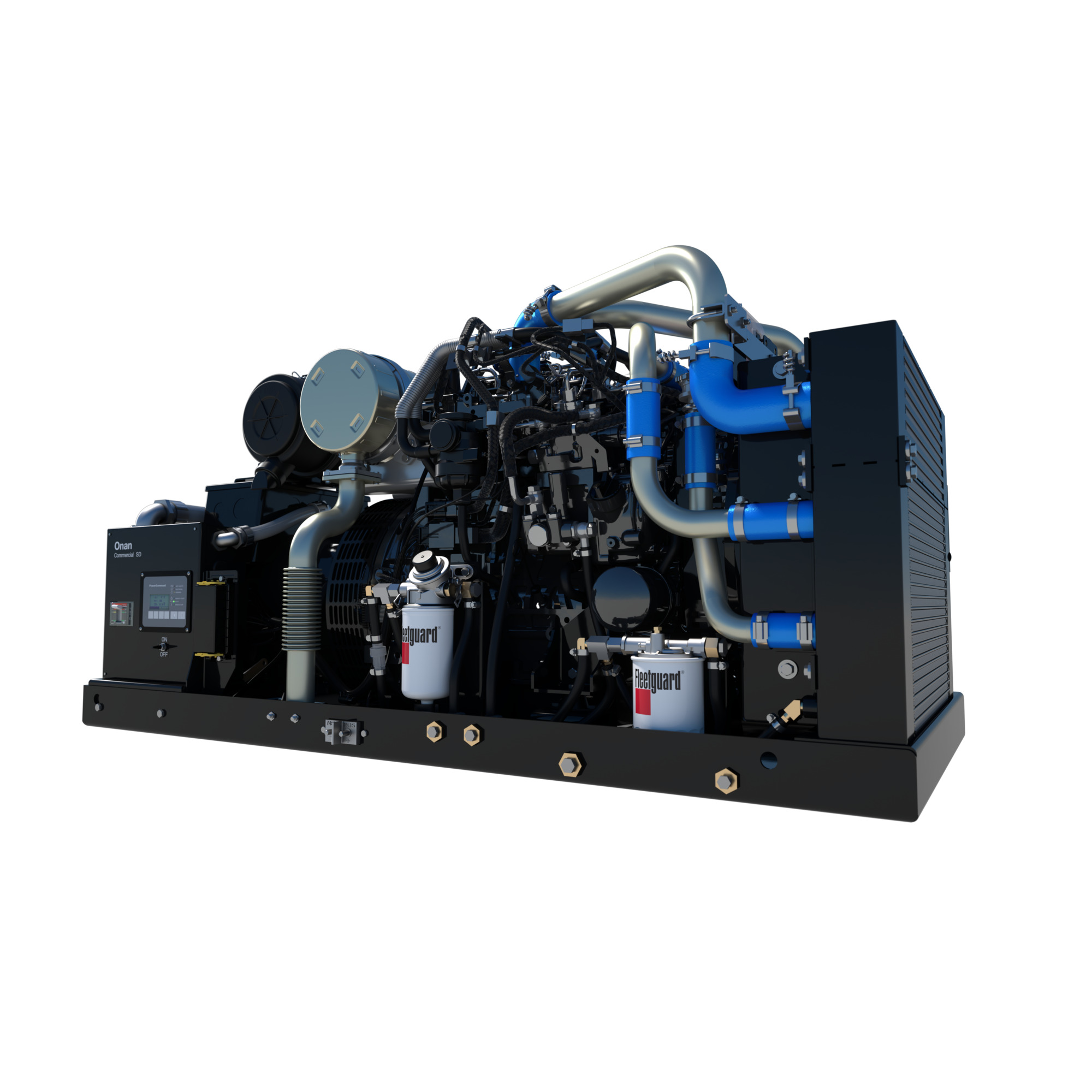

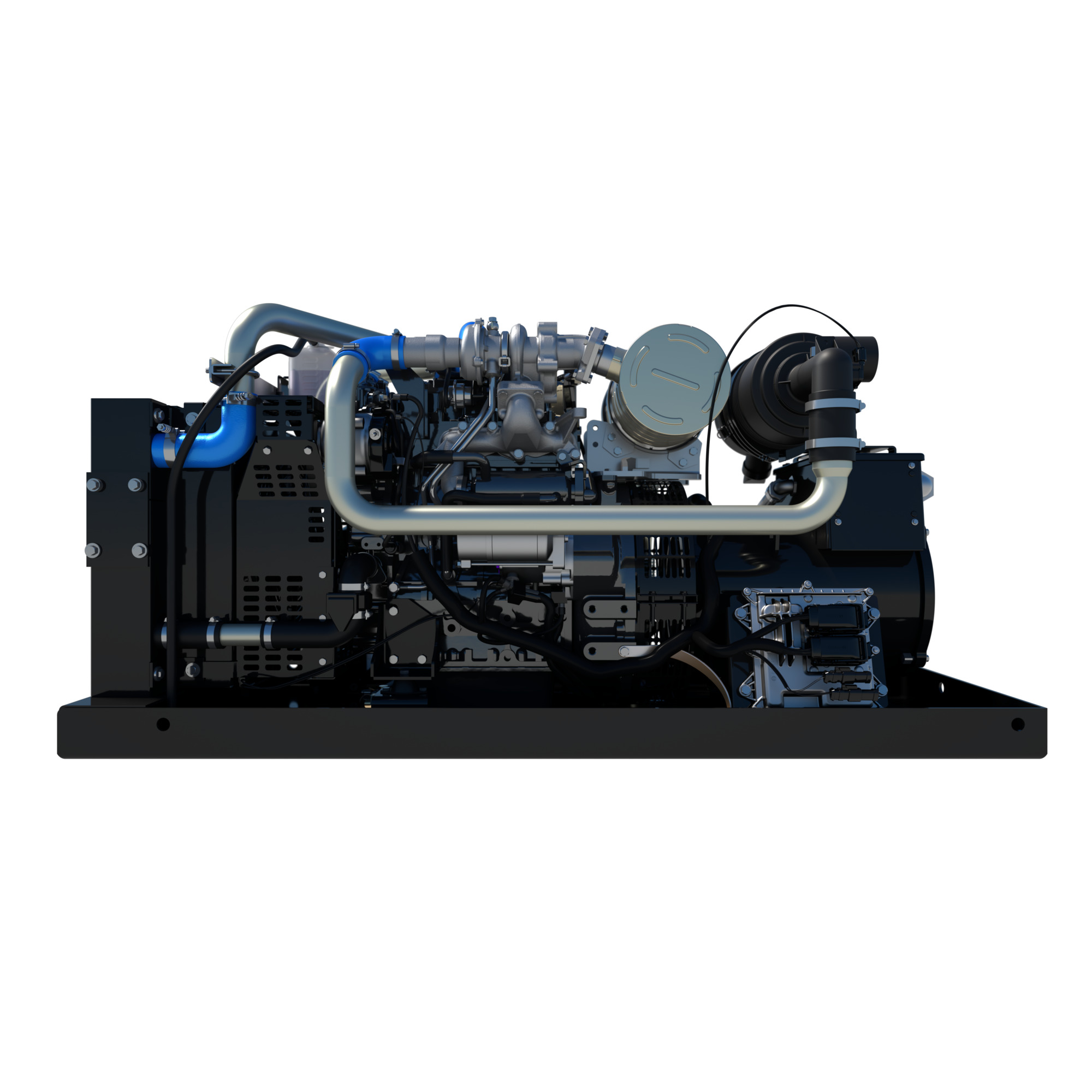

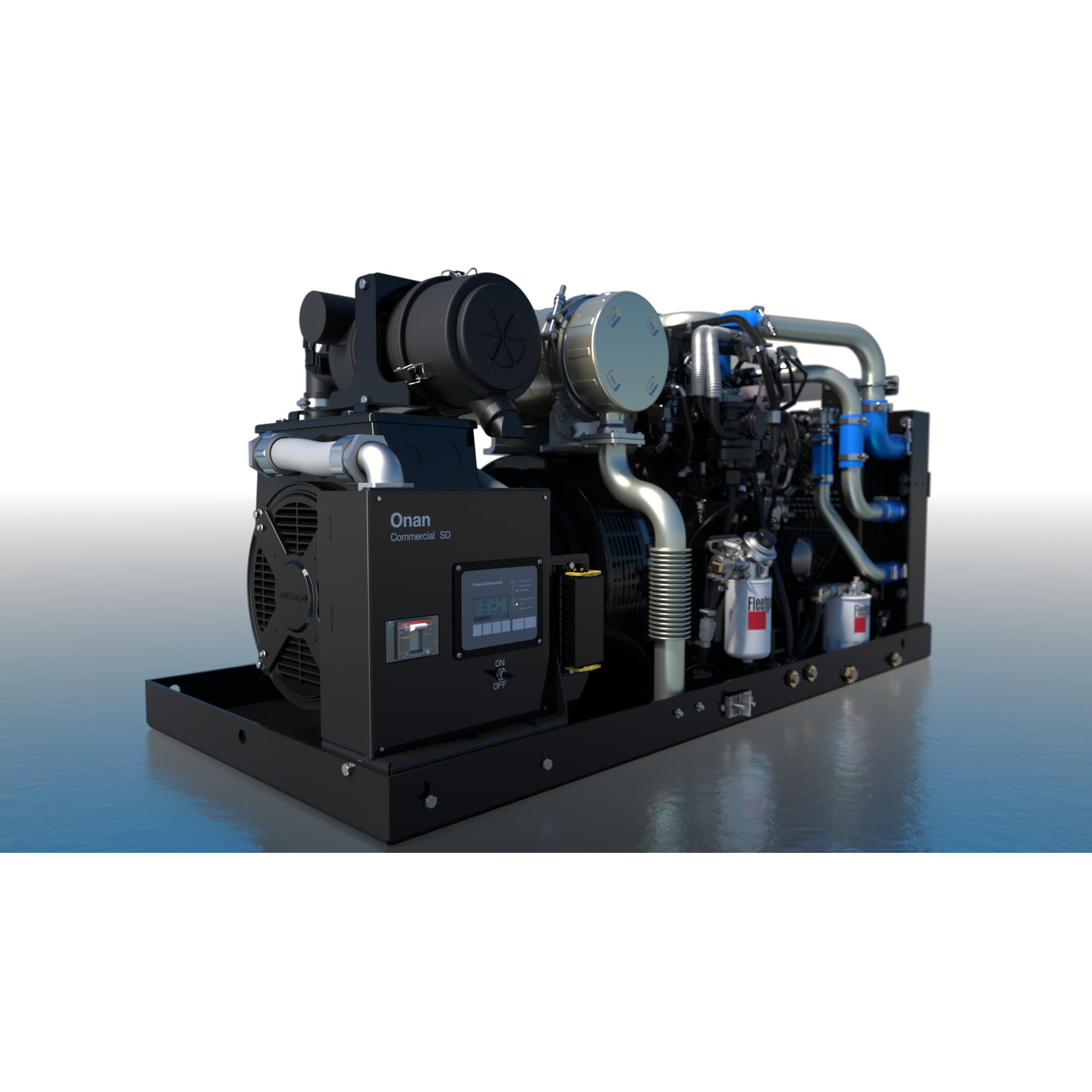

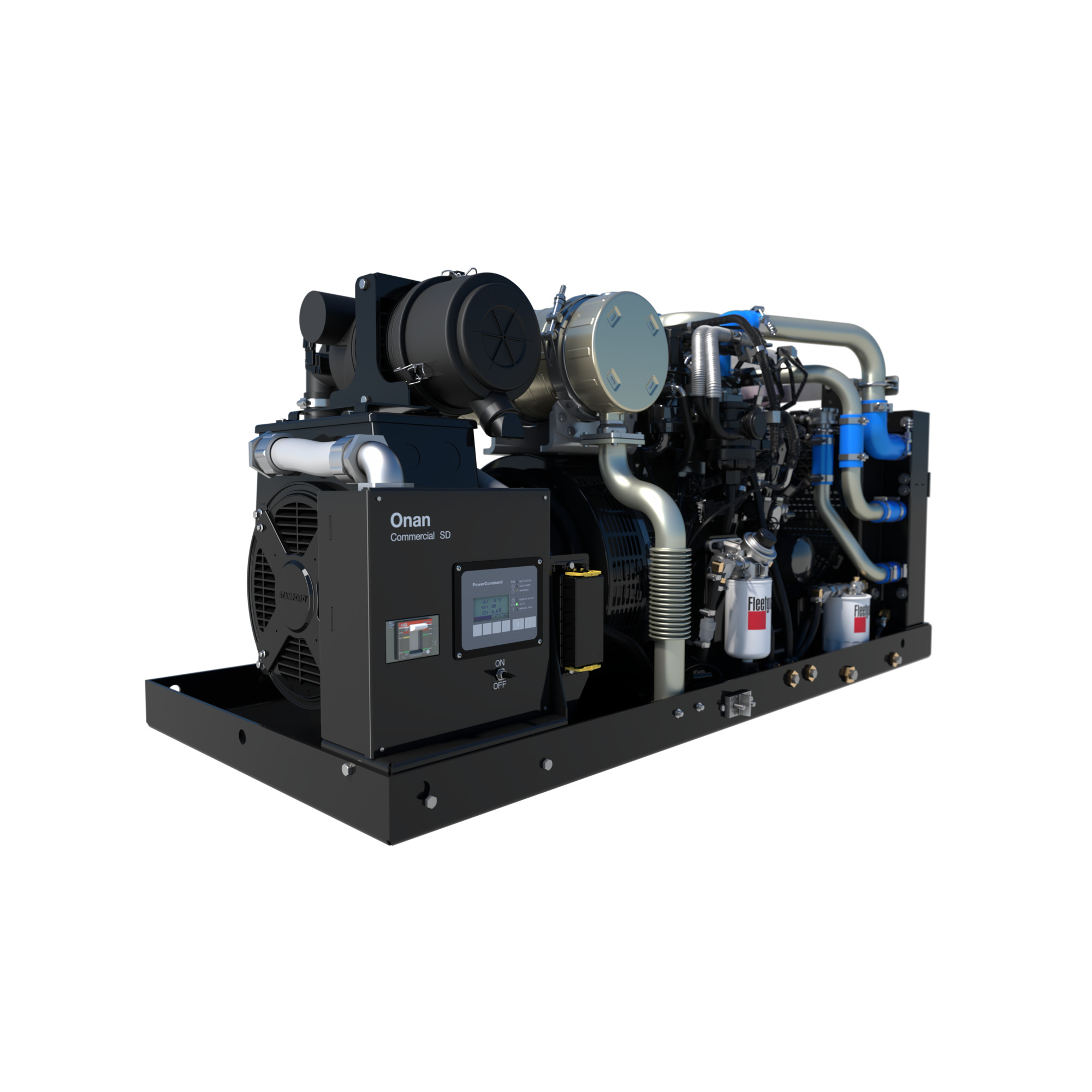

SD 20000 – 20HDKDB-02: Onan Standard Diesel commercial mobile generator set rated 20,000 W at 120/208 V, 60 Hz, 3-phase (0.8 PF); U.S. EPA Tier 4 emissions compliance without requiring DEF, accepts 100% rated load in a single step, with standard PowerCommand® Control (PCC) 1300 digital regulation. Sound rating 79 dB(A) 10ft. full load, before installation. Choose it for 120/208 V 3-phase mobile power at 20 kW with Tier 4 requirements.

What's Included

    (1) Generator

Features + Benefits

  • U.S. EPA Tier 4 emissions compliance without requiring DEF
  • Standard PowerCommand Control (PCC) 1300 provides digital frequency and voltage regulation
  • Accepts 100% rated load in a single step
  • Low vibration for smooth operation

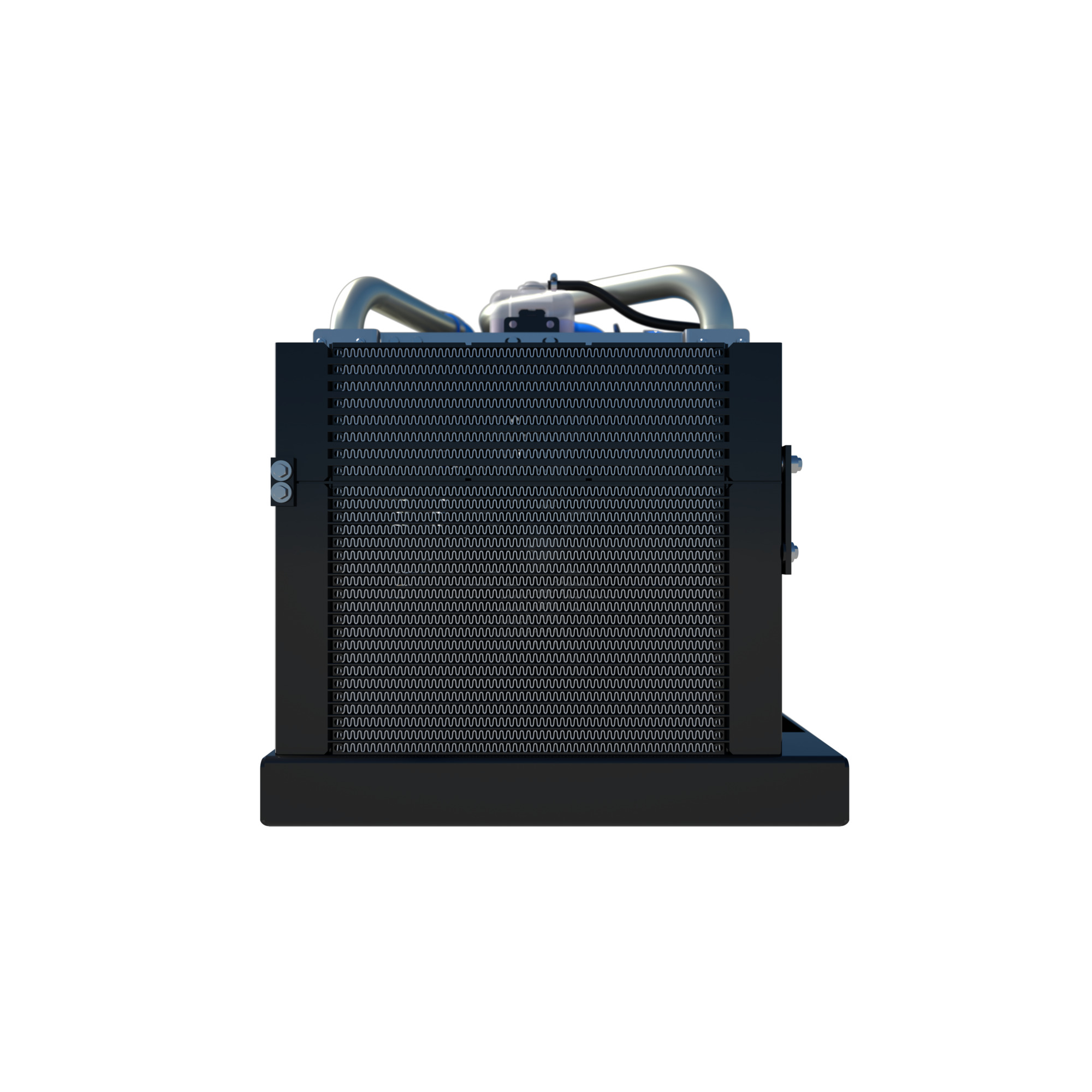

  • Cross-flow radiator provides increased cooling efficiency
  • Cummins Part Number: A066T980

Key Specs

AttributeSpecification

item#

7183647

Brand

Cummins Onan

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1200.0 LB

Rated Watts

20,000

Voltage

120/208

Max. Amps

69

Fuel Type

Diesel

Engine Brand

Cummins
AttributeSpecification

Engine Displacement

1,826 cc

Start Type

Electric

Full Load Fuel Consumption

1.44 GPH

Battery Required

Yes

Battery Included

No

Hertz

60

Product Weight

1035.0000 lb

Dimensions L x W x H (in.)

58.3 x 26.3 x 28.2 in

Warranty

Manufacturer's Warranty

2 year limited warranty
