The generator does not come with the fuel tank. With commercial mobile applications, the vehicle manufacturer will provide the fuel tank. With RV applications, the RV manufacturer will provide the fuel tank. The tank size is based on fuel consumption. At no load the fuel consumption is 0.38 GPH, half load is 0.71 GPH and full load is 1.28 GPH.

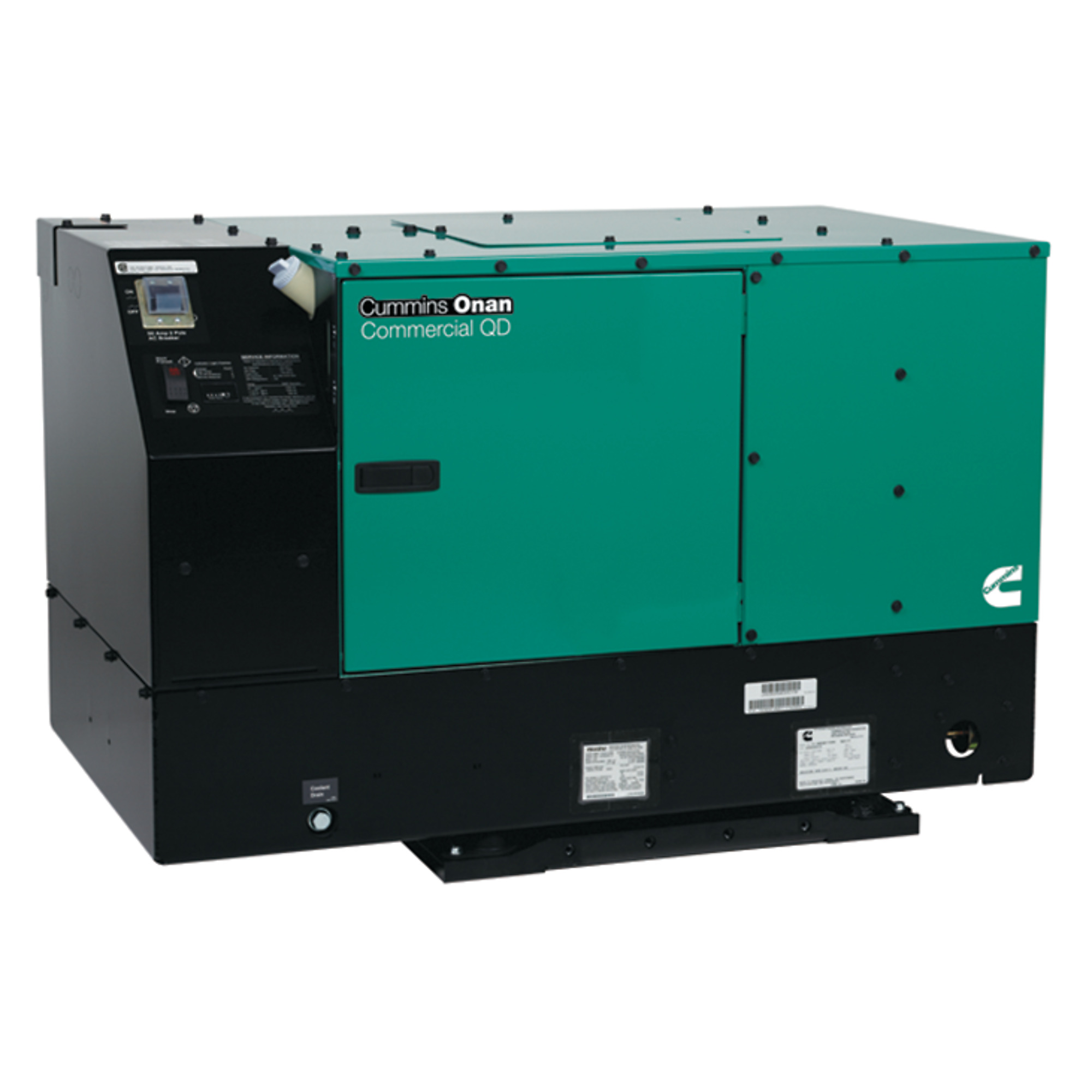

Cummins Onan QD 12000 - 12HDKCD-2209 Diesel Commercial Mobile Generator
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$15,173.81
- Sound-controlled housing encloses cooling system and muffler (simplifies installation)
- Four-point fully focalized internal mounting with integrated secondary isolation
- Self-diagnostic capabilities simplify troubleshooting
- Automatic glow plug eliminates preheat time uncertainty
- Cross-flow radiator provides increased cooling efficiency
See full description
See All RV Generators
See All Cummins Onan RV Generators
Currently Viewing This Product
$15,625.66
Specifications
Specifications
Cummins Onan QD 12000 - 12HDKCD-2209 Diesel Commercial Mobile Generator
Cummins Onan Quiet Series Diesel RV Generator, 10 kW, Model# 10HDKCA-11506
Cummins Onan Quiet Series Diesel RV Generator, 12.5 kW, Model# 12.5HDKCB-11506
Cummins Onan Quiet Series EVAP Gasoline RV Generator, 4.0 kW, CARB and EPA Compliant, Model# 4.0KY-FA/6747
Rated Watts
Same
12,000
10,000
-
-
Voltage
Same
120/240
120/240
120/240
100-120
Max. Amps
Same
100
83.3
-
-
Fuel Type
Same
Diesel
Diesel
Diesel
Gasoline
Engine Brand
Same
Cummins
Cummins
Cummins
Cummins
Engine Displacement
Same
1,499 cc
1,647 cc
1,647 cc
304 cc
Start Type
Same
Electric
Automatic and Manual
Automatic and Manual
Automatic and Manual
Full Load Fuel Consumption
Same
1.28 GPH
-
-
-
Battery Required
Same
Yes
Yes
Yes
Yes
Battery Included
Same
No
No
-
-
Hertz
Same
60
60
60
60
Product Weight
Same
815.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
41.5 x 24.5 x 27.0 in
-
-
-
Auto Shutdown
Same
-
Yes
Yes
Yes
