The CRX engines are manufactured by FNA Group. The carburetor kit part number 7127624 can be purchased through the manufacturer directly.
Free Gift Card Details
- The promo code 290259 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $100 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax and shipping.
- Free gift cards will be issued in the form of e-gift cards only, not physical gift cards.
- E-gift cards will be sent to the email address used in your billing address when your order ships or is picked up.
- Free e-gift cards expire 04/01/27.
- Promo code not valid on prior purchases or on Honda and STIHL products and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited-time offer. Subject to change without notice.

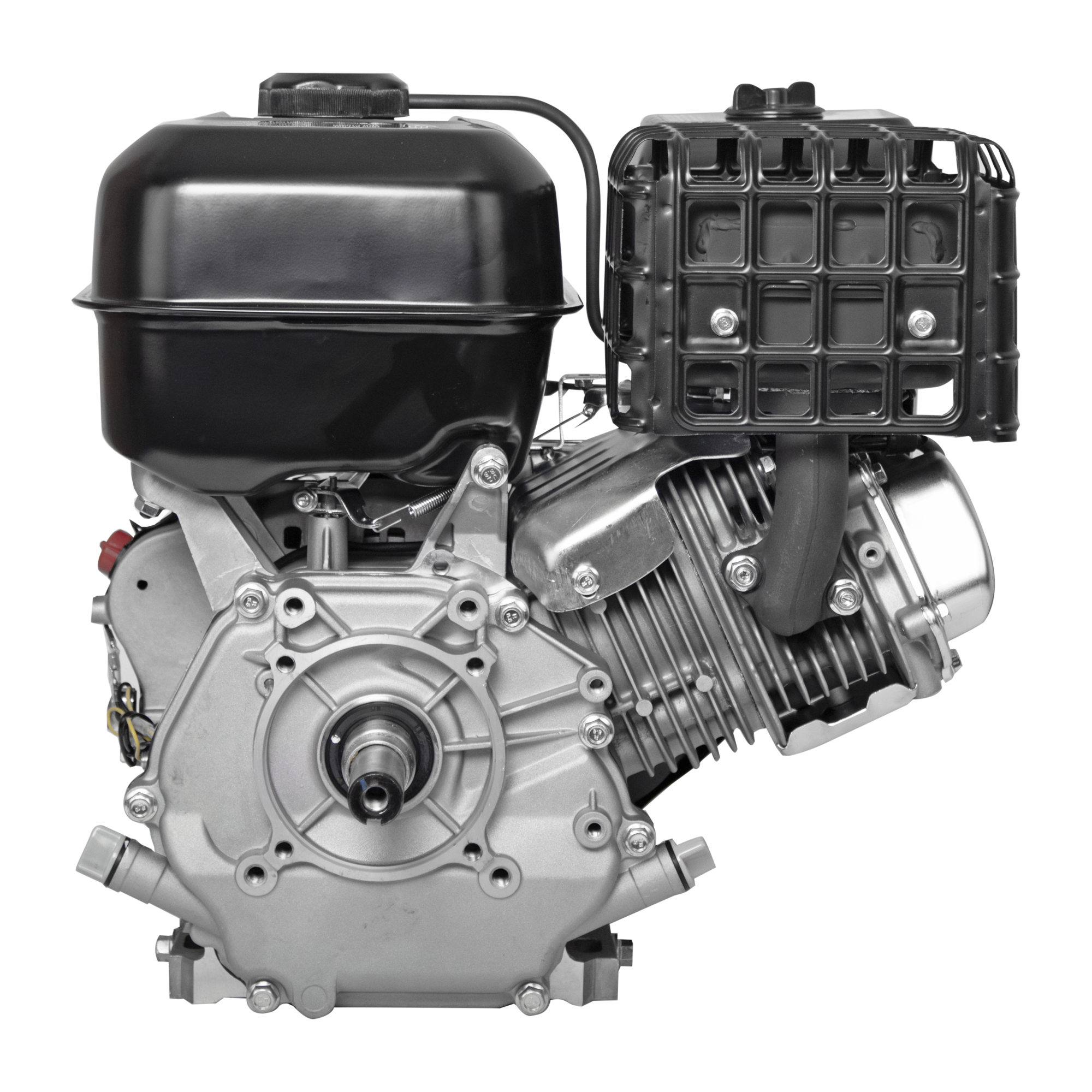

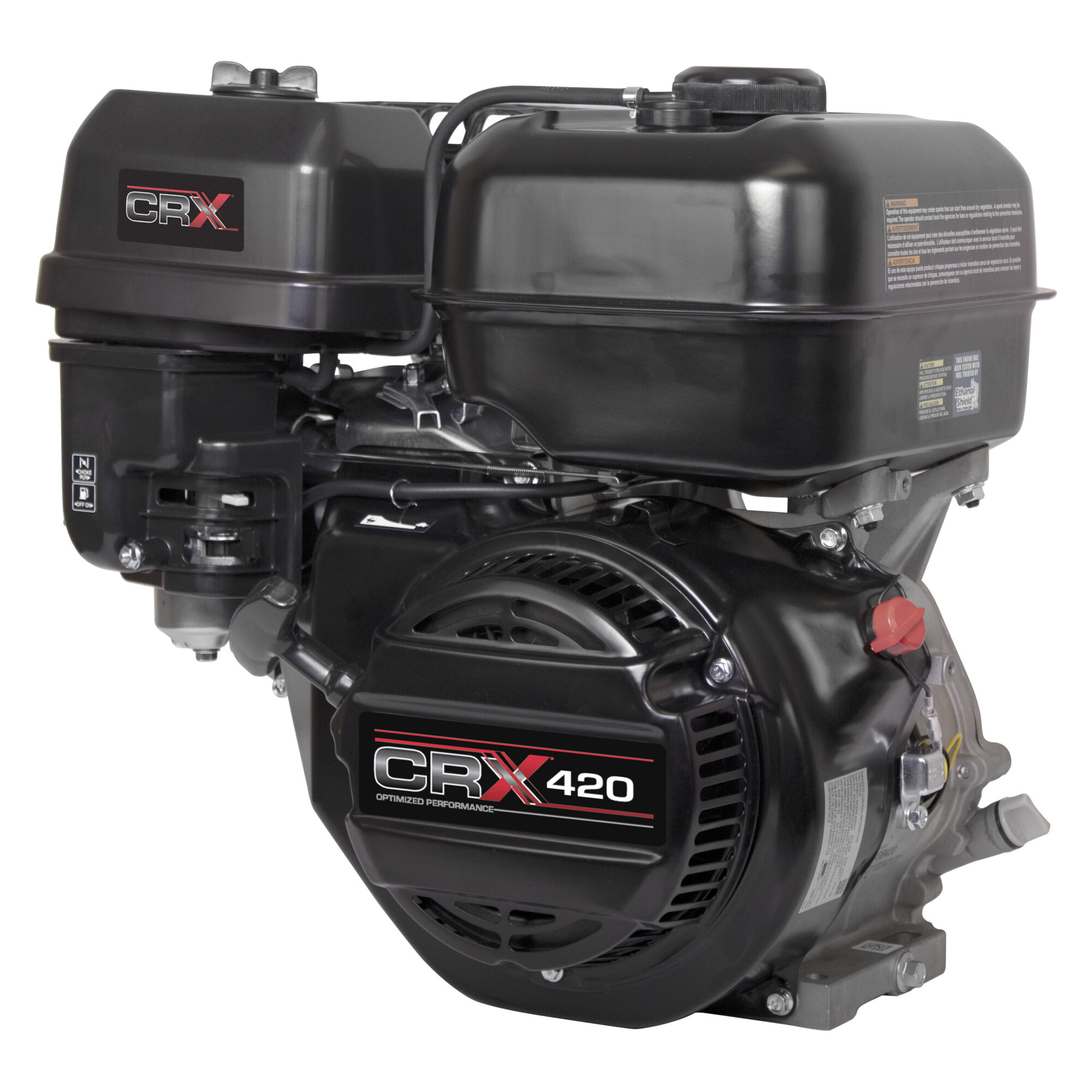

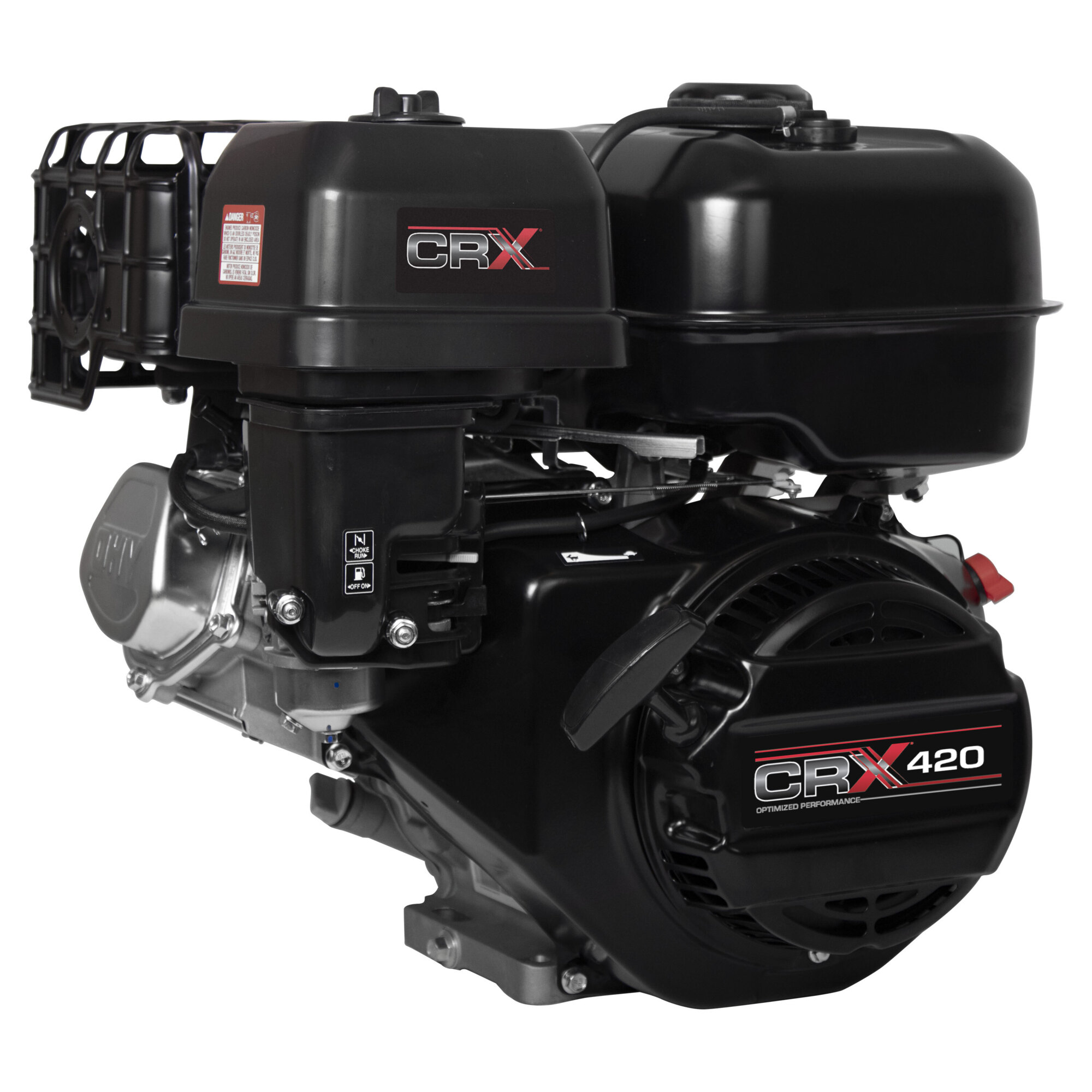

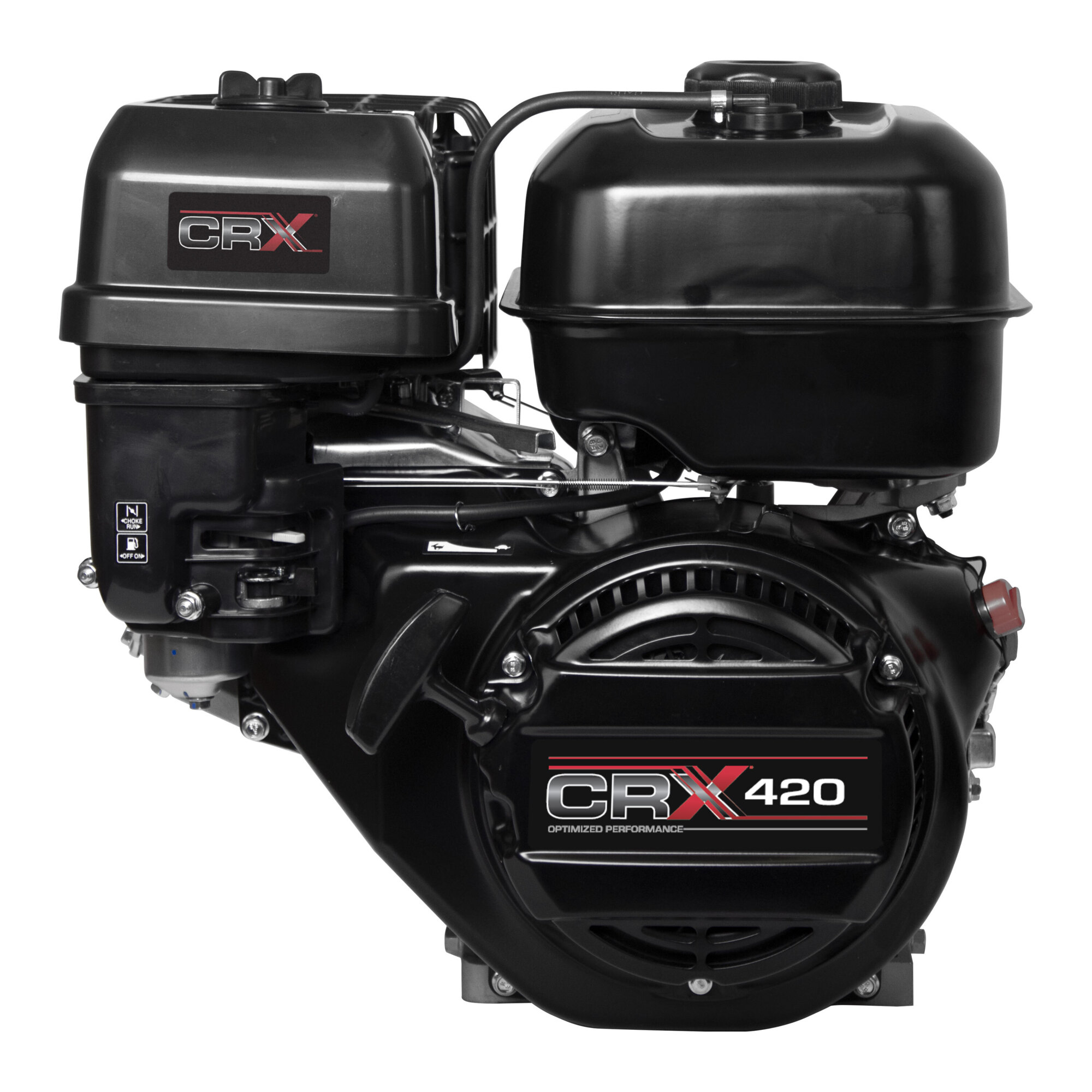

CRX420 Horizontal-Shaft Gas Engine: 420cc, 1in. Shaft, Recoil Start

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- Delivering 9kW@3600rpm and 27Nm@2600rpm of net torque from the CRX420 420cc engine for pressure washers, pumps, log splitters, construction equipment and other powered equipment.
- Single-Cylinder horizontal-shaft engine uses carbureted fuel delivery, transistor magneto ignition and counterclockwise PTO rotation for dependable equipment power.
- Recoil start configuration provides a setup matched to the electrical requirements of this engine variant.
- Features a 1 in. output shaft with SAEJ-609B PTO mounting flange to support compatible replacement-engine and OEM installations.
- Foam-and-paper dual-element air cleaner helps protect internal components from airborne debris and supports consistent performance in dusty work environments.
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) CRX Engine
Features + Benefits
- Delivering 9kW@3600rpm and 27Nm@2600rpm of net torque from the CRX420 420cc engine for pressure washers, pumps, log splitters, construction equipment and other powered equipment.
- Single-Cylinder horizontal-shaft engine uses carbureted fuel delivery, transistor magneto ignition and counterclockwise PTO rotation for dependable equipment power.
- Recoil start configuration provides a setup matched to the electrical requirements of this engine variant.
- Features a 1 in. output shaft with SAEJ-609B PTO mounting flange to support compatible replacement-engine and OEM installations.
- Foam-and-paper dual-element air cleaner helps protect internal components from airborne debris and supports consistent performance in dusty work environments.
- 1.58 gallon fuel tank; 1.2 qt oil capacity and splash lubrication support routine service and reliable operation.
- Low-oil level sensor shutdown helps protect the engine from lubrication-related damage.
- EPA exhaust compliant with a 250 hour emissions durability period.
Key Specs
| Attribute | Specification |
|---|---|
item# | 7463913 |
Brand | CRX Engines |
Manufacturer's Warranty | 3 year limited warranty |
Ship Weight | 74.49 LB |
Engine Displacement | 420 cc |
Engine Type | Gasoline |
Shaft Diameter | 1 in |
Shaft Diameter Metric | 25.4 mm |
Shaft Length | 3.48 in |
Shaft Length Metric | 88.39 mm |
Fuel Type | Gasoline |
Start Type | Electric and Recoil |
Net Torque | 19.91 ft-lbs. |
Crankshaft | Forged Steel |
Cylinders (qty.) | 1 |
Cylinder Bore | Cast Iron |
Net Power Output | 13.0 HP HP |
Compression Ratio | 8.2:1 |
Fuel Tank | Yes |
Fuel Tank Capacity | 6.4 qt |
Oil Capacity | 1.2 qt |
Low Oil Shutdown | Yes |
Low Oil Alert | No |
| Attribute | Specification |
|---|---|
Max. RPM | 3,600 |
CARB Approved | No |
Shaft Rotation (From PTO Shaft Side) | Clockwise |
Governor System | Mechanical |
Ignition System | Transistor Magneto |
Carburetor | Naturally Aspirated |
Lubrication System | Splash |
Bearing Type | Ball |
Auto Compression Release | No |
Cooling System | Air |
Bore | 3.54 in |
Stroke | 2.6 in |
Air Cleaner Type | Dual Element |
Choke Control | Manual |
Throttle Control | Manual |
Fuel Filter | Yes |
Muffler Included | Yes |
Bolt Circle | 3.15 in. in |
Mounting Base Length | 7.68 in. in |
Mounting Base Width | 3.94 in. in |
Product Weight | 74.4900 lb |
Dimensions L x W x H (in.) | 22.31 x 20.13 x 20.25 in |
Reviews
Questions & Answers
Questions
-
· a month ago
who makes these engines and how can i find the correct carbyrator for it?
1 answer-
ProductExpert11· a month ago
Helpful?
-
Warranty
Manufacturer's Warranty
3 year limited warranty
