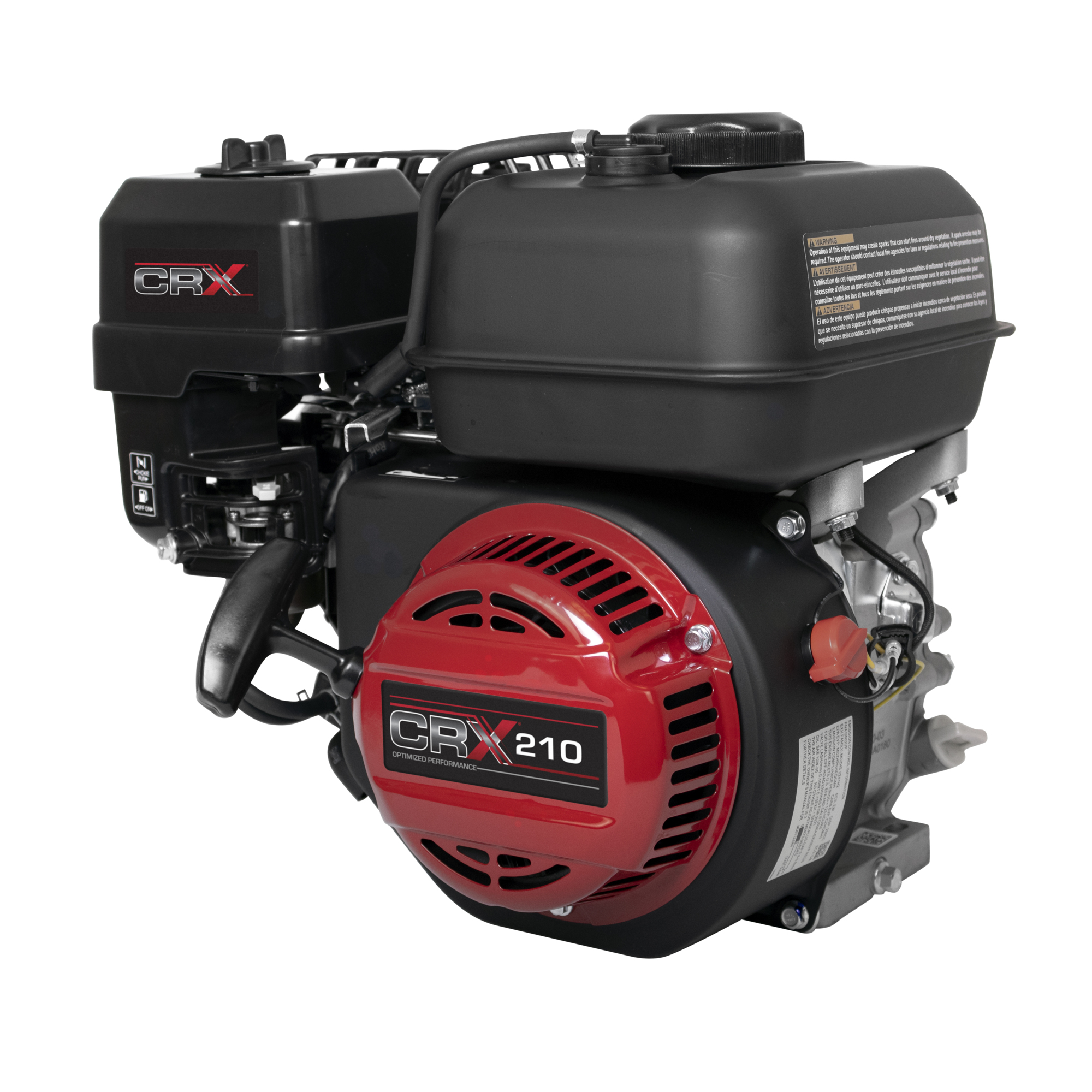

CRX210 Horizontal-Shaft Gas Engine: 208cc, 3/4in. Shaft, Recoil Start

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- Delivering 4.3kW@3600rpm and 11.5Nm@2600rpm of net torque from the CRX210 208cc engine for pressure washers, pumps, log splitters, construction equipment and other powered equipment.
- Single-Cylinder horizontal-shaft engine uses carbureted fuel delivery, transistor magneto ignition and counterclockwise PTO rotation for dependable equipment power.
- Recoil start configuration provides a setup matched to the electrical requirements of this engine variant.
- Features a 3/4 in. output shaft with SAEJ-609A PTO mounting flange to support compatible replacement-engine and OEM installations.
- Paper-and-foam dual-element air cleaner with steel-frame support helps protect internal components from airborne debris and supports consistent performance in dusty work environments.
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) CRX Engine
Features + Benefits
- Delivering 4.3kW@3600rpm and 11.5Nm@2600rpm of net torque from the CRX210 208cc engine for pressure washers, pumps, log splitters, construction equipment and other powered equipment.
- Single-Cylinder horizontal-shaft engine uses carbureted fuel delivery, transistor magneto ignition and counterclockwise PTO rotation for dependable equipment power.
- Recoil start configuration provides a setup matched to the electrical requirements of this engine variant.
- Features a 3/4 in. output shaft with SAEJ-609A PTO mounting flange to support compatible replacement-engine and OEM installations.
- Paper-and-foam dual-element air cleaner with steel-frame support helps protect internal components from airborne debris and supports consistent performance in dusty work environments.
- 0.69 gallon fuel tank; 0.6 qt oil capacity and splash lubrication support routine service and reliable operation.
- Low-oil level sensor shutdown helps protect the engine from lubrication-related damage.
- EPA exhaust compliant with a 125 hour emissions durability period.
Key Specs
| Attribute | Specification |
|---|---|
item# | 7463930 |
Brand | CRX Engines |
Manufacturer's Warranty | 3 year limited warranty |
Ship Weight | 35.74 LB |
Engine Displacement | 208 cc |
Engine Type | Gasoline |
Shaft Diameter | 3/4 in |
Shaft Diameter Metric | 19.05 mm |
Shaft Length | 2.43 in |
Shaft Length Metric | 61.72 mm |
Fuel Type | Gasoline |
Start Type | Recoil |
Net Torque | 8.48 ft-lbs. |
Crankshaft | Forged Steel |
Cylinders (qty.) | 1 |
Cylinder Bore | Cast Iron |
Net Power Output | 6.5 HP HP |
Compression Ratio | 8.5:1 |
Fuel Tank | Yes |
Fuel Tank Capacity | 2.8 qt |
Oil Capacity | 0.6 qt |
Low Oil Shutdown | Yes |
Low Oil Alert | No |
| Attribute | Specification |
|---|---|
Max. RPM | 3,600 |
CARB Approved | No |
Shaft Rotation (From PTO Shaft Side) | Clockwise |
Governor System | Mechanical |
Ignition System | Transistor Magneto |
Carburetor | Naturally Aspirated |
Lubrication System | Splash |
Bearing Type | Ball |
Auto Compression Release | No |
Cooling System | Air |
Bore | 2.76 in |
Stroke | 2.13 in |
Air Cleaner Type | Dual Element |
Choke Control | Manual |
Throttle Control | Manual |
Fuel Filter | Yes |
Muffler Included | Yes |
Bolt Circle | 3.15 in. in |
Mounting Base Length | 6.38 in. in |
Mounting Base Width | 3.17 in. in |
Product Weight | 35.7400 lb |
Dimensions L x W x H (in.) | 18.19 x 16.81 x 16.0 in |
