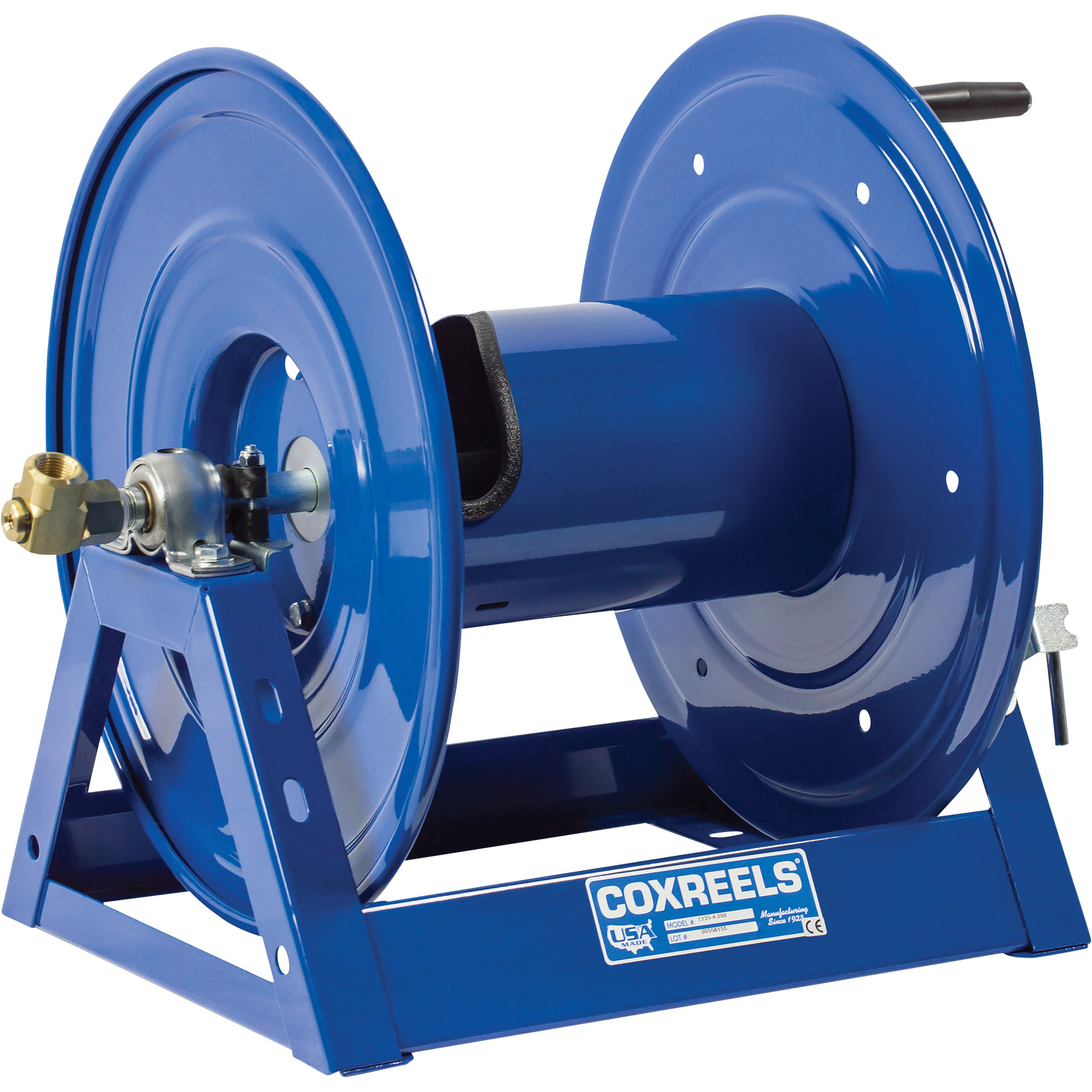

Coxreels Pressure Washer Hose Reel,3000 PSI, 300ft. x 3/8in. Capacity, Model# 1125-4-200-BVXX

Item# 159252
Coxreels Pressure Washer Hose Reel,3000 PSI, 300ft. x 3/8in. Capacity, Model# 1125-4-200-BVXX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Pressure Washer Hose Reel,3000 PSI, 300ft. x 3/8in. Capacity, Model# 1125-4-200-BVXX

Click or Tap image to Zoom

$336.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Reel is 27 3/4in. long from crank tip to opposite fitting end
  • Low-profile, open hose slot drum design for "lumpless" coiling
  • Powder-coated steel construction with all-welded frame
  • Hand crank is removable
  • Smooth, easy rewind on pillow block

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Coxreels Pressure Washer Hose Reel,3000 PSI, 300ft. x 3/8in. Capacity, Model# 1125-4-200-BVXX
  • Coxreels 4-Way Top Rewind Roller Bracket — For 1125/1275 Series, Top Rewind Hose Guide, Model# 15353-12
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all three:

$526.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Coxreels Hand Crank Hose Reel is designed to handle air or water with a maximum pressure of 3000 PSI and withstand temperatures ranging from -75°F to 400°F. This durable hose reel has a capacity of up to 200 ft. of 1/2in. hose (hose not included). It features a 90° 1/2in. I.P.T. female swivel inlet and a 1/2in. female outlet, ensuring a secure and efficient connection. Ideal for pressure washing applications, this reel offers reliable performance and ease of use with its hand crank mechanism. Built to last, it is a practical addition to any professional or industrial setup requiring high-pressure hose management.

What's Included

    (1) Hose Reel

Downloads

Product Manual

Features + Benefits

  • Reel is 27 3/4in. long from crank tip to opposite fitting end
  • Low-profile, open hose slot drum design for "lumpless" coiling
  • Powder-coated steel construction with all-welded frame
  • Hand crank is removable
  • Smooth, easy rewind on pillow block
  • Includes lock pin
  • Hose not included
  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.

Key Specs

AttributeSpecification

item#

159252

Brand

Coxreels

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

37.4 LB

Hose Length Capacity

200 ft

Hose Diameter

3/8 in

Max. Pressure

3,000 PSI

Hose Included

No
AttributeSpecification

Mount Type

Cart

Max. Fluid Temperature

400 °F

Hand Crank

Yes

Material

Steel

Color

Blue

Product Weight

lb

Dimensions L x W x H (in.)

17.63 x 25.5 x 18.75 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What is this hose reels gpm rating?

    1 answer

    1. A minimum and maximum rating is not available as there are too many variables to consider.

      Helpful?

  2. will a garden hose 5/8 " fit?

    I would like to buy one of these hose reels
    and use my 5/8" garden hose, can I buy
    a 5/8" fitting to screw onto the reel?
    model # 1125-4-200-BVXX.
    Thanks Brian. Keller, Tx.

    1 answer

    1. This Coxreels Pressure Washer Hose Reel can be used with a 5/8" adapter for a garden hose. The reel capacity will be lowered with a larger diameter garden hose.

      Helpful?

  3. Please explain what I need to connect my pressure washer to this cox reel? And how do I connect my pressure tubing to the outlet? It seems that I ne

    I want to use quick connects if possible. Is there special hoses or adaptors that I need?

    1 answer

    1. To hook this Coxreels hose reel up to your pressure washer you will first need a water source with a flexible hose leading up to this reel. The hose will need a 1/2" IPT (international pipe thread) male fitting to connect to the female inlet swivel. You will then need to select a 3/8" or 1/2" diameter hose with a 1/2" male fitting. This hose will connect to the reel outlet and lead to your pressure washer. Depending on your hose, you may need to get a quick connect adapter. Northern Tool and Equipment does not currently offer the hoses and 1/2" fittings, so you will need to purchase these locally.

      Helpful?

  4. What are the dimensions for whole assembly? I need to fit this in a rack and need to know the Height, length and depth.

    1 answer

    1. This Coxreels pressure washer hose reel measures 27-3⁄4 inches wide, 17-1⁄2 inches deep, and 18-1⁄8 inches high.

      Helpful?

  5. Parts for swivel

    I need o rings and washer for reel

    1 answer

    1. For part please call Northern Tool + Equipment's parts department at 800-222-5381 option #3.

      Helpful?
