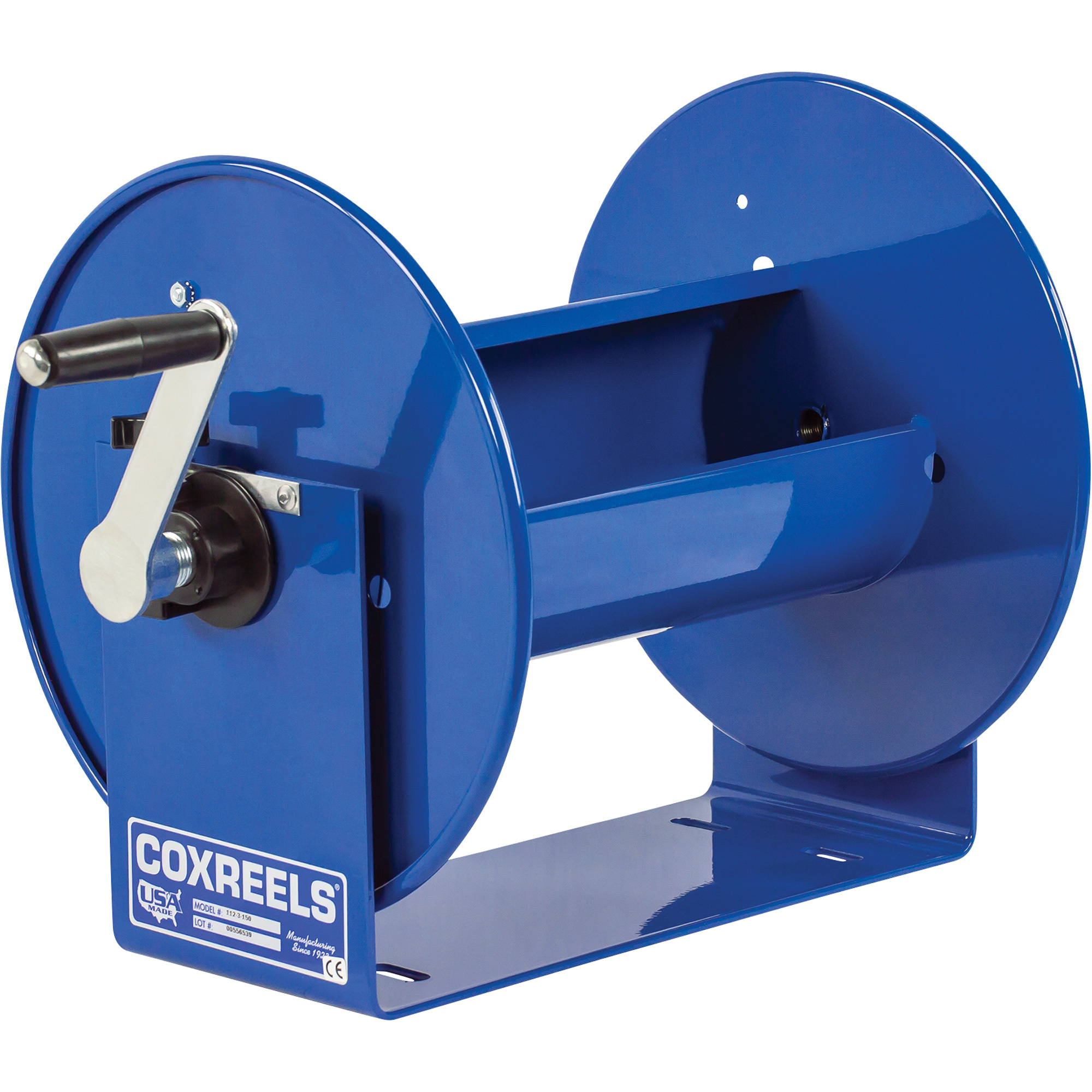

Coxreels Compact Hand-Crank Hose Reel, 4000 PSI, 225ft. x 1/2n. Capacity, Viton Seals, Model# 117-4-225-BVXX

Item# 282691
Coxreels Compact Hand-Crank Hose Reel, 4000 PSI, 225ft. x 1/2n. Capacity, Viton Seals, Model# 117-4-225-BVXX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Compact Hand-Crank Hose Reel, 4000 PSI, 225ft. x 1/2n. Capacity, Viton Seals, Model# 117-4-225-BVXX

Click or Tap image to Zoom

$243.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. Viton Seals
  • U SHAPED FRAME DESIGN - Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
  • STEEL CONSTRUCTION - High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Coxreels Compact Hand-Crank Hose Reel, 4000 PSI, 225ft. x 1/2n. Capacity, Viton Seals, Model# 117-4-225-BVXX
  • NorthStar Nonmarking Pressure Washer Hose, 4000 PSI, 100ft. x 3/8in.
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all three:

$413.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Coxreels Hand Crank Hose Reel is a professional-grade tool designed for demanding pressure washing applications, both stationary and mobile. With a hose capacity of 1/2in. x 225ft., this reel can accommodate long lengths of hose, making it ideal for extensive cleaning tasks. Engineered to withstand high pressures, it boasts a maximum pressure rating of 4000 PSI. Constructed with durable materials, including a Viton seal, the reel ensures reliable performance and longevity even in rigorous environments. The hand-crank mechanism allows for easy and efficient hose retraction and storage, enhancing convenience and productivity. Made in the USA, this compact hose reel exemplifies quality craftsmanship and robust design, making it a dependable choice for professionals seeking efficiency and durability in their pressure washing equipment.

What's Included

    (1) Reel

Downloads

Product Manual

Features + Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. Viton Seals
  • U SHAPED FRAME DESIGN - Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
  • STEEL CONSTRUCTION - High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.

Key Specs

AttributeSpecification

item#

282691

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty

Ship Weight

31.0 LB

Hose Length Capacity

225 ft

Hose Diameter

1/2 in

Max. Pressure

4,000 PSI

Hose Included

No
AttributeSpecification

Mount Type

Cart

Max. Fluid Temperature

225 °F

Hand Crank

Yes

Material

Steel

Color

Blue

Product Weight

lb

Dimensions L x W x H (in.)

18.0 x 14.0 x 22.75 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What are the specs for the base plate? Size of plate, size of holes, and distance of holes.

    1 answer

    1. The base plate is 14" long x 6" wide. The bolt hole pattern is 10" long x 3" wide. The reel should be mounted using 7/16" or M12 bolts, washers and nuts.

      Helpful?

  2. WHAT SIZE ARE THE FITTINGS

    1 answer

    1. This Coxreels compact hand-crank hose reel would have 1/2" NPT inlet and outlet fittings.

      Helpful?

  3. can you tell me if you carry the hose it needs 1/2"by 225

    1 answer

    1. Northern does not carry 1/2" pressure washer hoses or a hose in 225 feet.

      Helpful?

  4. Can I use for chemical?

    1 answer

    1. Since this reel does feature Viton seals it can be used for various chemicals.

      Helpful?

  5. Hose Reel w/ Spot Sprayer

    I have a NorthStar ATV Broadcast Spot Sprayer — 26 Gallon, 2.2 GPM @ 75psig. I want to use your reel to hold 200' of 3/8" hose and spray with this sprayer. Since it has a 1/2" connection I would assume it would still deliver the flow and pressure from the sprayer pump - and - the 3/8" hose although not in the design will still work..

    1 answer

    1. Doing it that way would work, however you would get the same flow, but less pressure.

      Helpful?

  6. Will this reel handle 3/8 hose as well? Or, will it only handle 1/2 inch?

    1 answer

    1. No, this hose reel is recommended to be used with only 1/2 inch hose.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Pressure Washer Hoses
NorthStar Nonmarking Pressure Washer Hose, 4000 PSI, 100ft. x 3/8in.
4.6 out of 5 stars. 173 reviews

NorthStar Nonmarking Pressure Washer Hose, 4000 PSI, 100ft. x 3/8in.

Item # 42952

$159.99
Reg $179.99Save $20.00

Order today to get this price.

See All Frameless Safety Glasses
3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
4.8 out of 5 stars. 94 reviews
62 of 94 reviewers received a sample product or took part in a promotion

3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS

Item # 81784

$9.99

Warranty

Manufacturer's Warranty

2 year limited warranty
