The hose reel is designed to hold 325 feet of 1/2" hose. It will not recommended for 3/4" hose. Item number 160124 (model 1125-5-250) is designed to hold 250 feet of 3/4" hose.

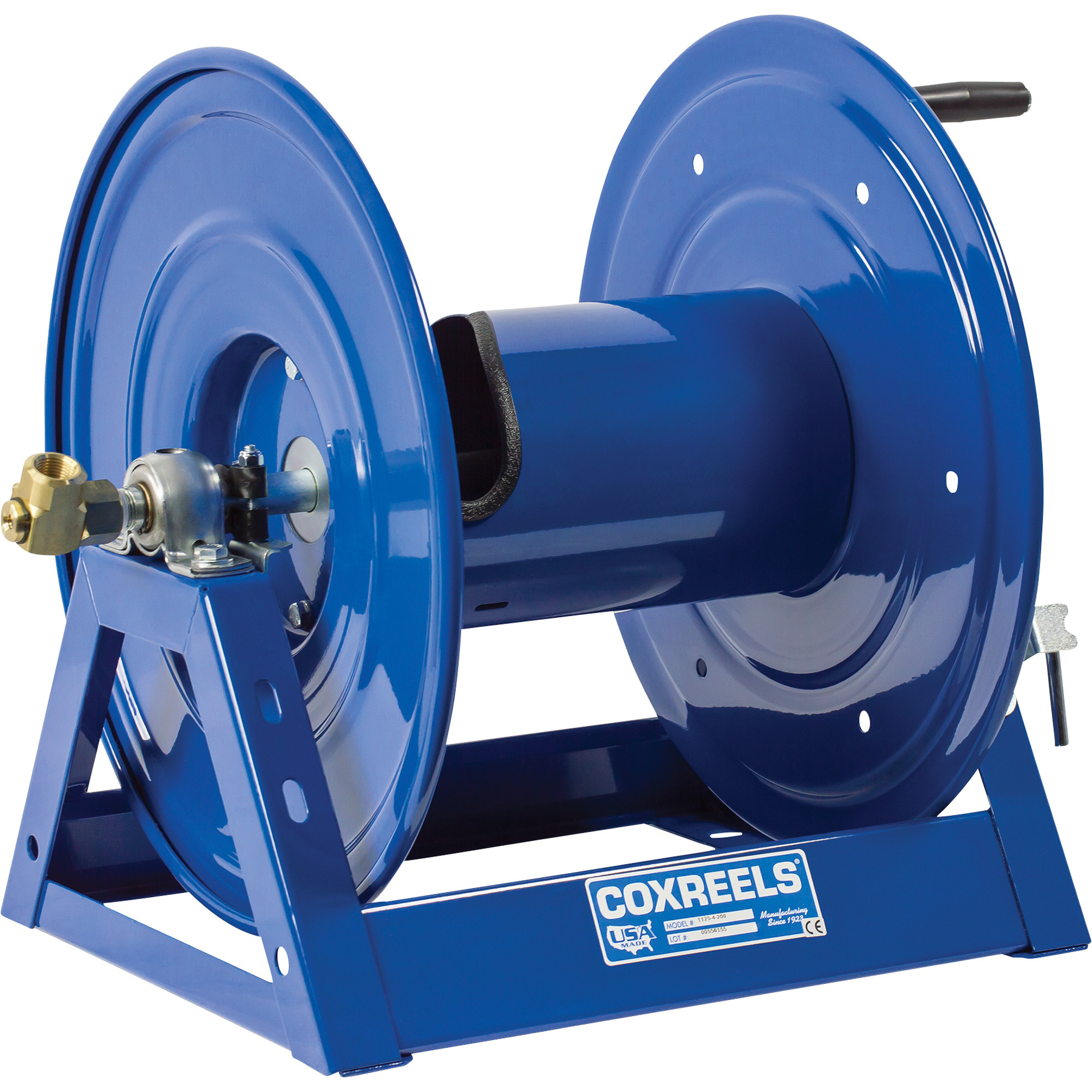

Coxreel Hand-Crank Hose Reel, 3000 PSI, 325ft. x 1/2in. Capacity, Model# 1125-4-325-BVXX
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$354.99
- Features a sturdy one-piece all-welded A-frame base, low profile outlet riser and open drum slot for a non-crimping, flat smooth hose wrap
- Durable proprietary CPC™ powder coat process
- SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. Viton Seals
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
Prop 65 Warning: See Details
See full description
Price for all four:
$713.96
What's Included
- (1) Reel
Downloads
Features + Benefits

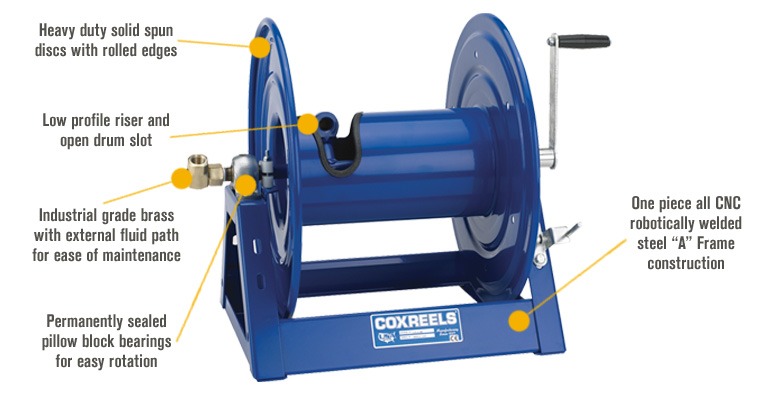

- Features a sturdy one-piece all-welded A-frame base, low profile outlet riser and open drum slot for a non-crimping, flat smooth hose wrap
- Durable proprietary CPC™ powder coat process
- SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. Viton Seals
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
- PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Pressure Washer Hose Reels + Carts
See All Coxreels Pressure Washer Hose Reels + Carts
Currently Viewing This Product
Specifications
Specifications
Coxreel Hand-Crank Hose Reel, 3000 PSI, 325ft. x 1/2in. Capacity, Model# 1125-4-325-BVXX
Coxreels Pressure Washer Hose Reel,3000 PSI, 300ft. x 3/8in. Capacity, Model# 1125-4-200-BVXX
Coxreels Compact Hand-Crank Hose Reel, 4000 PSI, 225ft. x 1/2n. Capacity, Viton Seals, Model# 117-4-225-BVXX
Coxreels Swivel Mount Hose Reel, 3000 PSI, 125ft. x 1/2in. Capacity, Model# SM17-4-125
Hose Length Capacity
Same
325 ft
200 ft
225 ft
125 ft
Hose Diameter
Same
1/2 in
3/8 in
1/2 in
1/2 in
Max. Pressure
Same
3,000 PSI
3,000 PSI
4,000 PSI
4,000 PSI
Hose Included
Same
No
No
No
No
Mount Type
Same
Cart
Cart
Cart
Cart
Max. Fluid Temperature
Same
250 °F
400 °F
225 °F
300 °F
Hand Crank
Same
Yes
Yes
Yes
Yes
Material
Same
Steel
Steel
Steel
Steel
Color
Same
Blue
Blue
Blue
Black
Product Weight
Same
lb
lb
lb
lb
Dimensions L x W x H (in.)
Same
17.5 x 33.75 x 18.12 in
17.63 x 25.5 x 18.75 in
18.0 x 14.0 x 22.75 in
17.0 x 19.0 x 18.5 in
