Product Summary

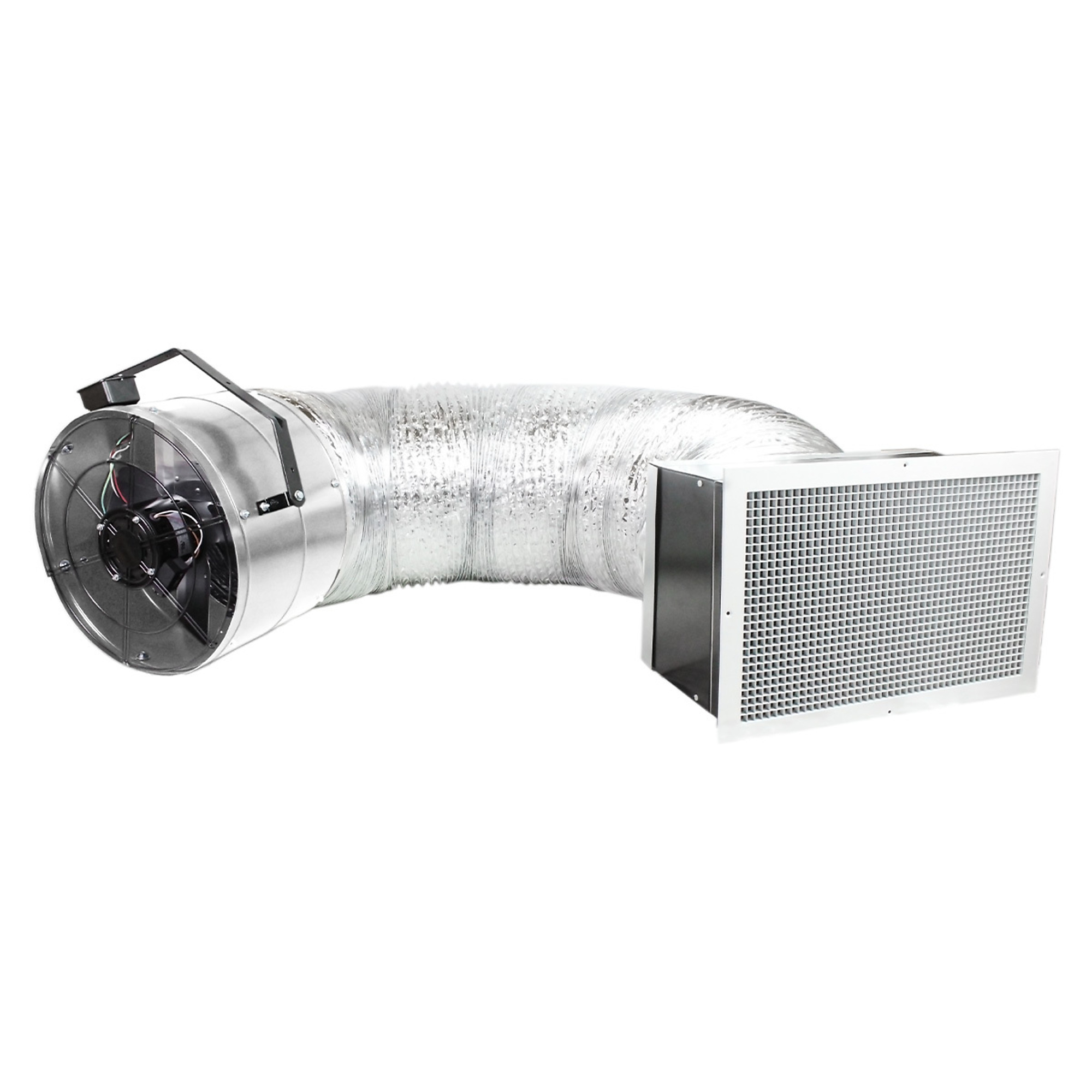

The Maxx Air 18in. ventilation fan is ideal for use in mild climates during the morning or evening, efficiently pulling in fresh air through open windows and removing hot, stale air from your home through the attic exhaust vents for a cool and comfortable living environment. Unlike a standard whole house fan, our ducted fans feature a damper box that is sealed with R5in.sulation to prevent heat transfer back into your home, and a 12ft. duct for maximum ventilation potential and noise reduction. The fan head mounts to an attic rafter with the included hanging bracket for an easier, faster install than a traditional whole house fan. It's a cost-effective solution to improving your indoor air quality while relieving strain on your house's air conditioning equipment.

What's Included

    (1) Whole House Fan (1) Hanging Bracket (1) Duct and Transition Assembly Box (1) Ceiling Grid with Mounting Screws (1) High/Low and On/Off Wall Switches with Plate

Features + Benefits

  • Designed for home spaces up to 930 sq. ft.

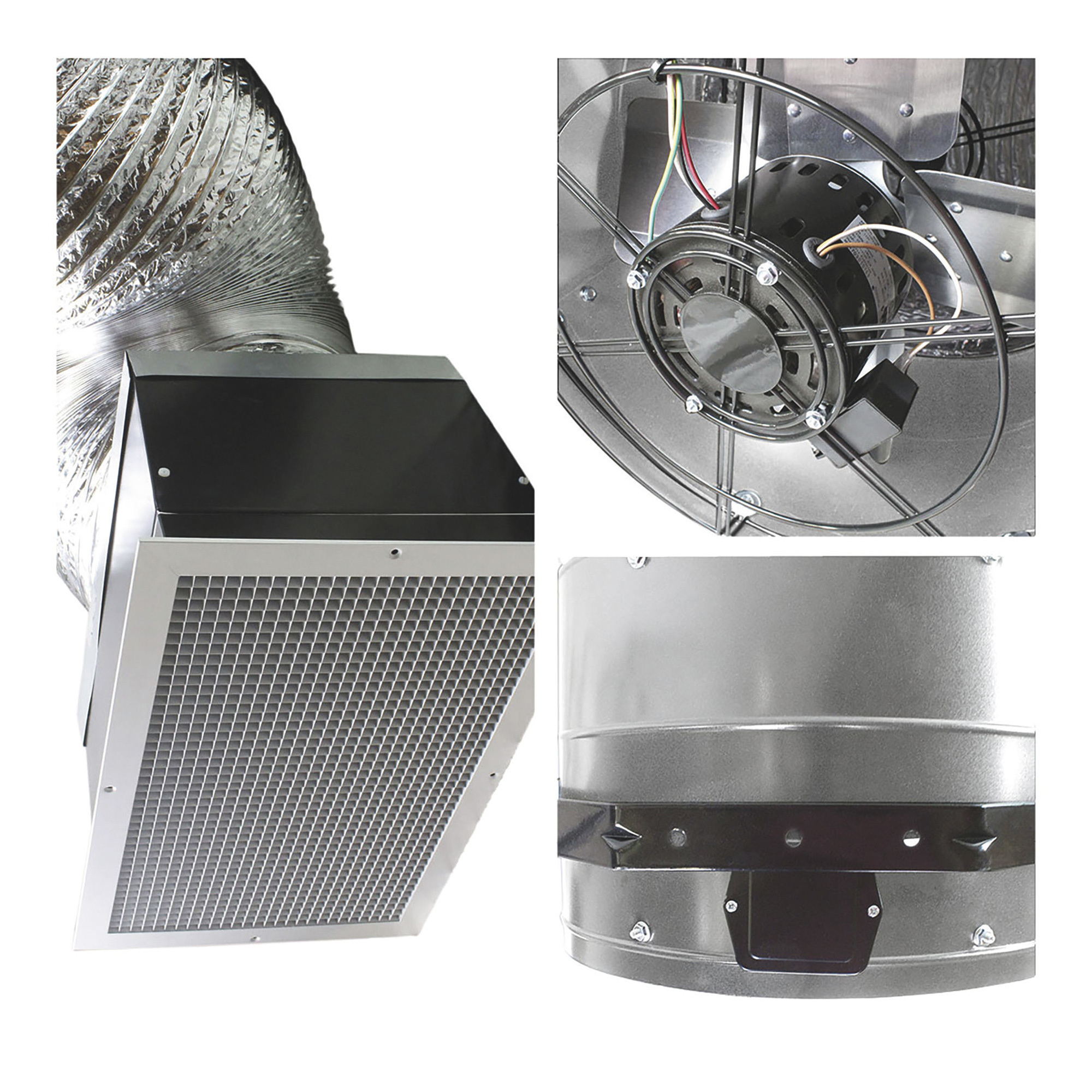

  • Galvanized steel fan housing and plenum box with R5 insulation
  • No cutting of ceiling joists required
  • Damper box fits between 16 in. or 24 in. on-center ceiling joists
  • 2-speed operation with included dual high/low and on/off wall switch
  • Save money on your cooling bills and reduce stress on A/C equipment
  • Requires 535 sq. in. of NFA
  • UL Listed
  • 10-year limited warranty

Key Specs

AttributeSpecification

item#

63408

Brand

Maxx Air

Manufacturer's Warranty

10 year limited warranty

Ship Weight

63.5 LB

Air Delivery

2,700 cfm

Outdoor Rated

No

Volts

120

Fan Diameter

18 in
AttributeSpecification

Assembly Required

Yes

Housing Material

Galvanized Steel

Primary Color

White

Secondary Color

Silver

Speeds (qty.)

2

Hardwired

Yes

Product Weight

lb

Dimensions L x W x H (in.)

13.25 x 18.75 x 18.75 in

Warranty

Manufacturer's Warranty

10 year limited warranty
