Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 216124

Item# 4858178
"Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 216124"
Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 216124

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 216124

Click or Tap image to Zoom

$969.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Polyurethane U-cup gland seal
  • Hallite 755 piston seal for prolonged wear resistance
  • Steel cross-tubes with grease zerk
  • Precision honed steel materials

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

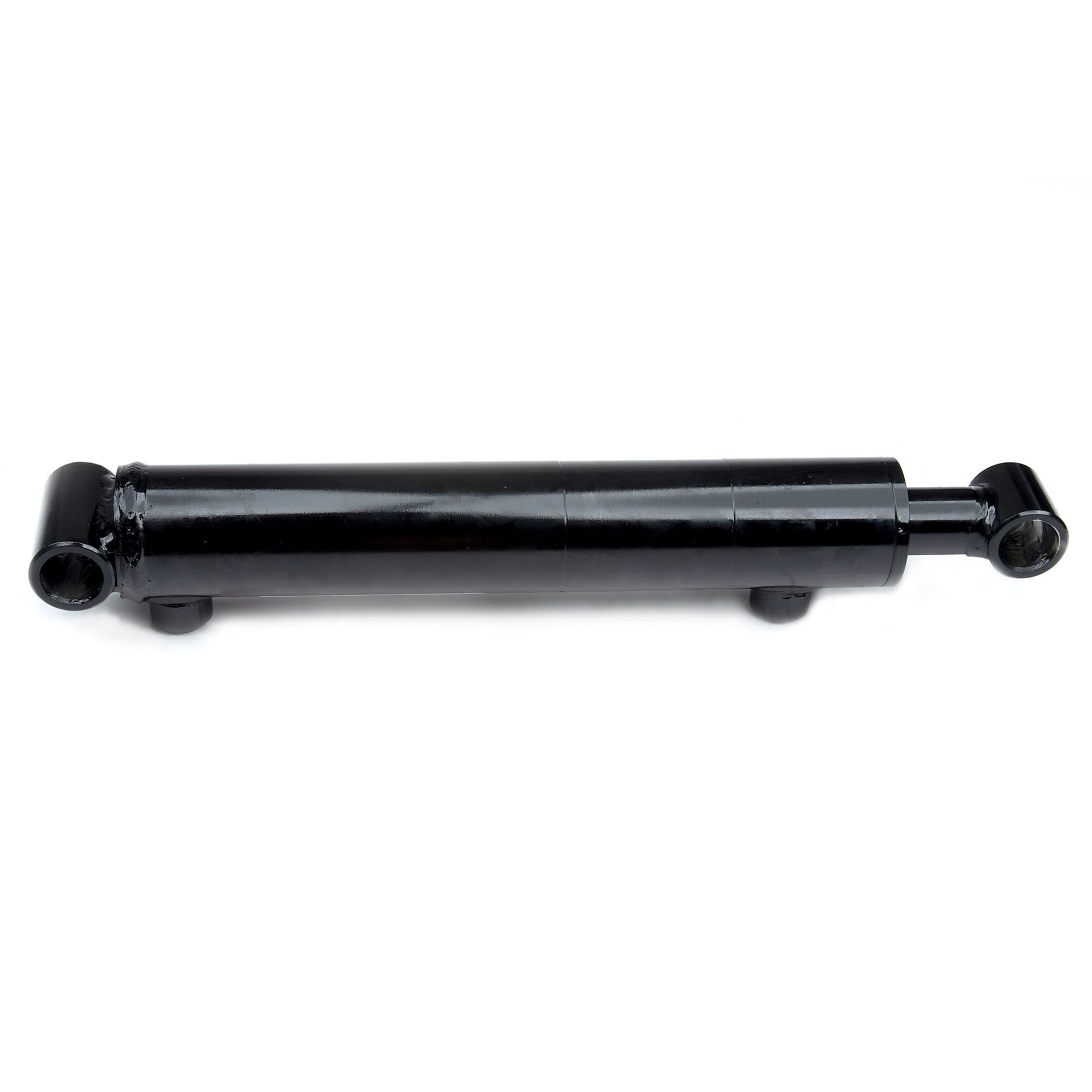

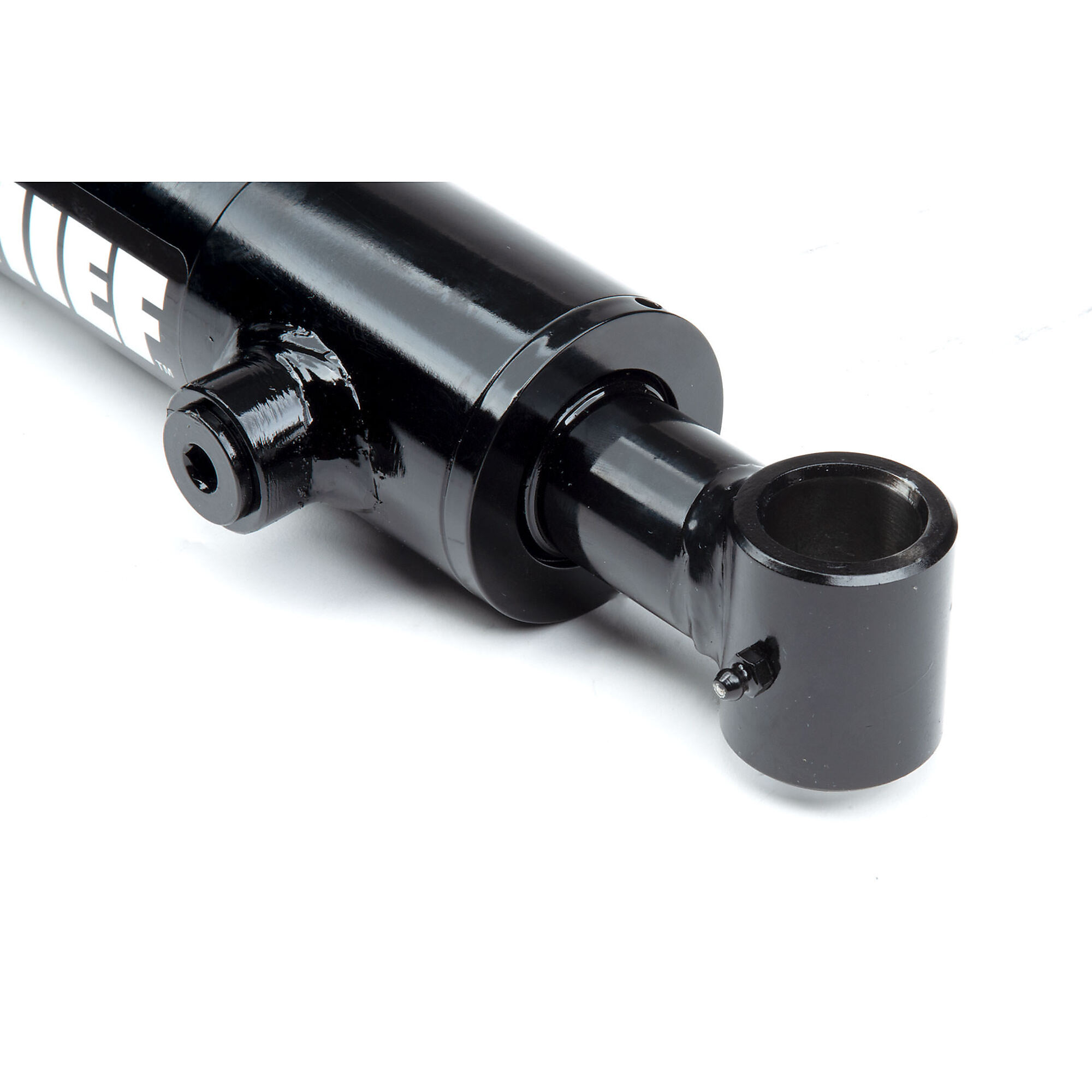

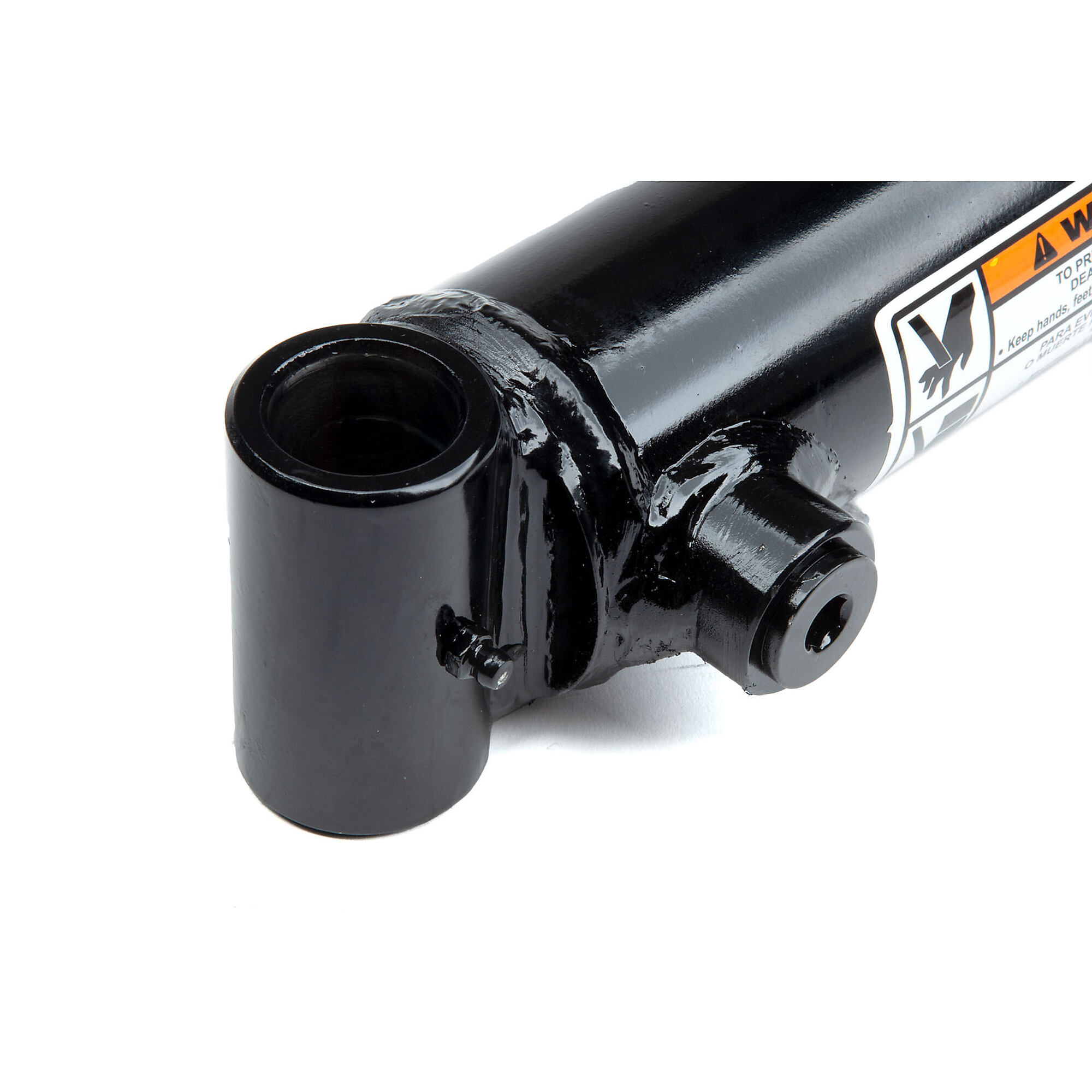

The Chief WT is a high quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the WT has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end. These cylinders are ideally suited for construction and agricultural applications, as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing. Includes SAE o-ring port hookups on small bores and NPT on large bores. Every Chief WT cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. WT cylinders have a 3,000 PSI operating range and 3 year limited warranty. Painted black. (Note: 5in., 6in. and 8in. bores have an externally mounted retainer ring.)

What's Included

    (1) Cylinder

Features + Benefits

  • Polyurethane U-cup gland seal
  • Hallite 755 piston seal for prolonged wear resistance
  • Steel cross-tubes with grease zerk
  • Precision honed steel materials

Key Specs

AttributeSpecification

item#

4858178

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

119.0 LB

Max. PSI

3,000

Bore Diameter

5 in
AttributeSpecification

Stroke Length

24 in

Retracted Length

35 in

Extended Length

59 in

Pin Diameter

1.5 in

Product Weight

119.0000 lb

Dimensions L x W x H (in.)

59.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

  1. What is the rod diameter

    1 answer

    1. The rod diameter is 2.5 inches.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
