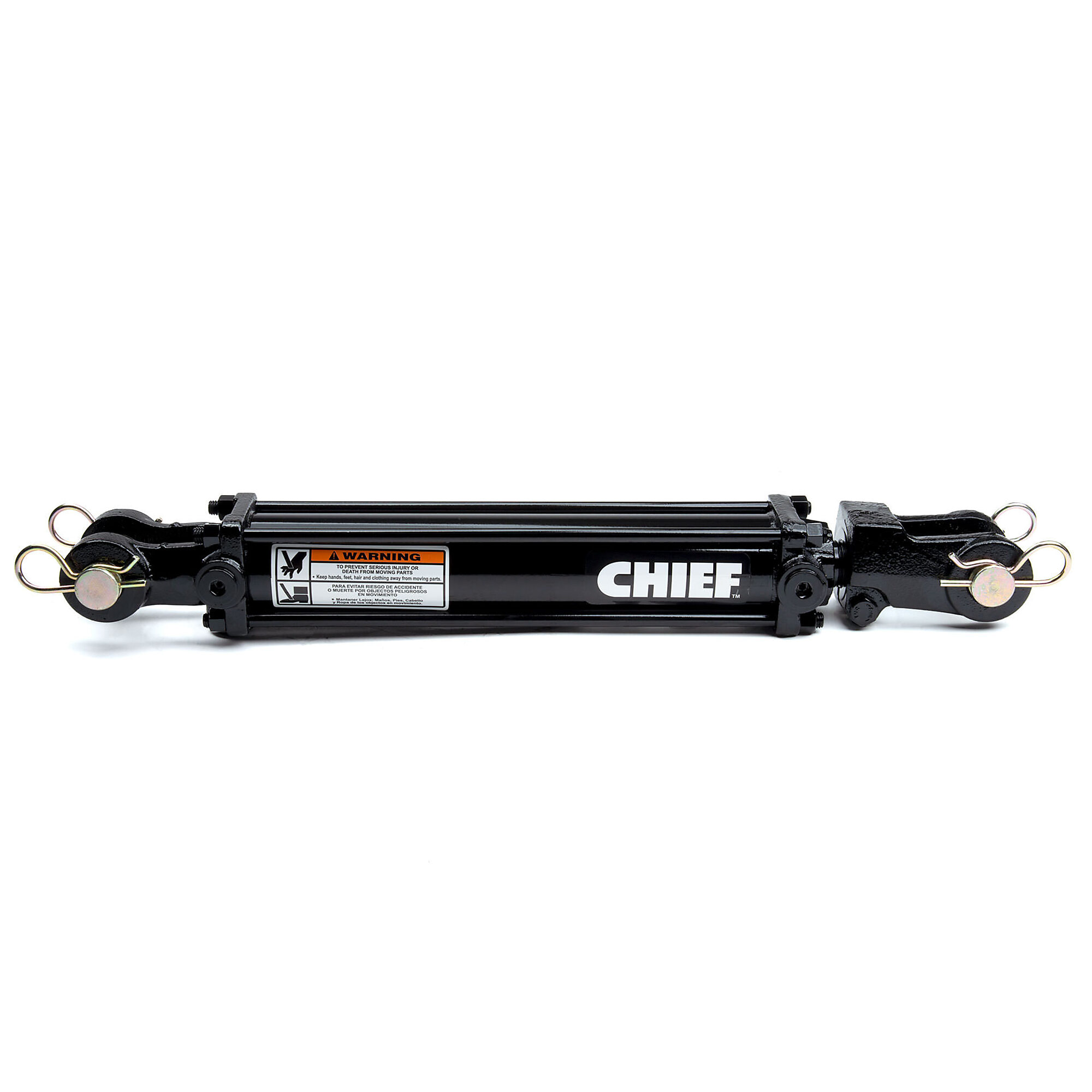

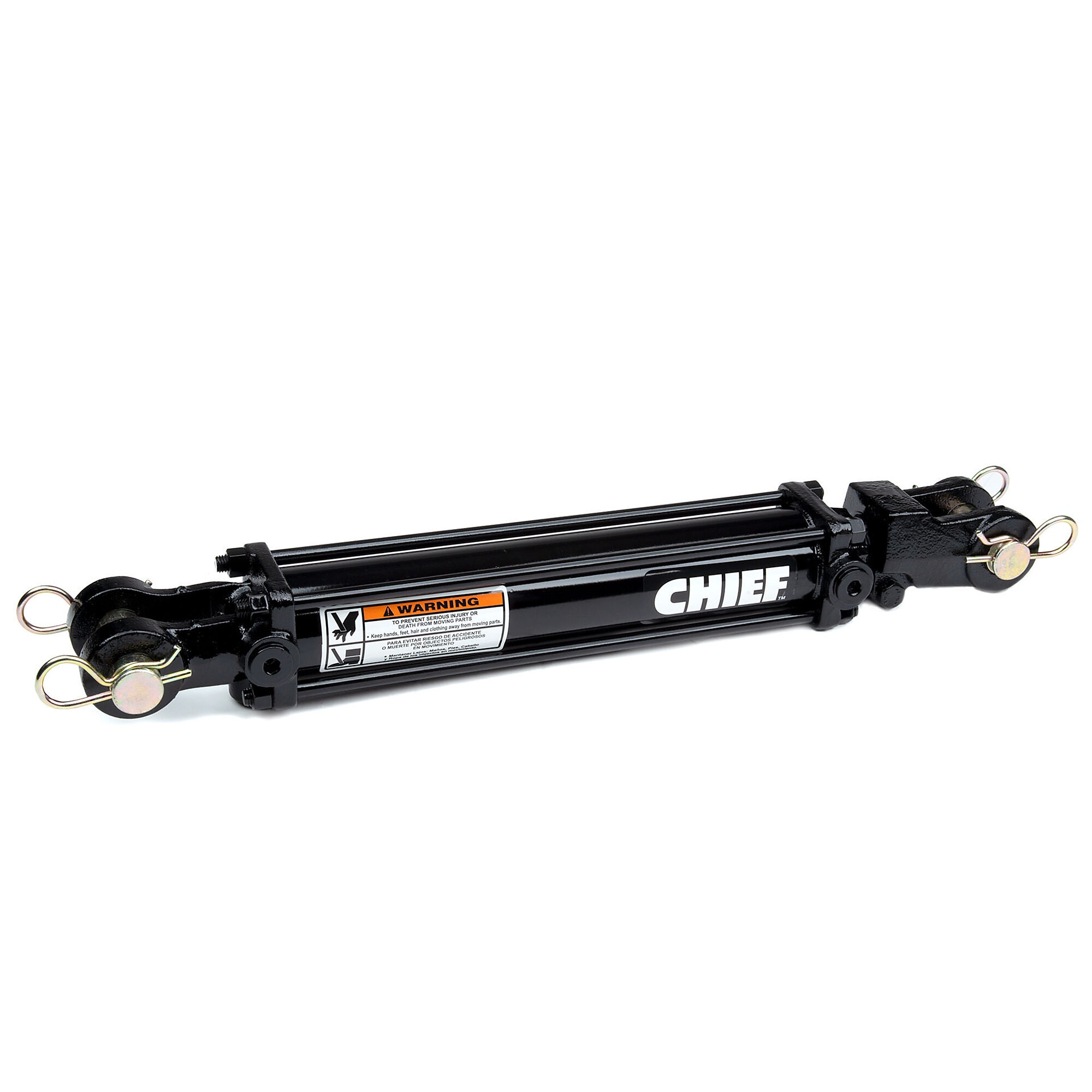

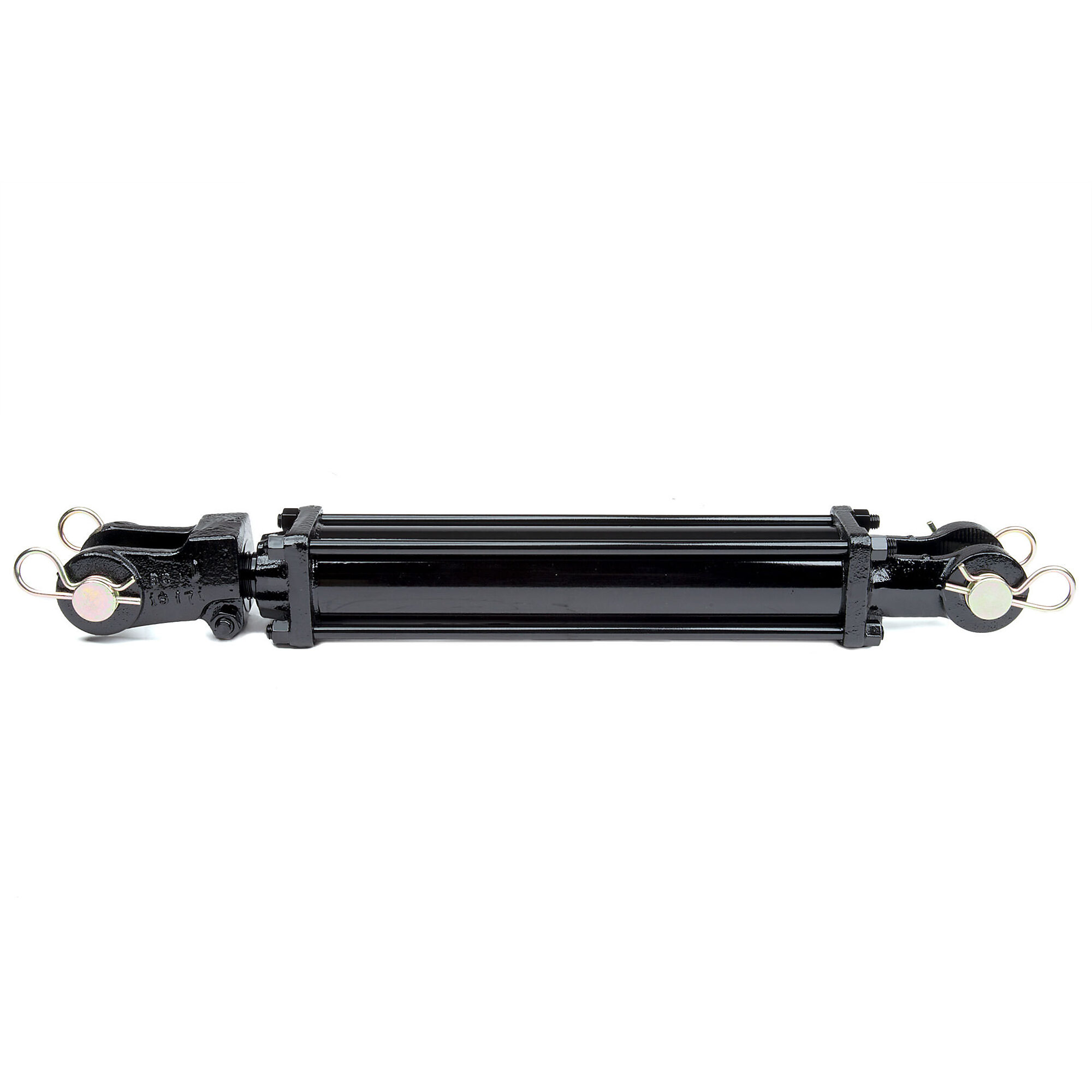

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 211428

Item# 4858573
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 211428

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 24 in, Model# 211428

Click or Tap image to Zoom

$444.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination

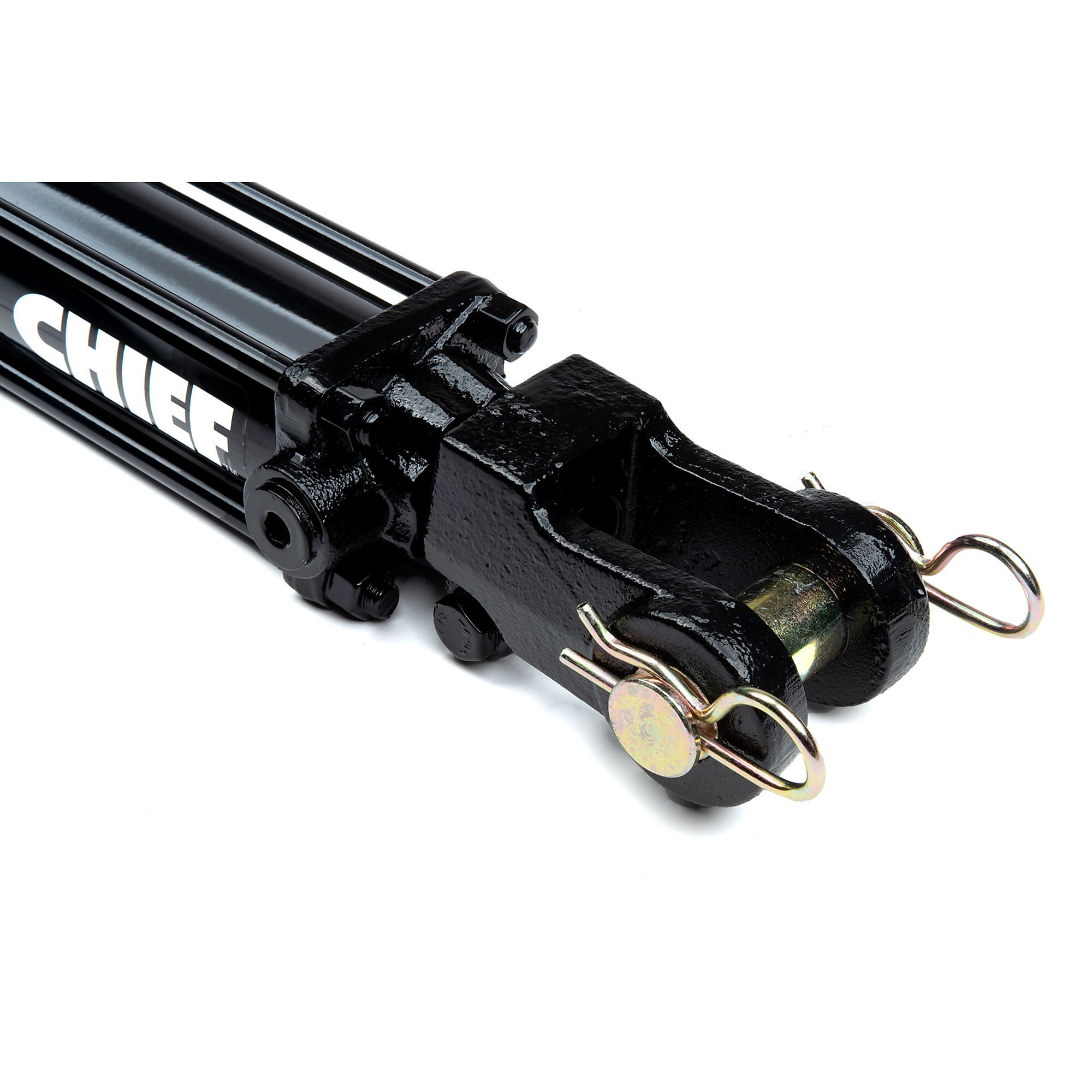

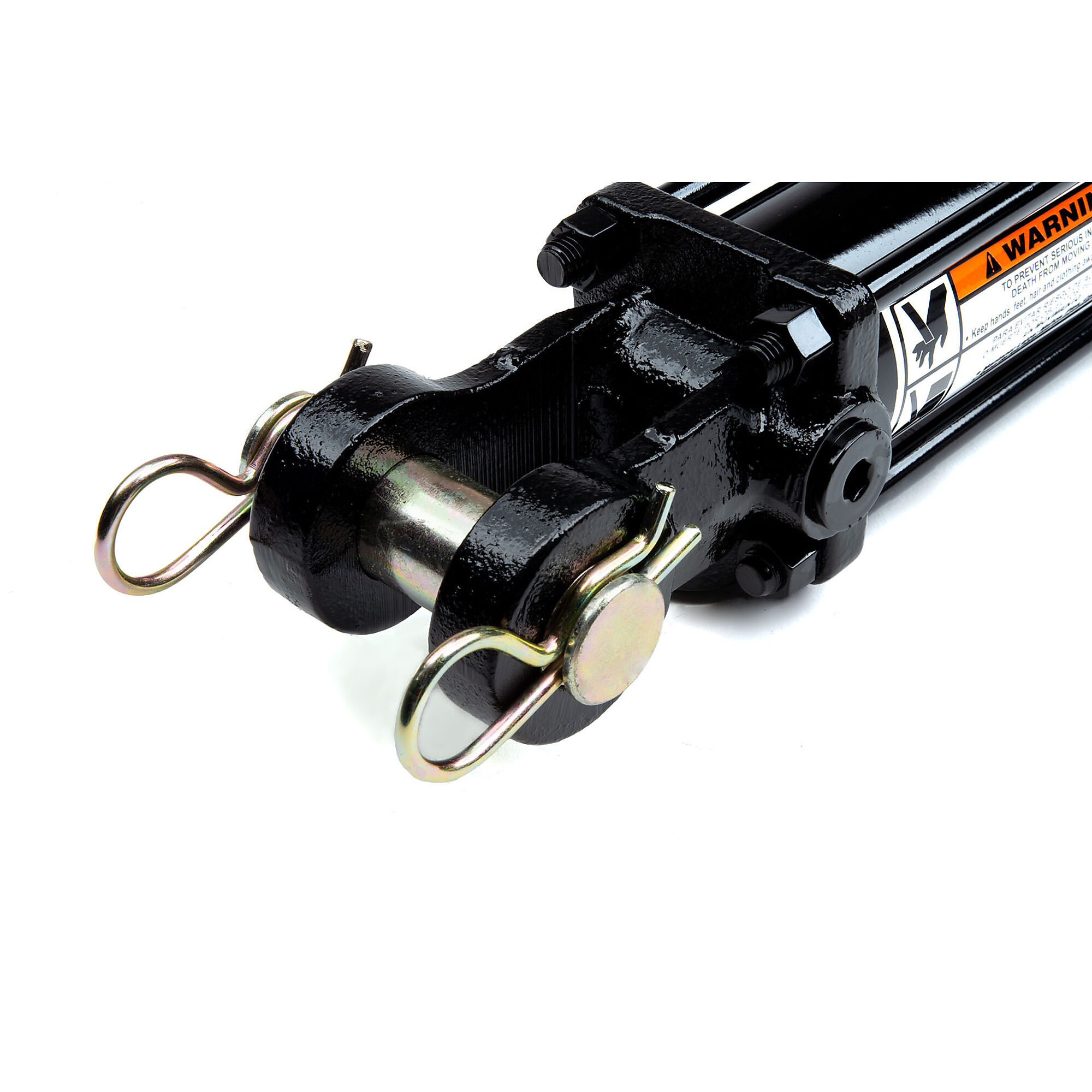

  • High strength, ductile iron female clevis end mounts with pins and R-clips

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 3000 psi Chief TC3 tie-rod hydraulic cylinder is designed to provide outstanding performance in a variety of applications, including agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2in. for greater swing ability on applications. Featuring SAE O-ring ports for easy hookup, every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. The TC3 is available in bore sizes from 2in. to 5in., strokes from 4in. to 60in., and comes with our best 3-year limited warranty. Each cylinder comes painted black.

What's Included

    (1) Cylinder

Features + Benefits

  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

Key Specs

AttributeSpecification

item#

4858573

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

130.0 LB

Max. PSI

3,000

Bore Diameter

5 in
AttributeSpecification

Stroke Length

24 in

Retracted Length

36.25 in

Extended Length

60.25 in

Pin Diameter

1.25 in

Product Weight

130.0000 lb

Dimensions L x W x H (in.)

60.25 x 5.0 x 5.0 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. How many tons of pressure can it generate?

    1 answer

    1. The cylinder is designed to withstand a column load of up to 58,900 pounds or 29.5 tons.

      Helpful?

  2. How much and what type hydraulic fluid does this cylinder require?

    1 answer

    1. The cylinder would use standard premium-grade hydraulic fluid. It would take about 5 quarts of fluid to operate it.

      Helpful?

  3. RETRACTED AND EXTENDED MEASUREMENTS, ARE THEY FIGURED FROM CENTER OF THE 1.25" MOUNT PIN HOSES ?

    1 answer

    1. The extended and retracted measurement is measured from the center of one mounting pin (or pinhole) to the center of the other mounting pin. It is pin to pin length.

      Helpful?

  4. What is the port size on this cylinder?

    1 answer

    1. The cylinder has a port size of SAE 12. It would have SAE O-ring ports.

      Helpful?

  5. What size fittings are needed?

    1 answer

    1. The connections on the cylinder are an SAE 12.

      Helpful?

  6. what is the rod size?

    1 answer

    1. The rod diameter for this is 2.25".

      Helpful?
