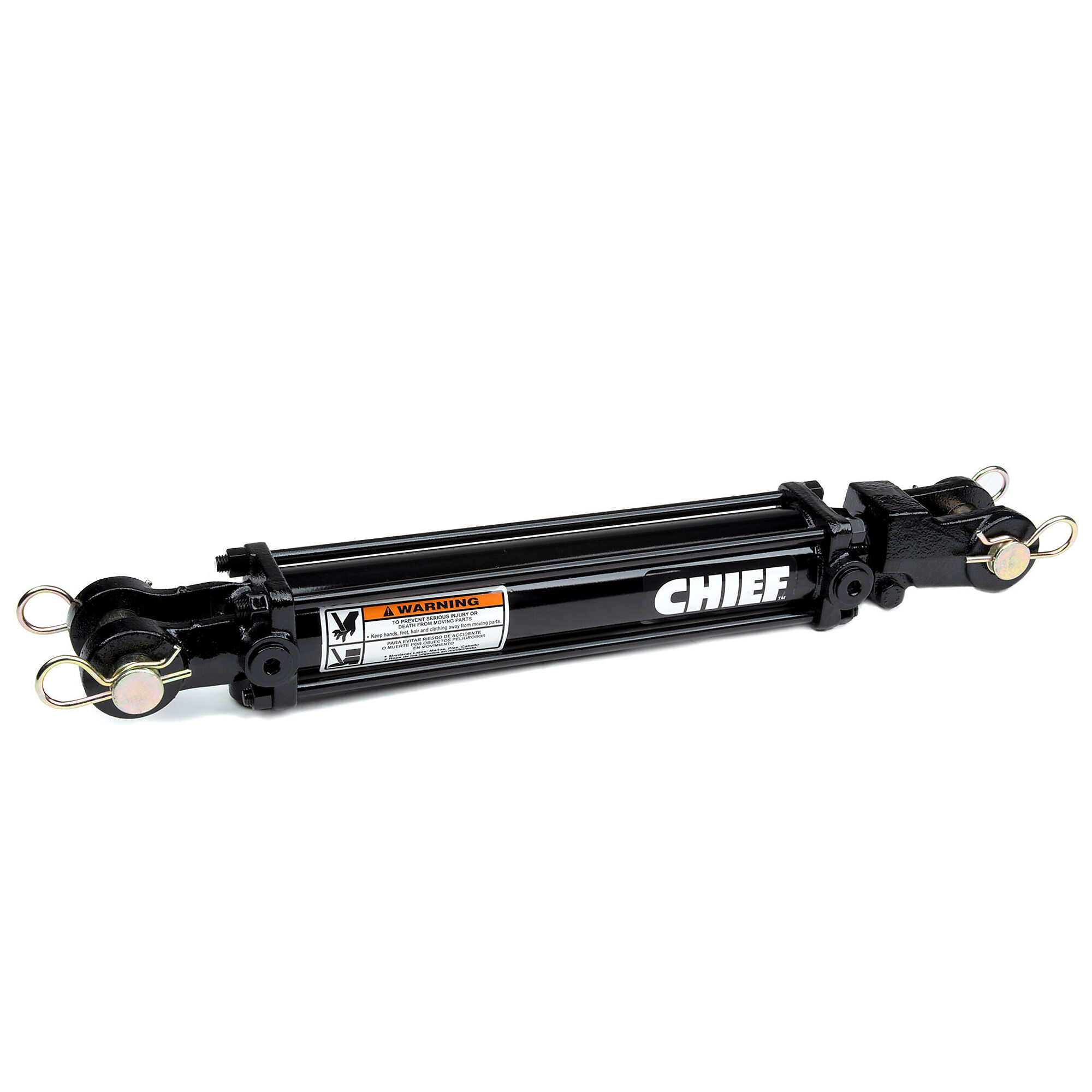

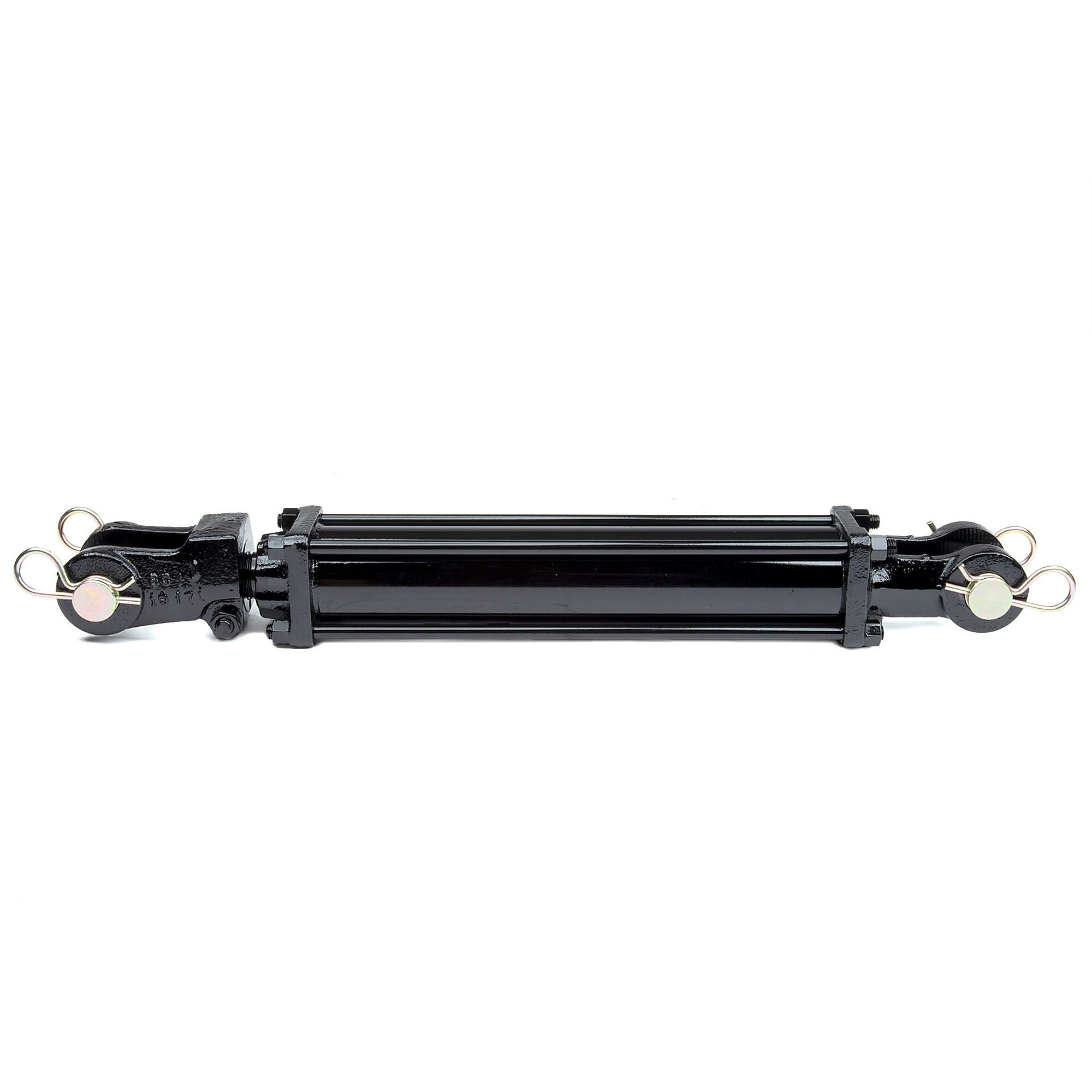

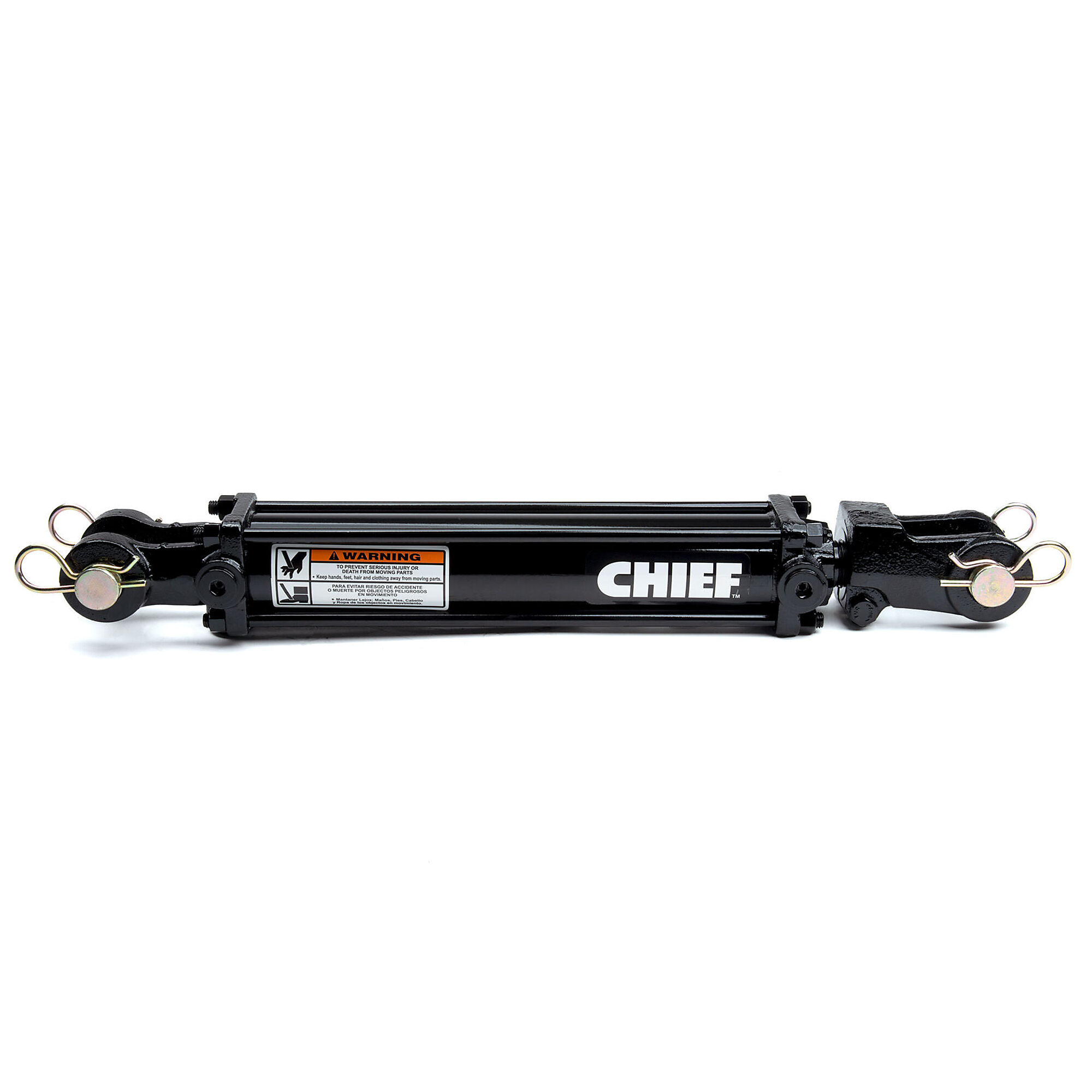

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 24 in, Model# 211405

Item# 4858397
Top Seller
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 24 in, Model# 211405

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 24 in, Model# 211405

Click or Tap image to Zoom

$284.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination

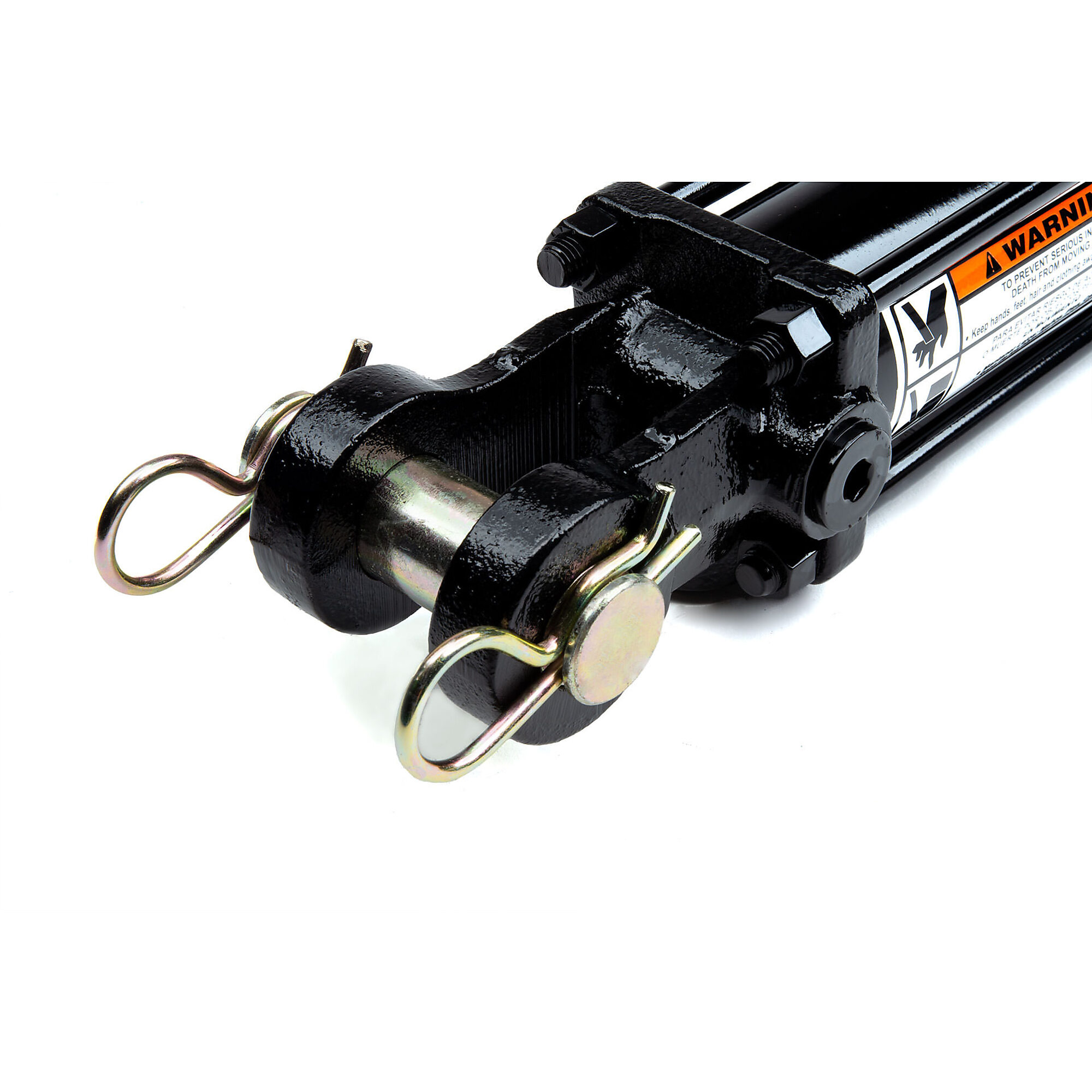

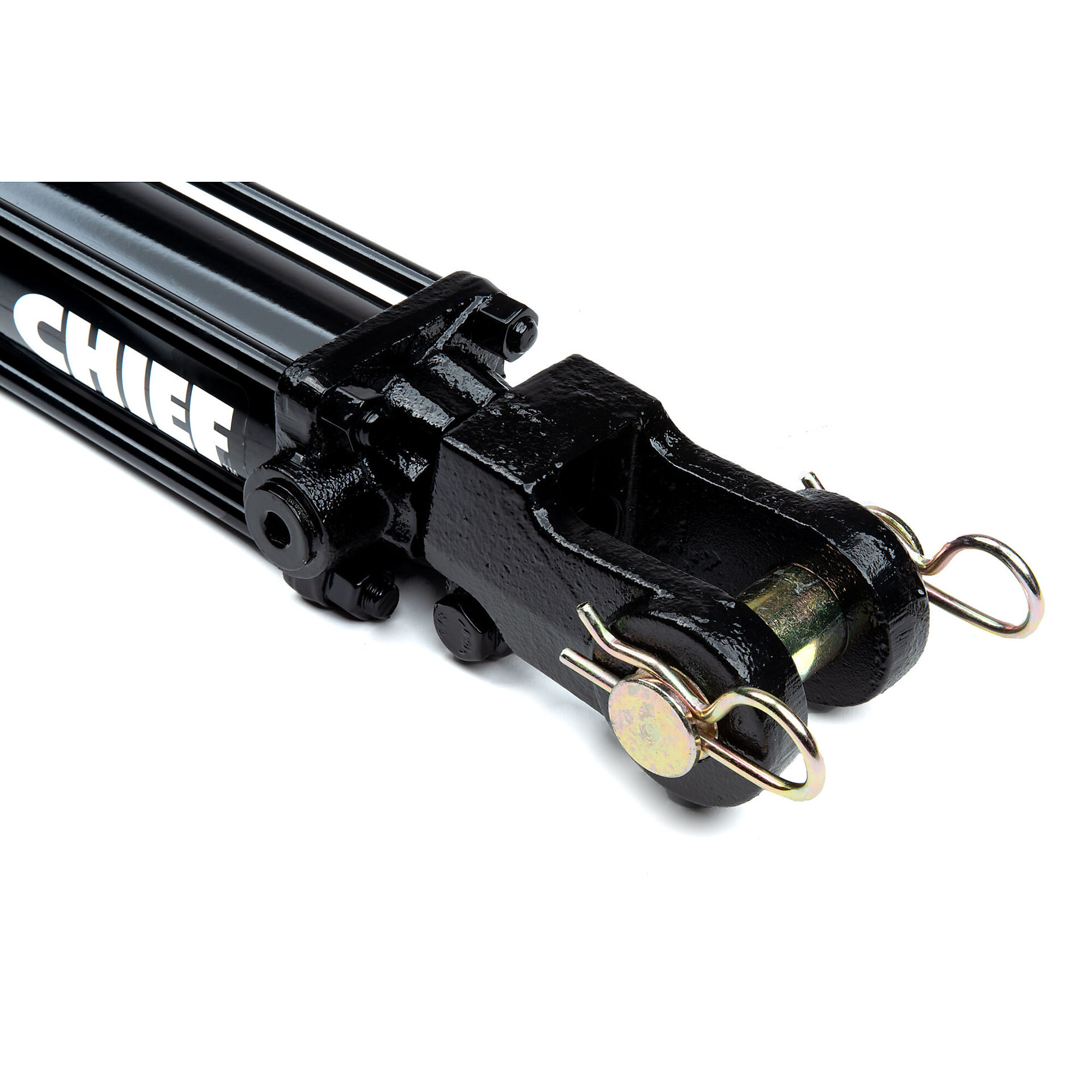

  • High strength, ductile iron female clevis end mounts with pins and R-clips

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 3000 psi Chief TC3 tie-rod hydraulic cylinder is designed to provide outstanding performance in a variety of applications, including agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2in. for greater swing ability on applications. Featuring SAE O-ring ports for easy hookup, every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. The TC3 is available in bore sizes from 2in. to 5in., strokes from 4in. to 60in., and comes with our best 3-year limited warranty. Each cylinder comes painted black.

What's Included

    (1) Cylinder

Features + Benefits

  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

Key Specs

AttributeSpecification

item#

4858397

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

80.51 LB

Max. PSI

3,000

Bore Diameter

4 in
AttributeSpecification

Stroke Length

24 in

Retracted Length

34.25 in

Extended Length

58.25 in

Pin Diameter

1 in

Product Weight

80.5100 lb

Dimensions L x W x H (in.)

58.25 x 4.0 x 4.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Are the pins going through the boar inch and a quarter?

    1 answer

    1. The Chief TC3 uses 1‑inch pins.

      Helpful?

  2. What are the port sizes on this cylinder

    1 answer

    1. The cylinder would have SAE #8 port sizes.

      Helpful?

  3. is this a double acting cylinder and is it recommended for a log splitter

    1 answer

    1. The cylinder is double acting and can be used on a log splitter.

      Helpful?

  4. What is the rod diameter.

    1 answer

    1. The rod diameter for this tie-rod cylinder is 2".

      Helpful?

  5. What size fittings are needed to thread into cylinder for hydraulic lines??

    1 answer

    1. The fitting size for this would be SAE 8. 3/4"-16.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
