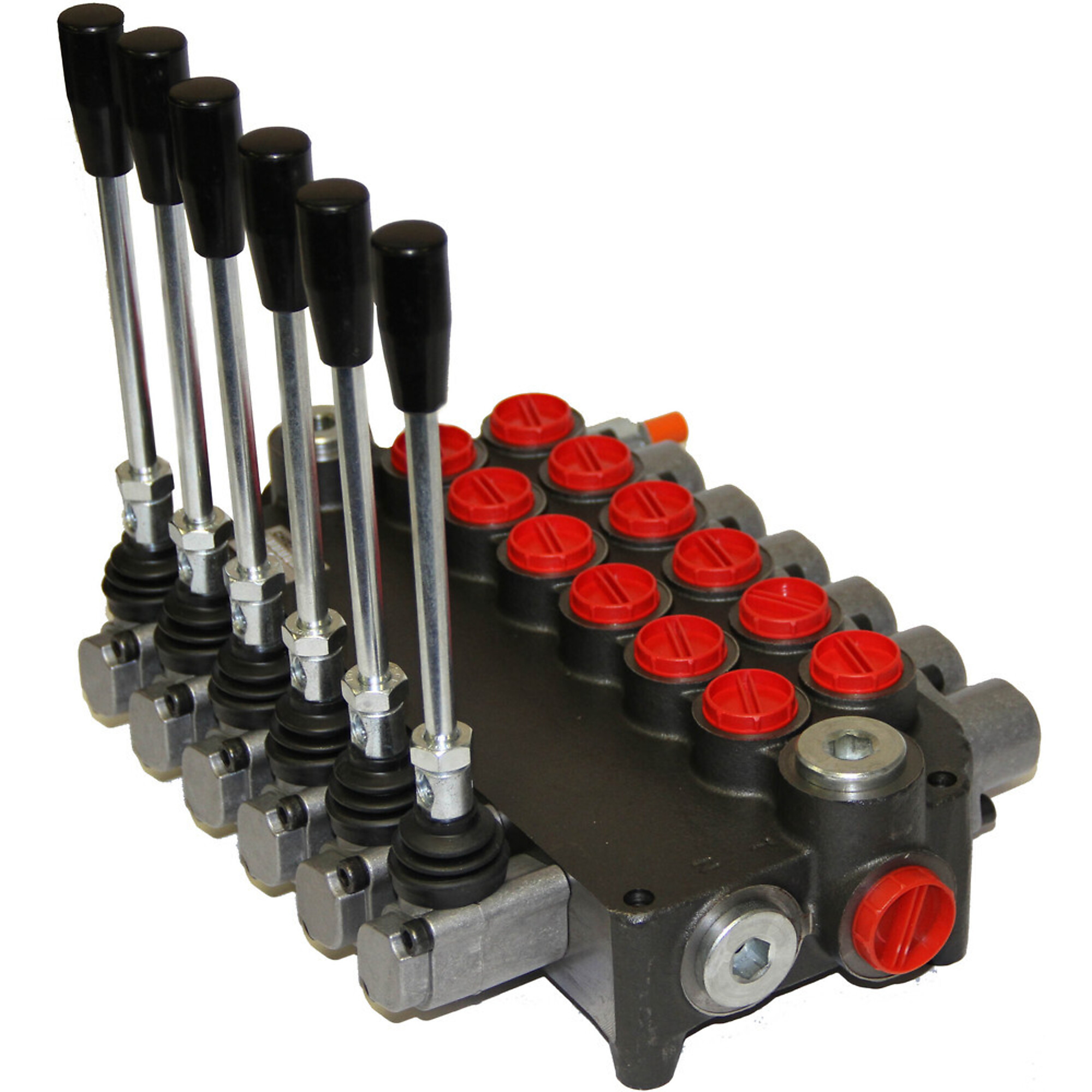

Chief, Hydraulic Directional Valve, GPM 21, Working Port #10 SAE in, Max. PSI 3625, Model# 220904

Item# 4865802
Chief, Hydraulic Directional Valve, GPM 21, Working Port #10 SAE in, Max. PSI 3625, Model# 220904

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, Hydraulic Directional Valve, GPM 21, Working Port #10 SAE in, Max. PSI 3625, Model# 220904

Click or Tap image to Zoom

$449.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable cast-iron construction
  • Comes with easy-grip handles
  • 1500 - 3625 psi relief range

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This Chief G Series 21 gpm directional control valve features a tandem spring center, used for double-acting cylinders that hold in neutral. Constructed from durable cast-iron and packaged complete with an easy-grip handle, this valve handles the toughest use with an adjustable relief range of 1500 - 3625 psi, factory set to 2600 psi. Featuring 6 spools and 4-way, 3 position, tandem center, with spring center to neutral action.

What's Included

    (1) Valve

Features + Benefits

  • Durable cast-iron construction
  • Comes with easy-grip handles
  • 1500 - 3625 psi relief range

Key Specs

AttributeSpecification

item#

4865802

Brand

Chief

Ship Weight

39.3 LB

GPM

21

Working Port

#10 SAE in

Max. PSI

3,625

Spool (qty.)

6

Directional Control

4-way, 3-position
AttributeSpecification

Body Material

Cast Iron

Inlet Port

#12 SAE in

Outlet Port

#10 SAE in

Max. Release Pressure

3,625 PSI

Min. Release Pressure

1,500 PSI

Product Weight

39.3000 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Is this an open or closed center valve

    1 answer

    1. The control valve is open center. We do not carry parts for the valve through Northern Tool. A closed center plug part number BA220913 can be purchased through our sister company Jack's Small Engine at 877-737-2787.

      Helpful?

  2. Can the handles be turned around so the ports on opposite side of the handel?

    1 answer

    1. The handles are unable to be installed on the opposite side.

      Helpful?
