Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220906

Item# 4865790
Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220906

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

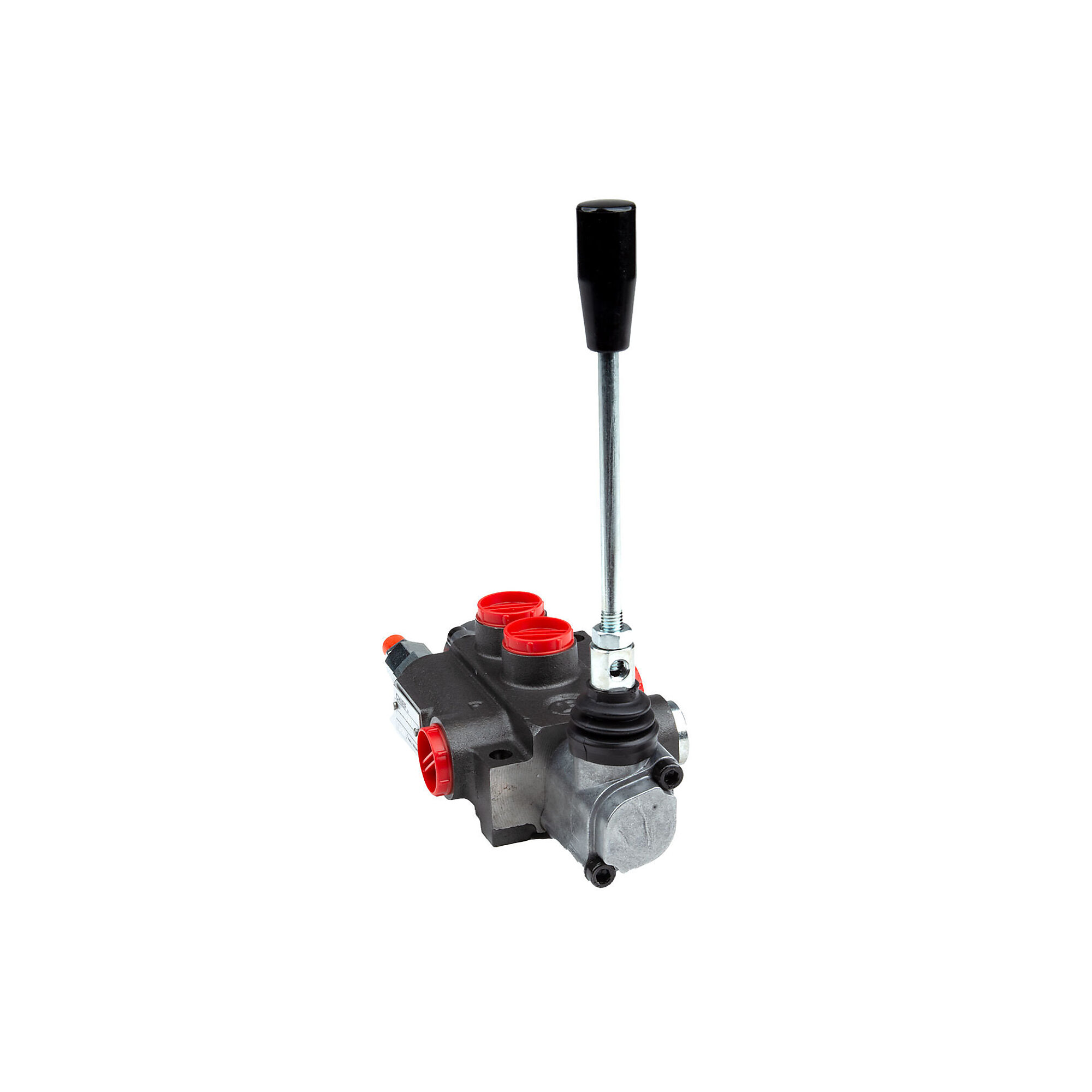

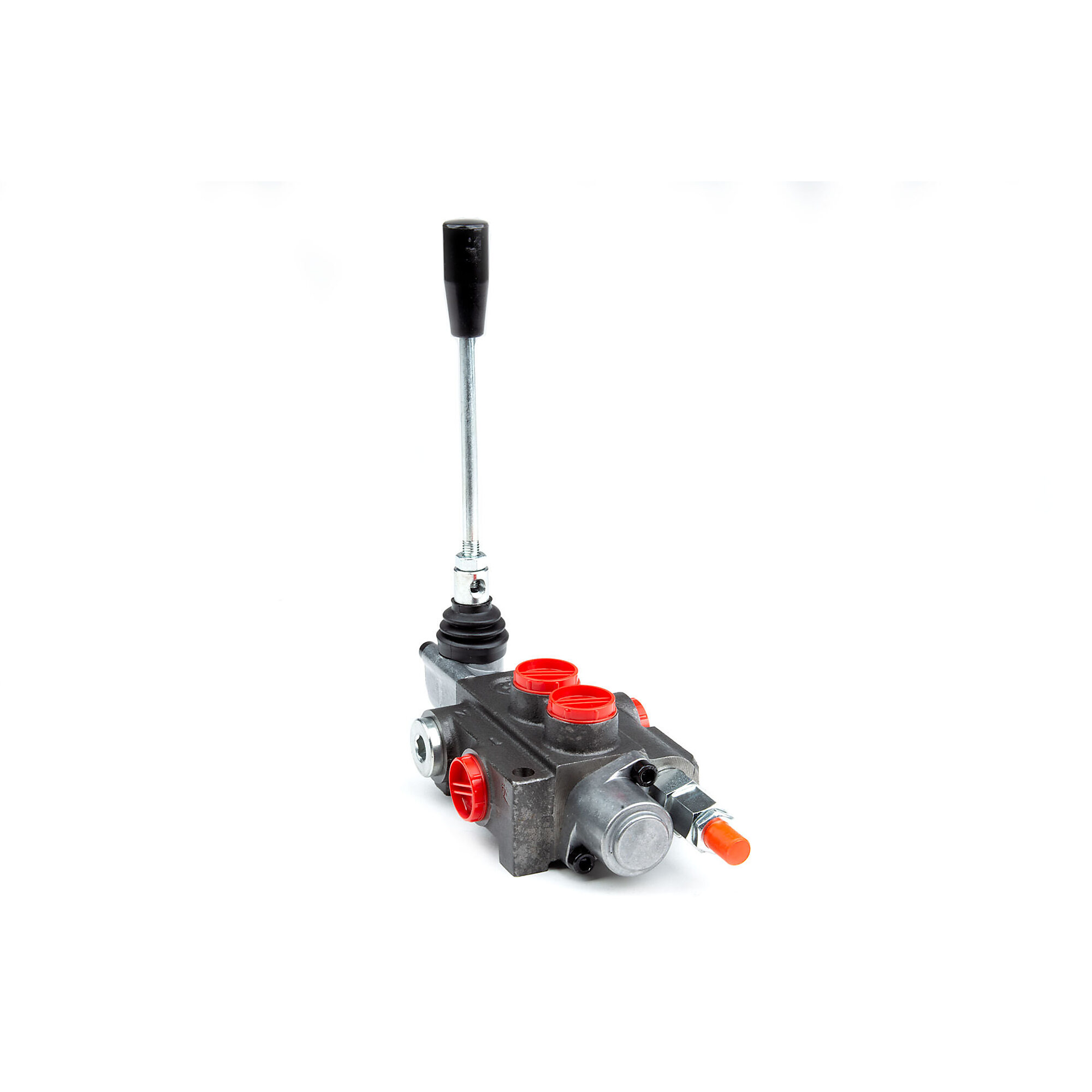

Chief, Hydraulic Directional Valve, GPM 10, Working Port #8 SAE in, Max. PSI 3625, Model# 220906

Click or Tap image to Zoom

$64.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable cast-iron construction
  • Comes with easy-grip handles
  • 1500 - 3625 psi relief range

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This Chief G Series 10 gpm directional control valve features a tandem spring center, used for double-acting cylinders that hold in neutral. Constructed from durable cast-iron and packaged complete with an easy-grip handle, this valve handles the toughest use with an adjustable relief range of 1500 - 3625 psi, factory set to 2600 psi. Featuring 1 spool and 4-way, 3 position, tandem center, with spring center to neutral action.

What's Included

    (1) Valve

Features + Benefits

  • Durable cast-iron construction
  • Comes with easy-grip handles
  • 1500 - 3625 psi relief range

Key Specs

AttributeSpecification

item#

4865790

Brand

Chief

Ship Weight

9.0 LB

GPM

10

Working Port

#8 SAE in

Max. PSI

3,625

Spool (qty.)

1

Directional Control

4-way, 3-position
AttributeSpecification

Body Material

Cast Iron

Inlet Port

#10 SAE in

Outlet Port

#8 SAE in

Max. Release Pressure

3,625 PSI

Min. Release Pressure

1,500 PSI

Product Weight

9.0000 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Can this be converted to closed center ?

    1 answer

    1. The valve can be converted to closed center. The closed center plug part number BA220913 would be available through our sister company, Jacks Small Engines. Please visit www.jackssmallengines.com for price and availability.

      Helpful?

  2. ( p ) port and (t) port whitch is in and witch is out

    1 answer

    1. The "P" port would be the pressure from the unit, it is the in port. The "T" port is the to the tank, it is the out port.

      Helpful?
