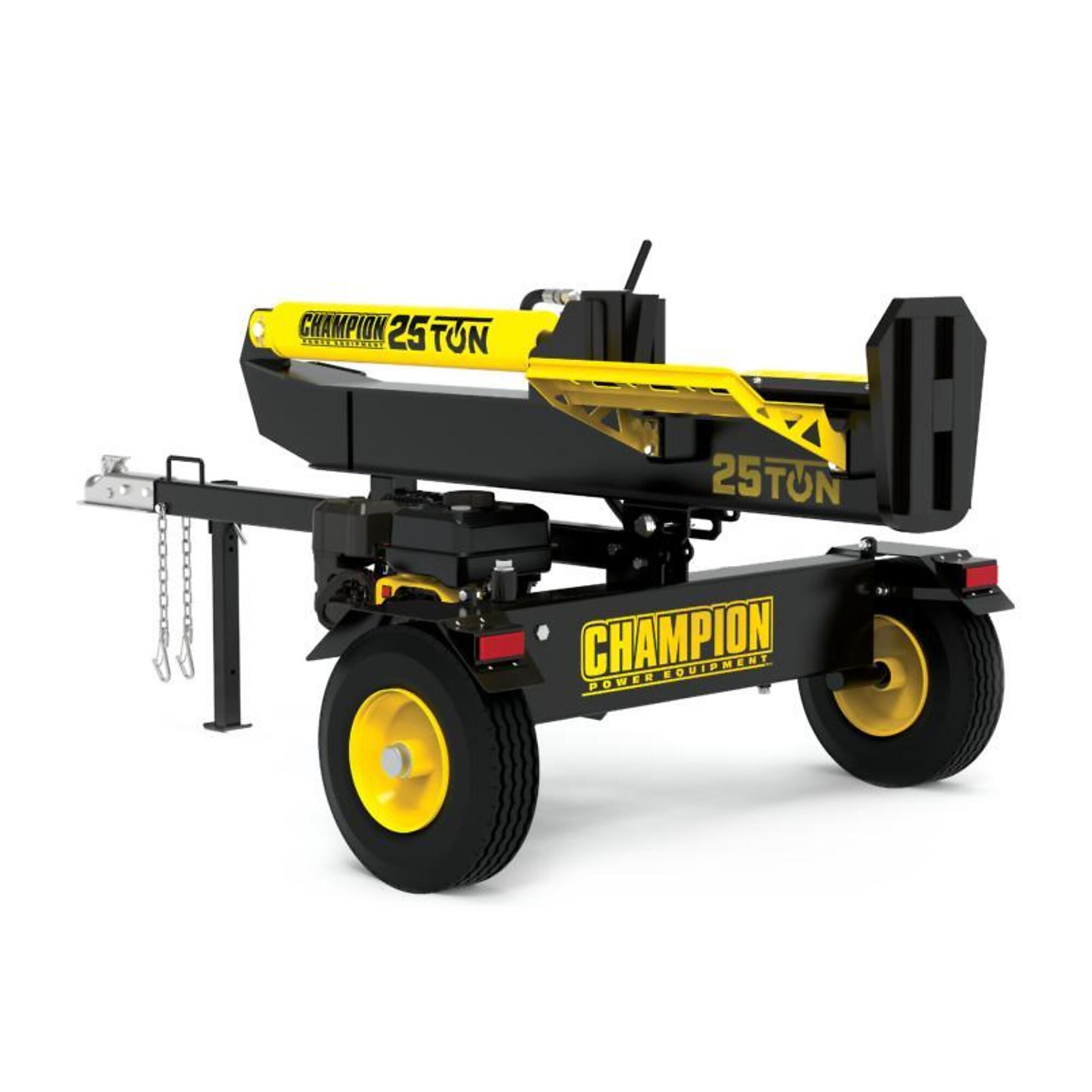

Champion Power Equipment, 25 Ton Full Beam Log Splitter, Ram Force 25 Tons, Max. Log Diameter 16 in, Max. Log Length 24 in, Model# 100326

Item# 5898585
Champion Power Equipment, 25 Ton Full Beam Log Splitter, Ram Force 25 Tons, Max. Log Diameter 16 in, Max. Log Length 24 in, Model# 100326

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Champion Power Equipment, 25 Ton Full Beam Log Splitter, Ram Force 25 Tons, Max. Log Diameter 16 in, Max. Log Length 24 in, Model# 100326

Click or Tap image to Zoom

  • Depend on the reliable recoil to start up the powerful Champion 224cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.8-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

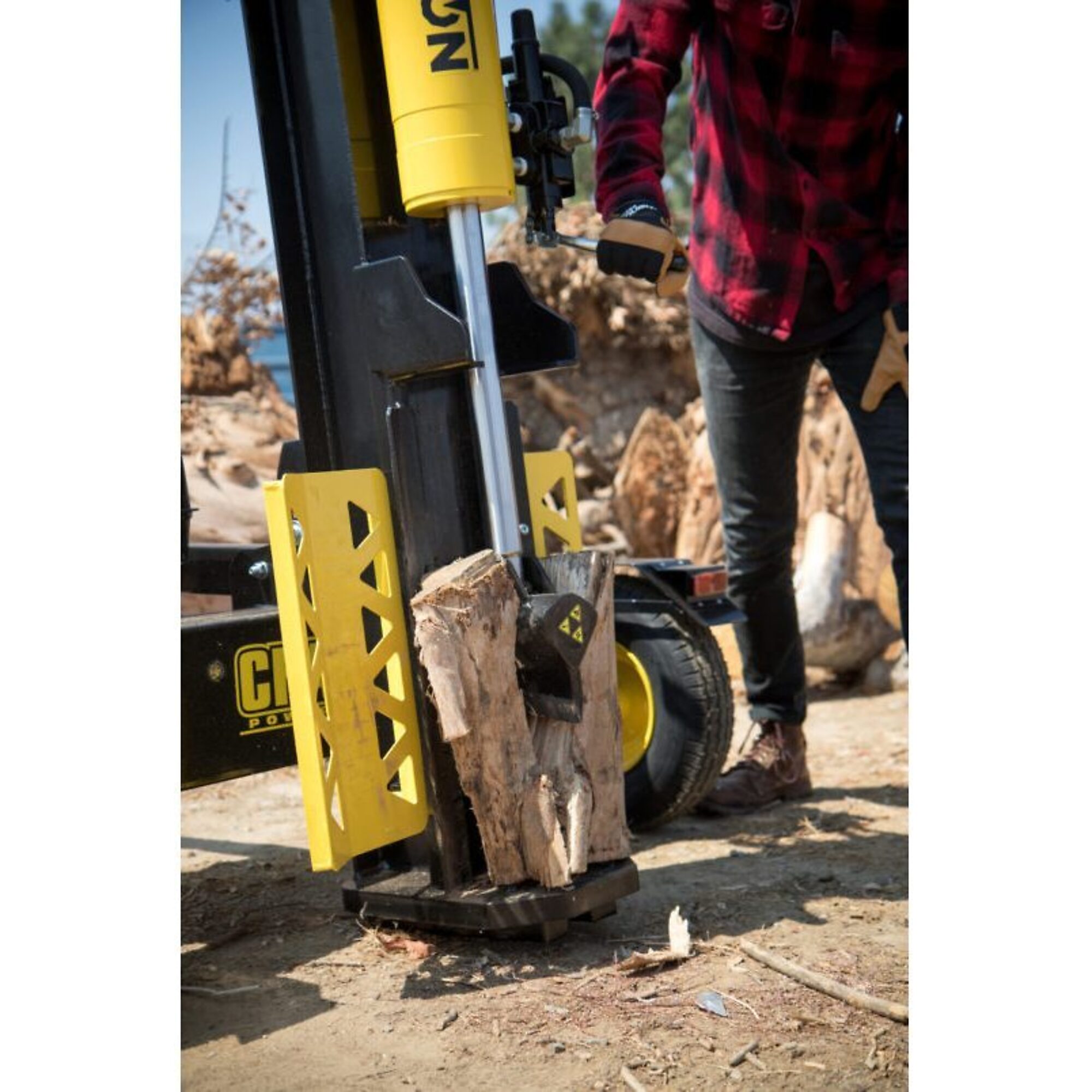

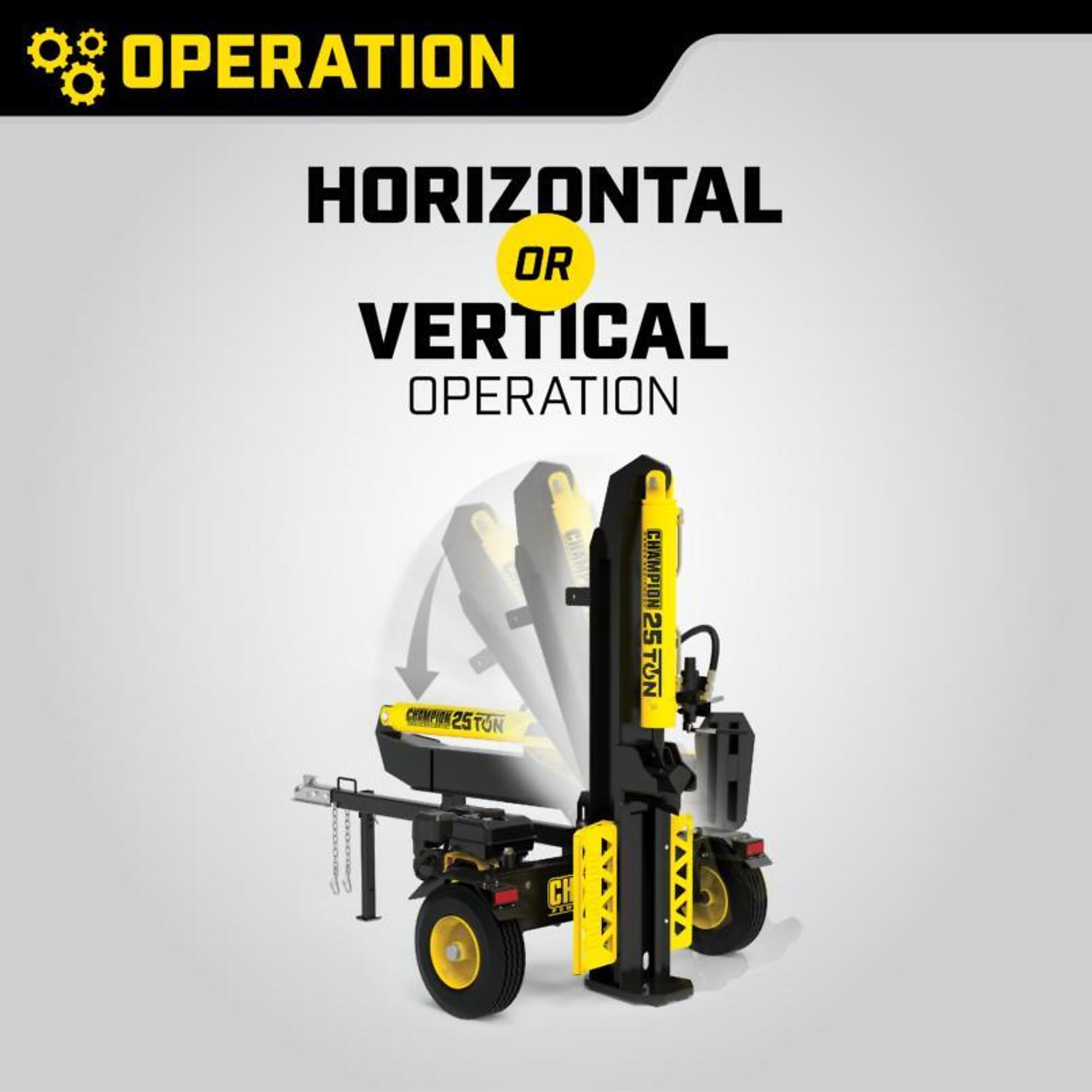

  • Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pound

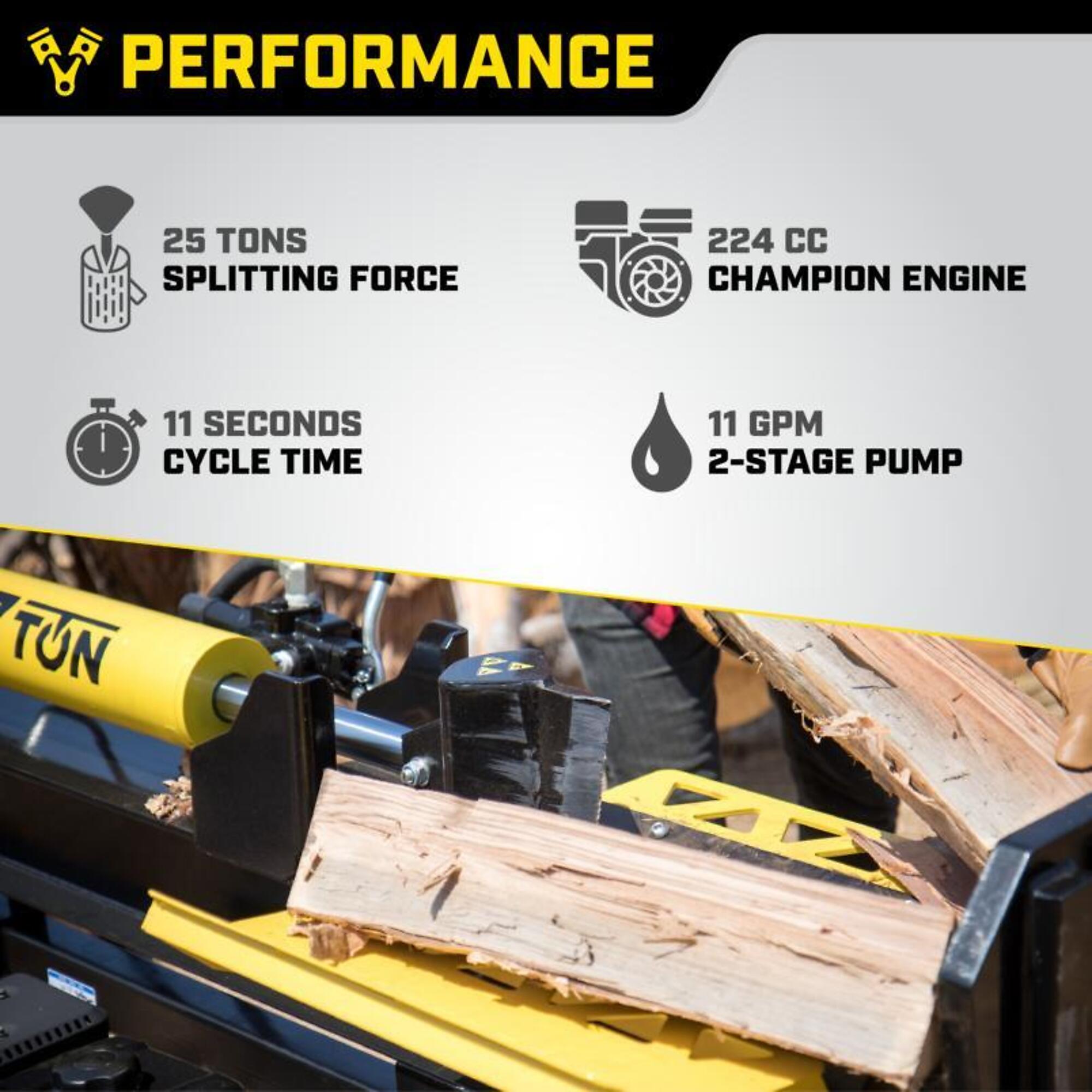

  • Twenty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 11 gpm to power through tough logs

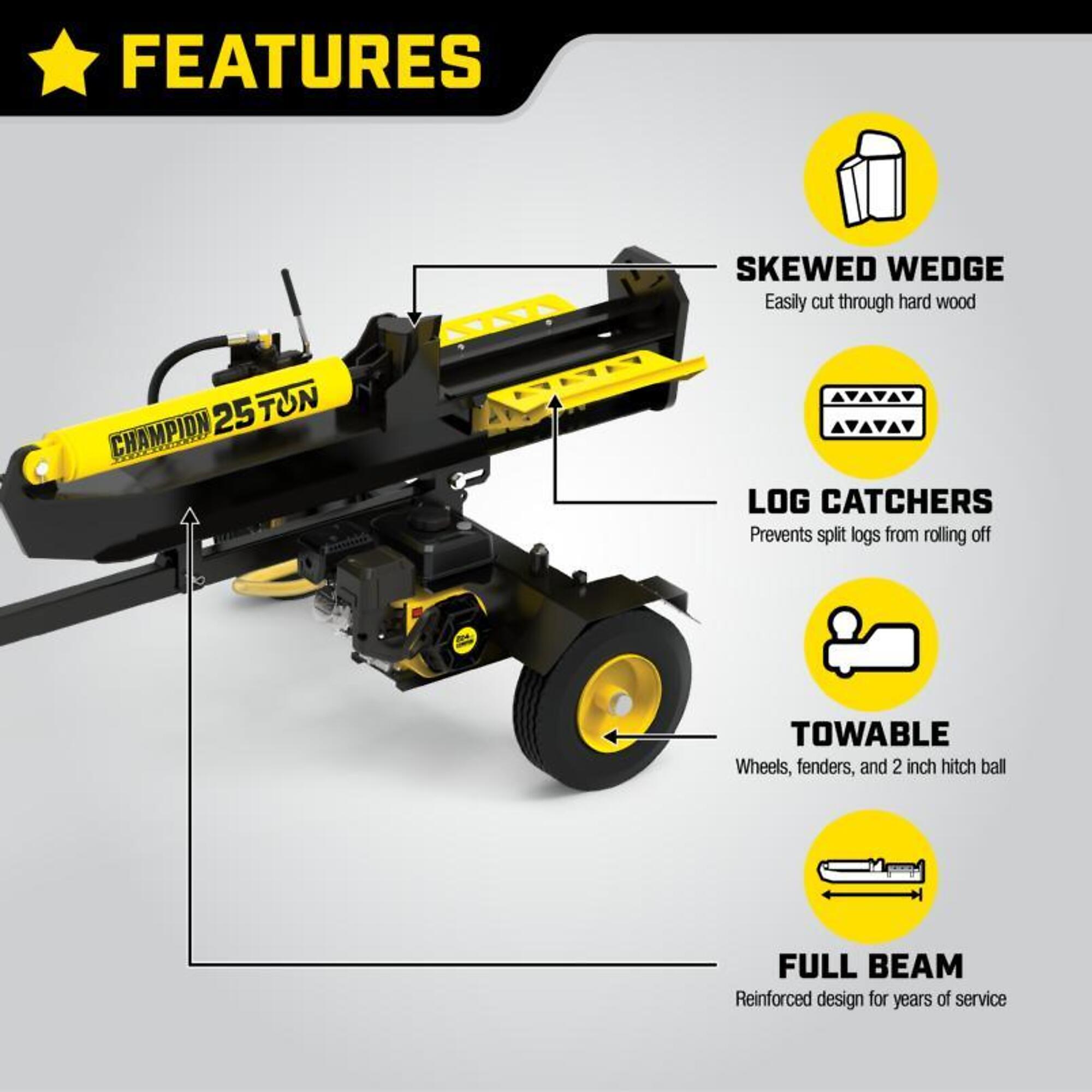

  • Champion designed this log splitter for efficiency with the fast 11-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 300 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach.
  • The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Champion Power Equipment 100326 25-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks.

What's Included

    (2) Oil Funnel

Downloads

Product Manual
Safety Data Sheet Safety Data Sheet2

Features + Benefits

  • Depend on the reliable recoil to start up the powerful Champion 224cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.8-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.
  • Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pound
  • Twenty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 11 gpm to power through tough logs
  • Champion designed this log splitter for efficiency with the fast 11-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 300 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach.
  • The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.
  • This log splitter will fit in most truck beds, plus it’s easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications.
  • This log splitter is EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

Key Specs

AttributeSpecification

item#

5898585

Brand

Champion Power Equipment

Manufacturer's Warranty

2 year limited warranty

Ship Weight

480.0 LB

Product Type

Gas

Ram Force

25 Tons

Max. Log Diameter

16 in

Max. Log Length

24 in

Continuous Force

25 Tons
AttributeSpecification

Engine Brand

Champion

Engine Displacement

224 cc

Cycle Time

11 sec.

Tire Size

16 in

Towable

Yes

Wheels

Yes

Product Weight

480.0000 lb

Dimensions L x W x H (in.)

89.5 x 51.3 x 39.3 in

Reviews

Questions & Answers

280 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
