Canarm Wall Exhaust Fan, 42in., 14,900 CFM, 1 HP, Model# SD42

Item# 84776
Top SellerOn Sale
Canarm Wall Exhaust Fan, 42in., 14,900 CFM, 1 HP, Model# SD42

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Wall Exhaust Fan, 42in., 14,900 CFM, 1 HP, Model# SD42

Click or Tap image to Zoom

$960.49
Reg $1229.99Save $269.50

Order today to get this price.

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Totally enclosed, thermally protected motor
  • Rugged steel welded box housing with durable power coated finish
  • PVC louvers
  • Requires hardwired electrical connection

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Canarm Wall Exhaust Fan is a highly efficient and easy-to-install solution designed to keep room air fresh and well-ventilated. Powered by a robust 1 horsepower motor, this fan operates at 850 RPM and is designed for single-speed operation on a 230V power supply. With a substantial fan diameter of 42 inches, it delivers an impressive air flow of 14,900 cubic feet per minute (cfm), ensuring effective ventilation for large spaces. The direct drive type enhances the fan's efficiency and reduces maintenance needs, making it a reliable choice for various applications. Ideal for commercial, industrial, or agricultural settings, this wall exhaust fan from Canarm combines power, durability, and ease of use to provide a superior ventilation solution.

What's Included

    (1) Wall exhaust fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally enclosed, thermally protected motor
  • Rugged steel welded box housing with durable power coated finish
  • PVC louvers
  • Requires hardwired electrical connection

Key Specs

AttributeSpecification

item#

84776

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

124.0 LB

Drive Type

Direct

Fan Diameter

42 in
AttributeSpecification

Air Delivery

14,900 cfm

Volts

230

Speeds (qty.)

1

Horsepower

1 HP

Product Weight

122.0000 lb

Dimensions L x W x H (in.)

47.25 x 18.0 x 44.75 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Is this fan single phase or three phase?

    1 answer

    1. The model SD42 will require 5 amps, 230 volt single phase 60 Hz power.

      Helpful?

  2. Is the a temperature gauge where it comes on automatically

    1 answer

    1. The single stage thermostat model CNKJ16110 is recommended for the fan. This can be purchased through the manufacturer directly.

      Helpful?

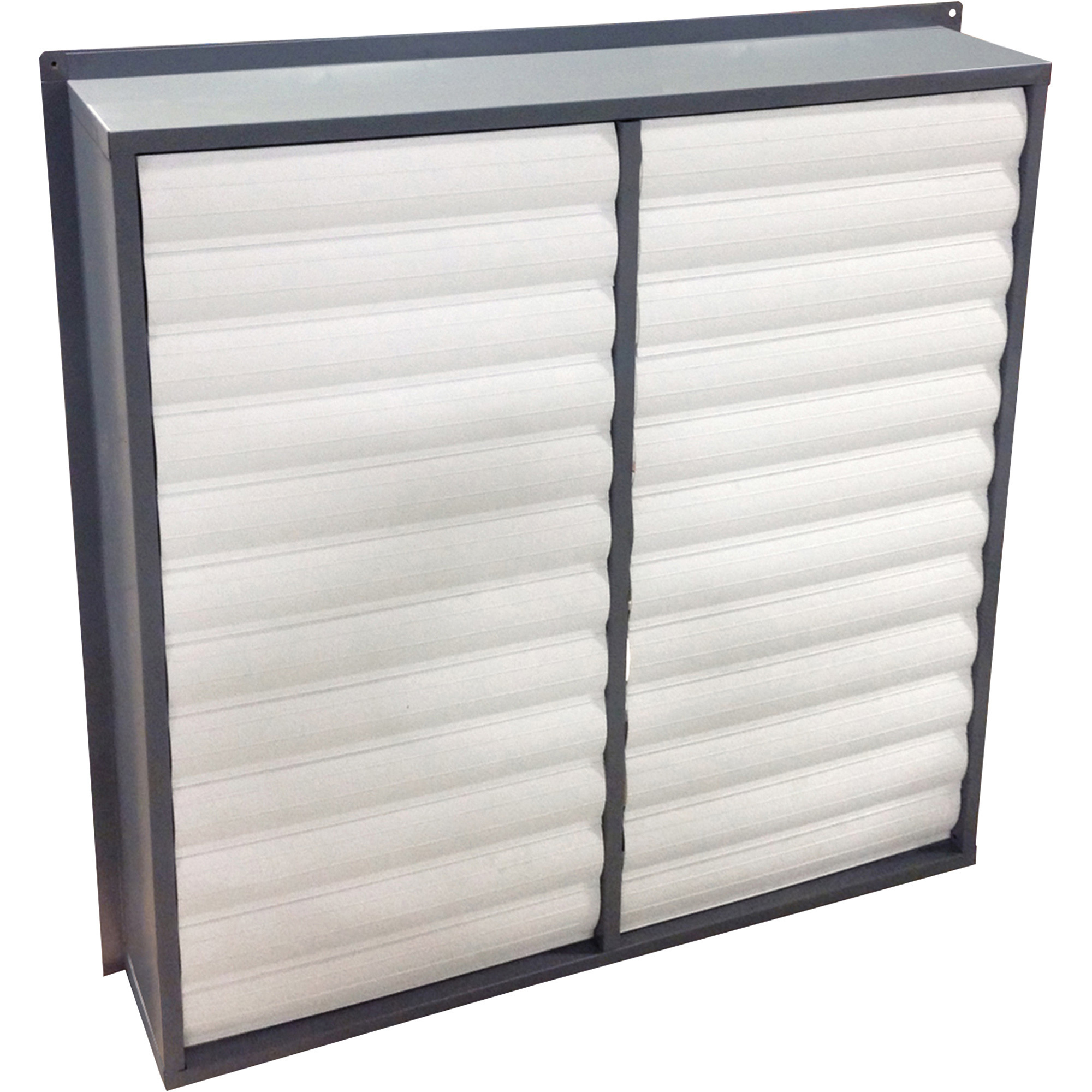

  3. Does a motor open the louvers or is that done by air flow ? Are the louvers made of metal ?

    1 answer

    1. The louvers will open automatically when the fan turns on. The louvers will close when the fan shuts off. The louvers are made of aluminum.

      Helpful?

  4. Can this fan be used in a paint booth

    1 answer

    1. This exhaust fan could not be used in a paint booth. You would need to order an explosion proof exhaust fan in a paint booth. Currently, we do not carry an explosion proof fan in 42 inch and 14,900 CFM.

      Helpful?

  5. Max db rating? How many amps does it pull? Is the fan speed variable?

    1 answer

    1. The decibel rating is 83 decibels at 5 feet. The amperage is 5 amps at 230 volt. The fan is single speed.

      Helpful?

  6. are the fan and the motor bearings a roller bearing type or sleeve?

    1 answer

    1. The fan is totally enclosed with sealed ball bearings.

      Helpful?

  7. What are the outside face flange dimensions (Large front square the fan is mounted to) ?

    1 answer

    1. The flange dimensions are 47.25" x 47.25".

      Helpful?

  8. What are the rough opening measurements and the depth of the fan housing? Could this fan be installed in the ceiling and would the fan push open the shutters?

    1 answer

    1. The fan rough opening measurements would be 44 3/4" squared. The depth of the housing is 6-3/4". The fan cannot be installed in a ceiling. The louvers will need to be manually opened/closed.

      Helpful?

  9. Will this fan run on 208 volts?

    1 answer

    1. This fan is made to run only on 230 Volts.

      Helpful?

  10. what direction does this fan move air?

    1 answer

    1. This exhaust fan would move air out of the room.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
