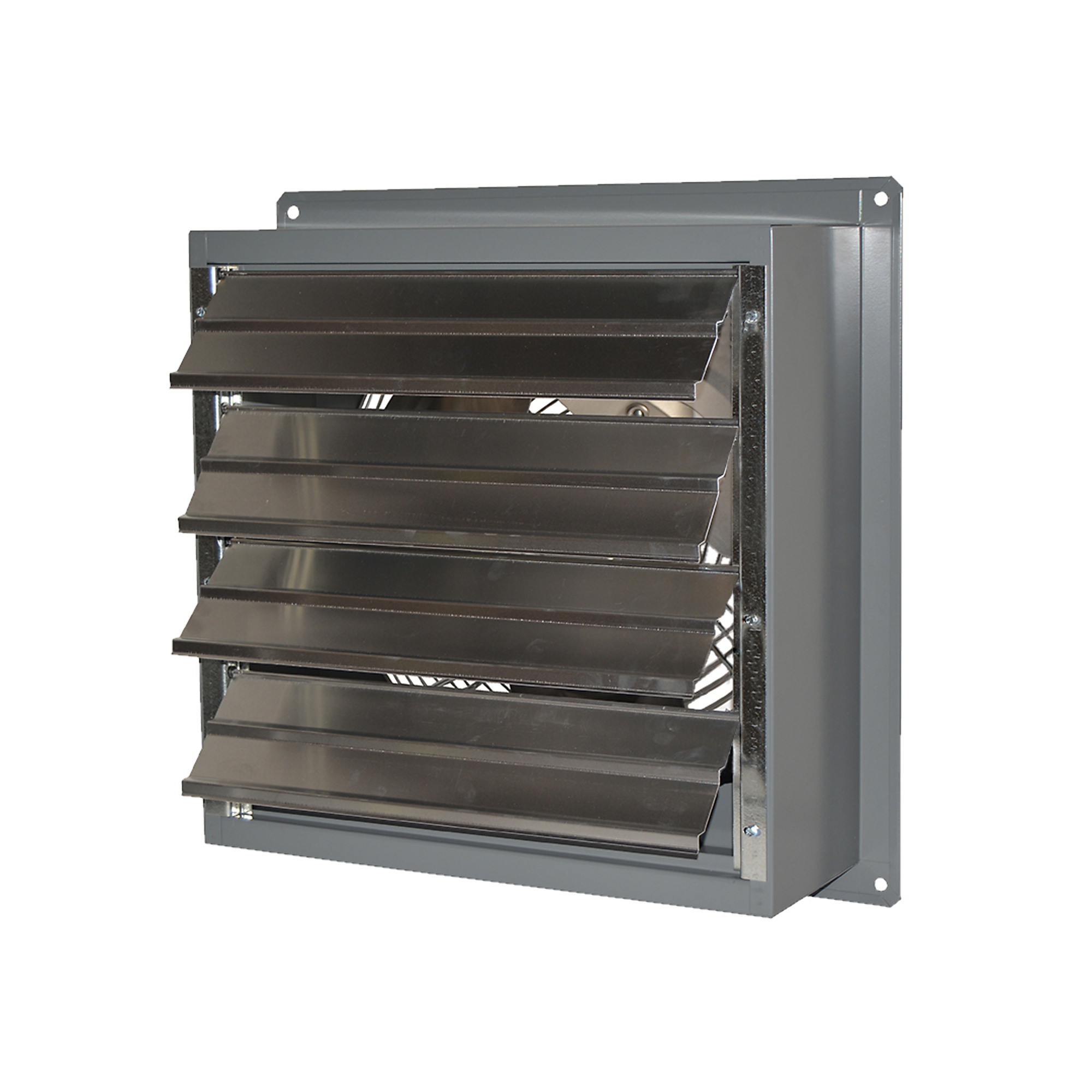

Canarm Variable Speed Wall Exhaust Fan, 16in., 2370 CFM, 1/3 HP, Model# S16-EVD

Item# 13782
Canarm Variable Speed Wall Exhaust Fan, 16in., 2370 CFM, 1/3 HP, Model# S16-EVD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Variable Speed Wall Exhaust Fan, 16in., 2370 CFM, 1/3 HP, Model# S16-EVD

Click or Tap image to Zoom

$429.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Totally enclosed and thermally protected motor
  • Galvanized blades are well-balanced for durability and efficiency
  • Heavy wire chrome-plated OSHA guards
  • Rugged steel welded box housing with durable powder-coated finish
  • Aluminum louver shutters with long life nylon bushing

See full description

Complete Your Solution

  • Canarm Variable Speed Wall Exhaust Fan, 16in., 2370 CFM, 1/3 HP, Model# S16-EVD
  • Canarm Fan Hood, 18in., Plastic, Model# HFP-18G
Price for all two:

$549.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Canarm 16in. Wall Exhaust Fan is a highly efficient and easy-to-install solution designed to keep room air fresh and clean. With a direct drive type and a fan diameter of 16 inches, this exhaust fan delivers an impressive air flow of 2370 cubic feet per minute (cfm), ensuring optimal ventilation in various settings. Its low-maintenance design makes it a reliable choice for both residential and commercial applications, providing consistent performance without the need for frequent upkeep. The Canarm Wall Exhaust Fan combines robust construction with practical functionality, making it an ideal addition to any space requiring effective air circulation and ventilation.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally enclosed and thermally protected motor
  • Galvanized blades are well-balanced for durability and efficiency
  • Heavy wire chrome-plated OSHA guards
  • Rugged steel welded box housing with durable powder-coated finish
  • Aluminum louver shutters with long life nylon bushing

Key Specs

AttributeSpecification

item#

13782

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

36.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

16 in

Air Delivery

2,370 cfm

Volts

115/230

Horsepower

0.33 HP

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Is the fan motor moisture resistant? We are looking for something to put in a fish processing plant and will be cooking crabs so there will be steam and moisture

    1 answer

    1. This fan is not suitable for areas with a high degree of moisture.

      Helpful?

  2. What is stud opening and why is this critical info not listed on web site ?

    1 answer

    1. The rough opening for this 16" fan would need to be 19" x 19" with a 6" depth.

      Helpful?

  3. Can I put this fan at the end of a duct

    1 answer

    1. The fan is not designed to be installed in ducting. This may restrict the air flow and add stress to the motor. This will cause the motor to over heat.

      Helpful?

  4. Rough opening size? & in an 8" masonry wall, Once mounted, how many inches from inside surface of flange will unit protrude?

    1 answer

    1. The rough in opening size would need to be 19" x 19" with a 6" depth. The fan would protrude about 8" from the wall.

      Helpful?

  5. What is the sound level for your S16-EVD fan?

    1 answer

    1. The sound rating for this Canarm Wall Exhaust Fan is 63 decibels.

      Helpful?

  6. What variable motor controller do you recommend?

    I have Canarm Wall Exhaust Fan - 1/3HP model #S16-EVD, but am struggling to find the right controller - can you recommend something?

    1 answer

    1. The manufacturer offers a full line of controls. Contact Canarm directly for more information.

      Helpful?
