Canarm, SINGLE PIPE ERV, ENERGY RECOVERY VENTILATOR, Drive Type Direct, Fan Diameter 9.43 in, Air Delivery 29 cfm, Model# GC30ERV-W

Item# 6106543
On Sale
Canarm, SINGLE PIPE ERV, ENERGY RECOVERY VENTILATOR, Drive Type Direct, Fan Diameter 9.43 in, Air Delivery 29 cfm, Model# GC30ERV-W

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm, SINGLE PIPE ERV, ENERGY RECOVERY VENTILATOR, Drive Type Direct, Fan Diameter 9.43 in, Air Delivery 29 cfm, Model# GC30ERV-W

Click or Tap image to Zoom

$339.99
Reg $419.99Save $80.00

Order today to get this price.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • High thermal efficiency. Built-in high-tech ceramic energy regenerator with maximum heat recovery efficiency of up to 90%

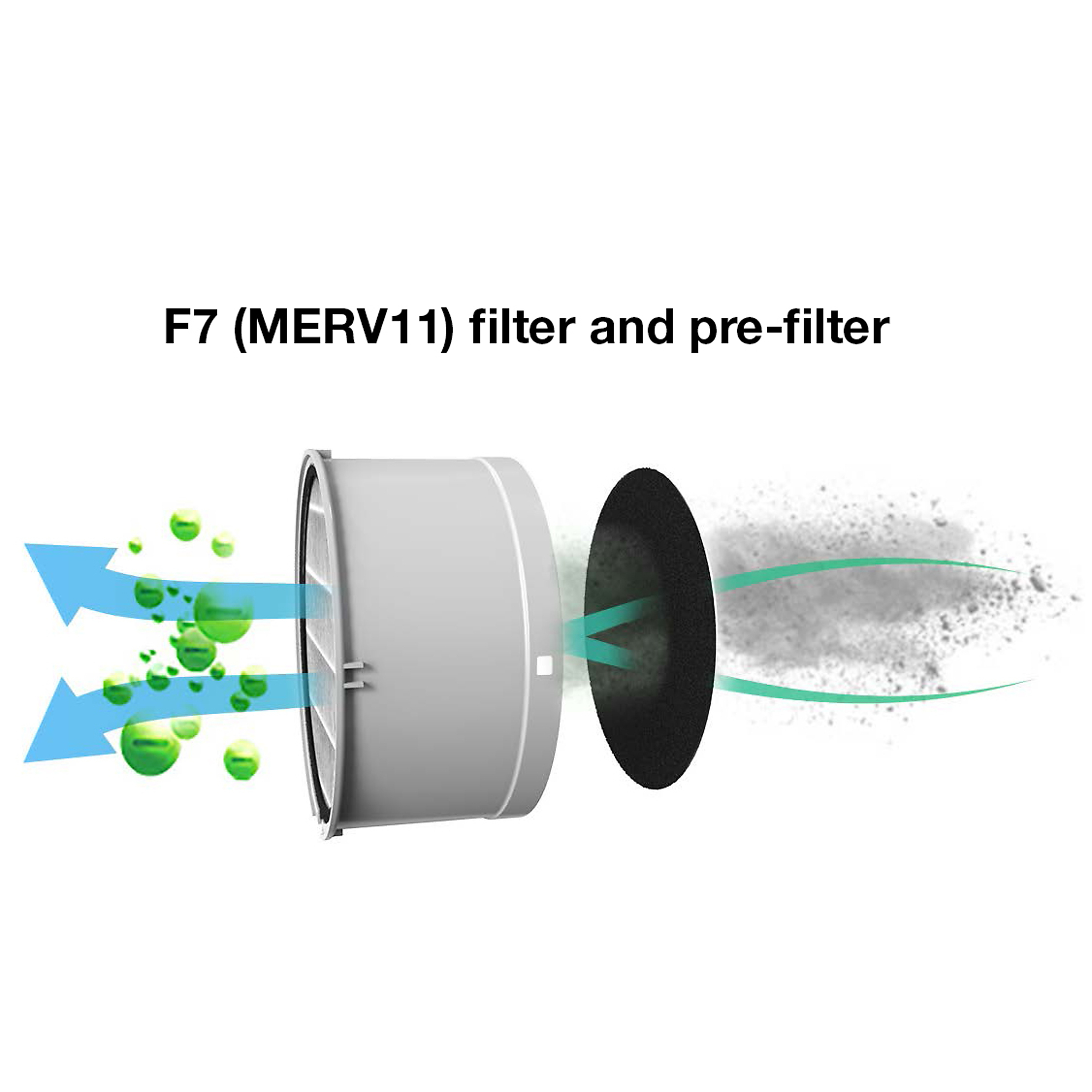

  • Includes F7 (MERV11) filter and pre-filter to keep air clean.
  • Energy efficient, reversible, 3 speed EC motor.
  • Units can work individually or in paired master-slave setups.
  • One unit can ventilate a room up to 500 sqft.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Canarm Single Pipe Energy Recovery Ventilator (ERV) is designed to efficiently manage air quality in single rooms. Featuring a direct drive type and a fan diameter of 9.43 inches, this ventilator delivers an air flow of 29 cubic feet per minute (cfm). The GC30ERV model ensures optimal energy recovery, making it a reliable solution for maintaining fresh air circulation while conserving energy. Ideal for various single-room applications, this ERV enhances indoor air quality by effectively exchanging stale indoor air with fresh outdoor air, all while recovering energy from the exhausted air. Its compact and efficient design makes it a perfect choice for improving comfort and air quality in any space.

What's Included

    (1) I greenchoice ERV

Downloads

Product Manual Product Manual2

Features + Benefits

  • High thermal efficiency. Built-in high-tech ceramic energy regenerator with maximum heat recovery efficiency of up to 90%
  • Includes F7 (MERV11) filter and pre-filter to keep air clean.
  • Energy efficient, reversible, 3 speed EC motor.
  • Units can work individually or in paired master-slave setups.
  • One unit can ventilate a room up to 500 sqft.
  • CO2 and temperature sensors to monitor environment

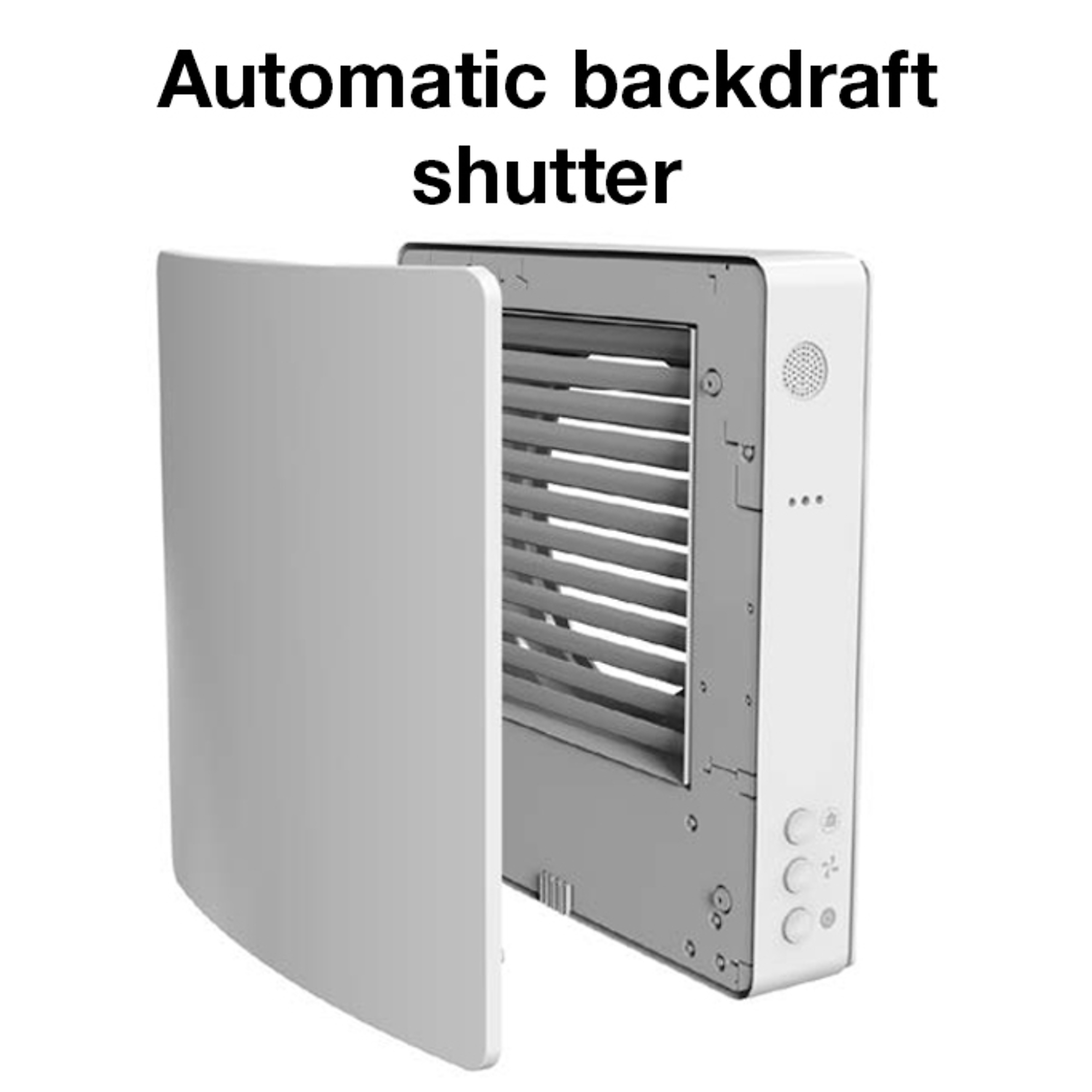

  • Automatic backdraft shutter

Key Specs

AttributeSpecification

item#

6106543

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

15.0 LB

Drive Type

Direct

Fan Diameter

9.43 in

Air Delivery

29 cfm

Volts

115
AttributeSpecification

Hardwired

No

Speeds (qty.)

3

Primary Color

White

Assembly Required

No

Phase

Single-phase

Product Weight

15.0000 lb

Dimensions L x W x H (in.)

22.0 x 12.0 x 13.0 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. How thick does the wall have to be to install this?

    1 answer

    1. The hole diameter required is 6.7". The ventilator consists of a telescoping air duct that can be adjusted from 11.02"-18.5" to adapt to multiple wall thicknesses.

      Helpful?

  2. Is there a decibel rating on these? How loud are they?

    1 answer

    1. The decibel rating is 32 dB at max speed.

      Helpful?

  3. Can you put an elbow on the duct? I only have a 2x4 wall so the unit can’t sit flush inside to the wall. I could bring it into a closet and then use the elbow and get it outside. Is that okay? Thanks

    1 answer

    1. It is not recommended to install using an elbow.

      Helpful?

  4. What is the ASRE & ATRE?

    1 answer

    1. The manufacturer does not list the adjusted sensible recovery efficiency (ASRE) or the adjusted total recovery efficiency (ATRE).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
