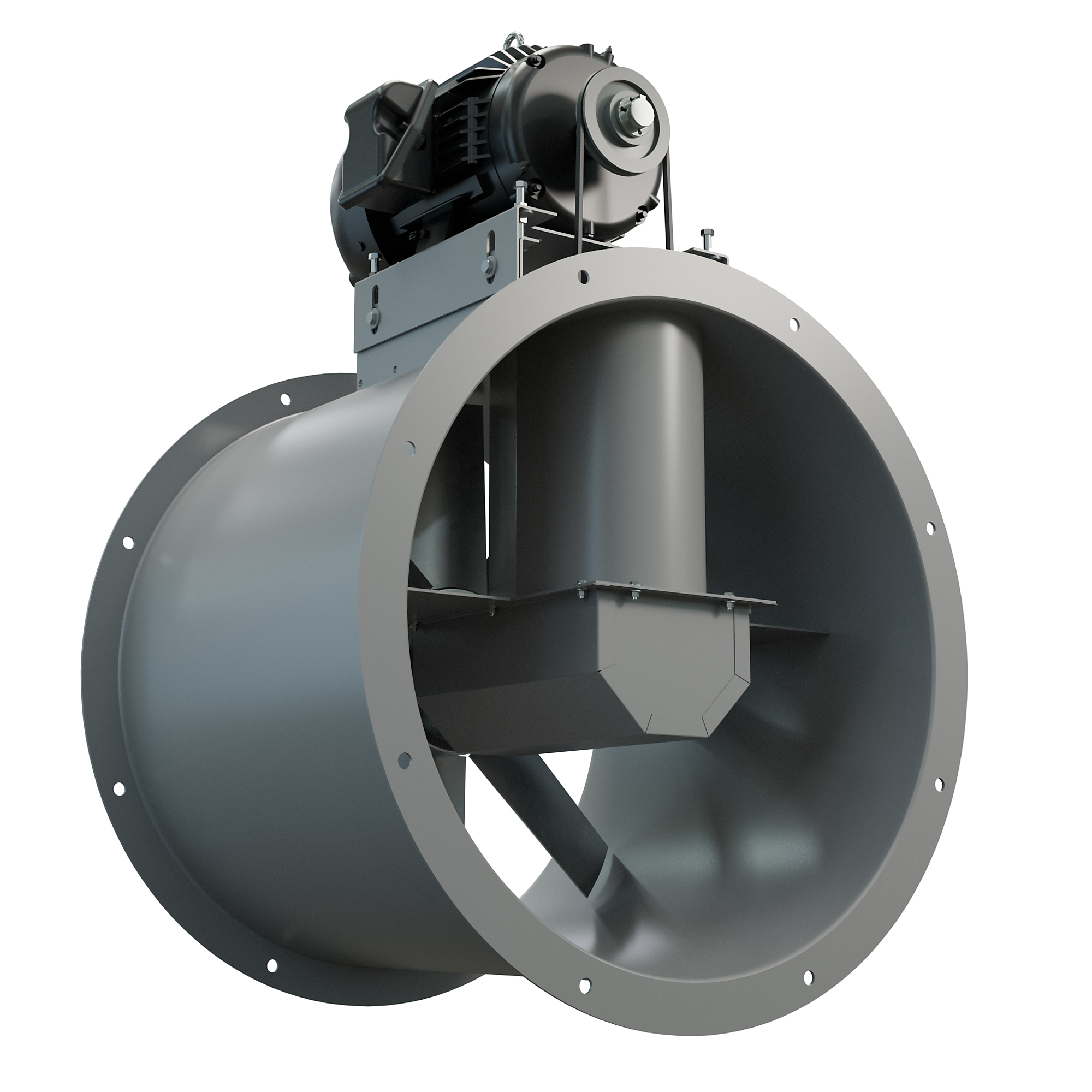

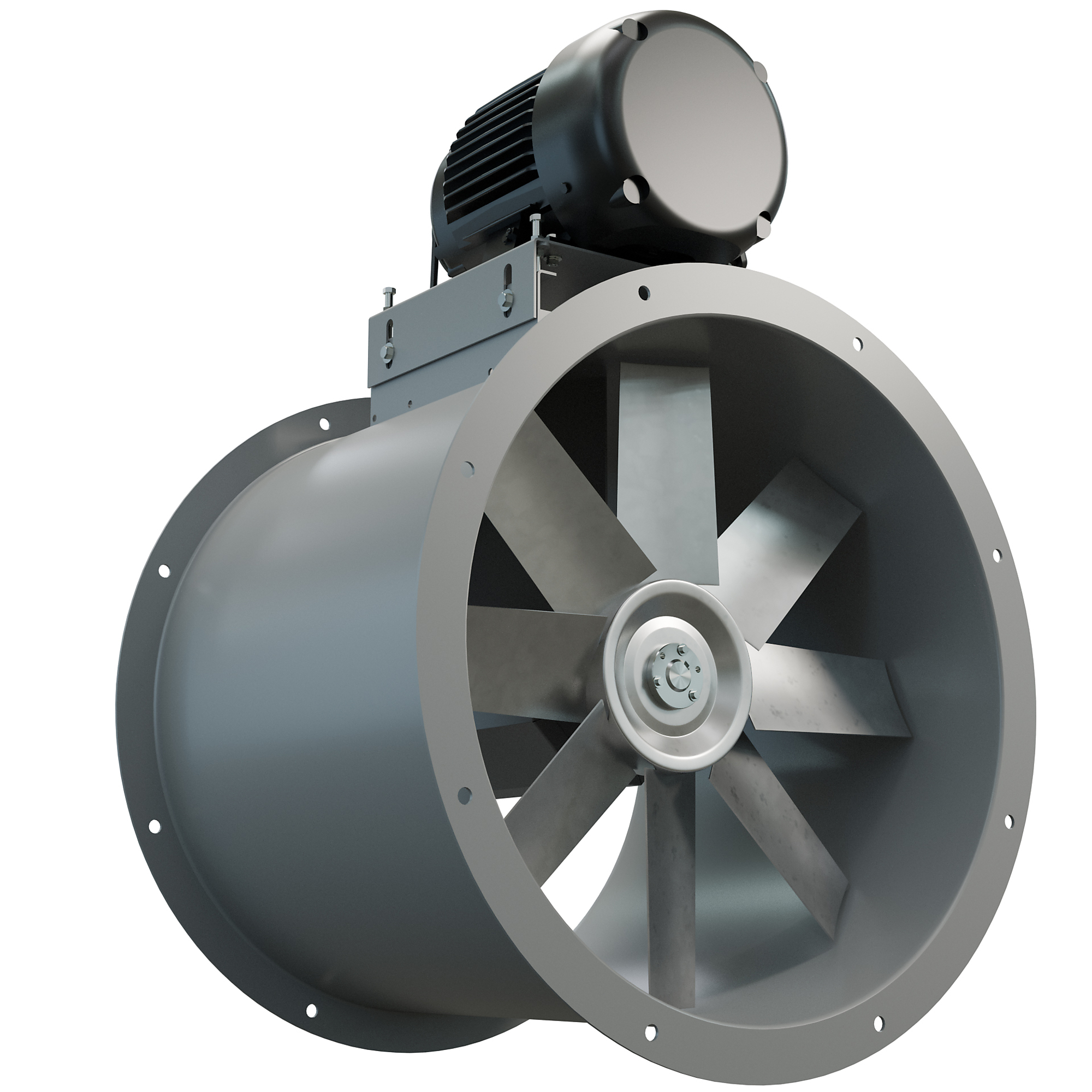

Canarm Belt Drive Axial Duct Fan, 34in., 15,100 CFM, 3-Phase, 230/460 Volts, Model# BTA34T30150M

Item# 59800
Canarm Belt Drive Axial Duct Fan, 34in., 15,100 CFM, 3-Phase, 230/460 Volts, Model# BTA34T30150M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Belt Drive Axial Duct Fan, 34in., 15,100 CFM, 3-Phase, 230/460 Volts, Model# BTA34T30150M

Click or Tap image to Zoom

$2429.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Adjustable motor base
  • Heavy duty pillow block ball bearings with high temperature grease
  • Extended lube lines with external grease fittings
  • 1/2 HP TEFC motor
  • Cast aluminum blades move large volumes of air

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Canarm Belt Drive Axial Duct Fan is designed for duct connected applications, including paint booth exhaust, air make-up fans, general exhaust and more. Requires hardwired electrical connection. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Axial duct fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Adjustable motor base
  • Heavy duty pillow block ball bearings with high temperature grease
  • Extended lube lines with external grease fittings
  • 1/2 HP TEFC motor
  • Cast aluminum blades move large volumes of air
  • For clean, dry air with a max. temp. of 200°F

Key Specs

AttributeSpecification

item#

59800

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

300.0 LB

Drive Type

Belt
AttributeSpecification

Fan Diameter

34 in

Air Delivery

15,100 cfm

Volts

230/460

Horsepower

0.5 HP

Reviews

Questions & Answers

Questions

  1. Good morning, I had a couple of questions regarding the following product. Can be able to get the pressure and the noise level on this product.

    1 answer

    1. The fan will handle up to 3/4" of static pressure. It would have decibel rating of 61 DB at 5 feet distance.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
