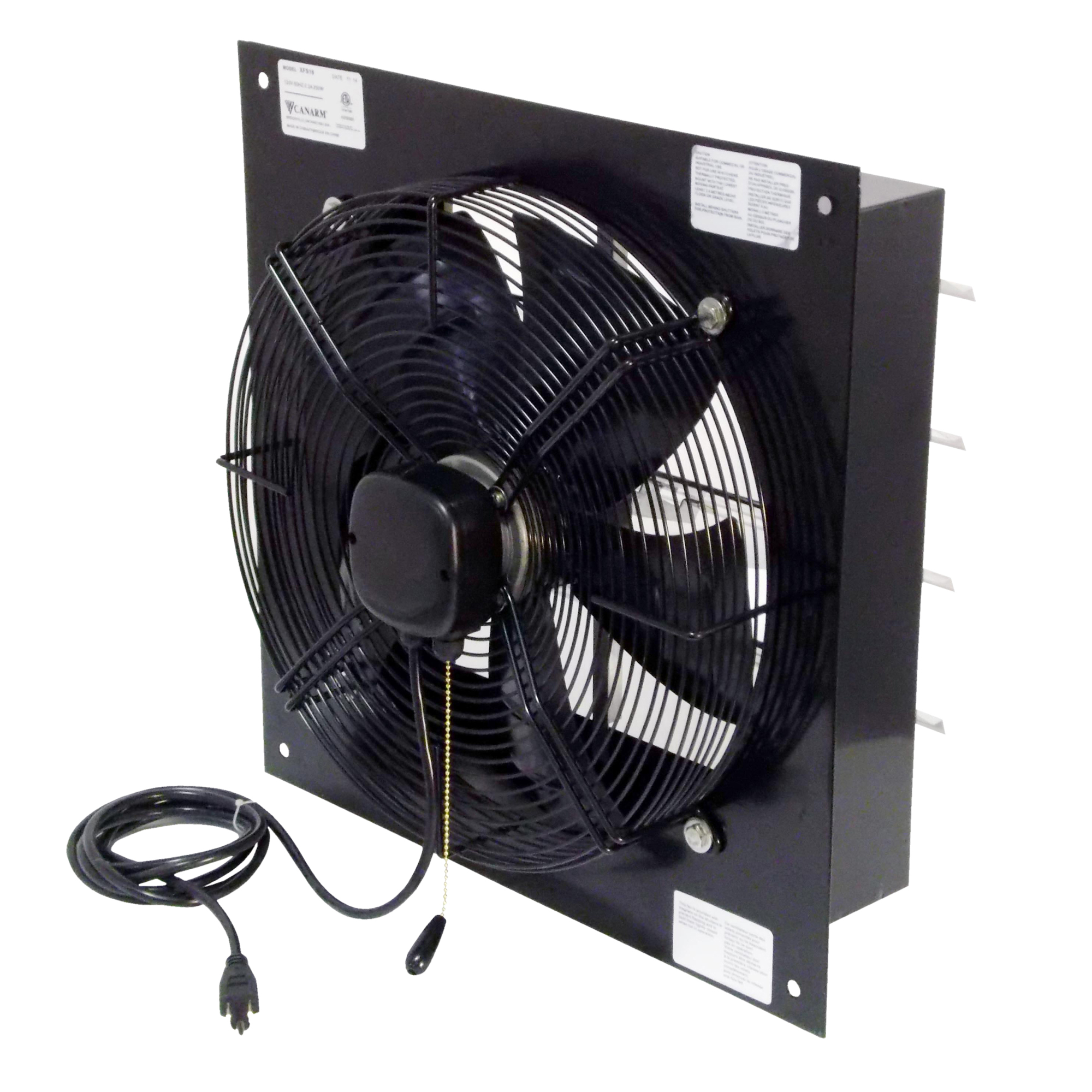

Canarm Exhaust Shutter Fan, 16in., 1800/2000/2300 CFM, 1/8 HP, Model# XFS16

Item# 44779
"Canarm Exhaust Shutter Fan, 16in., 1800/2000/2300 CFM, 1/8 HP, Model# XFS16"
Canarm Exhaust Shutter Fan, 16in., 1800/2000/2300 CFM, 1/8 HP, Model# XFS16

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Exhaust Shutter Fan, 16in., 1800/2000/2300 CFM, 1/8 HP, Model# XFS16

Click or Tap image to Zoom

$214.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 16in. diameter fan
  • Three-speed high-efficiency outside rotor 1/8 HP motor
  • Totally enclosed with sealed ball bearings
  • 115V, 1.6/1.8/2.0 Amps
  • Three speeds: 1,330/1,450/1,600 RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Powerful Canarm direct drive exhaust fan is ideal for light commercial applications. Direct-drive fan features a Euro design outside rotor motor for high efficiency, with totally enclosed with sealed ball bearings. Provides smooth, quiet and reliable maintenance-free operation. Fan has swept back, high-efficiency, low-noise blade design. Quiet aluminum shutters with tie bar are designed to maximize airflow. ETL certified.

What's Included

    (1) 16in. exhaust shutter fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 16in. diameter fan
  • Three-speed high-efficiency outside rotor 1/8 HP motor
  • Totally enclosed with sealed ball bearings
  • 115V, 1.6/1.8/2.0 Amps
  • Three speeds: 1,330/1,450/1,600 RPM
  • Swept back, high-efficiency, low-noise blades
  • Air delivery: 1,800/2,000/2,300 CFM

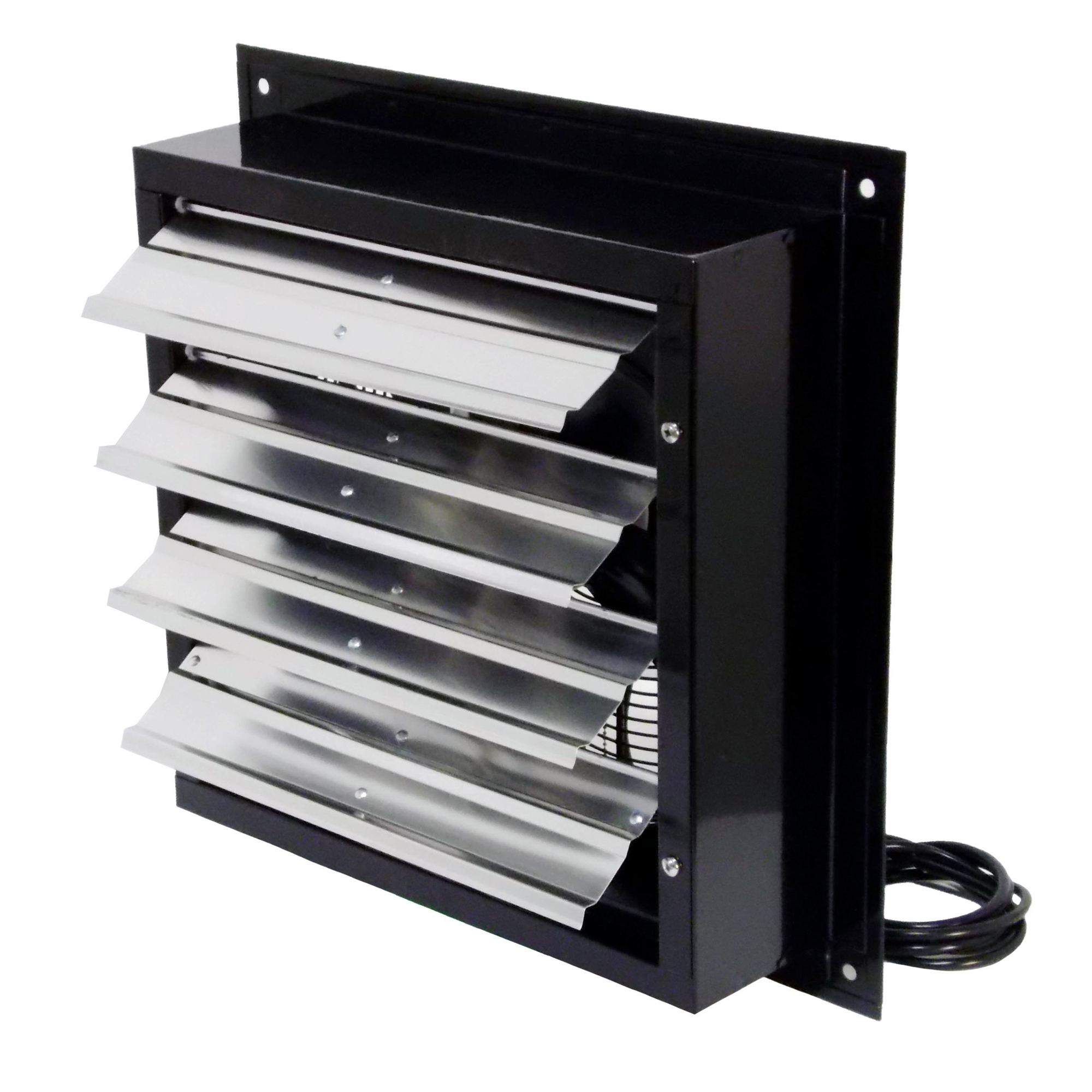

  • Quiet aluminum shutters with tie bar for maximum airflow
  • 58dB high-speed sound level
  • Strong powder-coated OSHA guarding inside
  • Pull chain speed control
  • ETL certified
  • Durable steel construction with powder-coat black finish
  • 9ft. power cord with 115V 3-prong plug
  • Ships fully assembled
  • Overall size: 21 3/10in.W x 9 3/5in.D x 21 3/10in.H

Key Specs

AttributeSpecification

item#

44779

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

33.0 LB

Drive Type

Direct

Fan Diameter

16 in
AttributeSpecification

Air Delivery

2,300 cfm

Volts

115

Speeds (qty.)

3

Max. Fan Speed

1,600 rpm

Horsepower

0.12 HP

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. How loud is the noise of this fan in decibels?

    1. Noise level if great. Does not bother me.

      Helpful?

    2. This fan has been rated by the manufacturer as 58 decibels at high speed.

      Helpful?

  2. Can this fan function in a horizontal ceiling mount configuration?

    1. Problem would be with the shutters. They are intended to open with air pressure from the fan when it comes on and shut when it goes off. Gravity does the closing. So, in the horizontal position the fan would work, but the shutters would remain open all the time.

      Helpful?

    2. The exhaust fan would not be able to be mounted in a horizontal position.

      Helpful?

  3. what size intake needs to be on the opposite side of this exhaust fan?

    1 answer

    1. This fan does not require an air intake.

      Helpful?

  4. do the shutters have magnets to help keep them closed when fan is off on windy days? The reviews for the 12" fan mention this and I hope the 16" does too.

    1 answer

    1. The shutters have a small magnet to prevent flapping.

      Helpful?

  5. do I need a hood for this fan

    1 answer

    1. A hood is not required for use with this model.

      Helpful?

  6. Can a cooling thermostat be installed with this fan? And if so, which one would you recommend?

    1 answer

    1. This fan has a pull string speed controller and could not be operated with a thermostat or other control.

      Helpful?

  7. Fan Control

    Can this fan be used with a thermostat and humidistat?

    1 answer

    1. This fan has a pull string speed controller and could not be operated with a thermostat or other control.

      Helpful?

  8. Is this fan suitable for ventilating my wood working shop where I spray varnish or is an explosion proof necessary?

    1 answer

    1. If there are flammable fumes you should always use an explosion proof fan.

      Helpful?

  9. Vertical wall usage

    I have a vaulted ceiling in my residence. A section in one room is vertical and backs to the attic space. Would this unit be appropriate? Will the shutters close when the unit is off?
    Ref:"Canarm Exhaust Shutter Fan - 16in. Dia., 1,800/2,000/2,300 CFM, 1/8 HP, Model# XFS16"

    1 answer

    1. This fan is appropriate to exhaust up to 2300 CFM. It will work on a vertical wall that will accommodate an 18" x 18" hole for the fan. A contractor should be consulted for any installation. A local professional will know the local laws and verify if it is a safe installation.

      Helpful?

  10. What size rough opening in the wall is required?

    1 answer

    1. The rough opening size for this fan would be 20 7/8" x 20 7/8" square.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
