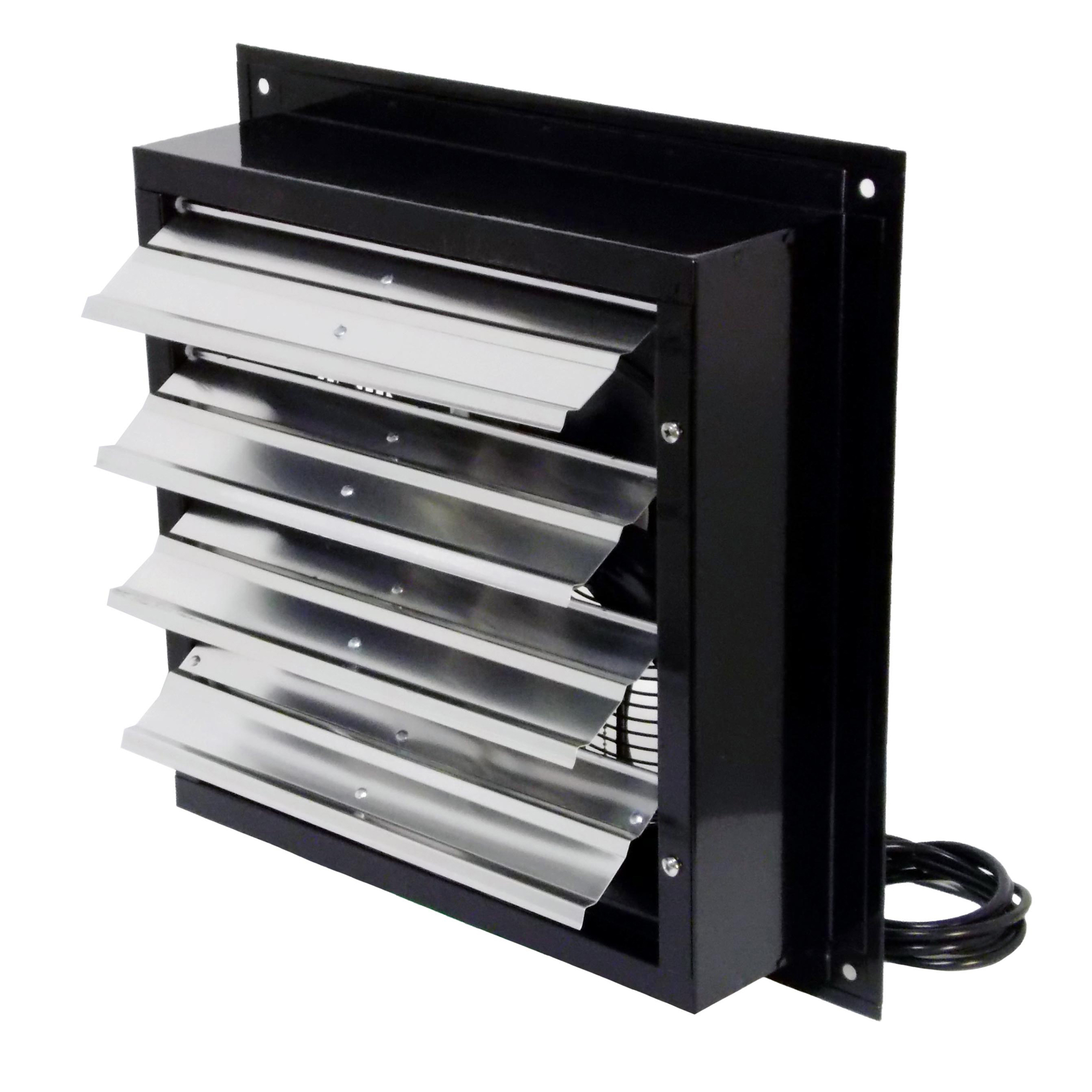

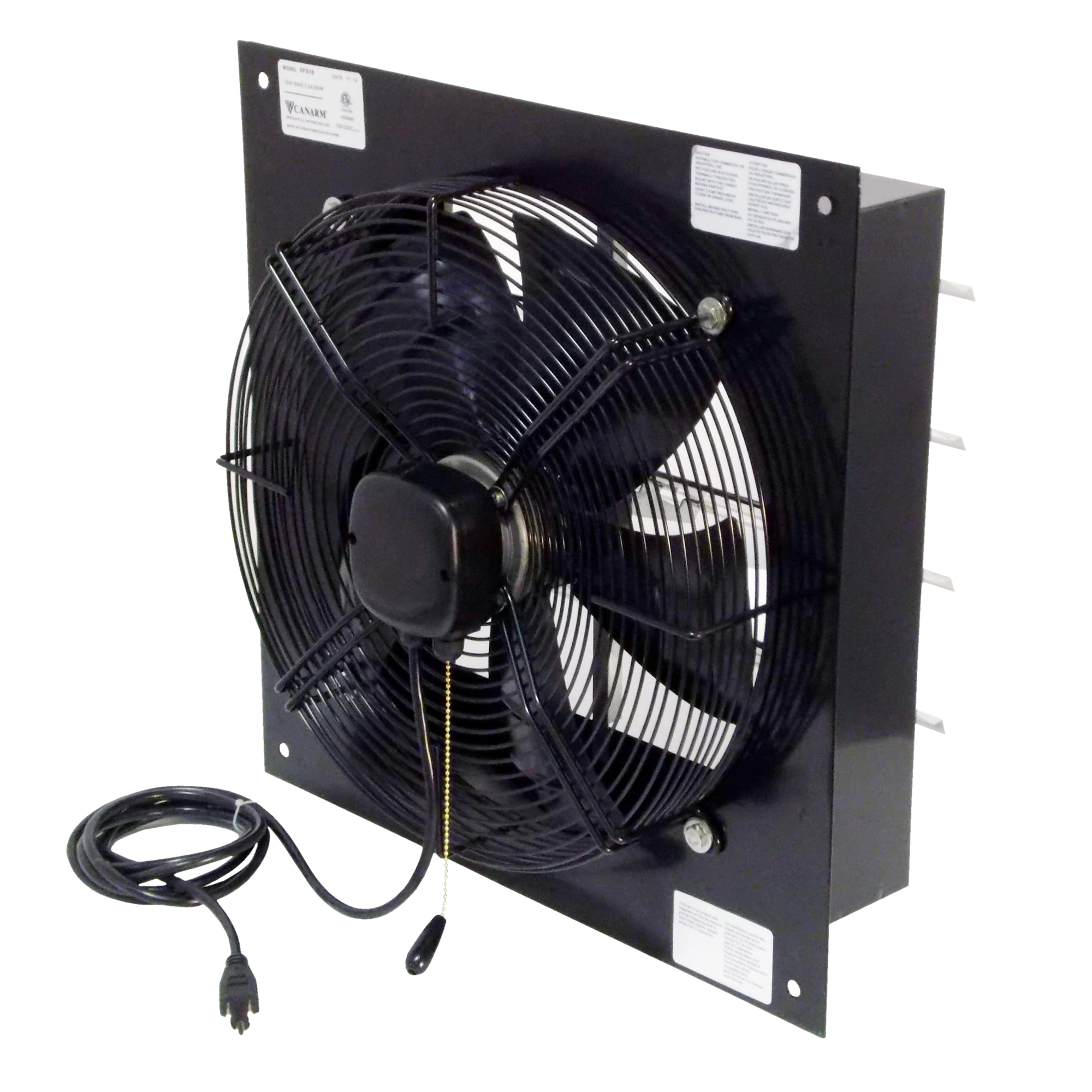

Canarm Exhaust Shutter Fan, 12in., 800/900/1,100 CFM, 1/12 HP, Model# XFS12

Item# 44778
"Canarm Exhaust Shutter Fan, 12in., 800/900/1,100 CFM, 1/12 HP, Model# XFS12"
Canarm Exhaust Shutter Fan, 12in., 800/900/1,100 CFM, 1/12 HP, Model# XFS12

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Exhaust Shutter Fan, 12in., 800/900/1,100 CFM, 1/12 HP, Model# XFS12

Click or Tap image to Zoom

$189.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 12in. diameter fan
  • Three-speed high-efficiency outside rotor 1/12 HP motor
  • Totally enclosed with sealed ball bearings
  • 115V, 0.8/0.8/0.7 Amps
  • Three speeds: 1,150/1,420/1,600 RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Powerful Canarm direct drive exhaust fan is ideal for light commercial applications. Direct-drive fan features a Euro design outside rotor motor for high efficiency, with totally enclosed with sealed ball bearings. Provides smooth, quiet and reliable maintenance-free operation. Fan has swept back, high-efficiency, low-noise blade design. Quiet aluminum shutters with tie bar are designed to maximize airflow. ETL certified.

What's Included

    (1) 12in. exhaust shutter fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 12in. diameter fan
  • Three-speed high-efficiency outside rotor 1/12 HP motor
  • Totally enclosed with sealed ball bearings
  • 115V, 0.8/0.8/0.7 Amps
  • Three speeds: 1,150/1,420/1,600 RPM
  • Swept back, high-efficiency, low-noise blades
  • Air delivery: 800/900/1,100 CFM
  • Quiet aluminum shutters with tie bar for maximum airflow
  • 58dB high-speed sound level
  • Strong powder-coated OSHA guarding inside
  • Pull chain speed control
  • ETL certified
  • Durable steel construction with powder-coat black finish
  • 9ft. power cord with 115V, 3-prong plug
  • Ships fully assembled
  • Overall size: 17 3/10in.W x 8 9/10in.D x 17 5/16in.H

Key Specs

AttributeSpecification

item#

44778

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

17.0 LB

Drive Type

Direct

Fan Diameter

12 in
AttributeSpecification

Air Delivery

1,100 cfm

Volts

115

Speeds (qty.)

3

Max. Fan Speed

1,600 rpm

Horsepower

1.5 HP

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Do the Shutters close when this Exhaust Fan#XFS12 is turned off?

    While at the Northern Tools Store (Jacksonville Fl. 32225) today, I bought this Fan with free shipping 5 to 7 days. No-one could Definitely say Yes or No. Please let me know asap, just in case I need to order a different Fan. By the way, I spoke with 3-seperate employees and each one had an up-lift spirit in their voice, they really wanted to make sure they did what they could for me!! Please Thank them again for me. Mark W. Jacksonville Fl.

    1. Yes the shutters close when the fan is off.

      Helpful?

    2. The fan has gravity shutters. When the fan is off the shutters will be closed.

      Helpful?

  2. Can you install a thermostat on this fan

    1 answer

    1. A thermostat cannot be installed.

      Helpful?

  3. Does this fan has a built in thermostat, or is it just operated by an on-off switch?

    1 answer

    1. This is operated by the on-off switch, it is not equipped with a thermostat.

      Helpful?

  4. What is the HP of the Motor? Title and description show 1/12 HP but Spec. shows 1 1/2 HP?

    1 answer

    1. The model XFS12 will come with a 1/12 HP motor.

      Helpful?

  5. What are the outside dimensions of the box around the louvers, and dimensions (horiz. & vert.) between the mounting holes?

    1 answer

    1. The box around the louvers would be 13 1/2" x 13 1/2" square.

      Helpful?

  6. When mounting does the thickness of the wall matter, 4 or 6 inch walls?

    1 answer

    1. This will work with any thickness of wall. Thicker walls will require more trim work to close up the gaps in the wall.

      Helpful?

  7. What is the material of the fan blades?

    aluminum?
    plastic?
    other?

    1 answer

    1. The blades on the exhaust fan are made of steel.

      Helpful?

  8. Parts

    I need a new switch do you sell parts for this fan.

    1 answer

    1. Replacement parts for this shutter fan would be available directly through the manufacturer.

      Helpful?

  9. What is the minimum space needed between studs for mounting?

    1 answer

    1. This shutter fan requires a rough cut opening of 14" x 14" for mounting.

      Helpful?

  10. Can this fan be placed in a window provided it fits?

    1 answer

    1. This shutter fan can be mounted in a window as long as it fits. The overall width and height is 17-3/10" x 17-3/10". The rough cut opening requirement for mounting it in a wall is 14" W x 14" H.

      Helpful?
