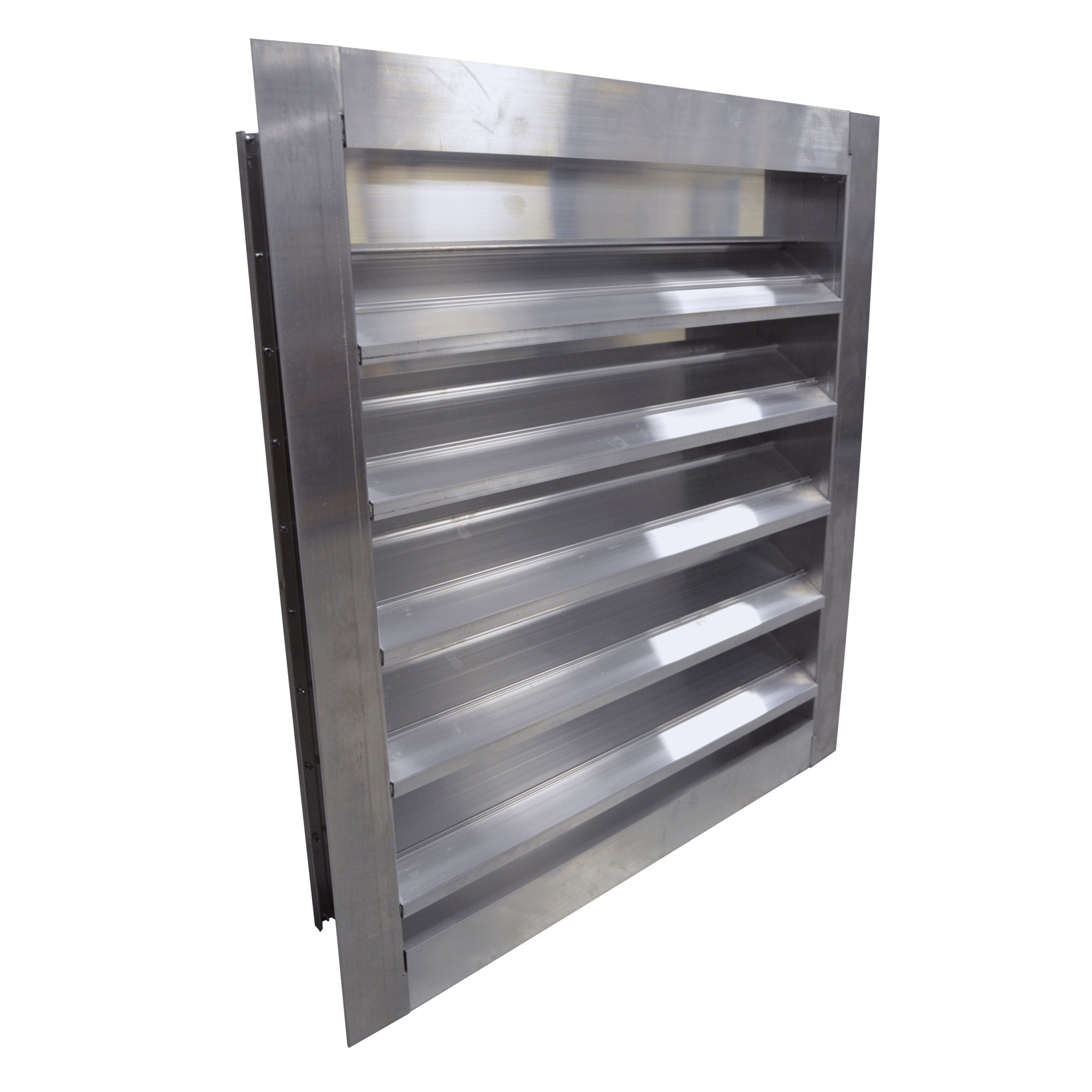

Canarm EL4F24x24 Fixed 4-inch Aluminum Louvre with Flange

Item# 7452561
Canarm EL4F24x24 Fixed 4-inch Aluminum Louvre with Flange

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm EL4F24x24 Fixed 4-inch Aluminum Louvre with Flange

Click or Tap image to Zoom

$261.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fixed 4-inch deep aluminum louvre with flange for exterior wall installation
  • Angled blades at 37-degrees designed for positive drainage and storm-resistant airflow
  • Constructed from .081" (2.06mm) thick extruded 6063-T5 aluminum for strength and corrosion resistance
  • Blade spacing at 4" centers for efficient intake and exhaust ventilation
  • Includes 1/2" x 1/2" regalvanized 19 gauge wire bird screen

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Canarm EL4F Fixed 4in. Aluminum Louvre with Flange is a flanged, wall-mounted ventilation louvre designed for outdoor intake and exhaust openings in commercial, institutional, and industrial buildings. Featuring 4in. deep blades set at an optimized angle, the EL4F promotes efficient airflow while providing positive drainage to help prevent water streaking and wall discoloration. Fabricated from extruded 6063-T5 aluminum, this louvre offers excellent corrosion resistance and structural rigidity. The integral perimeter flange simplifies installation into wall openings and helps create a clean, weather-resistant interface. A rigid blade assembly with mitered corners ensures long-term dimensional stability, and a regalvanized bird screen is included to keep debris and pests out while maintaining airflow.

What's Included

    (1) Louver

Downloads

Product Manual

Features + Benefits

  • Fixed 4-inch deep aluminum louvre with flange for exterior wall installation
  • Angled blades at 37-degrees designed for positive drainage and storm-resistant airflow
  • Constructed from .081" (2.06mm) thick extruded 6063-T5 aluminum for strength and corrosion resistance
  • Blade spacing at 4" centers for efficient intake and exhaust ventilation
  • Includes 1/2" x 1/2" regalvanized 19 gauge wire bird screen

Key Specs

AttributeSpecification

item#

7452561

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

18.0 LB

Product Weight

18.0000 lb

Dimensions L x W x H (in.)

27.0 x 29.0 x 8.0 in
