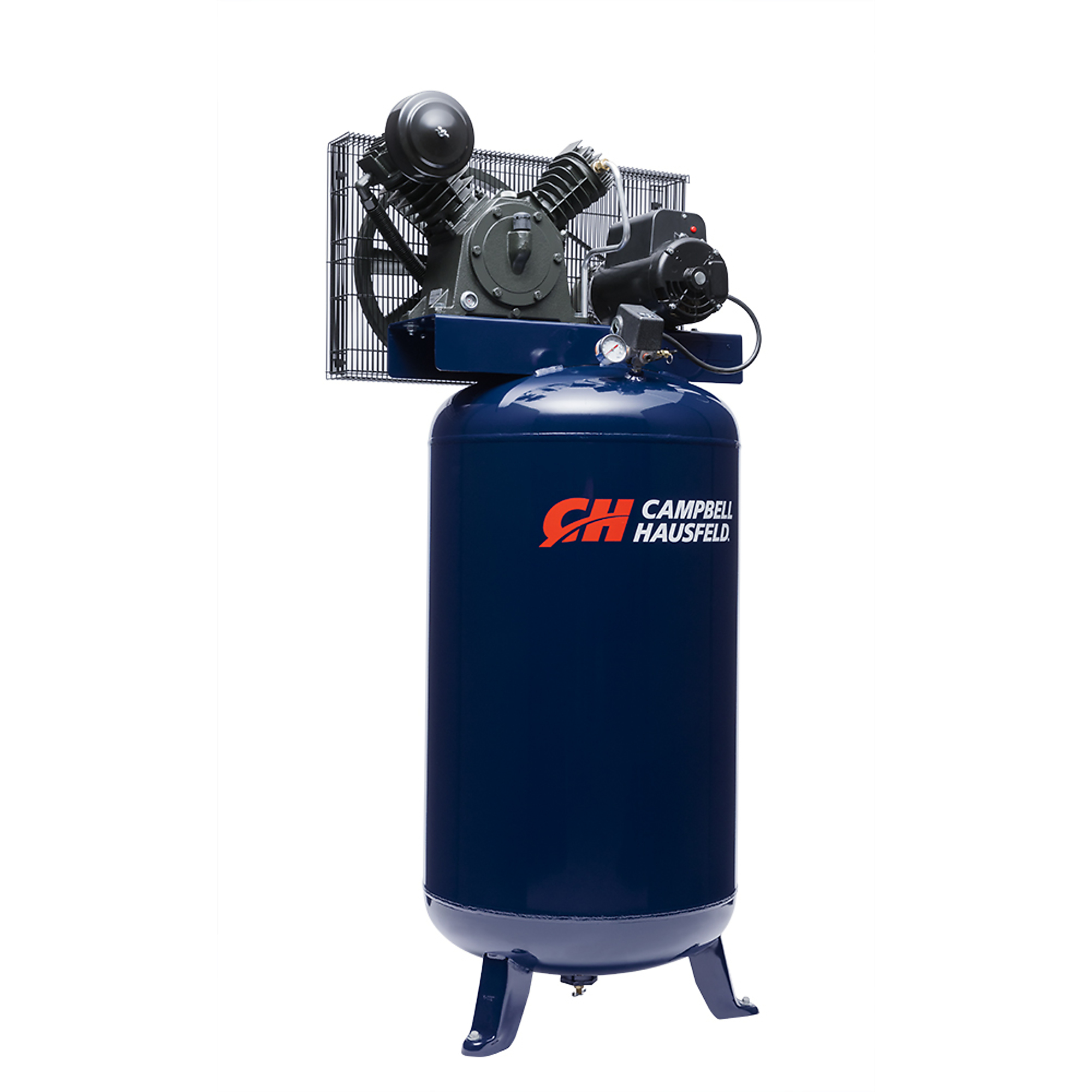

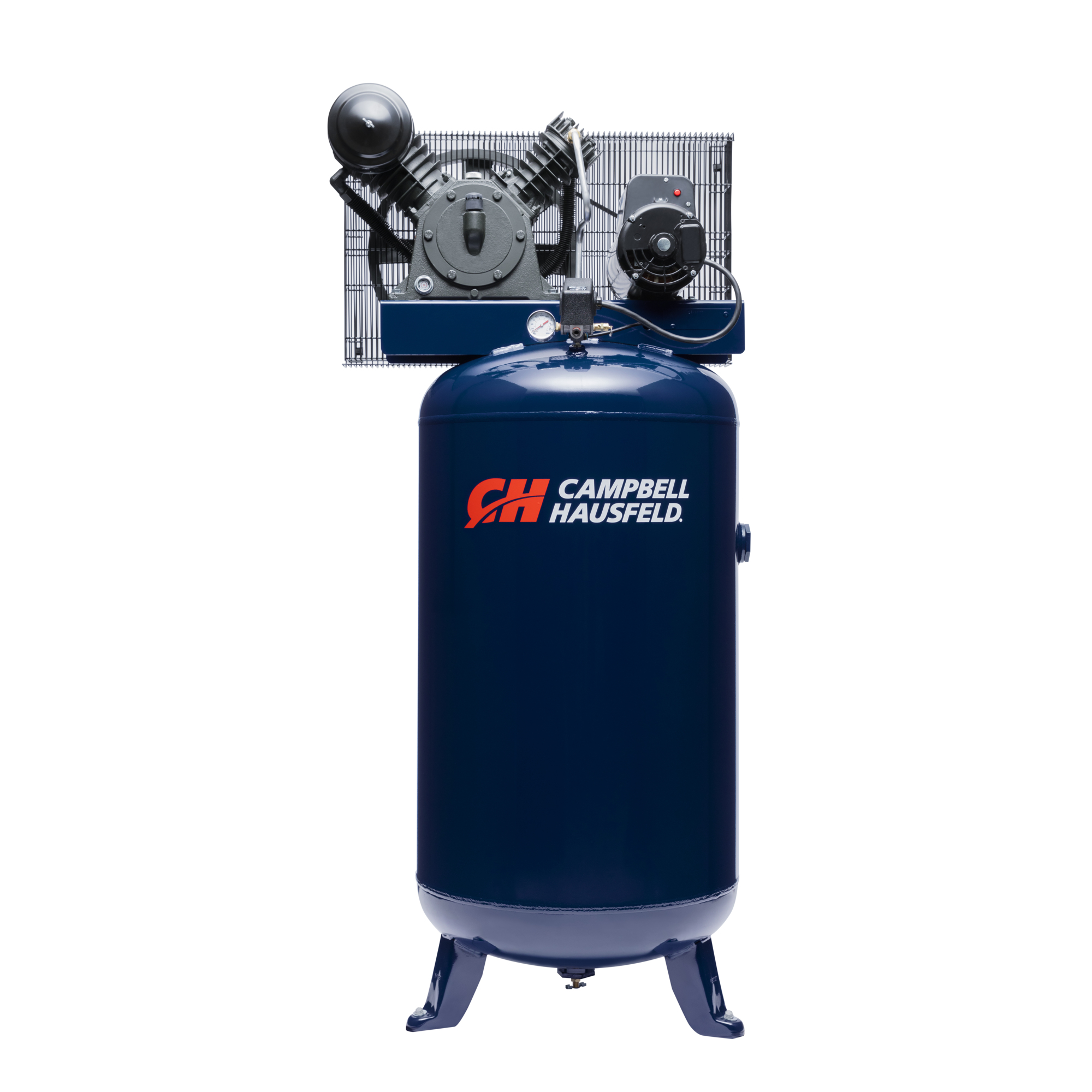

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 5HP, 1 Phase, Model# HS5180

Item# 7304285
Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 5HP, 1 Phase, Model# HS5180

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 5HP, 1 Phase, Model# HS5180

Click or Tap image to Zoom

$1899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Commercial Duty Cast Iron, Oil-Lubricated, 2 Stage Pump, 80 Gal. Tank, 14.0 CFM @ 90 PSI, 175 Max PSI, 230 Volt, 22 Amp, 1PH, 60 Hz
  • Reliable, 2-stage pump for up to 12,000 hours of extended life
  • 35% quieter and 60% cooler tank than comparable compressor units
  • Fully enclosed metal belt guard for safety and protection during operation
  • Capable of operating over 20 high-demand air tools making the HS5180 a versatile unit

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld 80 Gal. vertical air compressor (HS5180) is ideal for a small shop, automotive enthusiast or serious DIY user. This air compressor operates on 230-Volt household current and will run high-demand air tools such as air sanders and air grinders on a daily basis. The commercial-duty, oil-lubricated, cast-iron, two-stage pump is designed to provide up to 12,000 hours of extended life while delivering 14 CFM of air at 90 PSI. The durable 80 gallon ASME-code tank is a vertical design to save space in the shop or garage.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • Commercial Duty Cast Iron, Oil-Lubricated, 2 Stage Pump, 80 Gal. Tank, 14.0 CFM @ 90 PSI, 175 Max PSI, 230 Volt, 22 Amp, 1PH, 60 Hz
  • Reliable, 2-stage pump for up to 12,000 hours of extended life
  • 35% quieter and 60% cooler tank than comparable compressor units
  • Fully enclosed metal belt guard for safety and protection during operation
  • Capable of operating over 20 high-demand air tools making the HS5180 a versatile unit
  • Ideal for automotive spray painting, automotive sanding work, cutting sheet metal, grinding, making it ideal for a small shop, automotive enthusiast or serious DIY user
  • Finish your projects faster and easier with Campbell Hausfeld - The Air Power Expert

Key Specs

AttributeSpecification

item#

7304285

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 year limited warranty

Ship Weight

429.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

14

Motor Phase

1

Stage

2

Tank Orientation

Vertical
AttributeSpecification

Horsepower

5 HP

Max. PSI

175

Amps

22

Pump Life

12,000 hr

Pump Material

Cast Iron

CFM at 40 PSI

15.2

Oil Required

Yes

Electronic Drain Valve

No

Product Weight

429.0000 lb

Dimensions L x W x H (in.)

37.0 x 33.0 x 80.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 year limited warranty
