The model XC802100 will need to be hardwired. The compressor draws 22 amps at 230 volt. It will require a 40 amp breaker.
Discount Details
- The promo code 290262 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $250 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax, & shipping.
- Promo code not valid on prior purchases or on Honda & Stihl products, and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited time offer. Subject to change without notice.

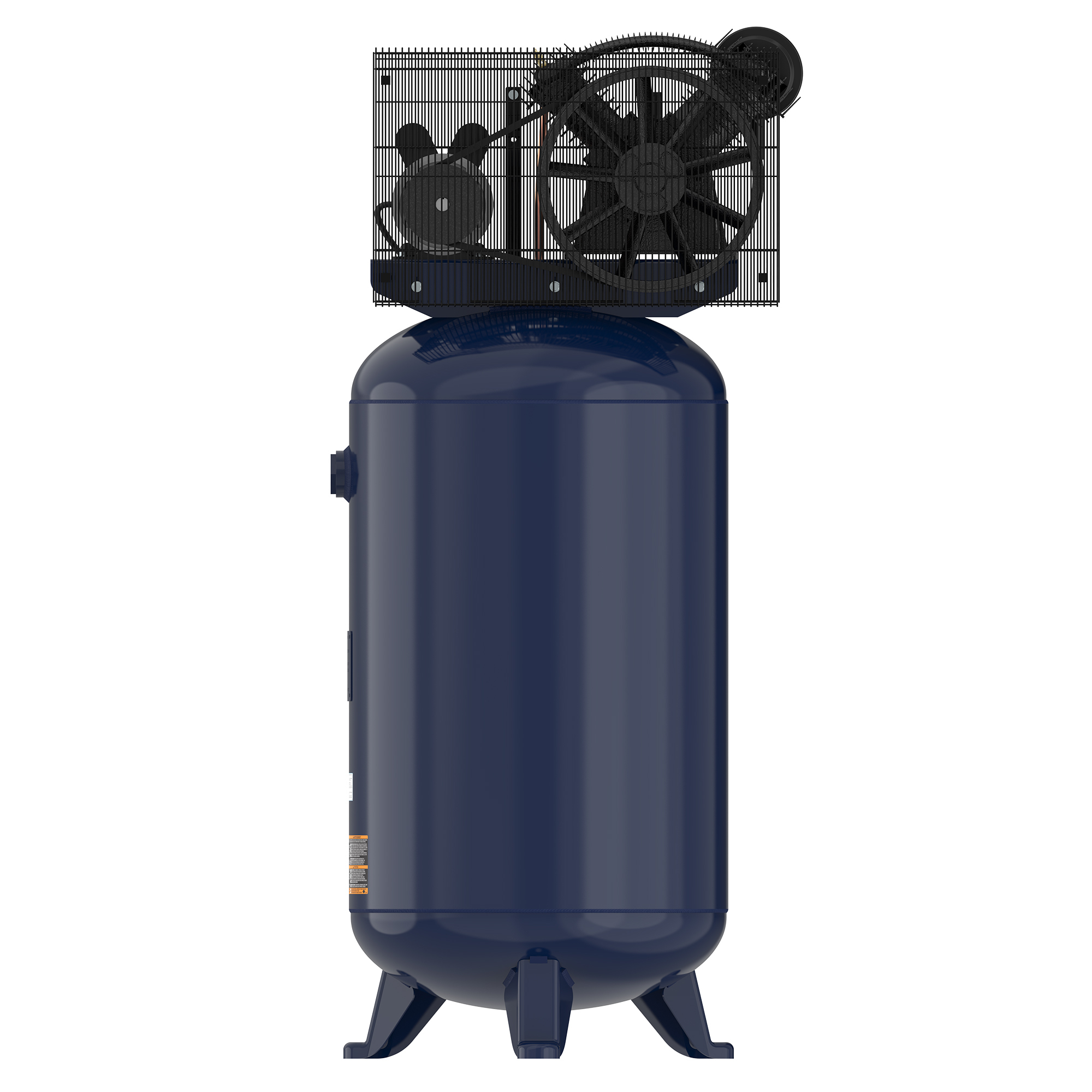

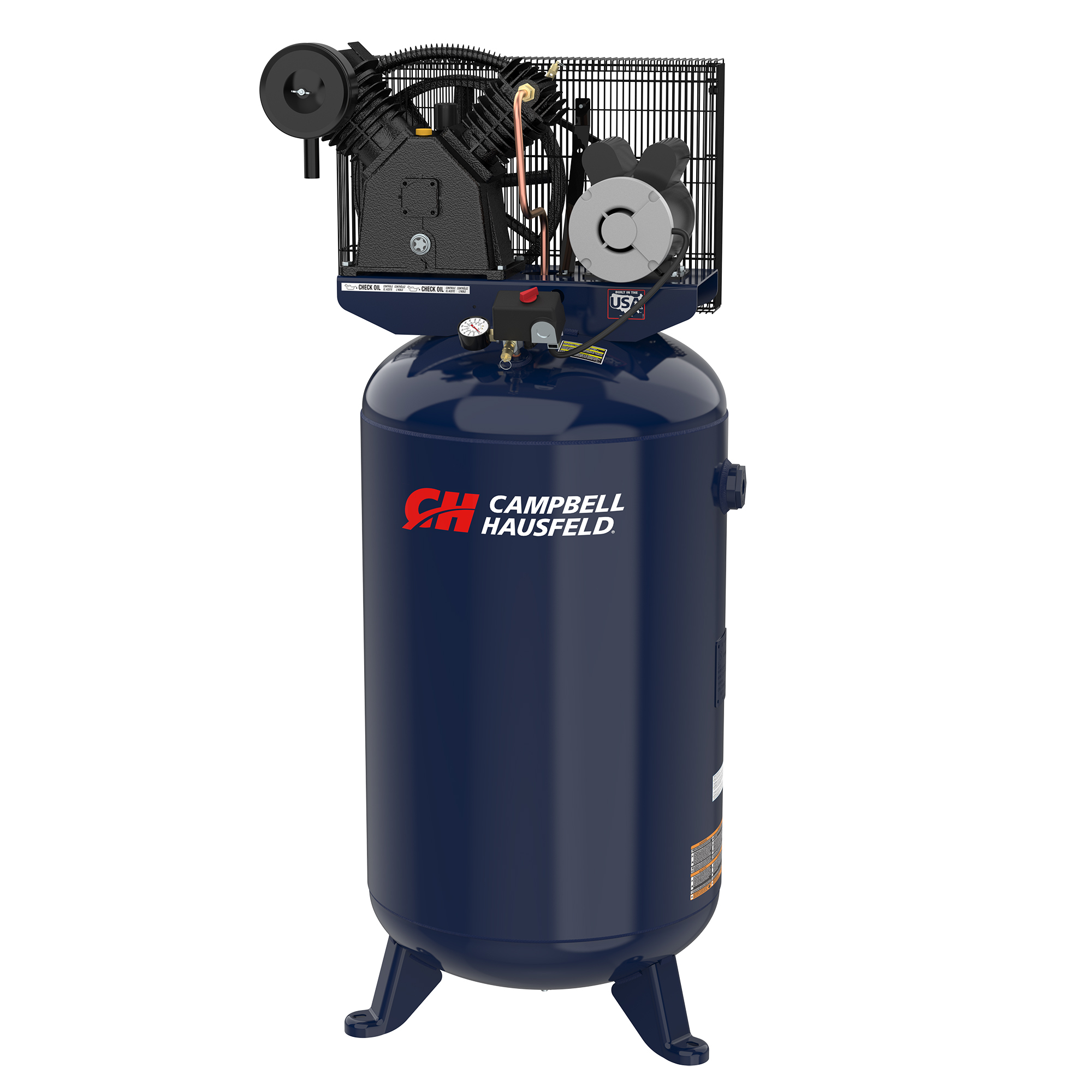

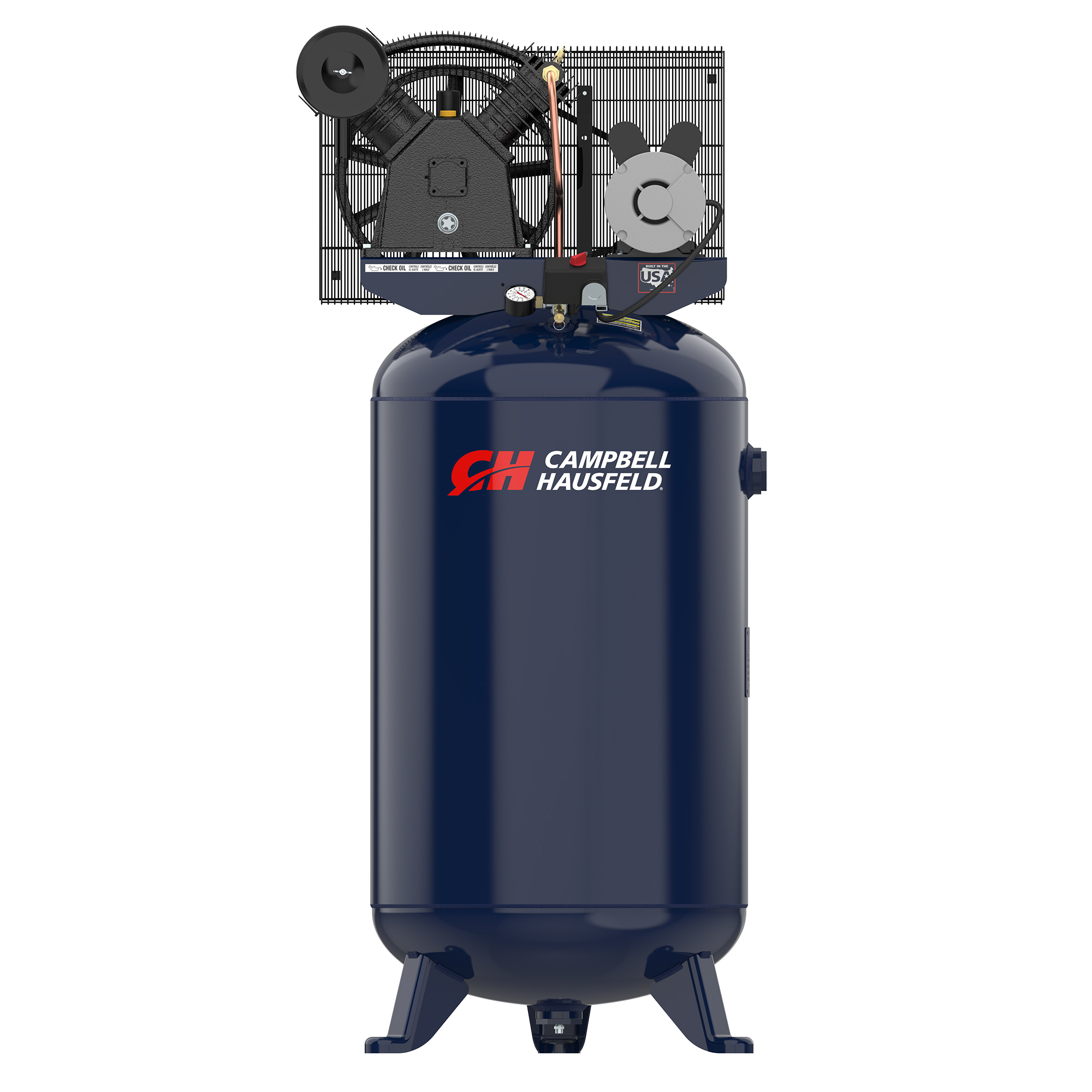

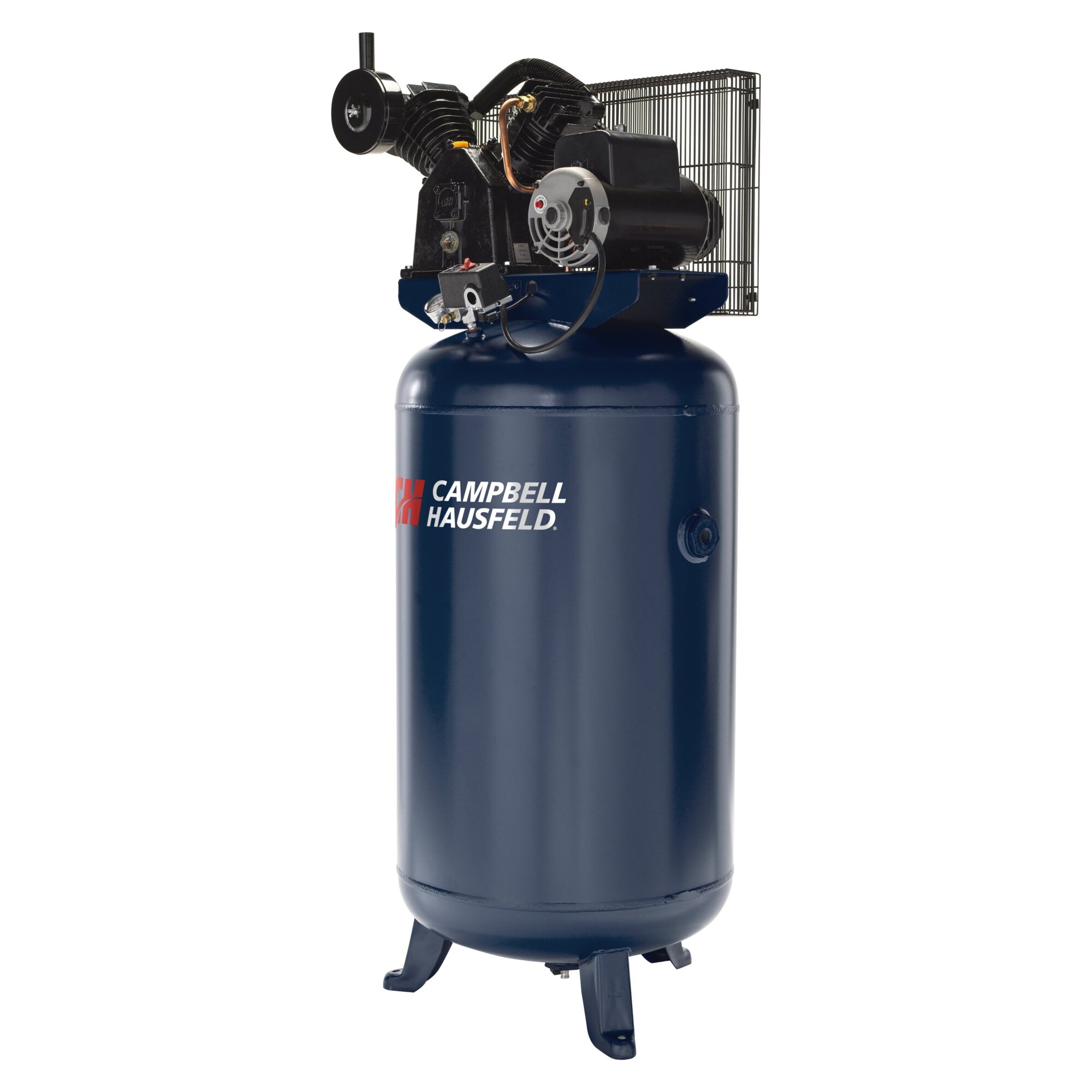

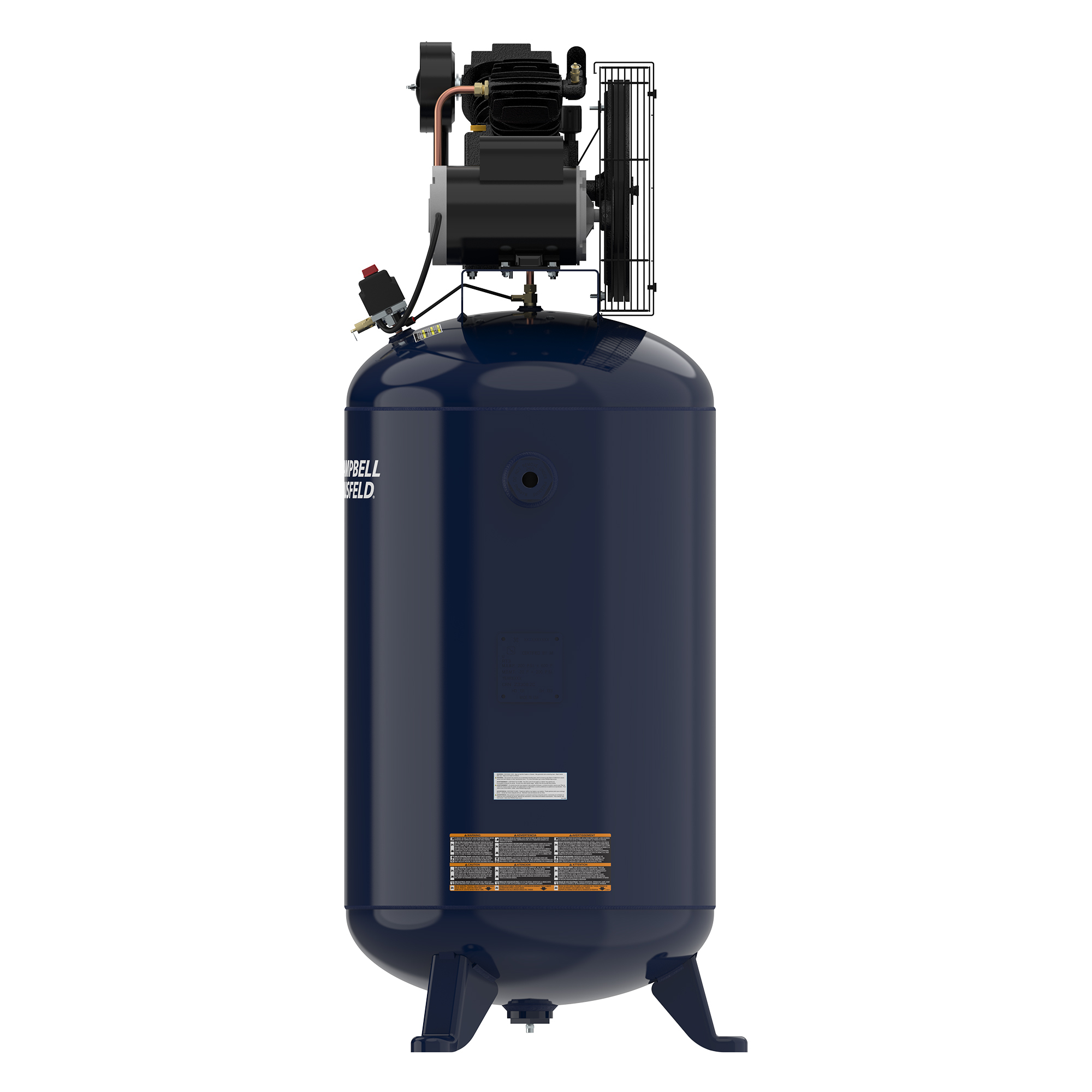

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 175 PSI, 2-Stage, Model# XC802100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Reliable Performance: 150 max PSI and 2.6 CFM @ 90 PSI with enhancements for finish trades
- Long life oil free, maintenance free pump for convenient use
- High flow regulator and couplers to maximize air tool performance
- Two universal couplers to easily support two users
- Console cover is removable to allow easy repair of controls
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) compressor
Downloads
Features + Benefits
- Reliable Performance: 150 max PSI and 2.6 CFM @ 90 PSI with enhancements for finish trades
- Long life oil free, maintenance free pump for convenient use
- High flow regulator and couplers to maximize air tool performance
- Two universal couplers to easily support two users
- Console cover is removable to allow easy repair of controls
- Includes 1/4 in. x 50 ft. Premium Blend Air Hose with 1/4 in. fittings
Key Specs
| Attribute | Specification |
|---|---|
item# | 7304331 |
Brand | Campbell Hausfeld |
Manufacturer's Warranty | 3 year limited warranty |
Ship Weight | 350.0 LB |
Horsepower | 5 HP |
Air Tank Size | 80 Gal |
Volts | 230 |
CFM at 90 PSI | 11.9 |
Max. PSI | 175 |
Stage | 2 |
| Attribute | Specification |
|---|---|
Amps | 22 |
Pump Material | Cast Iron |
Pump Drive | Belt |
CFM at 40 PSI | 12.2 |
Noise Level | 84 dB |
Oil Required | Yes |
Tank Orientation | Vertical |
Product Weight | 350.0000 lb |
Dimensions L x W x H (in.) | 34.0 x 36.0 x 72.0 in |
Reviews
Questions & Answers
Questions
-
· 2 months ago
Circuit breaker required
1 answer-
ProductExpert11· 2 months ago
Helpful?
-
-
· 3 months ago
Will this run a paint gun and a cabinet blaster
1 answer-
ProductExpert6· 3 months ago
The air compressor has a maximum PSI rating of 175 PSI. It will put out 11.9 CFM at 90 PSI and 12.2 CFM at 40 PSI. You will need to check the CFM and PSI requirements for the paint gun and cabinet blaster you want to run on it.
Helpful?
-
Warranty
Manufacturer's Warranty
3 year limited warranty
Compare with Most Popular in Stationary Electric Air Compressors
See All Stationary Electric Air Compressors
See All Campbell Hausfeld Stationary Electric Air Compressors
Currently Viewing This Product
Item # 7304331
$1699.99Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $5749.99
Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Item # 3751797
$2899.99Shipping:
Free shipping (lower 48 states) - Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $8199.99
Shipping:
Available nowStore Pickup:
Not available - online only
Specifications
5 HP
10 HP
5 HP
10 HP
80 Gal
120 Gal
80 Gal
80 Gal
230
230
460
460
11.9
36
17.2
40
175
175
175
175
2
2
2
2
22
-
-
24
Cast Iron
Cast Iron
-
Cast Iron
Belt
Belt
-
-
12.2
-
-
42
84 dB
-
-
-
Yes
Yes
-
Yes
Vertical
Horizontal
-
-
350.0000 lb
lb
540.0000 lb
930.0000 lb
34.0 x 36.0 x 72.0 in
78.0 x 29.5 x 56.0 in
35.0 x 42.0 x 78.0 in
x 42.0 x in
-
1
-
1
-
90 PSI
-
145 PSI
-
3
3
3
-
Splash
-
Pressure
-
Yes
-
-
-
No
-
-
-
No
-
-
-
None
-
-
-
Manual
Manual
Automatic
-
-
80 %
70 %
-
-
17,500 hr
70,000 hr
-
-
3/4 in. NPT
3/4 in. NPT
-
-
-
1,750
-
-
-
34
-
-
-
Yes
-
-
-
4.5 min
